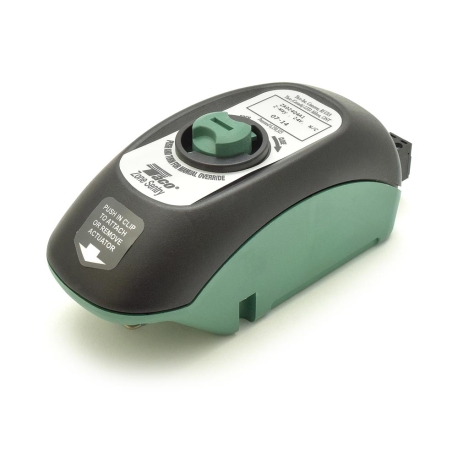

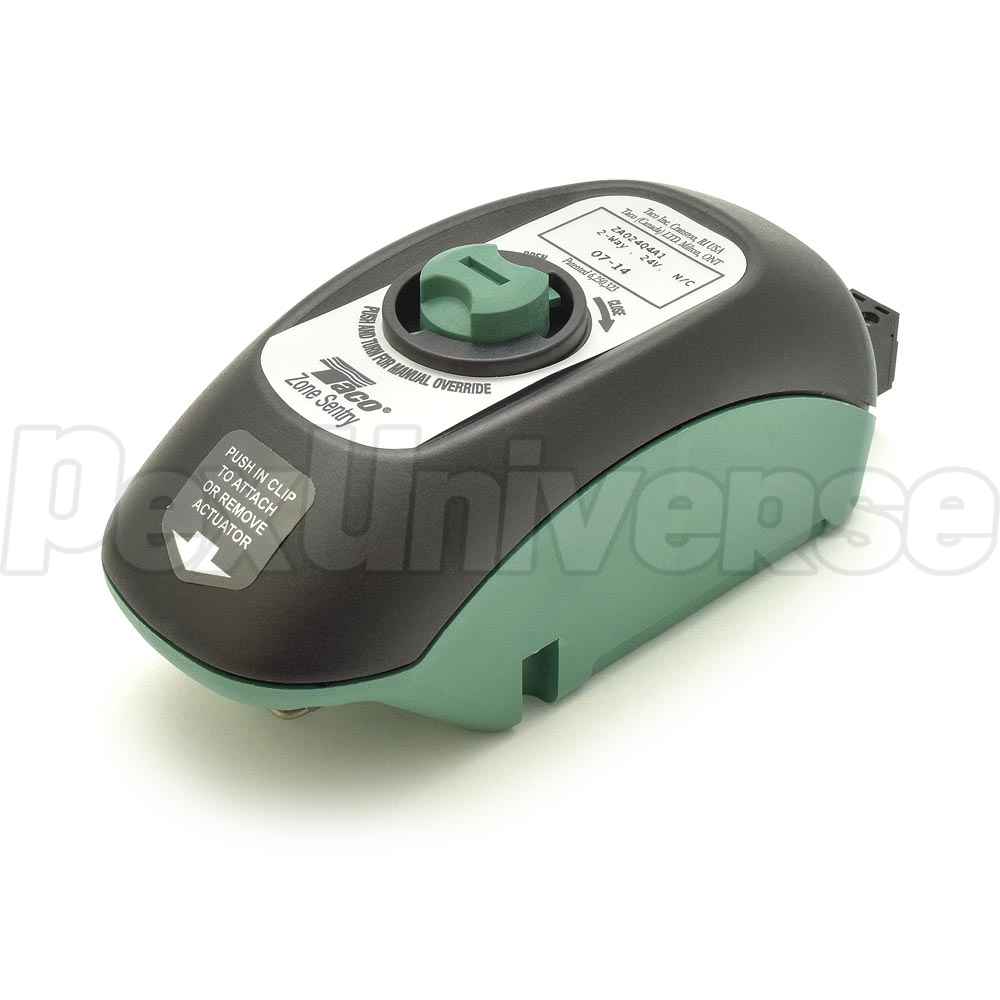

Replacement Power Head for Taco Zone Sentry Zone Valves, Normally Closed
Brand: Taco
Part#: ZA024Q4A1
Ship Pickup
Usually ships: Upon availability
$118.60 / each
$686.40 box of 6
($114.40 each)
Free Shipping on any qty
Add to Cart

Description

Taco ZA024Q4A1 is a Replacement Actuator Head for Zone Sentry Zone Valve, provides on-off control in both open and closed hot or chilled water hydronic systems.

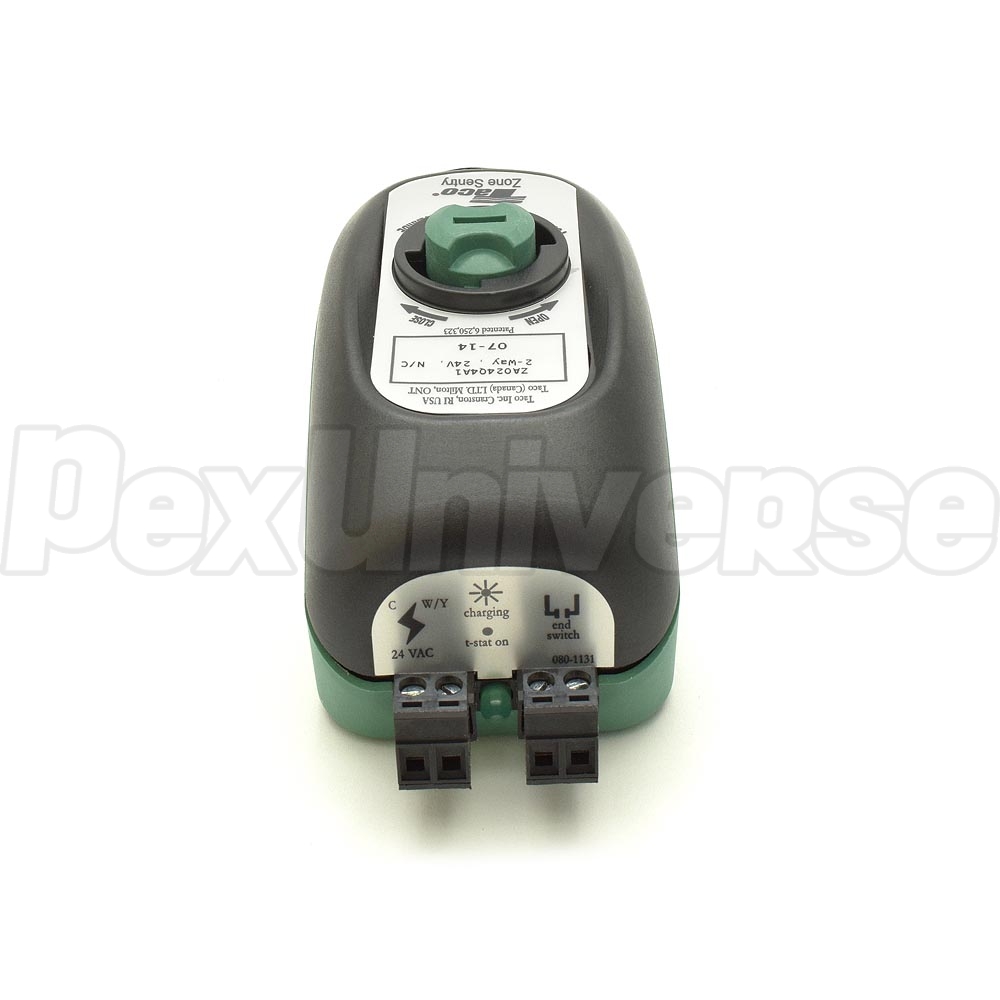

The state of-the-art features of Actuator Head make the control truly universal and will prove to be both reliable and efficient. It is loaded with innovative technology and boasts a new Prostar Capacitor and a reliable high-torque, high-efficiency miniature motor. The quick Snap-in connects on the back of the valve ensuring a simple, secure and fast wiring hook-up. A green LED light shows full functionality of the valve


Features:
  • Taco ZA024Q4A1 Zone Sentry
  • Replacement Actuator Head
  • Normally Closed Position
  • Uses up to 93% less energy than other commonly installed zone valves
  • Multi function LED assists with troubleshooting
  • The actuator mounts on the valve in either direction
  • Replaces Taco EN024Q4A2 and AN024Q4A2 Actuator Heads

Technical Specifications:
  • Maximum Operating Pressure: 300 psi
  • Maximum Shutoff Pressure: 125 psi
  • Fluid Temperature Range: 20 to 240F, at 135F ambient
  • Service: Closed systems
  • Optional open system configuration
  • Up to 50% Glycol
  • Ball Rotation Speed: Full Open to Full Close (90 turn), 5 seconds (after charge time)
  • Full Close to Full Open (90 turn), 5 seconds (after charge time)
  • Seat Leakage: Drop-Tight Close-Off
  • Electrical Rating: 24 VAC, 60 HZ, 0.48 Amps
  • Do not exceed number of valves per transformer rating
  • Example: Do not use more than 12 zone valves per 40VA transformer
  • Power Consumption, Charging: 11.4 Watts, 0.48 Amps
  • Power Consumption, Power On: 1.44 Watts, 0.06 Amps
  • Heat Anticipator Setting: 0.5 Amps
  • End Switch Rating: 1 Amp at 24 VAC

Warranty:
1 year manufacturer's warranty from the date of purchase
Write a Review
Helpful? Yes 4 No
Replaced old black ESP actuators
I have replaced all of my old black ESP actuators which all failed after only three years with the new green style actuator head. Quick change by just removing the old black ESP head and put the new green style on. Attach the wires and DONE! Super quiet.
By Ken F (from Southwest, WI) on 01/08/2015
Helpful? Yes 2 No
Perfect!
This was a perfect match for my old ESP zone valves that quit on us. It took me 7 minutes to take off the old actuator heads and install the new ones. No exaggeration. It was literally 7 minutes. These are very nice actuators and they work without making a sound. So I definitely give these a 5 star rating. As for PEX...I would give them a 10 star rating! They were not only the cheapest in price, but the best in service, I ordered 3 of these at 10:30 in the morning and got them delivered at 12:00 the next day! And that was with their regular shipping rate, not special next day air or something. I expected them to be here in 3-5 business days. I still can't believe they got here the next day. So, BIG thumbs up and huge thank you's to the PEX supply team. You guys are the BEST! Now I know where to go the next time I ever need something for my home.
By Derek B (from Webster, MA.) on 11/04/2013
Helpful? Yes 1 No
Verified Purchase
Completely Satisfied
Pexuniverse.com provided excellent service in filling order on a timely basis at a low price. Replacement power head/actuator for the non-closing black ESP head is a perfect fit, easy to install, works as expected in closing the valve. Now the zones on the hot water radiant system are opening and closing per thermostat instructions.
By Verified Buyer on 10/17/2016
Helpful? Yes 1 No
Verified Purchase
Retrofit Old Taco ball-valve, Works w/o issue.
Went right on the older ball-valve and the connectors for wiring also were compatible. Great price, well thought-out upgrade by Taco.
By JD (from Martha's Vineyard) on 06/09/2016
Helpful? Yes 1 No
Verified Purchase
Work flawlessly
Works flawlessly compared to the previous model. I currently have 8 of these installed on my radiant heat setup . They operate so quietly . If any one has the old taco esp control heads I would highly recommend upgrading to these never valves . These control heads open and close every time unlike the previous model.
By Harold, homeowner (from Lorraine , ny) on 12/09/2015
Helpful? Yes 1 No
Verified Purchase
Excellent
Great valve.Best price.Next day delivery to Southern New Hampshire.What more could you ask for.
By Verified Buyer (from NH) on 12/08/2015
Helpful? Yes No
Verified Purchase
Replacement
The zone valve was listed as a replacement for the original valve. I purchased this one and it was super simple to install and works perfectly.
By Timothy (from Portland, MI) on 01/04/2025
Helpful? Yes No
Verified Purchase
Perfect
Exactly as I thought and needed
By Michael (from Ham lake, MN) on 03/30/2024
Helpful? Yes No
Verified Purchase
Easy Peasy
Needed to replace 2 zone valves. Don’t pay a plumber! So easy to do yourself.
By Leigh (from Harwich, MA) on 11/04/2023
Helpful? Yes No
Verified Purchase
Replacement part for radiant floor heat system
This was the part I needed to replace. Was easy to remove the nonfunctioning unit and install the new unit. Quick shipping also. Well packaged.
By Heidi (from Watertown, WI) on 06/14/2023
Helpful? Yes No
Verified Purchase
Taco Powerhead
Quick delivery and a perfect fit.
By Thomas (from White pigeon, MI) on 05/13/2023
Helpful? Yes No
Verified Purchase
Got it right, sent it quickly
Arrived fast. Great service. Very good experience. Called me to verify after I placed order online. True confession, I first ordered the parts from Amazon. The 3 items were ordered correctly, but 2 wrong parts were sent. Pex was cheaper, and they sent the right part!
By Dan (from Missoula, MT) on 12/25/2021
Helpful? Yes No
Verified Purchase
Easy exchange
Was worried that I might need to shut-off water supply but the power head twists off without doing that, with no chance of leakage. It simply acts like a handle on the valve, activated by your thermostat or manual adjustment.
By Walt (from Aromas, CA) on 11/27/2021
Helpful? Yes No
Verified Purchase
The best
It is all it claimed to be for amy replacement. With the thorough instruction, i made the change with confidence and success!
By David (from West bend, WI) on 02/07/2020
Helpful? Yes No
Verified Purchase
Taco Power Head
Good improvement over older model. Easy installation and much longer service life.
By Timothy (from Fort bragg, CA) on 12/07/2019
Helpful? Yes No
Verified Purchase
Zone Valve
Exact replacement, excellent price.
By Richard (from East stroudsburg, PA) on 02/12/2019
Helpful? Yes No
Best actuator to date
I replaced an older taco zone valve actuator that sounded like a ratchet in a microphone when opening the valve.This new version is much quieter and better so far.Plus it beats the local plumbing shop's price in a heartbeat.
By JB (from Sheridan,Wyoming) on 12/03/2012
Helpful? Yes -1 No
Verified Purchase
Easy
Quick delivery, easy installation, and works great
By Jim F. (from Cresco, IA) on 04/30/2014
Helpful? Yes -1 No
Solved my heating issues!
Replaced all 10 of my original ESP actuators which were too unreliable to trust at all. These valve actuators are very quiet, fast, and so far, very reliable.
By JL (from Pagosa Springs, CO) on 11/07/2013

FAQs (3)

Ask a Question
I have a Taco E100C2-2 valve that no longer fully closes. Will this unit serve as a replacement? Any reason why I would need to buy the Z100C2 (with the ball valve)?Thanks!
Helpful? Yes 2 No
Yes, ZA024Q4A1 power head works with the older/discontinued EBV series zone valves. It also replaces older EN024Q4A2 and AN024Q4A2 power heads.
By PexUniverse Customer Service on 12/27/2013
I have a TACO ESP075C2-1 zone valve actuator that no longer works. Is this a direct replacement that won't require replacement of the valve itself?
Helpful? Yes No
This actuator only works with new Zone Sentry series zone valves and will not fit older valve models. The wiring is the same, but the valve itself would need to be replaced entirely.
By PexUniverse Customer Service on 02/17/2025
I have a E075C2-1 power head that is no longer working. Will this part ZA024Q4A1 be the correct replacement part. Thanks.
Helpful? Yes No
Yes, it works with the older E series from Taco.
By PexUniverse Customer Service on 03/30/2020
