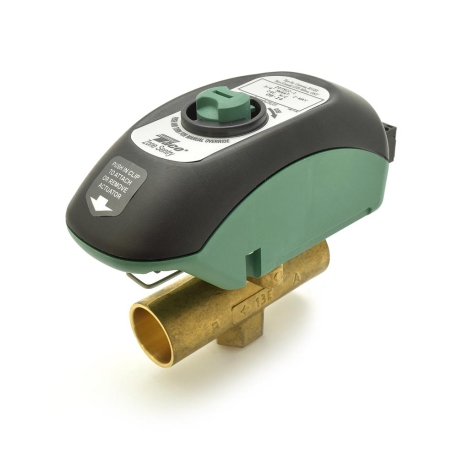

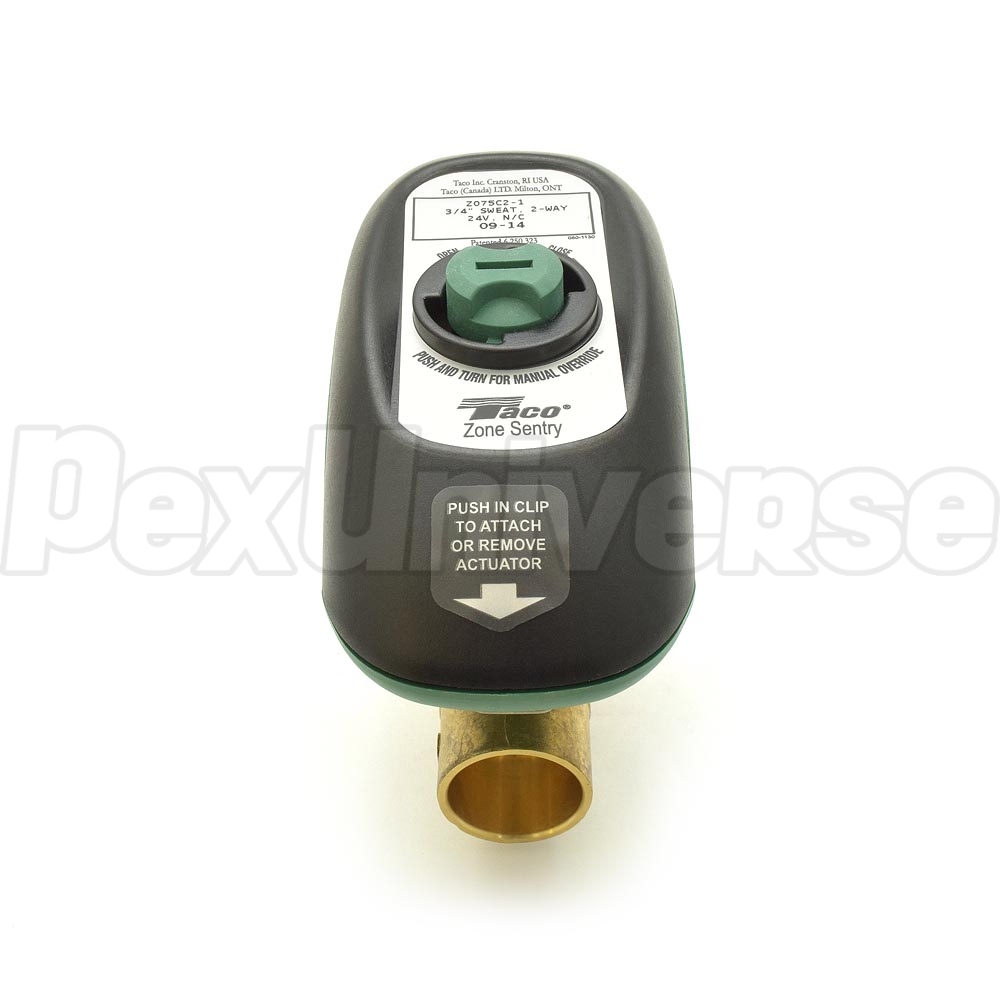

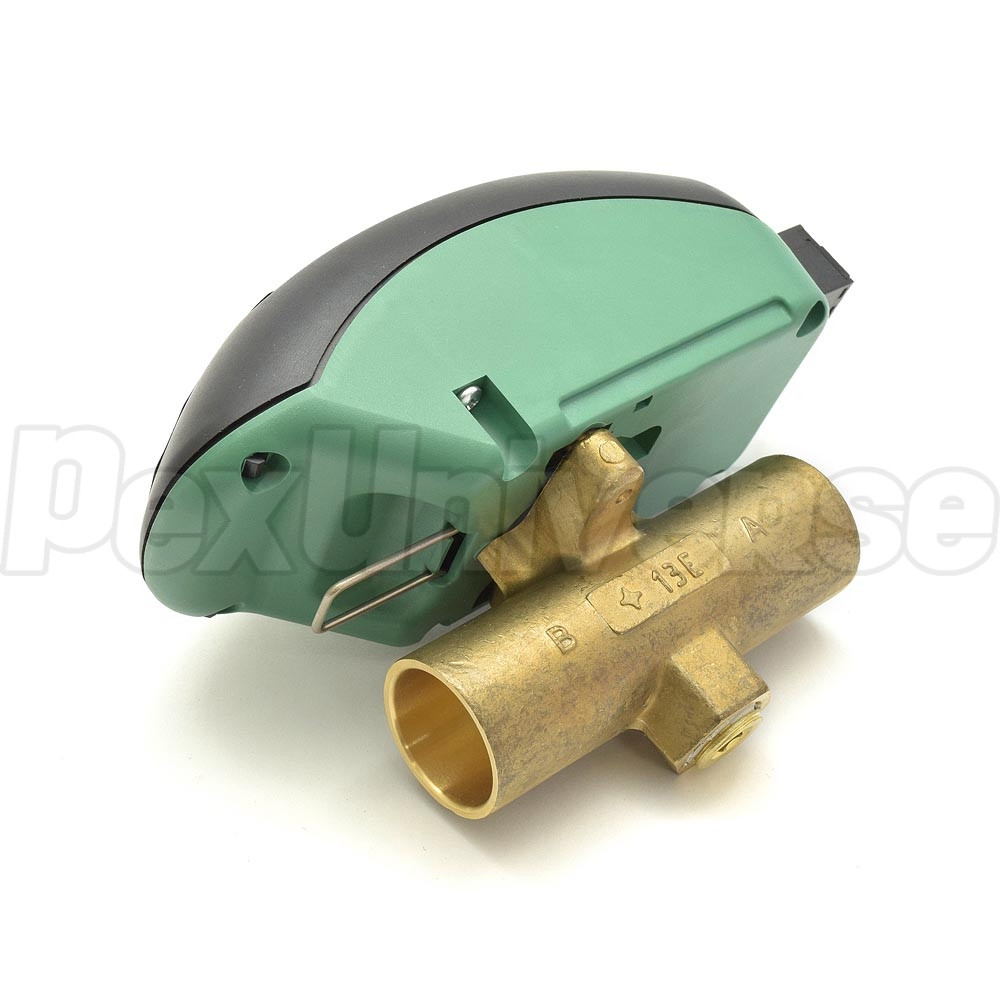

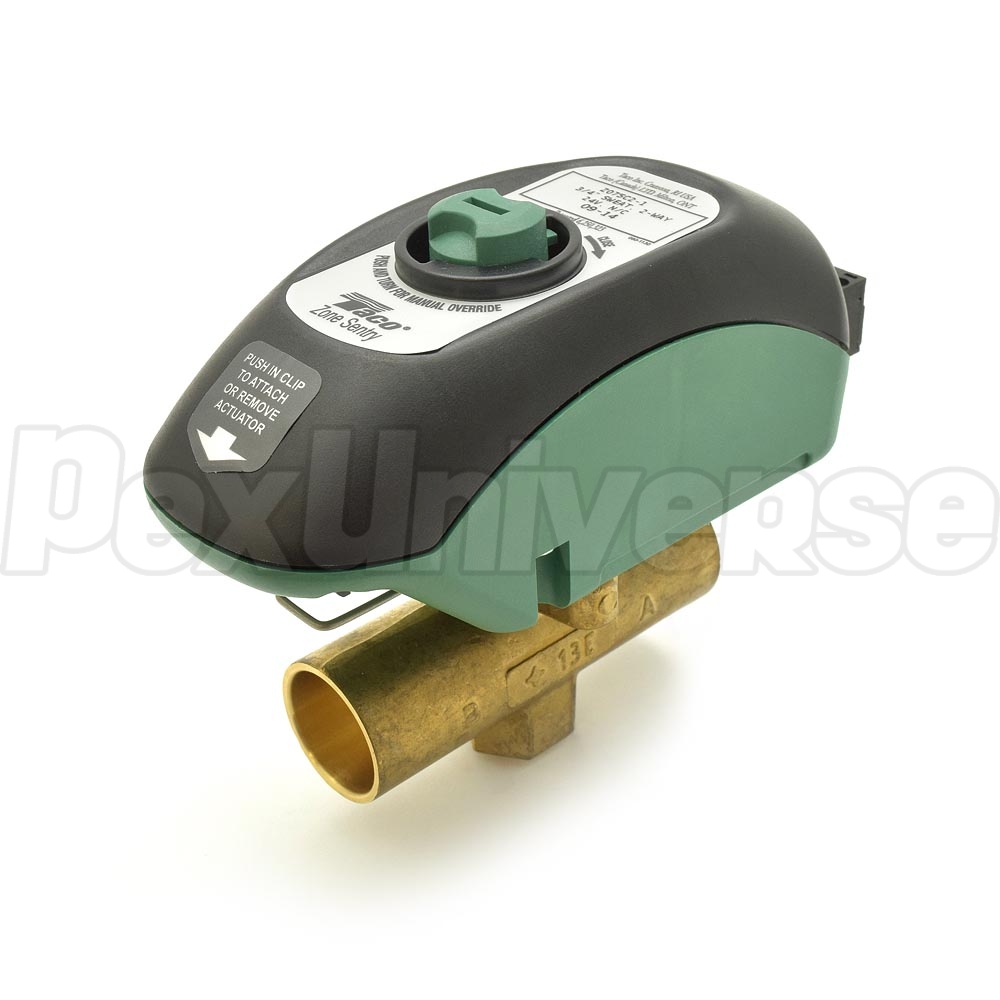

3/4" Sweat Zone Sentry Zone Valve, Normally Closed
Brand: Taco
Part#: Z075C2
Ship Pickup
Usually ships: Upon availability
$132.25 / each
$762.00 box of 6
($127.00 each)
Free Shipping on any qty
Add to Cart

Description

Model Z075C2 is a 3/4" sweat Taco Zone Sentry series zone valve (normally closed). The high flow and low head loss characteristics of the Taco Zone Sentry zone valve, combined with its compact design and 125 psi shutoff pressure rating, makes it the most flexible valve on the market today.

Technical Specifications:
  • Maximum Operating Pressure: 300 PSI (2,100 kPa)
  • Maximum Shutoff Pressure: 125 PSI (875 kPa)
  • Fluid Temperature Range: 20° to 240°F, 135°F ambient
  • Installation must be in a non-condensing application.
  • Service: Closed systems & Hot Water, up to 50% Glycol
  • Ball Rotation Speed: Full Open to Full Close (90° turn), 4 seconds
  • Full Close to Full Open (90° turn), 6 seconds
  • Seat Leakage: Drop-Tight Close-Off
  • Electrical Rating: 24 VAC, 60 HZ, 0.54 Amps
  • Do not exceed number of valves per transformer rating.
  • Do not use more than 12 zone valves per 40VA transformer.
  • Power Consumption, Charging: 12.84 Watts, 0.54 Amps Max
  • Power Consumption, Power On: 1.44 Watts, 0.06 Amps Max
  • Heat Anticipator Setting: 0.5 Amps

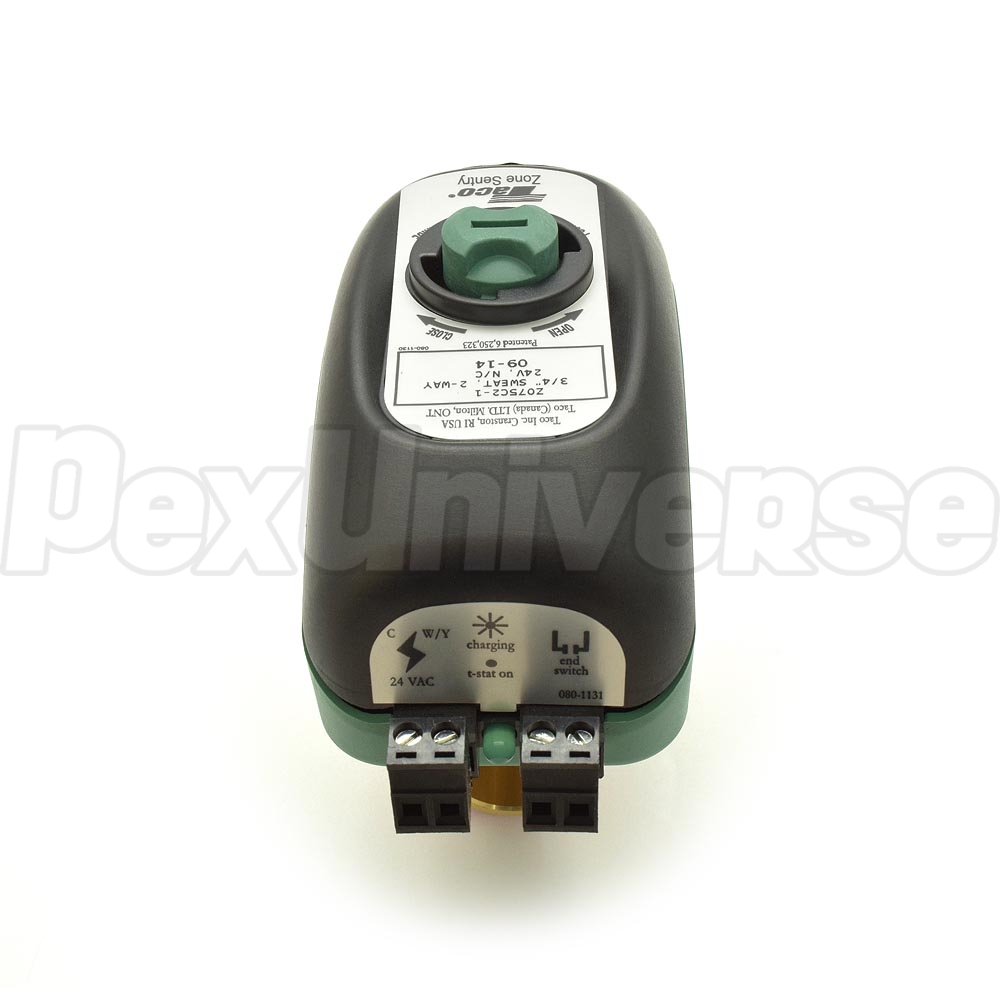

  • End Switch Rating: 3 Amps @ 24 VAC.

Documents

Write a Review
Helpful? Yes 1 No
Verified Purchase
Works great
We used these controls to upgrade a pneumatic system to a digital system. Part was easy to install, and works like we hoped it would. Very satisfied and will use these again!
Size: 1/2" | Connections: Threaded
By HVAC guy (from CO) on 05/26/2015
Helpful? Yes No
Verified Purchase
Taco time
Been having good luck with these have used around 100 in the last 5 years . No failures . Also they require a lot less power the your standard HW zone valve . Easy wiring terminals and easy operator removal .
Size: 1" | Connections: Sweat
By Joseph (from Glenwood springs, CO) on 09/23/2023
Helpful? Yes No
Verified Purchase
Valve
Have bought many of these and never failed
Size: 3/4" | Connections: Sweat
By Harold (from Boswell, PA) on 01/12/2022
Helpful? Yes No
Verified Purchase
Excellent
Great experience and product, Wonderful customer service.
Size: 3/4" | Connections: Press
By William (from Wethersfield, CT) on 03/02/2021
Helpful? Yes No
Verified Purchase
Taco valves
Nice product
Size: 1/2" | Connections: Threaded
By Michael (from Seattle, WA) on 01/22/2021
Helpful? Yes No
Verified Purchase
Valve that work
Good Product
Size: 3/4" | Connections: Sweat
By Cesar (from Hasbrouck heights, NJ) on 12/15/2020
Helpful? Yes No
Verified Purchase
Zone Sentry zone valve
High quality and no issues in five years. I'm very happy with this product.
Size: 3/4" | Connections: Sweat
By Michael (from Brighton, MI) on 07/28/2020
Helpful? Yes No
Verified Purchase
Excellent Product
Best zone valve there is!
Size: 1" | Connections: Threaded
By Darren (from Barrington, NH) on 07/27/2020
Helpful? Yes No
Verified Purchase
Very Reliable
Good zone valve with very low to no failure rate
Size: 3/4" | Connections: Threaded
By Darren (from Barrington, NH) on 04/03/2019
Helpful? Yes No
Verified Purchase
Great Price
Great Price
Size: 1" | Connections: Sweat
By George (from Saint petersburg, FL) on 03/11/2019
Helpful? Yes No
Verified Purchase
Great Product
These work great! I would recommend them to anyone.
Size: 1/2" | Connections: Threaded
By Rhyand (from Mendon, UT) on 02/21/2019
Helpful? Yes No
Verified Purchase
Better than Honeywell
Upgrade worth the $
Size: 3/4" | Connections: Sweat
By Tracy (from Bozeman, MT) on 01/05/2019
Helpful? Yes No
Verified Purchase
Nice
Works great simple install
Size: 1" | Connections: Threaded
By BRIAN (from Republic, OH) on 11/14/2018
Helpful? Yes No
Verified Purchase
Taco Z075C2
Used to replace failing electronics of E075C2 - plug compatible (had to turn the connectors 180 degrees), no problems. Only had to replace the controller - not the valve. Delivered quickly. The E075C2 didn't always fully close - this controller does.
Size: 3/4" | Connections: Sweat
By Bill F (from Kaysville, UT) on 04/01/2013
Helpful? Yes No
Taco Z075C2, 3/4" Sweat Motorized Zone Sentry Zone Valve
Earlier model was not good needed to replace it every year. I found the Taco Z075C2 model from Petuniverse.com & in less than a week it came. This model works good & replaced it without any problems.
Size: 3/4" | Connections: Sweat
By Al W. (from Baxter, MN) on 01/16/2013
Helpful? Yes No
Verified Purchase
Replacement for E075C2
I had problems with previous model of the valve, that got damaged after only 4 years of usage. I saw that the model was not longer available and it was replaced by the Z075C2. I bought them from Petuniverse.com, and literally in 2 days I got delivered to my home.The model is more solid, better construction and smooth operation. I replaced 4 without any problem (just the operator, keeping the old valve), and had no issue at all replacing the old model.
Size: 3/4" | Connections: Sweat
By Adolfo (from Boston, MA) on 11/08/2012
Helpful? Yes No
Verified Purchase
taco zone valve
boiler heat studio apartments
Size: 3/4" | Connections: Sweat
By Bobby (from Olympia Wa ) on 08/04/2012
Helpful? Yes No
Verified Purchase
taco zone valve
boiler heat fin radiator
Size: 3/4" | Connections: Sweat
By Bobby T (from Olympia Wa) on 08/01/2012
Helpful? Yes No
Verified Purchase
Excellent new version
"I used this as replacement for Taco E100C2-3, with no apparent problems. Old part was great, this is a bit more flexible, so slightly better and a great product."
Size: 1" | Connections: Sweat
By BobS (from Northampton, MA) on 06/27/2011

FAQs (2)

Ask a Question
Can I use this on an open loop system?
Helpful? Yes No
Yes, as long as this open loop is not connected to potable water system.
By PexUniverse Customer Service on 12/22/2020
I have a boiler system in my house which has (3)TACO ESP O7C52-1 ZONE VALVES AND ONE ZO75C2-1 by heating company to the tune of 385.00, 220 for valve alone. QUESTION: How complicated is it to replace the ESP07C52-1 with the ZO75C2-1? Something I can do my self with out draining system etc. To the Heating guy about 5 minutes to replace the last one.
Helpful? Yes No
The procedure would involve removing the old valve and installing the other in it's place and connecting the wiring. Since ESP has sweat connections, you would have to drain the system, unsolder the old valve and solder the new one in place. Alternatively, you may cut off the section of the piping with the old valve installed and use a copper coupling and a piece of copper pipe to install the new one.
By PexUniverse Customer Service on 12/12/2012
