1" Threaded Zone Sentry Zone Valve, Normally Closed
Brand: Taco
Part#: Z100T2
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$152.20 / each
$888.00 box of 6
($148.00 each)
Free Shipping on any qty
Add to Cart

Description

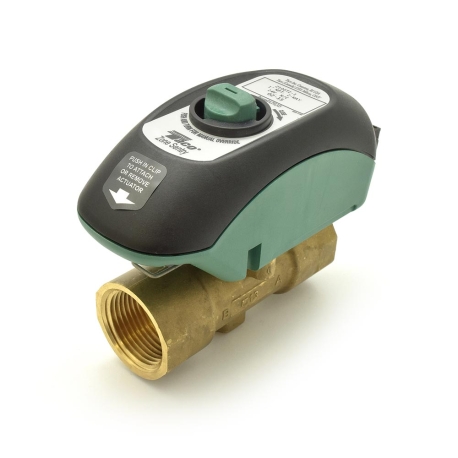

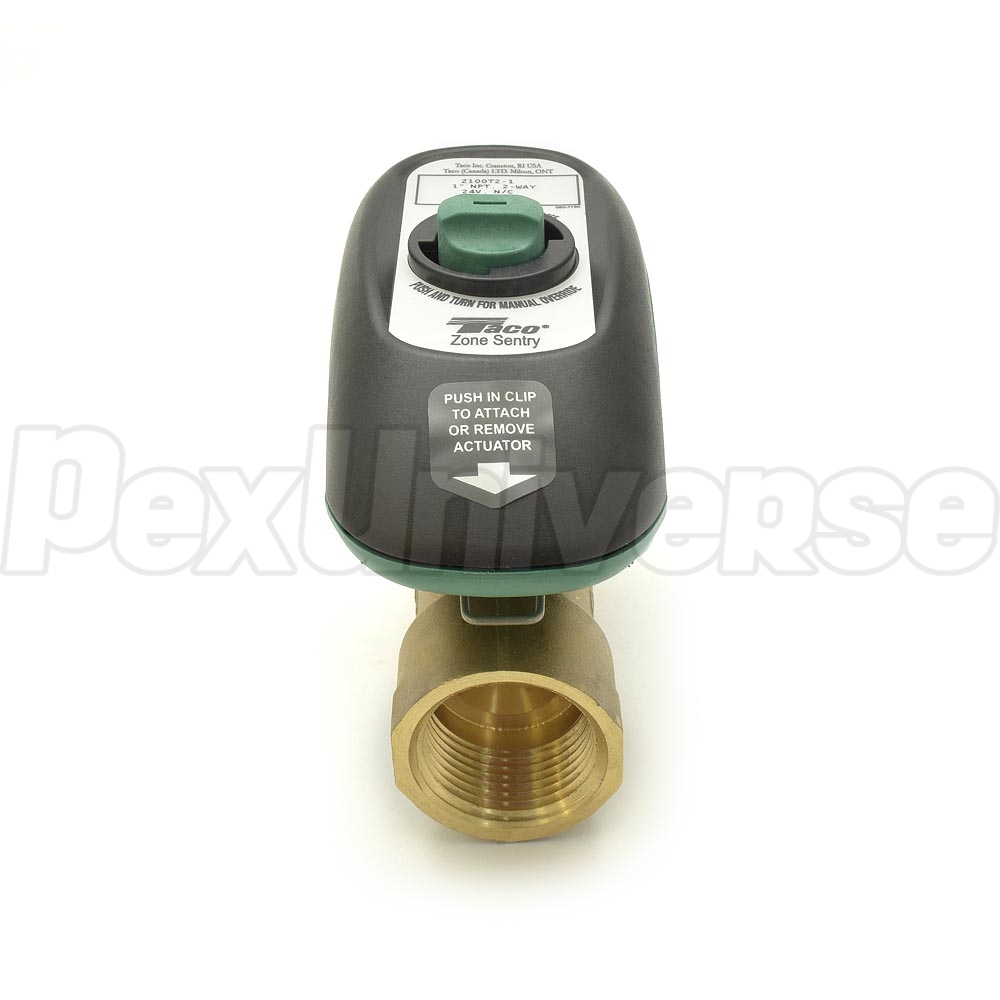

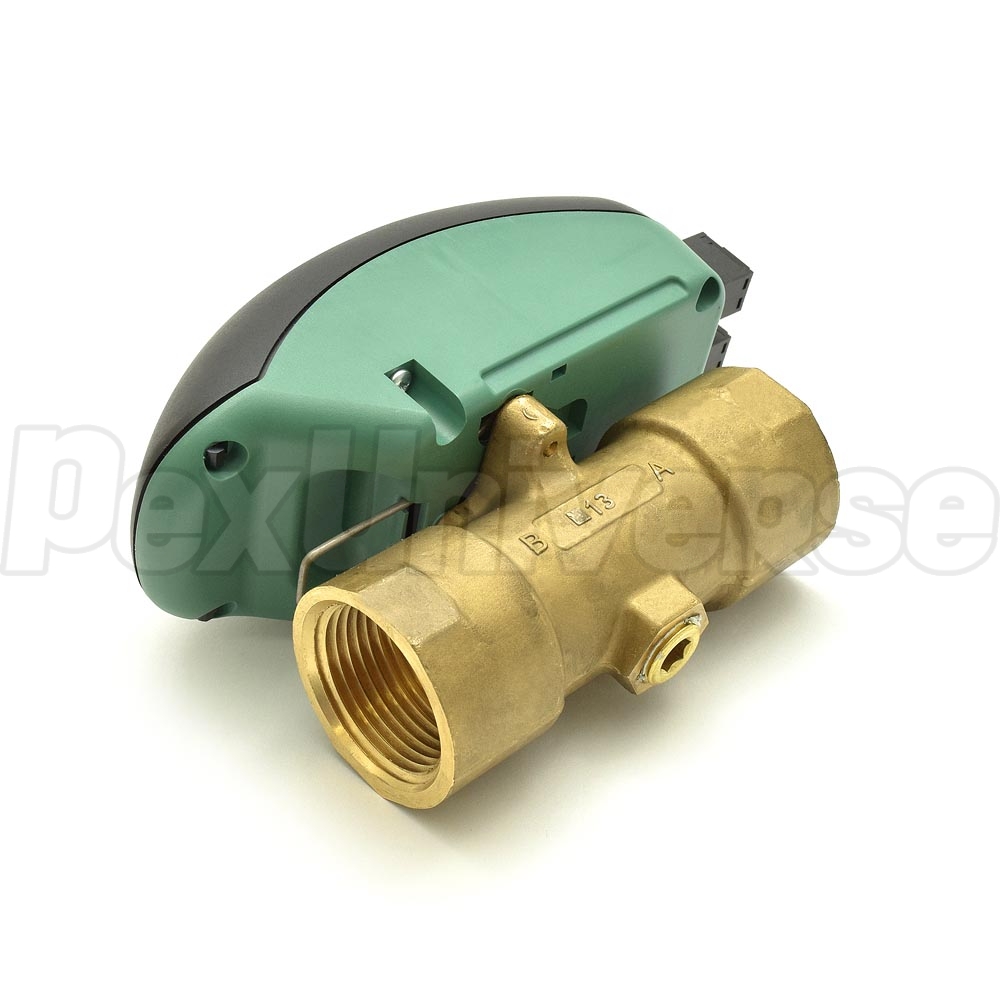

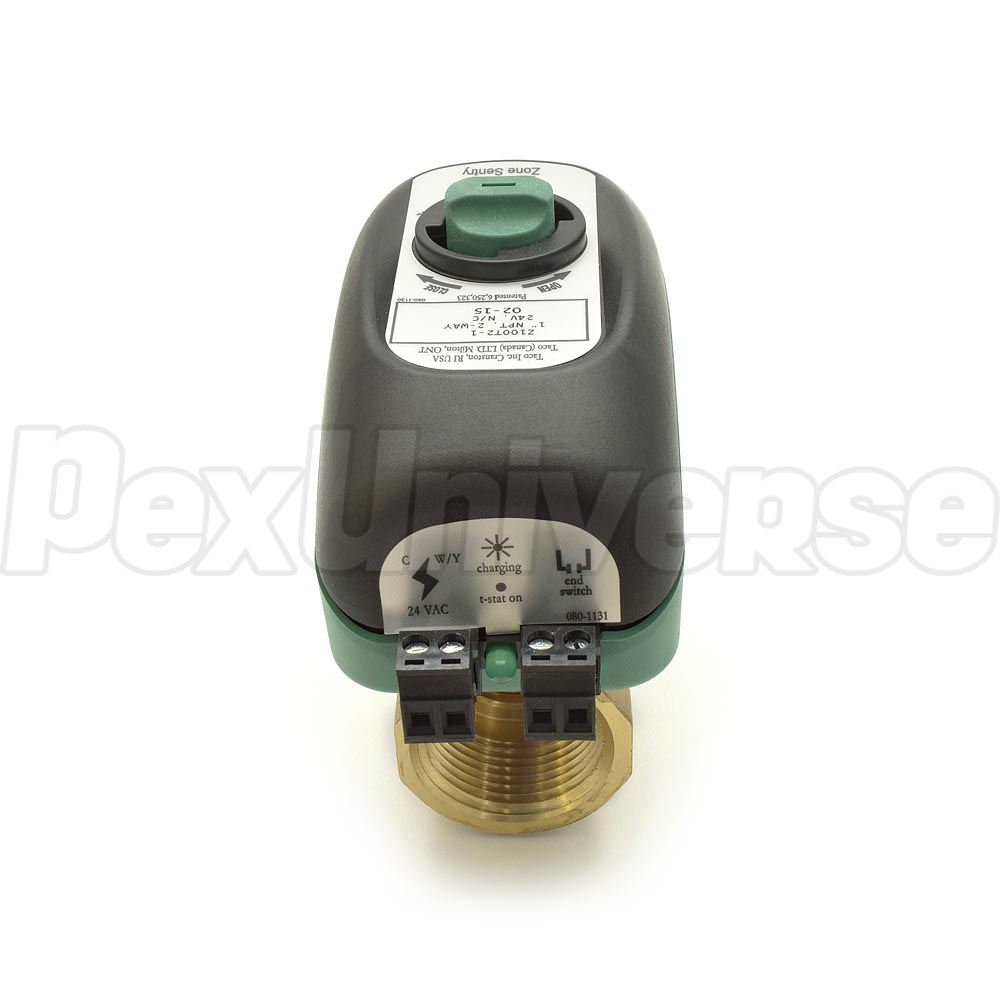

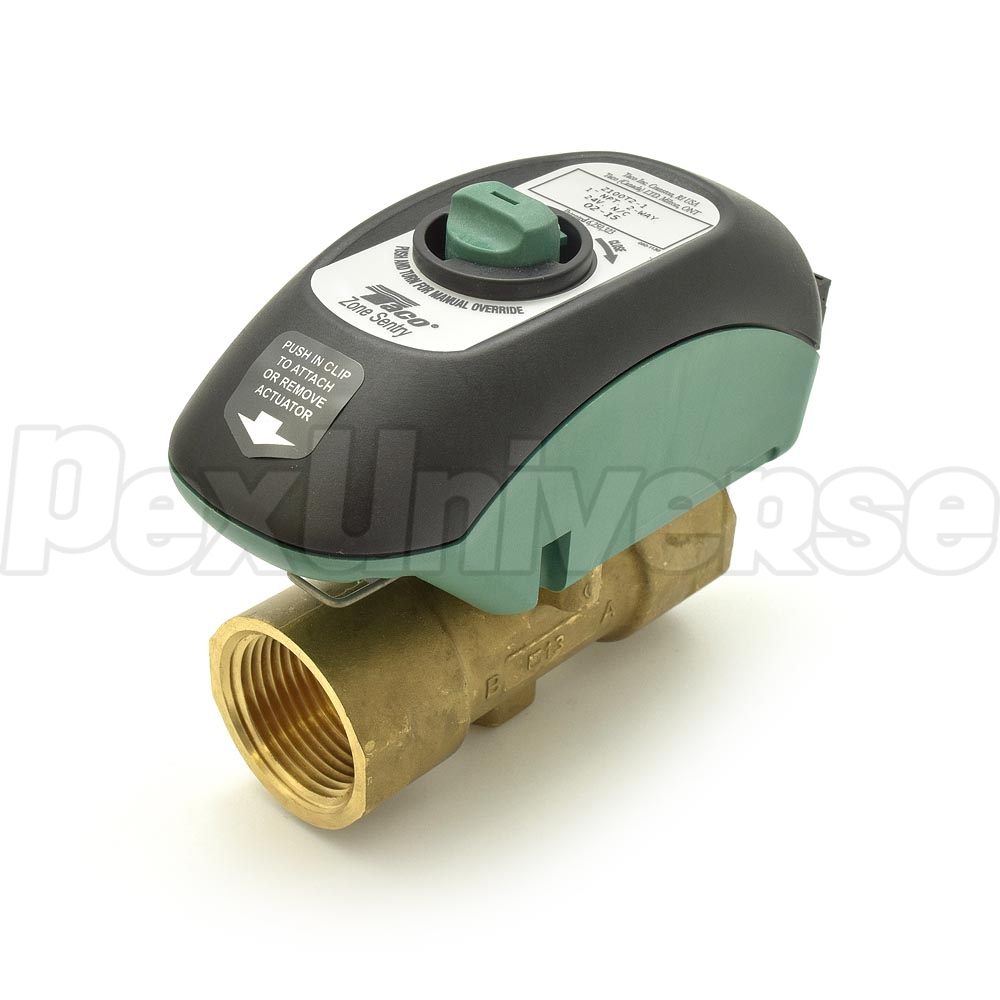

Taco Z100T2 is a Motorized Zone Sentry Zone Valve with 1" Threaded, designed to be used in a wide variety of heating and cooling applications, provides on-off, normally open or normally closed control in both open and closed hot or chilled water hydronic systems.

Patented technology and microcircuit-based logic for controlling a gear driven electronic actuator make it the most technologically advanced zone valve ever made. The capacitor-powered valve is loaded with innovative technology and has a new high torque, high efficiency and highly reliable miniature motor. The valve can be installed in any orientation, allowing the operator to be mounted to the valve body regardless of direction. A green LED light shows full functionality of the valve.

Materials Of Construction (Actuator):

  • Body: High Performance Engineered Polymer;
  • Gears: High Performance Internally Lubricated Engineered Polymer.

Materials Of Construction (Standard Valve):

  • Body: Forged Brass;
  • Stem: Brass;
  • Press Ring: Brass;
  • Ball: Brass (Chrome Plated);
  • Seat: Modified Teflon;
  • O-Ring: EPDM.

Technical Specifications:
  • Connections: 1" Threaded (2-way)
  • Maximum Operating Pressure: 300 psi (2100 kPa)
  • Maximum Shutoff Pressure: 125 psi (875 kPa)
  • Maximum Ambient Temperature: 135°F
  • Fluid Temperature Range: 20-220°F (7°-105°C)
  • Service: Water or Water/Glycol (up to 50% Glycol), Close Systems
  • Ball Rotation Speed: 90° turn - approx. 5 sec
  • Electrical Ratings: 24VAC, 60Hz, 0.48 Amps
  • Power Consumption (Charging): 11.4 W, 0.48 Amps
  • Power Consumption (Power On): 1.44 W, 0.06 Amps
  • Heat Anticipator Setting: 0.5 Amps
  • End Switch Ratings: 1 Amps @ 24VAC.
