Cast Iron Taco 007-F5 Circulator Pump is the most popular hydronic circulator sold today. Features a field serviceable cartridge design and provides a quiet, efficient operation and unmatched reliability. It has a self-lubricating, maintenance-free design and it's flow parameters make it an ideal circulator for a wide range of hydronic applications.
Taco 007-F5 Circulator Pump is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating and Hydro-Air fan coils.
Applications: - Hydronic Heating/Cooling;
- Radiant Heating;
- Zoning with Pumps;
- Hydro-Air Fan Coils;
- And others
- Grundfos UP15-42F/R, UPS15-58FC spd 2;
- B&G NRF-22.
- Flow Range: 0 – 23 GPM;
- Head Range: 0 – 10 Feet;
- Minimum Fluid Temperature: 40ËšF (4ËšC);
- Maximum Fluid Temperature: 240°F (115˚C);
- Maximum Working Pressure: 125 psi;
- Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
- Voltage: 115V;
- Hertz: 60Hz;
- Phase: 1;
- Amps: 0.71A;
- HP: 1/25HP;
3-year manufacturer's warranty.
Ask a Question

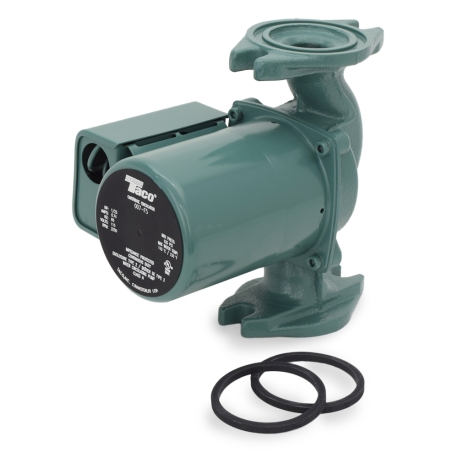

Does the 007 circulator also come with the 2 flange gaskets shown in the picture
Yes.
By PexUniverse Customer Service on 12/19/2017
I want to replace a Taco cartridge circulator model #007-BF5-JW. Is this the correct replacement pump .
"B" indicates that your model is bronze, which Taco no longer produces. If you need a corrosion resistant 007 circulator, then you should use 007-SF5 or 007-SF5-IFC (same but with check valve) stainless steel. If material is not an issue, a standard Taco 007-F5 model (cast iron) can be used.
By PexUniverse Customer Service on 10/25/2016
How do you hook this pump up with a thermostat
You will need to use a
Taco SR501 model switching relay if it's a single-zone system. Multi-zone relays can be found
here.
does the 007-f5 replace the 007-f4 that is 18 years old in my home
Correct. Taco 007-F5 model replaced the older 007-F4.
By PexUniverse Customer Service on 12/05/2012
My 007-F5 pump is leaking and I would like to know how much the replacement cartridge is I don't see it any where or should I just buy the new 007-F5 pump
The replacement cartridge for the Taco 007-F5 is SKU# 007-042RP. If your pump is still under warranty, you can return it for a replacement through your distributor, or, if purchased on PexUniverse.com, use our online Returns form.
By PexUniverse Customer Service on 05/08/2012
The literature says the 007 has a flow range of 0–23 GPM. I don't see any way to adjust the GPM. Can it be adjusted to a set point. Is it set at a particular GPM from the factory?

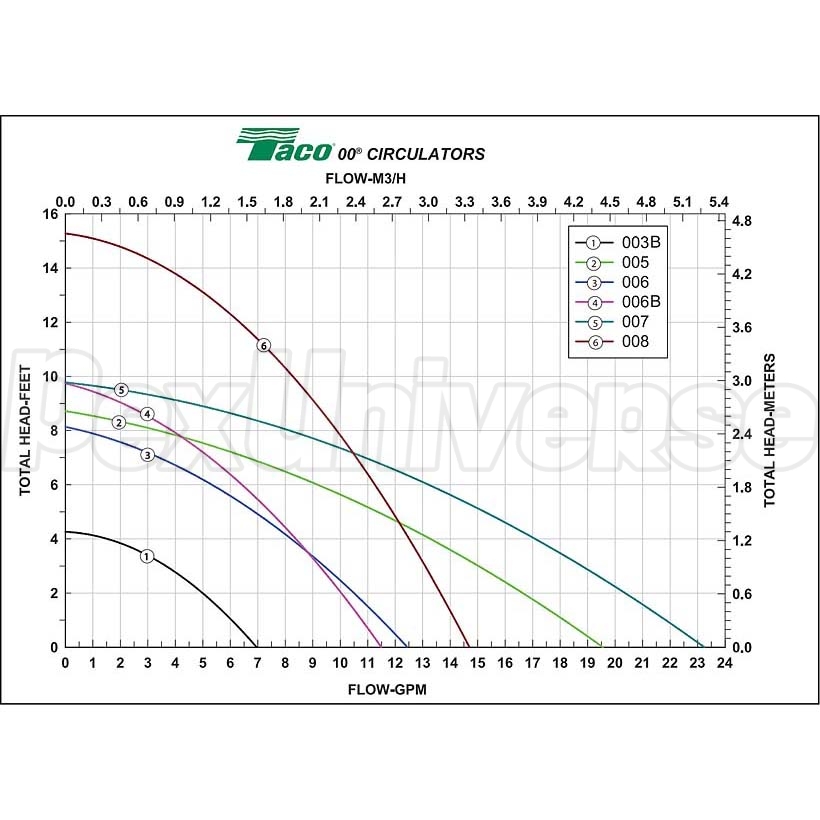

The GPM is not adjustable - it will depend on pressure drop inside the system (see last product image). You could reduce the flow rate by making a bypass. To be of further help, we'll need more details, so feel free to contact us at your convenience.
By PexUniverse Customer Service on 01/11/2021
Does the Taco 007-f5 come assembled with cartridge and ready to go?
Yes, the circulator comes assembled and ready to install.
By PexUniverse Customer Service on 04/14/2017
I am looking to replace my Taco 009-F5, would this bolt in to replace that pump? How does this compare to the 009-F5, my 009-F5 works well for heating the house while pumping water from my outdoor boiler which is about 50 feet from my house to my forced air system, would the 007-f5 also work?
The 007 and 009 models are very different. The 009 series are high-head, low-flow circulators whereas the 007 series are low to medium head and high flow circulators. Take a look at the pump curves chart in the 009-f5 listing - it shows pump performance for all major Taco circulator series.
By PexUniverse Customer Service on 03/27/2015
Will the Taco 007-f5 pump be a direct bolt in replacement for the Taco 007f-3 that I currently have in my system?
Yes, the Taco 007-F5 acts as a direct bolt-in replacement for the older Taco 007-F3 model.
By PexUniverse Customer Service on 02/15/2013
Will this pump be a direct bolt-in repacment for an Amtrol Pro-Pump WR 6.5?
Taco 007-F5 model is 6-3/8" high from flange to flange. You can see the "Literature" tab for technical data (head and flow parameters) and compare that to the Amtrol WR 6.5 data.
By PexUniverse Customer Service on 01/31/2013
Will the Taco 007-f5 work in replacement of the f4 I now have? Will the application line up it I only change the pump and not the flanges?
Yes and yes. Just make sure the flange orientation matches.
By PexUniverse Customer Service on 04/12/2017
I have a Taco 007-ZF5-6 pump. Is the 007-042RP cartridge the replacement cartridge for this pump?
Yes, the
007-042RP is the correct replacement cartridge.
