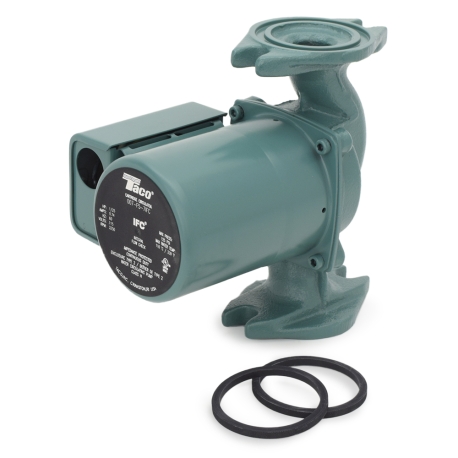

007 Circulator Pump w/ IFC, 1/25 HP, 115V
Brand: Taco
Part#: 007-F5-7IFC
Ship Pickup
Usually ships: Upon availability
$142.75 / each
$558.40 box of 4
($139.60 each)
Free Shipping on any qty
Add to Cart

Description

Taco 007-F5-7IFC Circulator Pump with IFC (Integral Flow Check) is designed to simplify piping, reduce installation costs and improve system performance. With an IFC (Integral Flow Check) inside the Taco 007-F5-7IFC model pump, the need for a separate in-line flow check is eliminated. This feature reduces a pressure drop and increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.


Applications:
  • Hydronic Heating/Cooling
  • Radiant Heating
  • Zoning with Pumps
  • Hydro-Air Fan Coils
  • And others

Cross-References:
  • Grundfos UP15-42F/R, UPS15-58FC spd 2

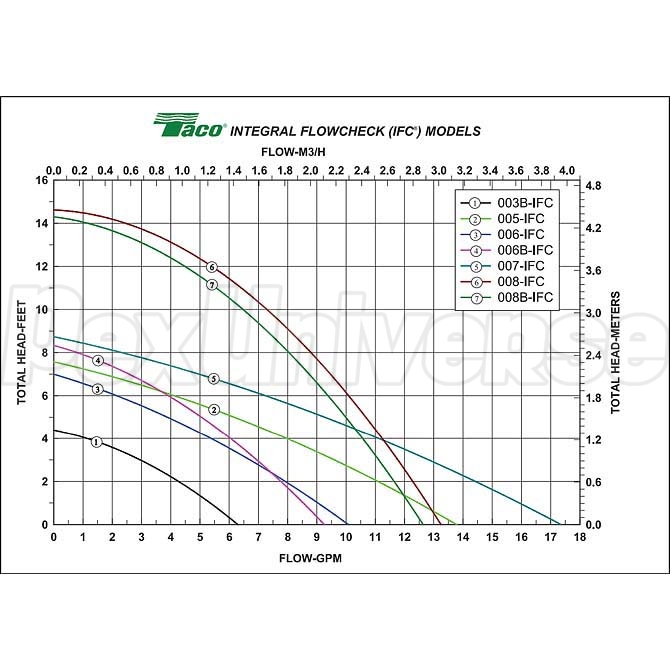

Technical Specifications:
  • Flow Range: 0 – 17 GPM;
  • Head Range: 0 – 8.5 Feet;
  • Minimum Fluid Temperature: 40ËšF (4ËšC);
  • Maximum Fluid Temperature: 240°F (115ËšC);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.71A;
  • HP: 1/25HP;

Warranty:
3-year manufacturer's warranty.

Documents

Write a Review
Helpful? Yes 3 No
fully satisfied with permormance
I am well satisfied with my pump purchase. Taco 007 pump great product!
Pump Type: Standard
By Jeremy (from Tacoma, WA) on 06/28/2012
Helpful? Yes 2 No
Taco 007-F5 Circulator Pump
Pump does a great job. I had to replace one because of hard water. The price was great and I enjoyed during business with RexUniverse. I had the pump with in 3 days. Very fast service.
Pump Type: Standard
By Rudy (from Virginia) on 12/09/2012
Helpful? Yes 1 No
Verified Purchase
Perfect
This is the Taco pump with the rotated flange. It was what I needed and could only reliably find it at PexUniverse. Other sellers had the wrong pump pictured with this part number. Thank You PexUniverse!
Pump Type: Rotated Flange w/ IFC
By Norbo17 (from New England) on 11/18/2015
Helpful? Yes 1 No
Excellent Product
This circulator pump was easy to install and works great! Product is very quiet and would recomend it to anyone.
Pump Type: w/ IFC
By "H" (from Binghamton, NY) on 09/21/2014
Helpful? Yes 1 No
good deal
I entered discount code TAKE5 and get best price for my 007-F5 Taco pump. Thank you PexUniverse from your old customer.
Pump Type: Standard
By MaxBennet (from Oskaloosa, Iowa) on 07/02/2013
Helpful? Yes 1 No
I think this pump is probably the best choice
My wood fire boiler was 11 year old and still working fine with brass Taco-007. This is why I replace with same type of pump with check valve inside. Great shipping and rates!
Pump Type: w/ IFC
By NorthRidgeCabins (from Sioux Falls, SD) on 07/02/2013
Helpful? Yes 1 No
Verified Purchase
Great part & service
Was able to have the pump installed in matter of minutes. Very simple to replace a worn out pump.
Pump Type: Standard
By Bryan (from Youngstown, OH) on 12/17/2012
Helpful? Yes 1 No
I would use yourservice again
"The unit was replaced in a very short time. Receiving the product the next day was great."
Pump Type: Standard
By Gene (from New Jersey) on 12/24/2011
Helpful? Yes 1 No
Verified Purchase
I would buy this product agian
"Saved me $175 by buying this Taco 007-f5 cast iron circulator pump, through Pex Universe.com. Pump was easy to istall and works great. I know now to go to Pex Universe.com for any furture plumbing needs. Recived pump with in three days GREAT JOB THANKS."
Pump Type: Standard
By Tom (from NY) on 10/13/2011
Helpful? Yes No
Verified Purchase
Super fast shipping
Excellent seller.
Pump Type: Standard
By William (from Lisbon falls, ME) on 01/04/2025
Helpful? Yes No
Verified Purchase
Replaced the old one on New Year Day 2025 ..Working great and good prize too !
Replaced the old one on New Year Day 2025 ..Working great and good prize too !
Pump Type: w/ IFC
By Han (from Johnston, RI) on 01/03/2025
Helpful? Yes No
Verified Purchase
REPLACEMENT PUMP
We have replaced these same pumps, and they work great.
Pump Type: Standard
By Thomas (from Odin, IL) on 12/11/2024
Helpful? Yes No
Verified Purchase
Taco pump order
Yes, very satisfied with product, price and delivery. So glad I found your company on the web. Will definitely order from you again. Thanks for the excellent service.
Pump Type: Standard
By Clarence (from Goshen, VA) on 12/06/2024
Helpful? Yes No
Verified Purchase
Circulator
Thank you
Pump Type: Standard
By Garrett (from Williamstown, VT) on 10/23/2024
Helpful? Yes No
Verified Purchase
Taco Pump, how could you go wrong?
Great price on a great pump.. industry standard.. plus they have great prices on radiant manifolds.. quick shipper..
Pump Type: Standard
By Tim (from Burien, WA) on 01/16/2024
Helpful? Yes No
Verified Purchase
Boiler pump
A perfect fit for the part it was replacing. Quick delivery and good customer service to confirm the details.
Pump Type: Standard
By Edwin (from Bluefield, WV) on 01/06/2024
Helpful? Yes No
Verified Purchase
PexUniverse
Products that we buy from PexUniverse are always good .
Pump Type: w/ IFC
By Tony (from Wabash, IN) on 12/08/2023
Helpful? Yes No
Verified Purchase
taco
ok
Pump Type: w/ IFC
By Frank (from Everett, MA) on 01/05/2023
Helpful? Yes No
Verified Purchase
replacement pump
works great, and fast delivery.
Pump Type: Standard
By jeff (from Ada, MI) on 11/21/2022
Helpful? Yes No
Verified Purchase
Great place for all things for heating systems
Always can find what I need and at a better price and fast shipping.
Pump Type: Standard
By Paul (from Little valley, NY) on 02/27/2022
Helpful? Yes No
Verified Purchase
Very Convenient
Arrived earlier than expected. Reasonable price and worked perfectly. Thank You
Pump Type: w/ IFC
By James (from Hopewell junction, NY) on 12/16/2021
Helpful? Yes No
Verified Purchase
Nice pump
Works great and it is very quiet.
Pump Type: Standard
By Michael (from Oxford, MI) on 05/27/2021
Helpful? Yes No
Verified Purchase
Received but not installed yet.
Priced right and very quick shipment.
Pump Type: Standard
By John (from Cumberland, RI) on 03/31/2021
Helpful? Yes No
Verified Purchase
Good
I really like
Pump Type: Standard
By Christopher (from Masontown, WV) on 03/30/2021
Helpful? Yes No
Verified Purchase
Fixed the problem
Very quick shipping from Pexuniverse. Easily swapped out the heating circulator on my boiler. The one I was replacing has been noisy since day one, about 8 years. Sounded like a marble was rattling around in the circulator. I could hear it throughout the house when it was running. Turns out it must have been bad bearings as the new one is almost silent. So glad I finally replaced it.
Pump Type: Rotated Flange w/ IFC
By Clark (from Millis, MA) on 03/11/2021
Helpful? Yes No
Verified Purchase
brand name good pump
works perfectly
Pump Type: w/ IFC
By ray (from Red bank, NJ) on 05/19/2020
Helpful? Yes No
Verified Purchase
it works as described
works well,keeps water flowing
Pump Type: Standard
By mike (from Granville, NY) on 02/03/2020
Helpful? Yes No
Verified Purchase
Simple and reliable
Have 7 taco circulators in my house, very simple and reliable.
Pump Type: Standard
By Travis (from Honeoye falls, NY) on 02/01/2020
Helpful? Yes No
Verified Purchase
pex good servise
works great
Pump Type: Standard
By Conrad (from Sutton, MA) on 12/10/2019
Helpful? Yes No
Verified Purchase
Taco Pump
All good
Pump Type: Rotated Flange w/ IFC
By JOHN (from Schenectady, NY) on 04/23/2019
Helpful? Yes No
Verified Purchase
Still Running Strong
Time will tell. Quiet. You won't even know it's there.
Pump Type: w/ IFC
By Timothy (from Christiana, PA) on 02/04/2019
Helpful? Yes No
Verified Purchase
Top Quality
As advertised
Pump Type: Standard
By Joseph (from Marshfield, WI) on 10/31/2018
Helpful? Yes No
Does the trick
Did a superb job of replacing a failing pump.
Pump Type: Standard
By Dale (from Ct) on 10/28/2012
Helpful? Yes No
Verified Purchase
Taco 007-F5-71FC
THIS IS A GOOD PUMP RSUNF IN OUR HOME
Pump Type: w/ IFC
By VICENTE GARCIA (from MISSION, TX) on 04/12/2012
Helpful? Yes No
Verified Purchase
good item
priced very good
Pump Type: Standard
By DWENGMA (from WOOSTER, OHIO) on 10/03/2011
Helpful? Yes No
Verified Purchase
I would buy this product again
Trade prices and fast delivery
Pump Type: Standard
By Hamilton Frank (from Hamilton, NJ) on 09/23/2011
Helpful? Yes No
I would buy this product again
great product,great price,f[...]
Pump Type: Standard
By Handyman (from Mapleton,Maine) on 09/18/2011
Helpful? Yes No
I have two of it.
I like this Taco 007.But, I have a question. How that the entire pomp cost [$], and to replace only the cartridge cost $55??I think the correct price for cartridge will be around $15.
Pump Type: Standard
By Tony (from Washington, DC) on 09/02/2011
Helpful? Yes No
Heating pumps
[...] service and quality great!
Pump Type: Standard
By crusader (from Gettyburg, Pa) on 08/04/2011
Helpful? Yes No
Verified Purchase
You gotta love these pumps
I have three of these pumps and they just work work work. I like them a lot. The only difficulty I had was getting them purged of air. But once you get the air out they work great.
Pump Type: Standard
By Coffey man (from Mimbres NM) on 07/07/2011
Helpful? Yes No
None
I used this product as a exact replacement,hot water heat circulator.Instalation was no problem at all. So far part seems to work just fine,quiet,and fit perfect . I would shop with Pex Universe again ,
Pump Type: Standard
By None (from Indiana, USA) on 05/23/2011
Helpful? Yes No
The Best price for this product
This circulator is very reliable and run quietly.
Pump Type: Standard
By Paul B. (from Putnam Valley, NY) on 03/24/2011
Helpful? Yes -1 No
Verified Purchase
Taco-007-f5-circulator-pump
Pump as described and was a great price and fit. Shipping and service was the best!
Pump Type: Standard
By James (from Whitinsville, MA) on 10/31/2024
Helpful? Yes -1 No
It is all they claim perfect
circulates hot water, it's quite, easy to install,price was great compared to others that do the same thing, it's perfect
Pump Type: Standard
By larry (from redwood city) on 05/18/2011

FAQs (2)

Ask a Question
I have a 007-f5-1ifc will the -7ifc be a suitable replacement
Helpful? Yes No
Yes, it should be an exact fit. To be sure, measure the height of the pump - it should be 6-3/8".
By PexUniverse Customer Service on 01/23/2024
can IFC be added to a Taco pump that did not originally have it installed?
Helpful? Yes No
Only if that pump was originally an "IFC" model. If you want to install the IFC into a regular model, such as 007-F5, it would not work and you would have to install an external check valve.
By PexUniverse Customer Service on 12/12/2012
