0011 Circulator Pump w/ IFC, 1/8 HP, 115V Taco
0011 Circulator Pump w/ IFC, 1/8 HP, 115V
Brand: Taco
Part#: 0011-F4-2IFC
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Taco 0011-F4-2IFC Circulator Pump with IFC (Integral Flow Check) is designed for high head and medium flow applications, that are common for large residential and light commercial applications, such as closed loop hydronic heating. The IFC built into the circulator eliminates the need for purchase and installation of an additional in-line check valve and performs better when compared to regular check valves. Taco 0011-F4-2IFC Circulator is perfect for boilers with high pressure drop, as well as fan coil units, heat exchangers, large radiant heat and heat recovery/geothermal systems. Universal flange to flange dimensions and flange orientation of the circulator allows it to serve as a replacement for other models. Compact, has low power consumption and ideal for high-efficiency jobs.

Both IFC and cartridge are easily accessed for service, saving the need for replacing the entire circulator.


Applications:
  • High Pressure Drop Boilers
  • Medium/Large Hydronic, Geothermal and Radiant Heating projects
  • Wood Boilers / Furnaces
  • Hydro-Air Fan Coils

Cross-References:
  • Grundfos UPS 26-99FC

Technical Specifications:

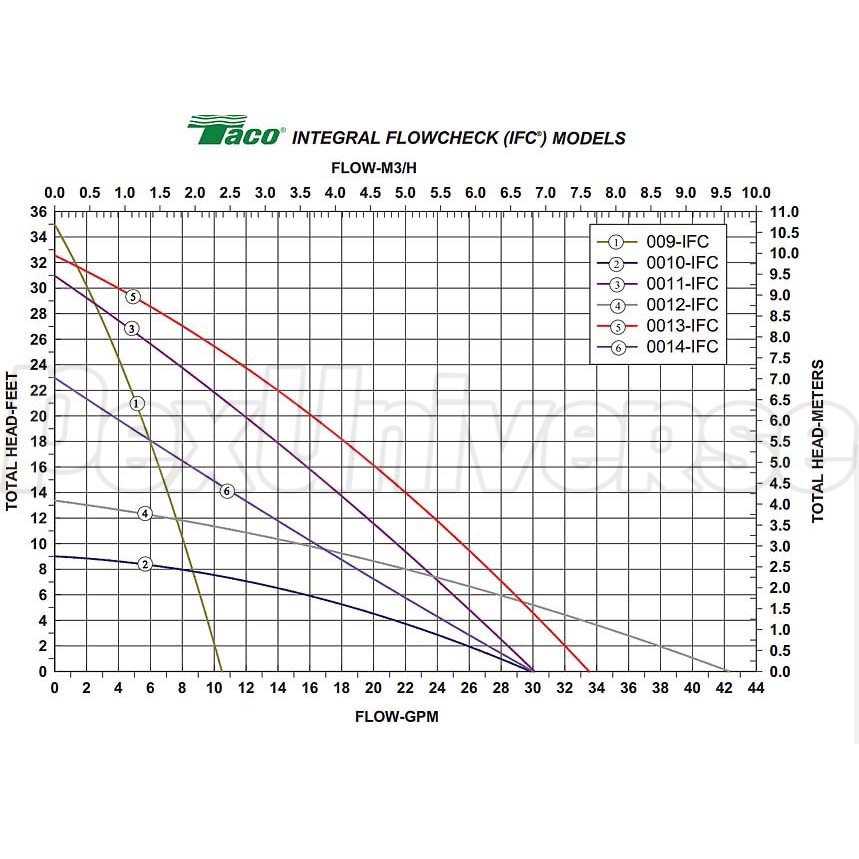

  • Flow Range: 0 – 30 GPM
  • Head Range: 0 – 31 Feet
  • Minimum Fluid Temperature: 40ËšF (4ËšC)
  • Maximum Fluid Temperature: 230°F (110ËšC)
  • Maximum Working Pressure: 125 psi
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 1.76A;
  • HP: 1/8HP;

Warranty:
3-year manufacturer's warranty.
