1" Sweat, Spirovent Jr Air Eliminator Spirotherm
1" Sweat, Spirovent Jr Air Eliminator Spirotherm
1" Sweat, Spirovent Jr Air Eliminator Spirotherm
100%
1" Sweat, Spirovent Jr Air Eliminator Spirotherm
1" Sweat, Spirovent Jr Air Eliminator Spirotherm
1" Sweat, Spirovent Jr Air Eliminator
Brand: Spirotherm
Part#: VJS100
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$104.95 / each
$395.80 box of 4
($98.95 each)
Free Shipping on any qty
Add to Cart

Description

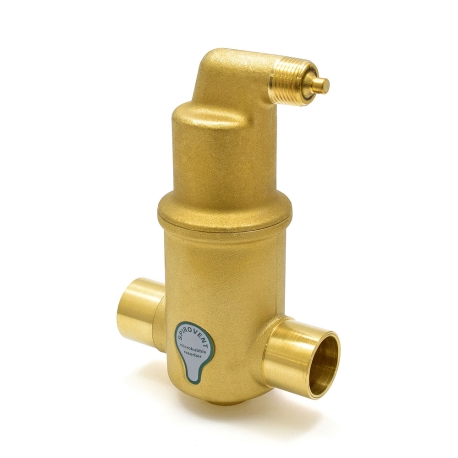

Spirovent Jr air eliminator model VJS100 features a patented Spirotube coalescing component, which "filters out" the air from a hydronic or radiant heating system' fluid, allowing for improved performance and extending the lifespan of the heating system's components.

Spirovent Jr air eliminator features an easy to install, in-line design, making it ideal for a large variety of residential and light commercial uses with pipe sizes ranging from 3/4" to 1-1/4".

Spirovent Jr model VJS100 is also equipped with a 1/2" threaded tapping, which allows for easy connection of an expansion tank.

Installation manual included.


Technical Specifications:
  • Construction: solid brass construction
  • Connections: 1" sweat
  • Max. operating pressure: 150 PSI
  • Max. temperature: 270F
  • Bottom tapping: 1/2" FNPT
  • Weight: 3.0 lbs.
  • Flow at 4ft/sec. velocity: 10 GPM

Warranty:
20 year limited warranty by the manufacturer.

Documents

Write a Review
Helpful? Yes 3 No
Verified Purchase
It is a "No Brainer"
Our water heater is in the garage at one end of the house and our shower is upstairs and at the other end of the house. So we needed to run our shower for 3 minutes or so to get hot water. And since we were tired of dragging the 3 gal bucket of water back down stairs to water our plants, I decided to try this product.It was very easy to install and works great. The timer is a real plus. Since we both get up at 5am, we set the timer to go on at 4:30am and go off at 8am, and by the time we are ready for our showers, we have hot water in our shower. No more lugging buckets of water. We highly recommend this product, since our scarce water supply in Southern California will not end soon, but our water bills will increase. This Comfort System is really making a difference. And the quality of the product exceeded our expectations. We don't see any disadvantages to this product.
By Dennis Heck (from Redondo Beach, CA) on 08/24/2016
Helpful? Yes 3 No
Verified Purchase
Terrific product that saves $$$
If you need a hot water re circulation line and absolutely do not want to open up walls, then this will do the trick.Note:Only works with regular water heaters.The maximum number of sensor valves on a system is 3.
By Verified Buyer (from Bay Area, CA) on 07/14/2015
Helpful? Yes 3 No
It works as advertised
I live in a towmhome and all the water pipes are underground and it takes the hot water a long time to reach the tap. I now have hot water at the tap in a few seconds rather then minutes. It saves water and more importantly hot water.
By Al (from Chisago City, MN) on 05/09/2011
Helpful? Yes 2 No
Verified Purchase
Great Product
It will not provide hot water like a three pipe system, but having warm water immediately is so much better than having a long cold wait. I would highly recommend the product.
By Verified Buyer (from Maryville TN) on 09/02/2015
Helpful? Yes 2 No
Verified Purchase
Works fine
Bought this pump since an earlier one lasted over 8 years (warrantied for 2 years). More than satisfied with the quality and performance.
By William P. (from Cimarron, CO) on 10/18/2012
Helpful? Yes 2 No
Verified Purchase
Great product
I own a house in Florida where the master bath is all the way on the opposite side of the house and the plumbing is in the slab. Adding a return line is not an option and we had to run the water for 5 minutes to get warm water. This package was easy to install and worked like a champ.
By Jeff (from Delray Beach, FL) on 06/07/2012
Helpful? Yes 1 No
Verified Purchase
Great product
This product is a must have if you are waiting anymore than 30 seconds for hot water. I figure this thing will pay for itself from the water savings alone.
By Curtis (from Carrollton, VA) on 02/25/2020
Helpful? Yes 1 No
Verified Purchase
Comfort System
Pump easily installs with 3/4" union and threads. Provided flex hoses were 3/8" to 1/2", but needed 3/8" male to 1/2" female adapters were NOT included, even after I provided copy of ad photo showing adapters to PEX. Had to procure myself, at additional cost.
By Daniel (from Kingston, WA) on 05/14/2019
Helpful? Yes 1 No
Verified Purchase
Defective sensor
I have a defective sensor that leaks. It was not detected until after installation. They want me to return it to get a replacement. That is going to cost me extra plumbing charges from the plumber amounting to about $160. I can buy this piece at Home Depot for $50. Rotten customer service. If I had bought this at Home Depot I would be saving money. Buyer beware
Reply from PexUniverse:
Dear Customer,
We honor manufacturer's warranties and in the event the product is defective, we'll gladly take it back and exchange it for a new one at no extra cost to you. You may contact our Customer Service at your convenience to arrange a reply.
By LYNDA (from Las vegas, NV) on 12/04/2018
Helpful? Yes 1 No
Verified Purchase
Nice Product!
This unit was rather easy to install and it works great! Because of the house layout, I installed three comfort valves, one at each bathroom. It is so nice to get up in the morning and have instant hot water at the tap. Before I installed the unit, we would have to dump several gallons of water down the drain before the hot water from the water heater arrived. I'm looking forward to a reduction in our expensive Cal Water bill!
By One Pleased Guy (from Bakersfield, CA) on 01/05/2016
Helpful? Yes No
Verified Purchase
Just add installation
Everything you need to get hot water quickly far from the water heater is included with this Part# 595916
By TERRY (from Port charlotte, FL) on 08/18/2023
Helpful? Yes No
Verified Purchase
Grundfos UP15-10SU7P/TLC
Was a little hesitant to buy but now that I have it in it works great and no more waiting 3-4 minutes wasting water to get hot water to my shower. Even worse in the winter (even here in Phoenix). I turn the pump on (Amazon smart plug) with my phone and 10 minutes later I go take my shower. Feels go to get hot water right away and NOT WASTING WATER during our drought! 1-hour install.
By Randy (from Glendale, AZ) on 05/10/2021
Helpful? Yes No
Verified Purchase
Grundfos
Great service and great, competitive price. Nothing more to say
By Steven (from Austin, TX) on 03/18/2021
Helpful? Yes No
Verified Purchase
Complete kit- everything you need
I have used a Grundfos pump for a number of years and they are good pumps. I am now installing at a 2nd house a comfort system so I don’t have too run the water for minutes before hot water is available. It is nice to be able to purchase a kit with everything that is needed.
By Frank (from Sunnyvale, CA) on 02/23/2021
Helpful? Yes No
Verified Purchase
Great Price
Worked great
By Kelly (from Casstown, OH) on 09/01/2020
Helpful? Yes No
Verified Purchase
It Works
After trying another pump from HD, which drove me nuts and never worked, I ordered this Grundfos recirculatory, I had one before, and was pleased, the parts arrived on time and tracking was easy.
By Thomas (from Sequim, WA) on 06/09/2020
Helpful? Yes No
Verified Purchase
tlc comfort system
great customer service
By Alan (from Dublin, CA) on 05/04/2020
Helpful? Yes No
Verified Purchase
Comfort System
Functions as advertised. Had plumber install pump and initial valve. I added an additional valve and installed myself. Works fine.
By William (from Carlsbad, CA) on 07/26/2019

FAQs

Ask a Question
Why would I pay for a stainless steel pump housing when I can get a cast iron housing cheaper? I intend to use the pump for hot water recirc with cold water line as return.Thanks!
Helpful? Yes 8 No
Cast iron circulator pumps are designed for use in closed-loop heating systems only, where there's no oxygen (air molecules) in the water. Oxygen-rich water quickly corrodes the circulator shortening it's lifespan and reducing system efficiency. Both stainless steel and bronze circulators are equally suitable for use with oxygen-rich water.
By PexUniverse Customer Service on 12/05/2012
Will this product prevent my pipes from freezing when outside temperatures occasionally reach -30F? No heat is available in the house while unoccupied for up to 30 days.
Helpful? Yes 2 No
This pump is not intended for freeze protection purposes. While it may prevent freezing by re-circulating the water at pre-programmed intervals, there's no guarantee that water will not freeze in between these intervals. A better option might be to drain the water lines.
By PexUniverse Customer Service on 09/15/2015
Can I install this pump if I have a close look, recirculation line?Thank you very much
Helpful? Yes 2 No
This pump does not require a return loop and is not designed for a system with return hot water line. If you already have a return line, you can use any circulator pump from Grundfos Comfort System Line except this one.
By PexUniverse Customer Service on 06/03/2013
Like the price for combo. But I do not need or want the timer. Do you have a package without the timer.
Helpful? Yes 2 No
This is the only re-circulating pump that does not require return line and Grundfos makes no other variations of it.
By PexUniverse Customer Service on 12/14/2012
Can I use this pump and valve with a tankless water heater located in a 2 level house?
Helpful? Yes -1 No
Yes.
By PexUniverse Customer Service on 12/08/2020
Can I install this pump in line? There is not enough room on top of my water heater. Also, can I install this horizontally with the hot inflow coming in on right side?
Helpful? Yes -1 No
Yes and yes - the circulator can be installed horizontally, as long as the motor (cylindrical part) is parallel to the ground (basically, pointing to the side) - not pointing up or down and not at an angle.
By PexUniverse Customer Service on 01/27/2020
