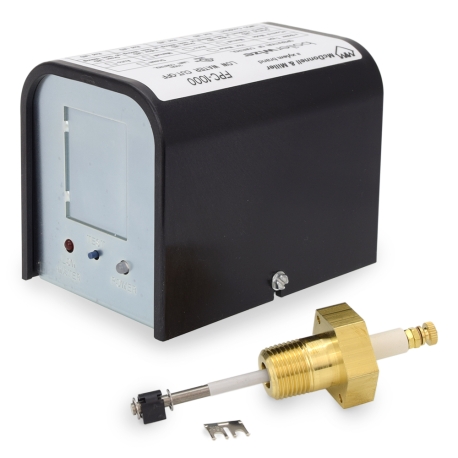

FPC-1000-RX2 boilerwize, Universal Low Water Cut-Off, Remote Probe, Manual/Auto Reset & Test Button, 24V/120V McDonnell & Miller
FPC-1000-RX2 boilerwize, Universal Low Water Cut-Off, Remote Probe, Manual/Auto Reset & Test Button, 24V/120V
Brand: McDonnell & Miller
Part#: 144708
Model: FPC-1000-RX2
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

McDonnell & Miller FPC-1000-RX2 is boilerwize series, universal low water cut-off (LWCO) with RX2 remote probe. Boilerwise series is field-configurable and replaces all LWCO's on the market - 24V or 120V, whether manual or auto reset, both primary and secondary.
Also replaces McDonnell & Miller PSE-800 & 750 series LWCO's.

Cross-References:
  • Universal replacement for ALL electronic Low Water Cut-Offs (LWCOs)

Features:
  • Universal replacement for ALL electronic Low Water Cut-Offs (LWCOs) on the market
  • Compatible with both steam and hot water boilers
  • Includes a remote "RX2" probe
  • Suitable for use as a primary or secondary LWCO on any system
  • Allows to select between 24V/120V operation and automatic or manual reset
  • Back access cover with electrical knock-outs for easy wiring
  • Patented Self-Cleaning Probe reduces maintenance to once in every 5 years
  • 3-in-1 button enables easy system testing without water draining and selection of the desired reset mode
  • Multiple wiring options for control and burner circuit with different voltages
  • (2) External multi-function LEDs display power and low water statuses
  • Secure metal-to-metal seal and leak-free installation
  • Meets ASME CSD-1 Standard
  • cULus listed

Technical Specifications:
  • System Type Compatibility: Hot Water/Steam (Primary/Secondary)
  • Reset: Automatic/Manual (Configurable)
  • Connection: 1/2" NPT
  • Electrical Specs: 24V/120V (Configurable); 60 Hz, NEMA 1 Enclosure
  • Power Consumption: 1.7 VA @ 24 VAC, 3.6 VA @ 120 VAC
  • Probe Sensitivity: 20,000 ohms (hot water); 7,500 ohms (steam)
  • Switch Rating: 7.5 FLA, 43.2 LRA @ 120 VAC
  • Pilot Duty Rating: 50 VA @ 24 VAC; 125 VA @ 120 VAC
  • Max Pressure: 160 psi (Water), 15 psi (Steam)
  • Max Water Temperature: 250°F
  • Max Ambient Temperature: 120°F

Warranty:
1-year warranty from the date of installation; 2-year warranty from the date of manufacture
