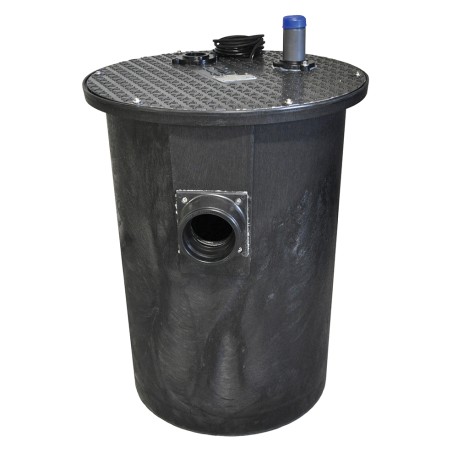

1 HP 700-Series Simplex Sewage System w/ LE102A3 Pump & 24" x 36" Basin, 3" Disch., 208-230V, 10' cord
Brand: Liberty Pumps
Part#: 703-LE102A
Usually ships: within 5-7 business days
Liberty 700 series automatic sewage ejector system is a high-capacity, USA-made, fully assembled and ready for installation pump & basin combo designed for larger (multi-family, multi-unit) residential and commercial applications.
Thanks to a larger (70-gallon) basin which can accumulate more wastewater, the pump cycling is reduced, effectively extending lifespan of the system, while added overhead space inside the basin allows for easy connection of optional alarm and/or control floats.
Note: this system does not require a separate alarm or control panel, however, if these are needed, consider Liberty ALM series alarm or SX series simplex control panel (w/ built-in alarm).

Features:
  • Fully assembled & ready for installation - simply plug in the cord and connect the piping (discharge pipe comes pre-installed)
  • Large 70-gallon basin allows for less frequent pump cycling, extending its' life span
  • One-piece, heavy-duty basin with pump restraints
  • Robust fiberglass basin cover with anti-skid pattern and stainless steel bolts - fully gasketed
  • Made in the USA

Technical Specifications:
  • Basin Size: 24" Wide x 36" Deep
  • Basin Capacity: 70 Gallons
  • Pump Model: LE102A3 sewage pump (automatic, with wide-angle float switch)
  • Pump Specs: 1 HP, 208-230V, 8A, 1-Phase, 10ft cord (w/ plug)
  • Connections: 3" FNPT Discharge, 3" FNPT Vent, 4" No-Hub Inlet
  • Approx Weight: 124 lbs

Warranty:
3-year warranty
