Automatic Sump/Effluent Pump w/ Vertical Float Switch, 10' cord, 1/3 HP, 115V
Brand: Liberty Pumps
Part#: 257
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$210.75 / each
Free Shipping on any qty

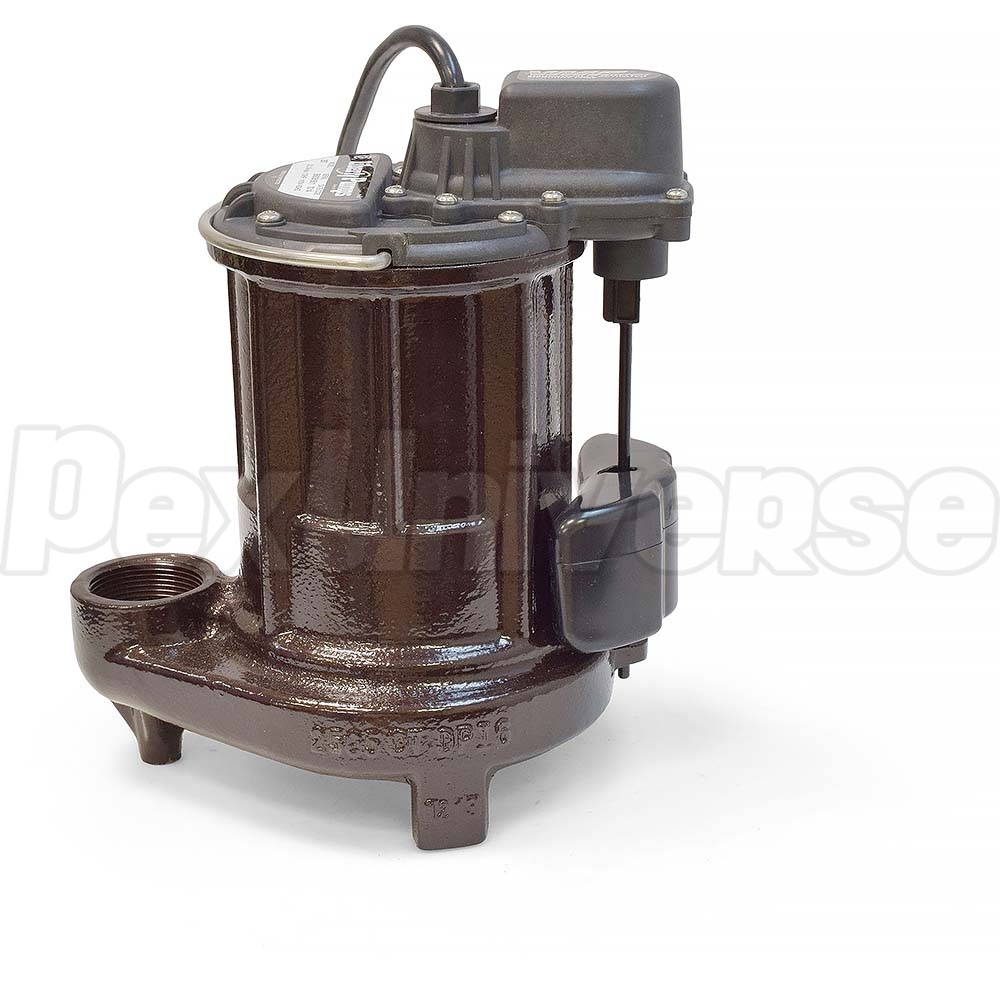

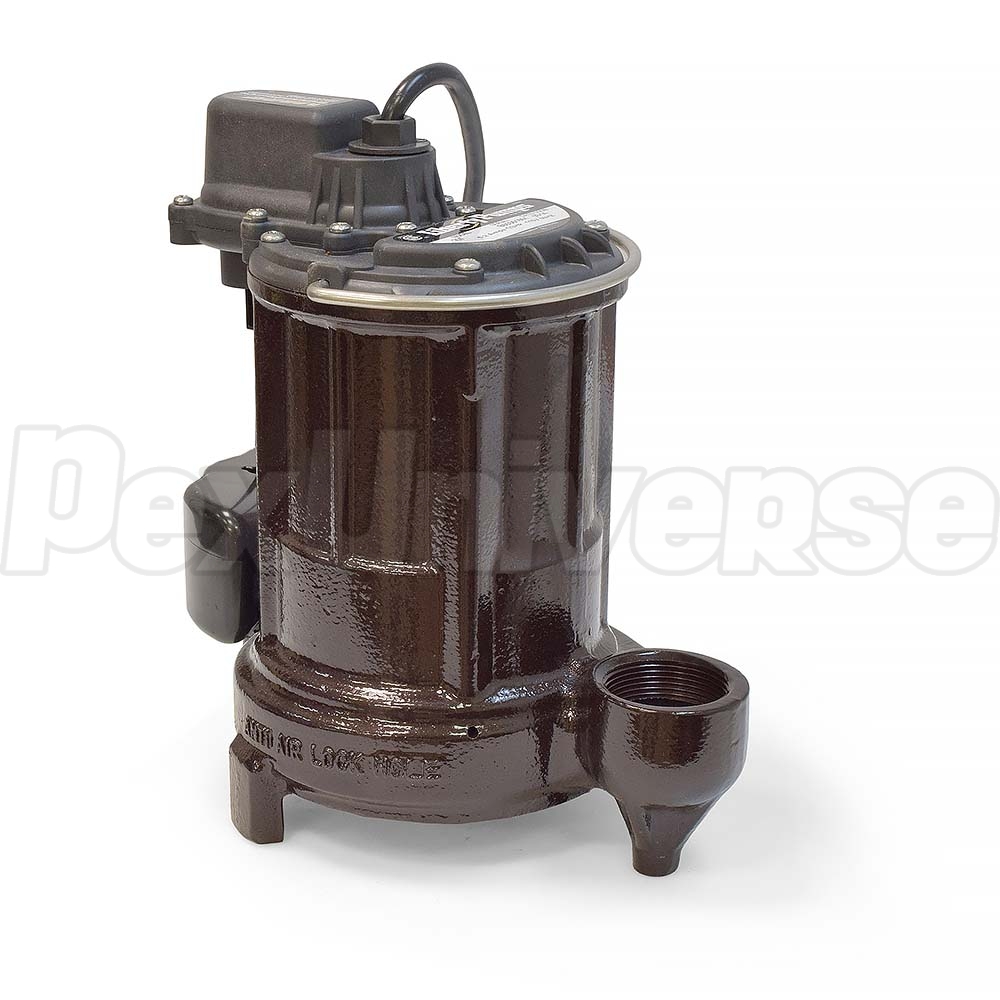

Liberty Pumps 257 is a 1/3HP Automatic Submersible Sump Pump with with magnetically operated vertical float VMF switch and 10ft power cord. Turn-on level of the not adjustable switch is 7" and turn-off level is 3-1/2". This pump can operate in a smaller 10" diameter sump pit.

The Liberty Pumps 257 has 1-1/2" NPT discharge, 1/2" solids-handling, 18' shut-off head, a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.

This Vertical Magnetic Float (VMF) model is not recommended for effluent applications due to their short On/Off cycle. Wide angle float models (Liberty Pumps 251 and 253) are better suited for effluent applications and are easily adjustable for different On/Off levels.

For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.

CAUTION: Do not let the pump run dry.


Applications:
  • Sump
  • De-watering

Features:
  • Rugged 1/3 HP motor, oil filled with thermal overload protection
  • 1/2" solids handling
  • 1-1/2" discharge
  • Hermetically sealed motor and switch cavities, and permanently lubricated bearings
  • Liberty's UNI-BODY casting - a solid, onepiece housing that eliminates the lower motor seal ring found on other pumps
  • Epoxy powder coat finish
  • Vortex style impeller for superior solids-handling. Made of high temperature engineering polymer

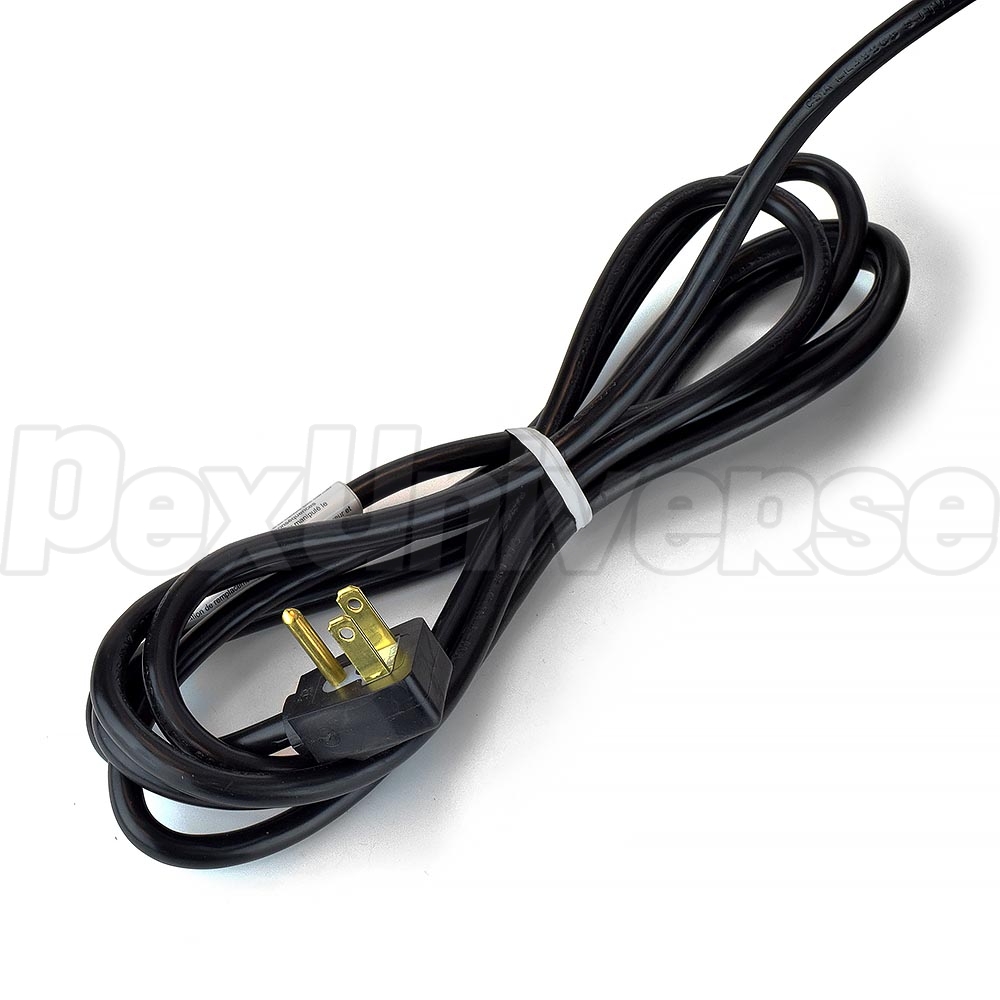

  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
  • Fasteners - all non-corrosive stainless steel
  • 416 stainless steel rotor shaft

Technical Specifications:
  • Horsepower: 1/3 HP
  • Cord length: 10'
  • Discharge: 1-1/2"
  • Solids Handling: up to 1/2"
  • Shut-off Head: 18'
  • Voltage: 115V
  • Amps: 5.2
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 10.5"
  • Width: 9.6"
  • Weight: 23 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
Write a Review
Helpful? Yes 4 No
Quality and built like a tank
On the hunt for a new sump pump after my cheap box store pump failed due to corrosion, I read a number of plumbing and builder web sites for recommendations, which were evenly split between Zoeller and Liberty. Also learned from them for my application in a 11" diameter cast-in sump, I needed a pump with vertical float. The downside of the Zoeller was premature switch failure, so I chose the Liberty 257 with 10' cord. Surprisingly, with the great deal from Pexuniverse, the Liberty wasn't any more expensive than a box store pump. The Liberty really surprised me with the quality of the build - fit and finish - the powder coat looks good and the unit is very solid with surprising heft. Installed in the sump with a 1.5" Schedule 40 PVC stack and checkvalve, it is much quieter than my old pump. And when it turns on, it blasts water out of the pipe and onto the lawn like a fire hose! The old pump had a wide-angle float and on a couple of occasions became caught between the pump housing and sump wall - so I had to manually trigger the pump when the sump flooded. I have no such worry with the Liberty with vertical float. It sits in the middle of the sump with good clearance all the way around. This is the kind of pump Tim the Tool Man Taylor would own.
Cord: 10'
By CornDawg (from Granville, IL) on 07/18/2011
Helpful? Yes 1 No
Very quiet pump
Replaced my other sump pump because of noise through whole home. The new pump is quiet, you have to hold the pipe to know when it runs.
Cord: 10'
By Tom S (from Perrysburg. Ohio) on 12/11/2011
Helpful? Yes No
Verified Purchase
Repeat buyer of Liberty Pumps
Always liked the Liberty pump 257, nice and quiet motor, and good performance...
Cord: 10'
By William (from Queens, NY) on 05/22/2024
Helpful? Yes No
Verified Purchase
Sump pump
Great pump
Cord: 10'
By Zaur on 02/01/2024
Helpful? Yes No
Verified Purchase
Quick delivery
Great product, great price, great service.
Cord: 25'
By Kathleen (from Chalfont, PA) on 01/16/2024
Helpful? Yes No
Verified Purchase
Liberty Cast Iron Sump Pump Model 257
This was purchased as a replacement for the same model. The last one lasted 10 years.
Cord: 10'
By Kenneth (from Macon, GA) on 04/06/2023
Helpful? Yes No
Verified Purchase
Great Pump
Works flawlessly and quiet as a mouse. Have had this pump 6yrs. Excellent sump pump! Bought another as a back up. Thank you PlexUniverse for the excellent price and super fast shipping.
Cord: 10'
By Lloyd (from Cortland, OH) on 02/27/2022
Helpful? Yes No
Verified Purchase
automatic sump/effluent pump
pump always works well. Moved into a low line water area and purchased this pump to be used as my backup to go with a generator. Received it fast, they mailed it the next day.
Cord: 10'
By Connie (from Bruce township, MI) on 12/06/2021
Helpful? Yes No
Verified Purchase
Fast and Quiet pump
Amazing how quiet it is, it emptied the full sump in about 30 seconds, and if I wasn't standing right over it I'm sure I wouldn't have even known it was on. So far so good!
Cord: 10'
By Michael (from Ellicott city, MD) on 11/30/2020
Helpful? Yes No
Verified Purchase
Thank you
Job well done thank you
Cord: 10'
By Hany (from Salisbury, MA) on 10/20/2020
Helpful? Yes No
Verified Purchase
Exactly the same pump I had, good pump...
I ordered this pump to replace the old Liberty pump I had for many years, and this pump is exactly the same one didn't have to alter the hook up connections everything fit into place, saved me a lot of work, hope this one lasts as long as the old one...Pexuniverse was a good choice, they gave me a good price, and fast delivery, very good dealings with them, will buy from them again....
Cord: 10'
By William (from Breezy point, NY) on 09/08/2020
Helpful? Yes No
Verified Purchase
Happy customer
So far - GREAT! Very pleased with Pex Universe's communication and fast delivery. Pump is very quiet, and was easy to install. Hoping it outlasts the last brand we were using which has proven to have switch problems over time. Off to a great start! (Thank you!)
Cord: 10'
By Jean (from Spring Valley, Ohio) on 09/06/2015
Helpful? Yes No
Liberty 257 Automatic Submersible Sump Pump
very good pump for the price.it fits in a five gallon bucket and it's perfect for a small space.it was shipped fast and it was the best price i could find on the internet.i try it after the easy instalation and it works fine. also very quiet compare the the old one. i do recomend this pump.
Cord: 10'
By k D (from Wakefield Ma) on 10/05/2013
Helpful? Yes No
Can't find one better
I use the pump in my yard in a low spot to help remove rain waters on my 5 acre property in South Florida! I had my last liberty pump 7 years. Although it is not used alot, it would be interesting to know how many hours I actually used it. My last pump failed to start when the float engaged. Unfortunately, it would of cost more to repair! I have tryed other pumps over 18 years and I like this one the best and is why I bought another one!
Cord: 10'
By Marvin F. (from Wellington, Florida) on 07/08/2012
Helpful? Yes No
Liberty Pump
Excellent pump
Cord: 10'
By pete (from New City NY) on 07/27/2011
Helpful? Yes No
liberty 257 sump pump
pump is ideal for narrow basins. easy installation. my sump basin is dry most of the time. pump only works during very heavy rains and then is dry. plumber installed liberty 257 in my sons house several years ago and it works fine.
Cord: 10'
By kenray (from west orange,nj) on 07/21/2011
Ask a Question
Is this pump available with a 25ft cord ?
Helpful? Yes No
Yes, it's the 257-2 model.
By PexUniverse Customer Service on 07/08/2019
Is there a release button to make the sump pump work?
Helpful? Yes No
We'll need more details to answer your question, so feel free to contact our customer service at your convenience.
By PexUniverse Customer Service on 06/21/2019
