6EC-CIA-SFS Automatic Sump/Effluent Pump w/ Vertical Float Switch and 10' cord, 1/3 HP, 115V
Brand: Little Giant
Part#: 506807
Model: 6EC-CIA-SFS
This product has been discontinued. No direct replacement is available at this time.

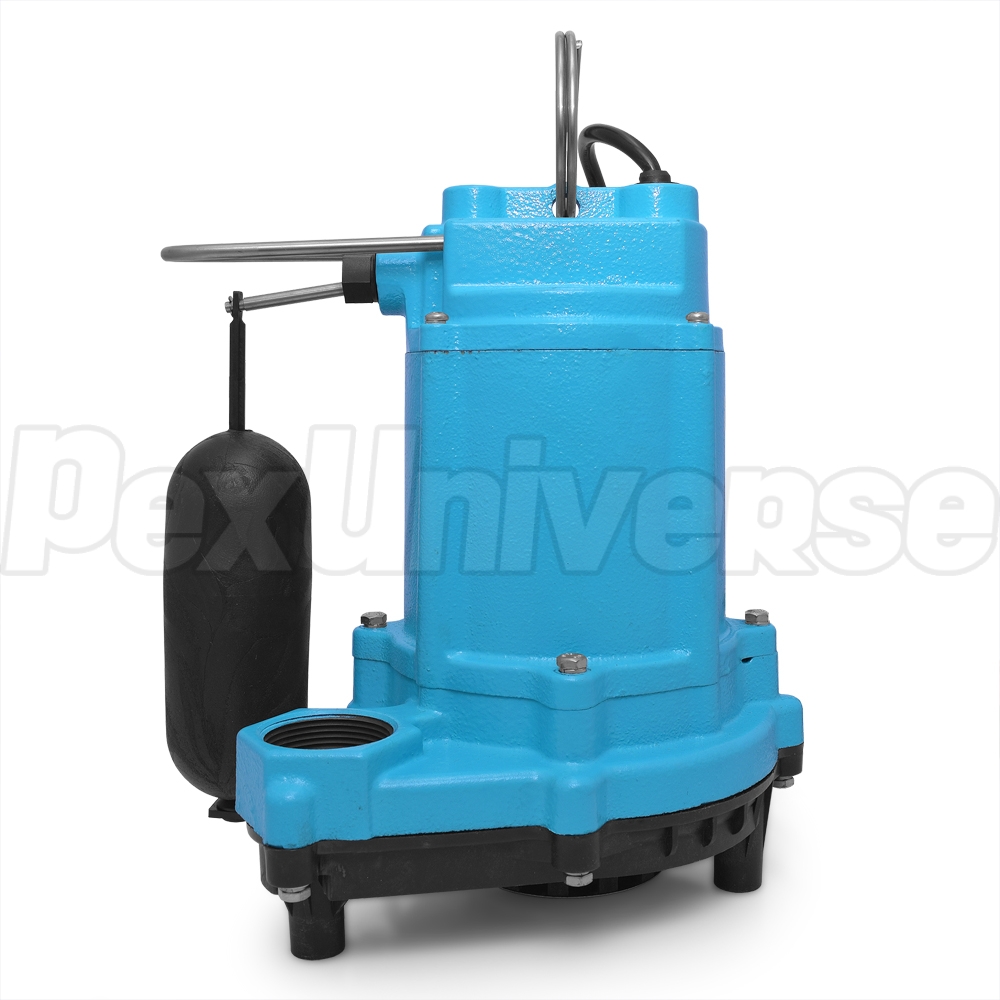

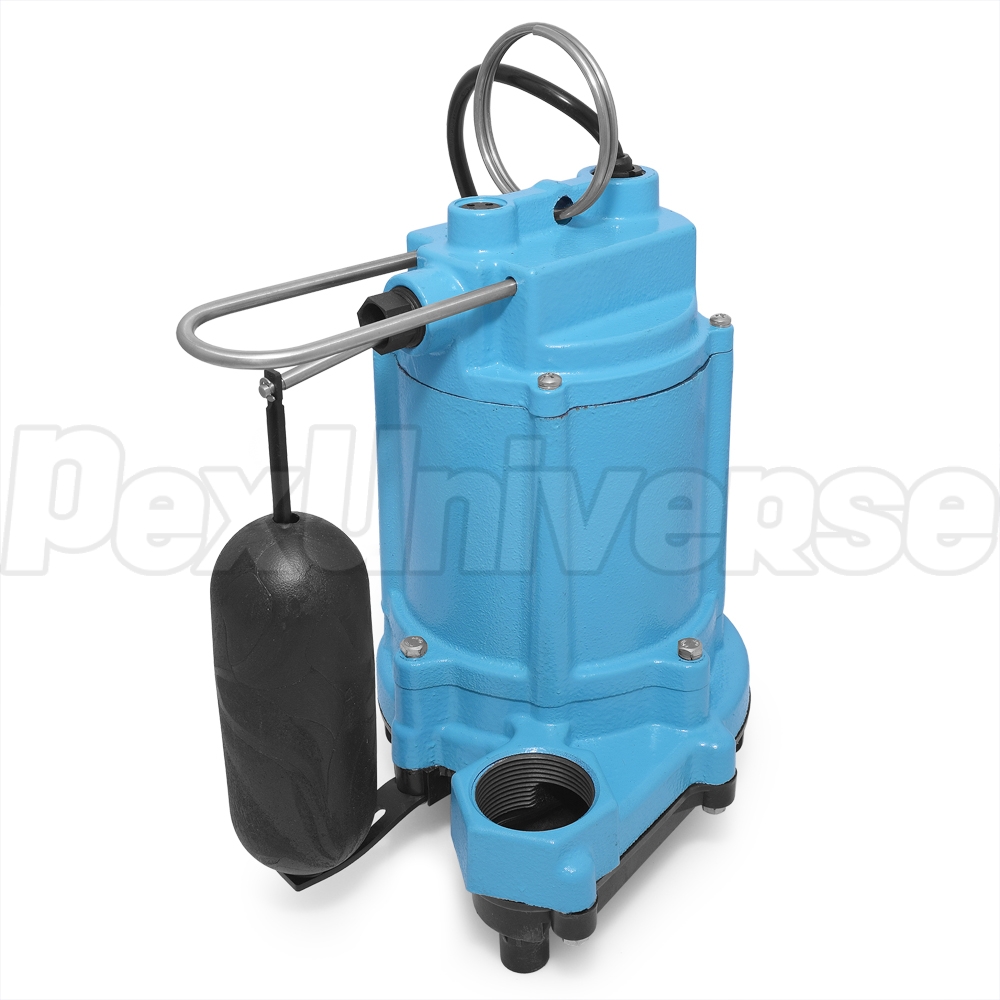

Little Giant 6EC-CIA-SFS (506807) is a 1/3HP dual-purpose Automatic Sump Pump/Effluent Pump with a 10ft power cord and a mechanical float switch. 6EC-CIA-SFS model is designed to work in automatic mode only and is capable of handling water, effluent waste, wastewater and small solids up to 1/2" in diameter. Mechanical float switch on this model will engage the pump once water level reaches 8"-11" and shut down the pump once water level is within 2"-5".

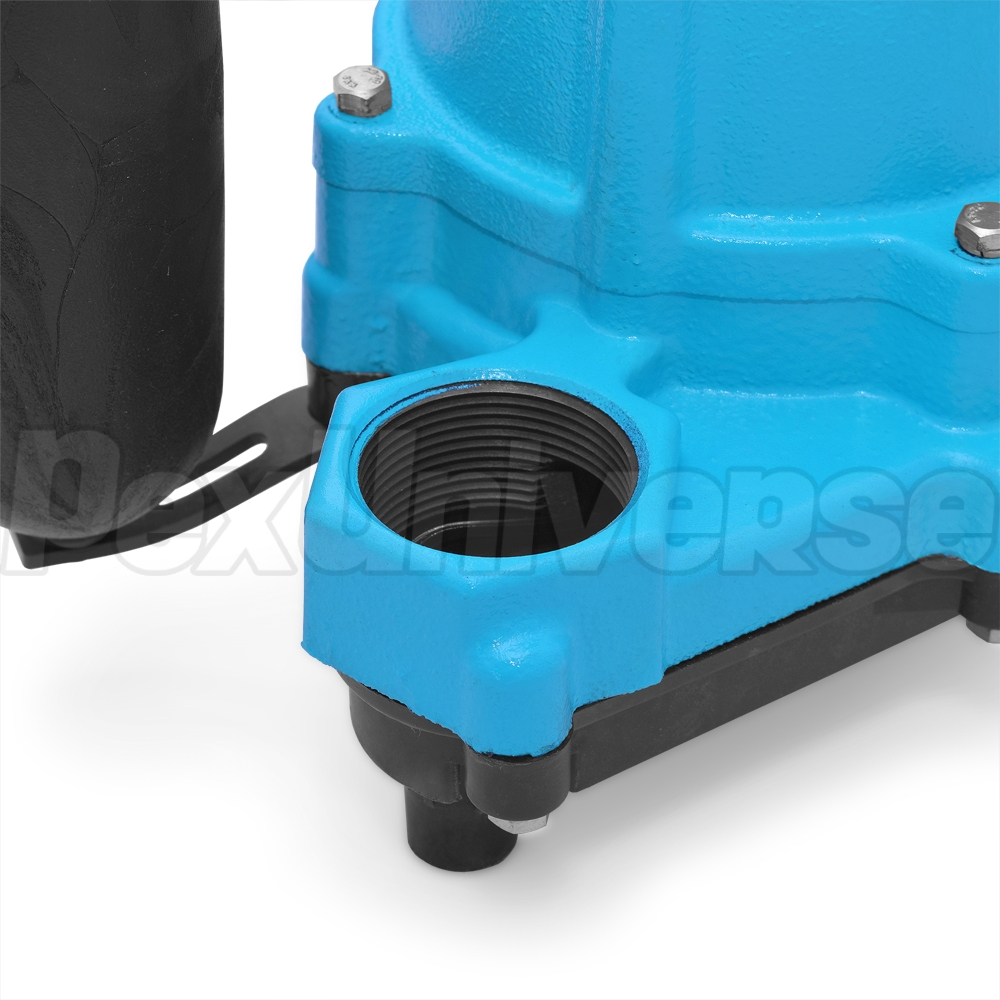

The Little Giant 6EC-CIA-SFS model sump/effluent pump is designed for use both in residential and commercial applications and features a 1-1/2" FNPT discharge with a head capacity of 28ft (of head), polypropylene base, polycarbonate cover, cast iron motor housing, lubricated for life motor and built-in thermal overload protection.


Features:
  • 1/3 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
  • Energy saving low amp draw
  • Cooler running motor which extends pump life
  • Epoxy coated cast iron motor housing
  • Nylon impeller
  • Solids handling up to 1/2 inch diameter
  • On Level: 8” – 11”
  • Off Level: 2” – 5”.

Technical Specifications:
  • Horsepower: 1/3HP

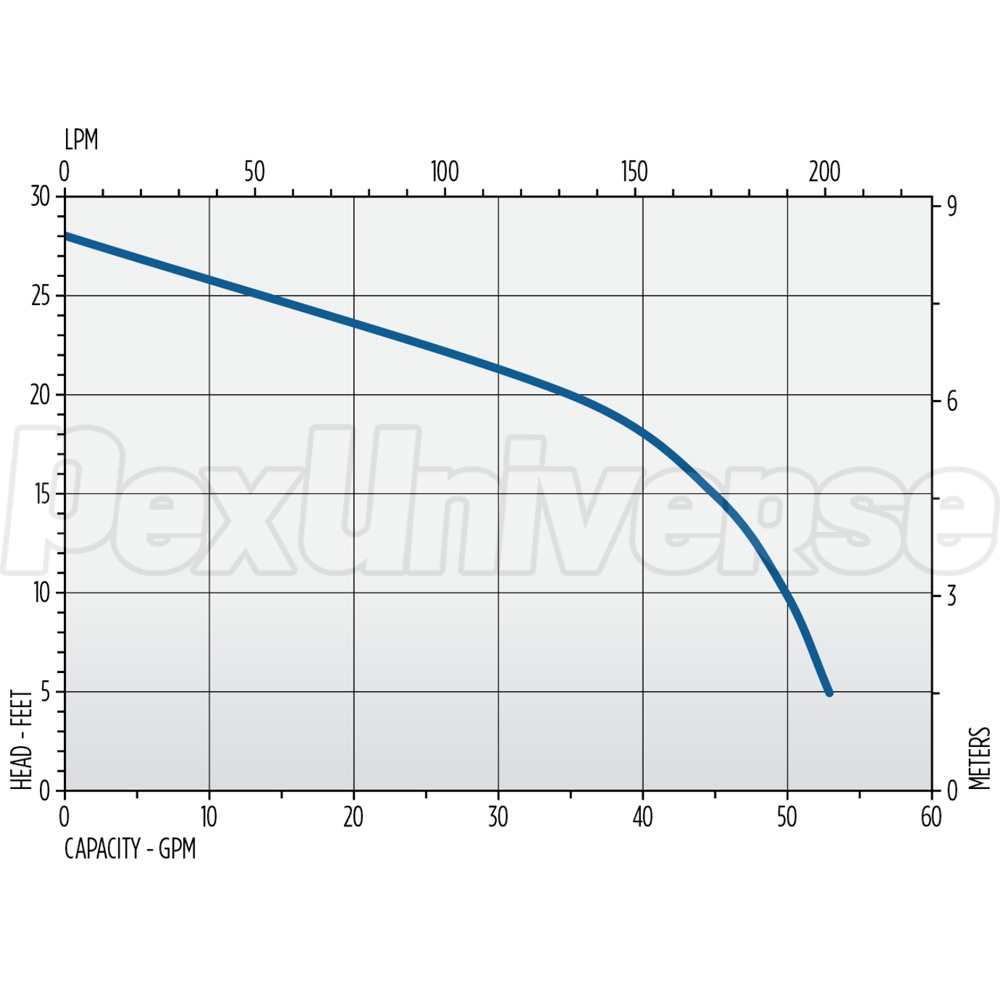

  • Flow: 53 gpm @ 5' of head

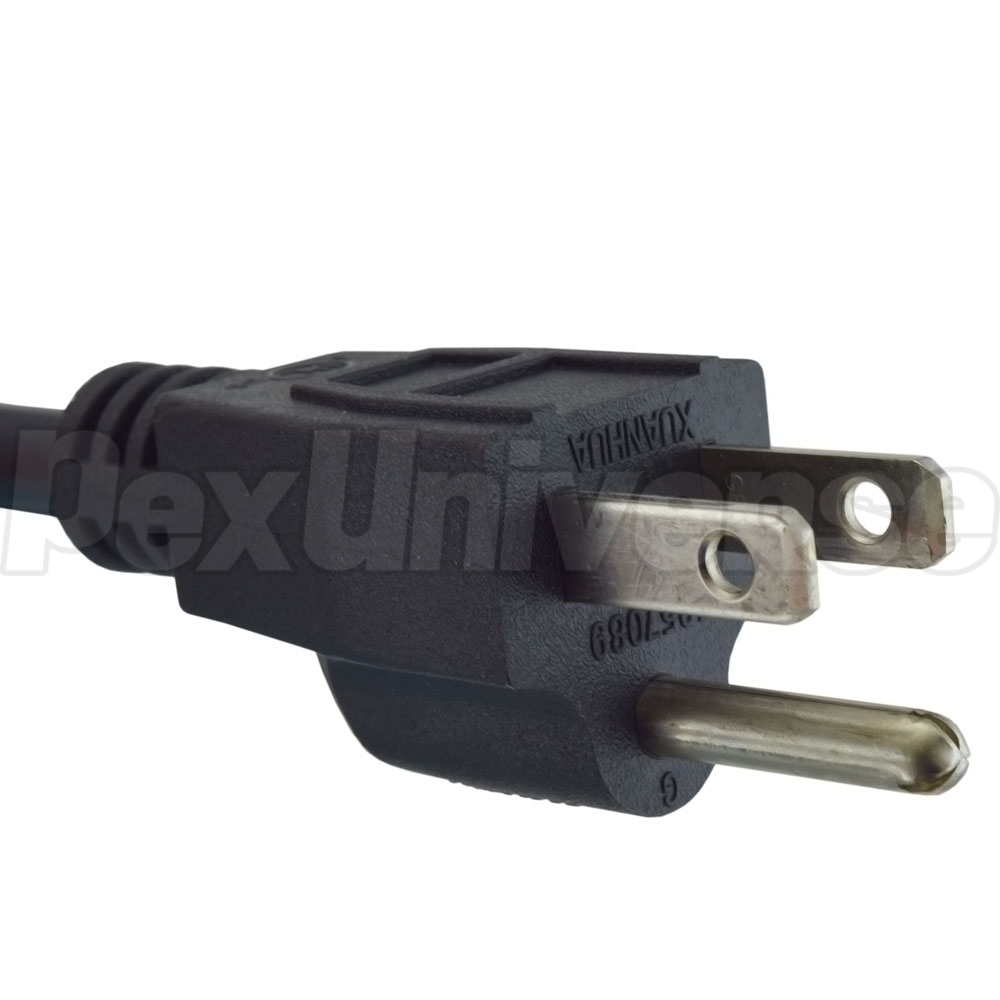

  • Cord Length: 10'
  • Voltage: 115V
  • Amps: 5A
  • Watts: 600W
  • Weight: 28 lbs
  • Height: 11.28"
  • Width: 8.48"
  • Length: 10.66"
  • Certification: cCSAus.

Warranty:
2 years manufacturer's warranty.
Write a Review
Helpful? Yes No
Switch
I have a very high water table and as a result the pump cycles 365 days a year and depending on amount of rain can go off as often as two or three times per minute. I have had to replace the pump four times in the last five or six years always due to the switch burning out. My well is 18 in and I wish I had opted for a 24 in well because it would significantly reduced the number of cycles. My major complaint is that Little Giant must develope a better and stronger switch system. Thankfully my battery backup has done its job when the switch burns out without any warning.
By Joe (from New York) on 06/20/2013
Helpful? Yes No
Great little pump
Looks well made and well regarded. Very quiet. Instructions could be better if it specified how long a 1 1/2" pipe needed after the npt female adapter. Only regret. The original model from Little Giant was made in USA, this one made in China.
By Daniel (from Mt. Holly, NJ) on 08/14/2012
Ask a Question
Is the float adjustable so that it will shut off with 2" of water?
Helpful? Yes No
The float of this pump models is non-adjustable. If you need a models which will shut off at about 2", then you may want to look at Little Giant 506158 model.
By PexUniverse Customer Service on 04/18/2013
