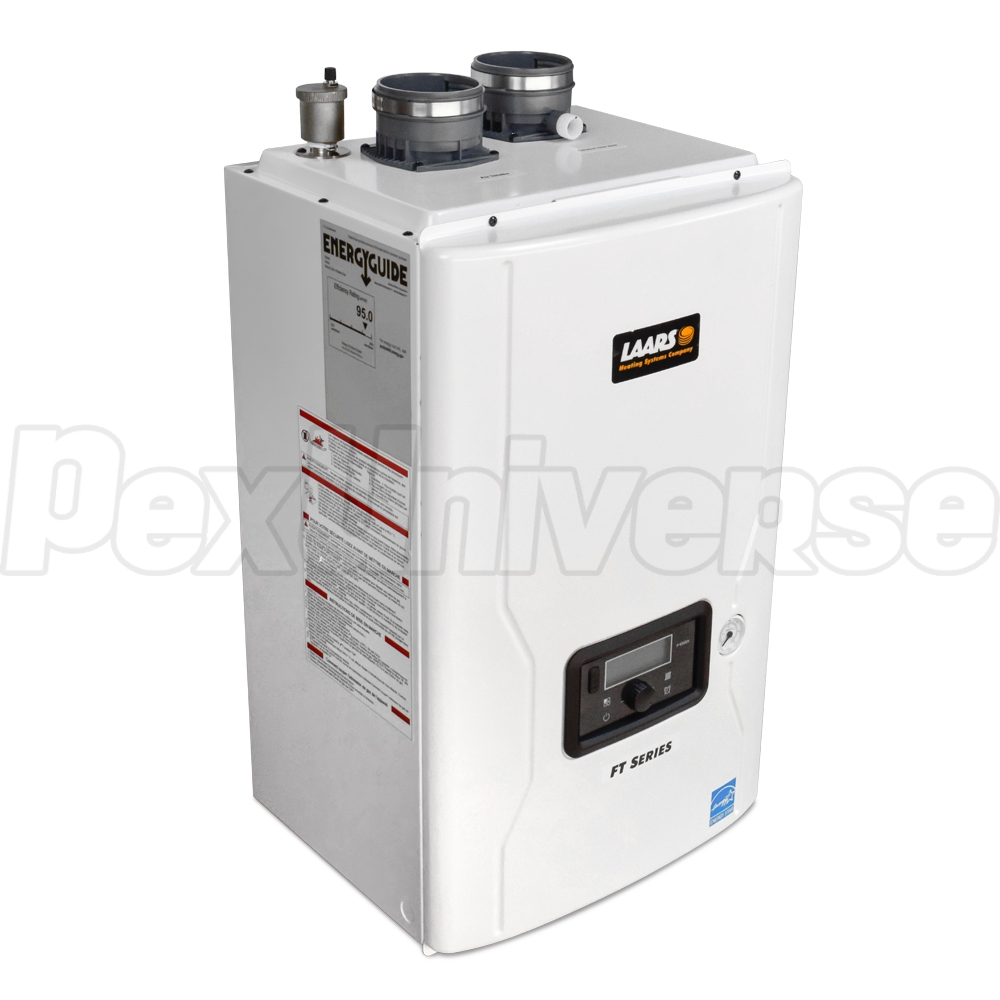

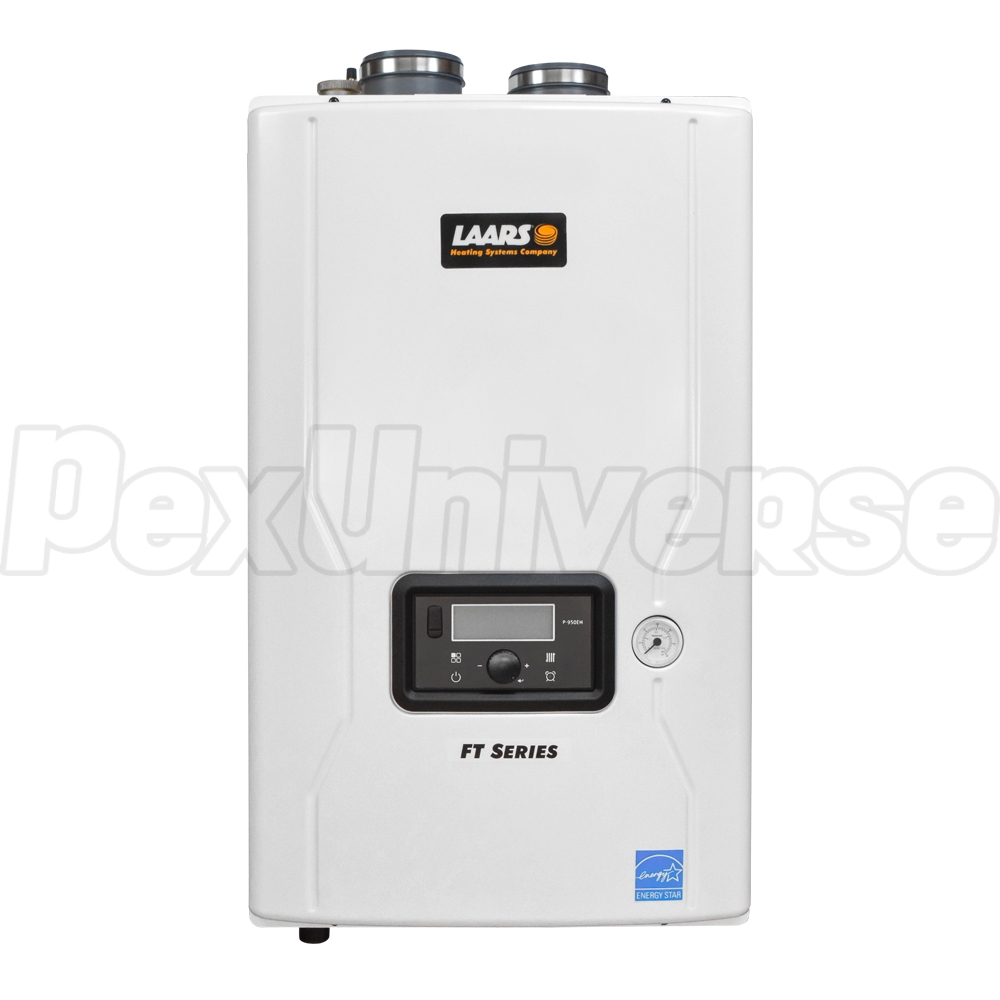

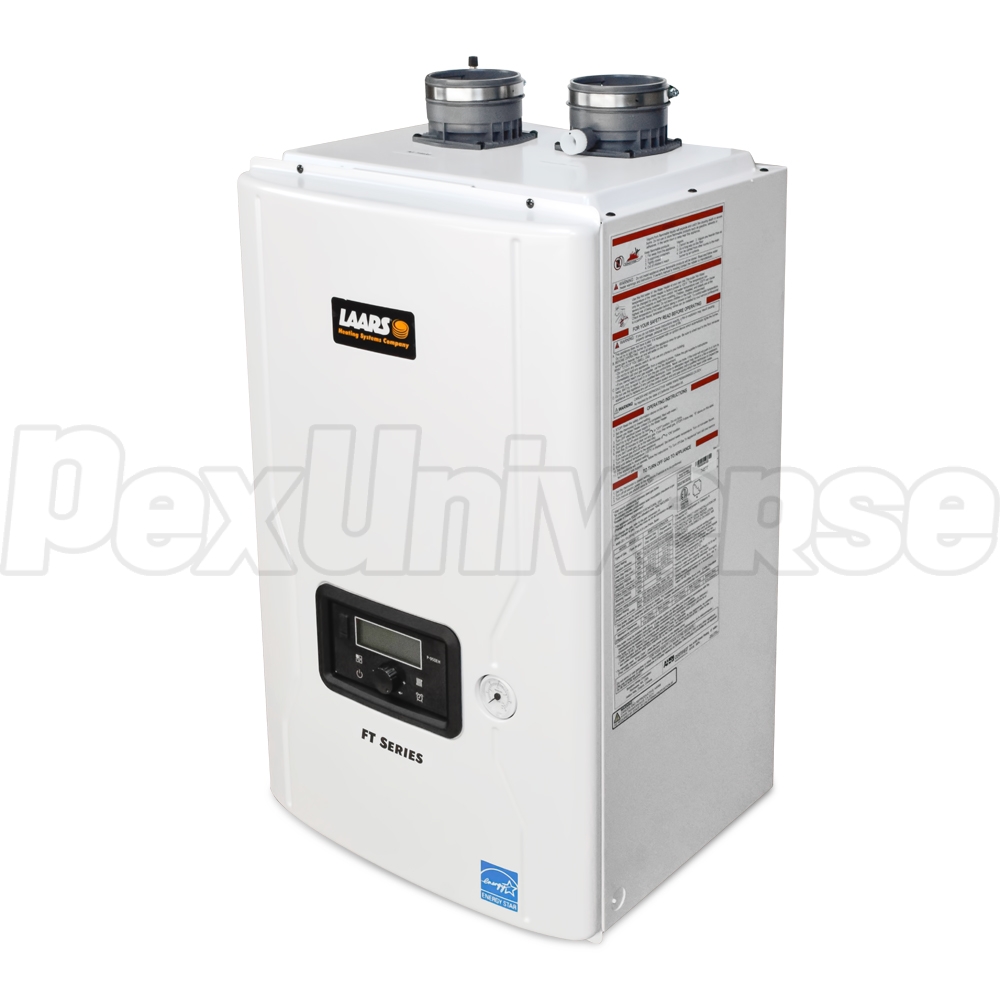

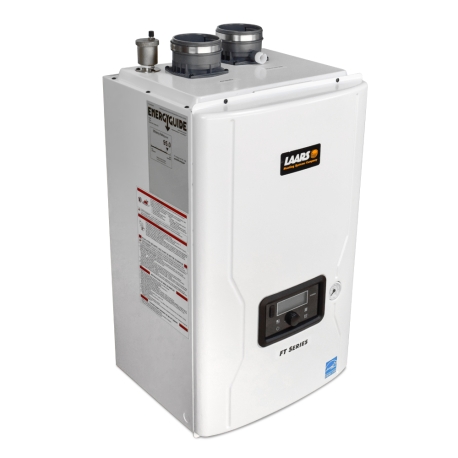

Laars Mascot FT 81,000 BTU Gas Condensing Boiler (Heat Only) Laars
Laars Mascot FT 81,000 BTU Gas Condensing Boiler (Heat Only)
Brand: Laars
Part#: MFTHW100NA2XN
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Rebate:
This boiler meets the requirements for a federal tax credit and qualifies for a 30% (up to $600) rebate. Click here for more info.

Laars MFTHW100 model is Mascot FT series, Energy Star listed mod-con heating-only boiler with 81K BTU Net AHRI output.

Features:
  • Energy Star listed
  • Advanced stainless steel fire tube heat exchanger
  • Cascade functionality (up to 20 boilers)
  • Compatible with PVC, CPVC, PolyPropylene and St. Steel vent pipe
  • Modulating Gas Valve: easily convertible from natural gas to propane
  • Dual stage anti-freezing mechanism
  • Built-in gas leak detection with alarm

Technical Specifications:
  • Input Max Fire (BTU): 100,000
  • Net AHRI Rating (BTU): 81,000
  • AHRI Cert. Heating Capacity (BTU): 93,000
  • Output, Max Fire (MBH): 93,000
  • Efficiency (AFUE): Up to 95%
  • Turndown (Modulation) Ratio: 5.0 : 1
  • Fuel Type: Natural Gas (NG) or Propane (LP)

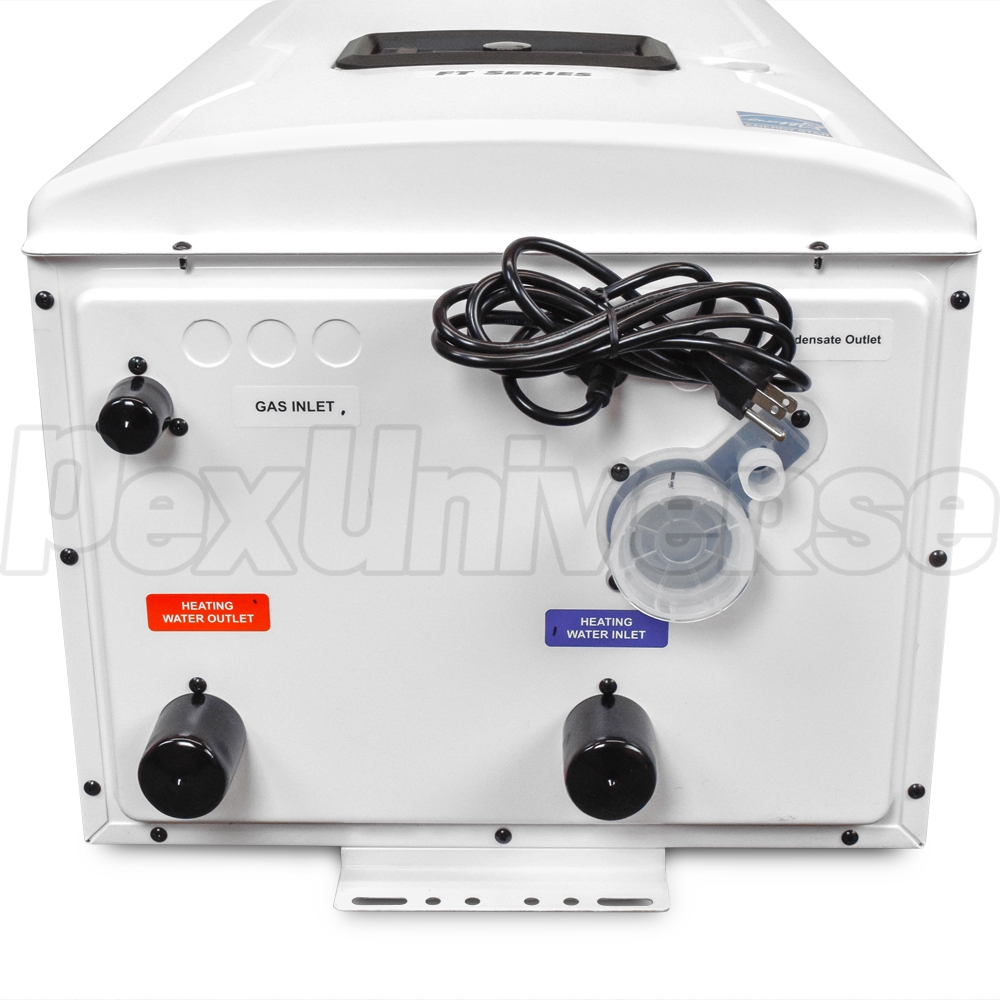

  • Boiler Connections: 1-1/4" NPT
  • Gas Connection: 3/4" NPT
  • Gas Supply Pressure: 3.5 - 10.5 WC (natural gas), 8 - 13 WC (propane)
  • Boiler Pressure Relief Settings: 30 psi
  • Condensate Drain: 1/2" NPT

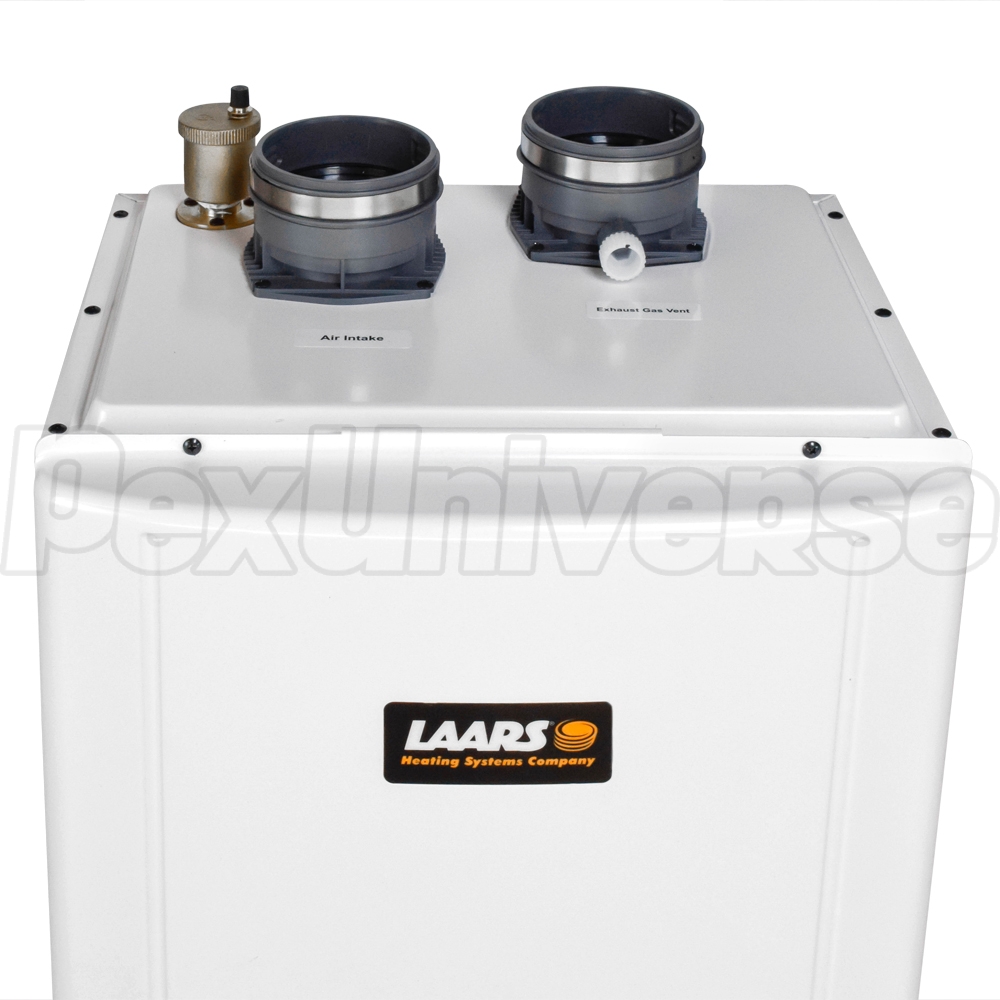

  • Vent/Air Size: 3"
  • Vent Material: PVC, CPVC, PolyPropylene (recommended), St. Steel
  • Power Supply: 120V, 60Hz
  • Dimensions (Depth x Width x Height): 15.37" x 17.37" x 29"
  • Weight (lbs): 98 lbs
  • Mounting Type: Wall-mounted (Wall-hung).

Warranty:
10 Years Limited Heat Exchanger Warranty / 5 Years Parts
