UP15-18B5/LC Bronze Circulator Pump w/ Line Cord, 1/2" Sweat, 1/25 HP, 115V
Brand: Grundfos
Part#: 59896211
Model: UP15-18B5/LC
This product has been discontinued. No direct replacement is available at this time.

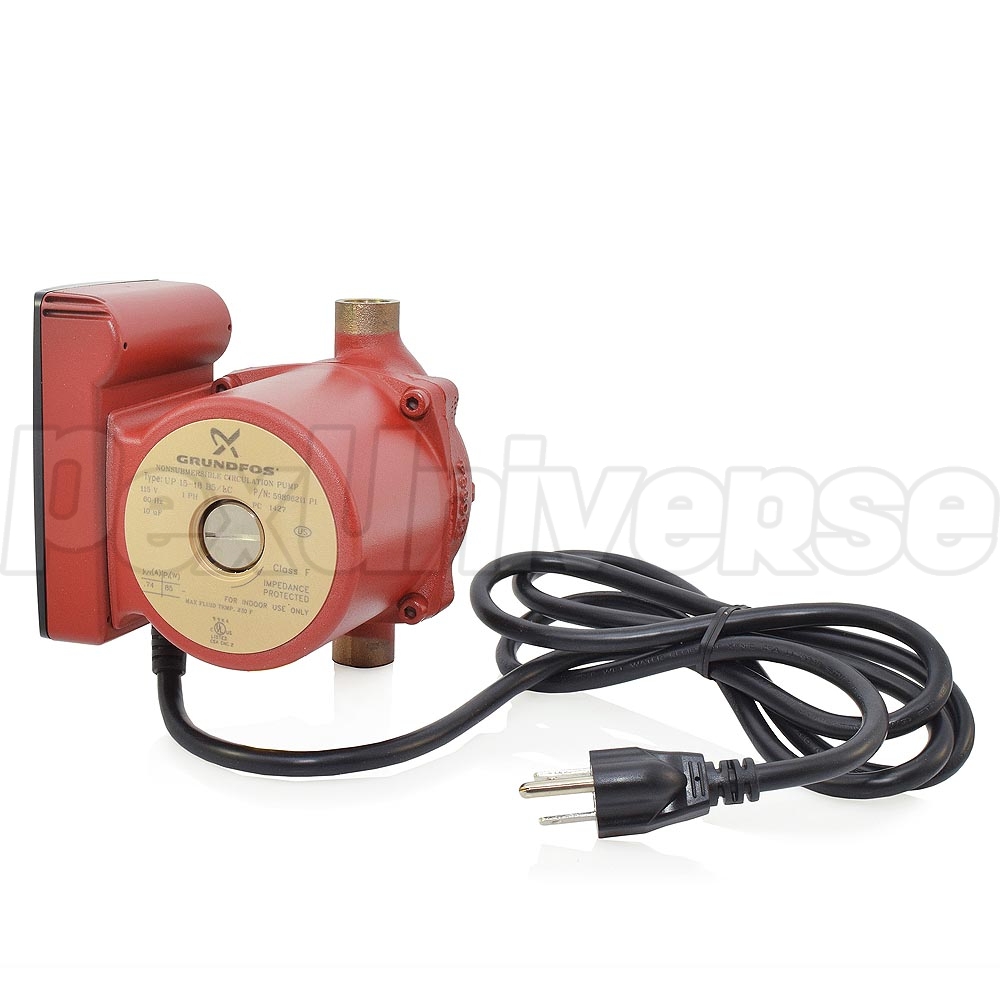

Grundfos UP15-18B5/LC (Grundfos 59896211) is a 1/25HP, single-speed, Bronze Circulator Pump with 1/2" Sweat inlet/outlet connections and features a 6-foot long Line Cord, which eliminates unnecessary wiring and allows to plug the pump right into an electrical outlet. Bronze construction of the Grundfos UP15-18B5/LC model protects the pump from corrosion and allows to use it in a variety of closed and open loop applications, including radiant, solar, storage tanks and many others.

Features:
  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion-resistant impeller, Composite, PES
  • Bronze pump housing
  • Line cord

Technical Specifications:
  • Speed Number: 1

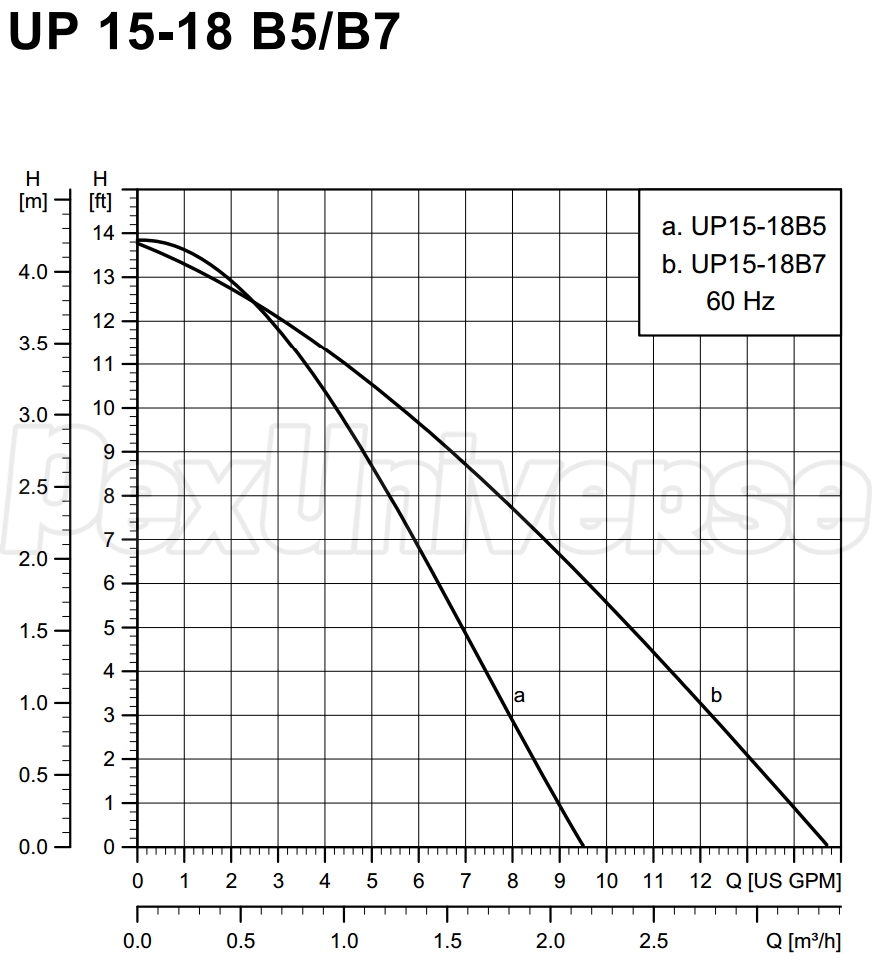

  • Max flow: 14.5 US gpm
  • Head max: 13.8 ft
  • Liquid temperature range: 35.6 - 230 F
  • Maximum operating pressure: 145 psi
  • Approvals on nameplate: UL, CSA
  • Pump housing: Bronze
  • Pump housing: DIN W.-Nr. 2.1176.01
  • Impeller: Composite, PES
  • Maximum ambient temperature: 104 F
  • Ambient max at 176 F liquid: 176 F
  • Maximum operating pressure: 145 psi
  • Flange standard: USA Sweat
  • Type of connection: Bronze Sweat
  • Pipe connection: 1/2" Sweat
  • Pressure stage: 10
  • Port-to-port length: 5"
  • Number of poles: 2
  • Max. power input: 85 W
  • Rated power - P2: 0.04 HP
  • Main frequency: 60 Hz
  • Voltage: 115V
  • Current in speed 3: 0.74 A
  • Capacitor size - run: 10mF/180 V
  • Insulation class (IEC 85): F
  • Gross weight: 6.5 lbs

Warranty:
2 years from date of installation.
Write a Review
Helpful? Yes No
Verified Purchase
Recirculating pump
Haven't installed yet but looks almost exactly like the old one.
Pump Model: 3/4" Sweat
By Ted (from Milan, OH) on 10/09/2022
Helpful? Yes No
Verified Purchase
Re-recirculating Again
Nice OEM product, safely packaged and delivered. Decided to manage operation via a smart plug to control daily timing and enable the ability to control remotely.
Pump Model: 3/4" Sweat
By Darren (from Tucson, AZ) on 02/06/2022
Helpful? Yes No
Verified Purchase
Fast shipping and good pricing
The pump arrived quickly and pricing was lower than other plumbing shops. Secure checkout.
Pump Model: 1/2" Sweat
By Jennifer (from Austin, TX) on 07/27/2021
Helpful? Yes No
Verified Purchase
Pump
Best price for the same product others were quoting for double the price. Great deal and fast shipping. I will buy from them again.
Pump Model: 1/2" Sweat
By Kirk, (from Clio, CA) on 04/14/2021
Helpful? Yes No
Verified Purchase
Great
Worked great, previous one smoked after 10 years.
Pump Model: 3/4" Sweat
By Anthony (from Rio rancho, NM) on 07/08/2020
Helpful? Yes -1 No
Verified Purchase
Great price fast service
pump was a good price and arrived 2 days soon than expected. Thanks
Pump Model: 1/2" Sweat
By Steve (from Cameron, WV) on 10/12/2020
Helpful? Yes -1 No
Verified Purchase
works as expected
was back ordered, but got here eventually
Pump Model: 1/2" Sweat
By Solar Pro (from Boulder, CO) on 07/07/2015
Ask a Question
What is the difference between /LC and w/o LC? is it just the Line Cord? But why one of the dimensions on theses two pumps is different, w/LC is 5 1/2", w/o LC is only 4".
Helpful? Yes No
The difference is only in the line cord. Both listings show port-to-port length of 5".
By PexUniverse Customer Service on 11/14/2022
