UP15-10B5/TLC Bronze Circulator Pump w/ Timer & Line Cord, 1/2" Sweat, 1/25 HP, 115V
Brand: Grundfos
Part#: 99452454
Model: UP15-10B5/TLC
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$325.95 / each
Free Shipping on any qty
Add to Cart

Description

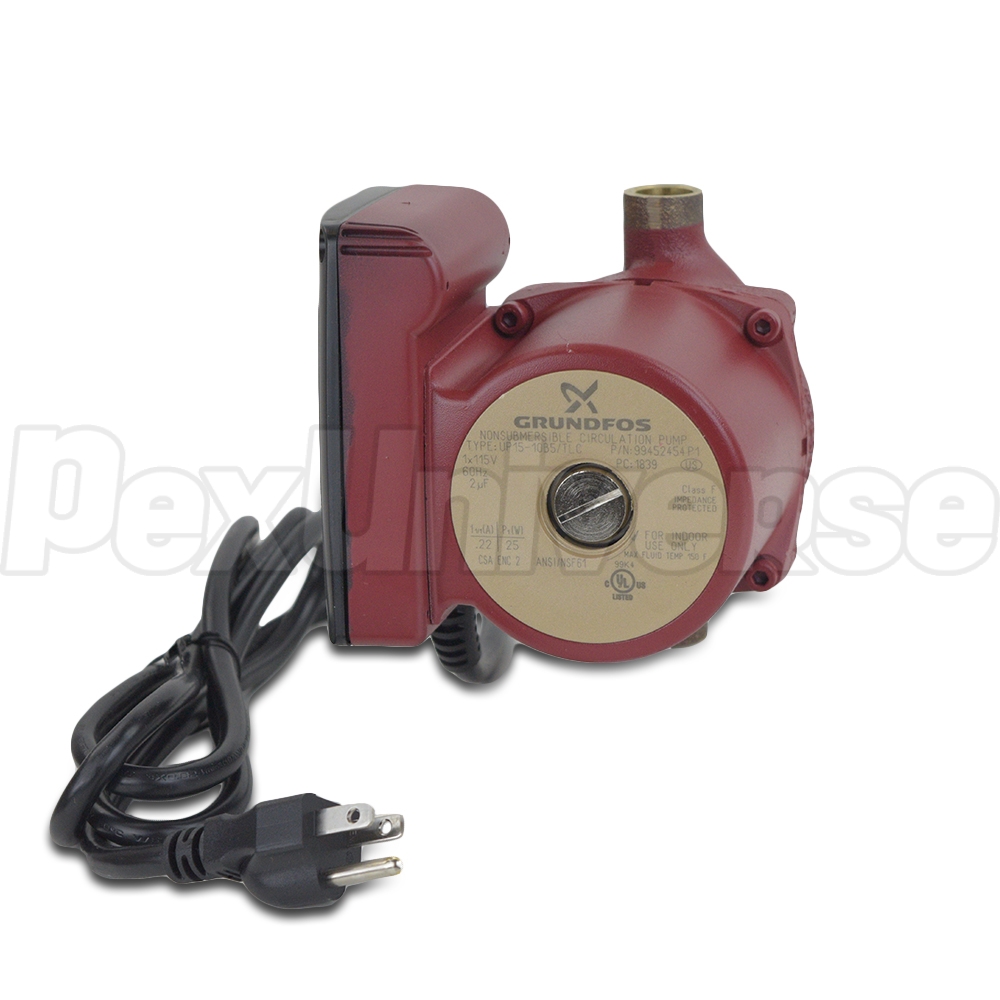

Grundfos UP15-10B5/TLC (Grundfos# 99452454) is a Bronze circulator pump with 1/2" Sweat inlet/outlet connections, timer and 6-foot long power cord. This model is very common for hot water recirculation applications, while timer help to optimize the operating process, and line cord eliminates complicated and unnecessary wiring. Bronze construction protects the pump from corrosion and allows to use it in both open and closed loop recirculation applications.

Features:
  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion-resistant impeller, Composite, PES
  • Bronze pump housing
  • Line cord
  • Timer

Technical Specifications:
  • Speed Number: 1

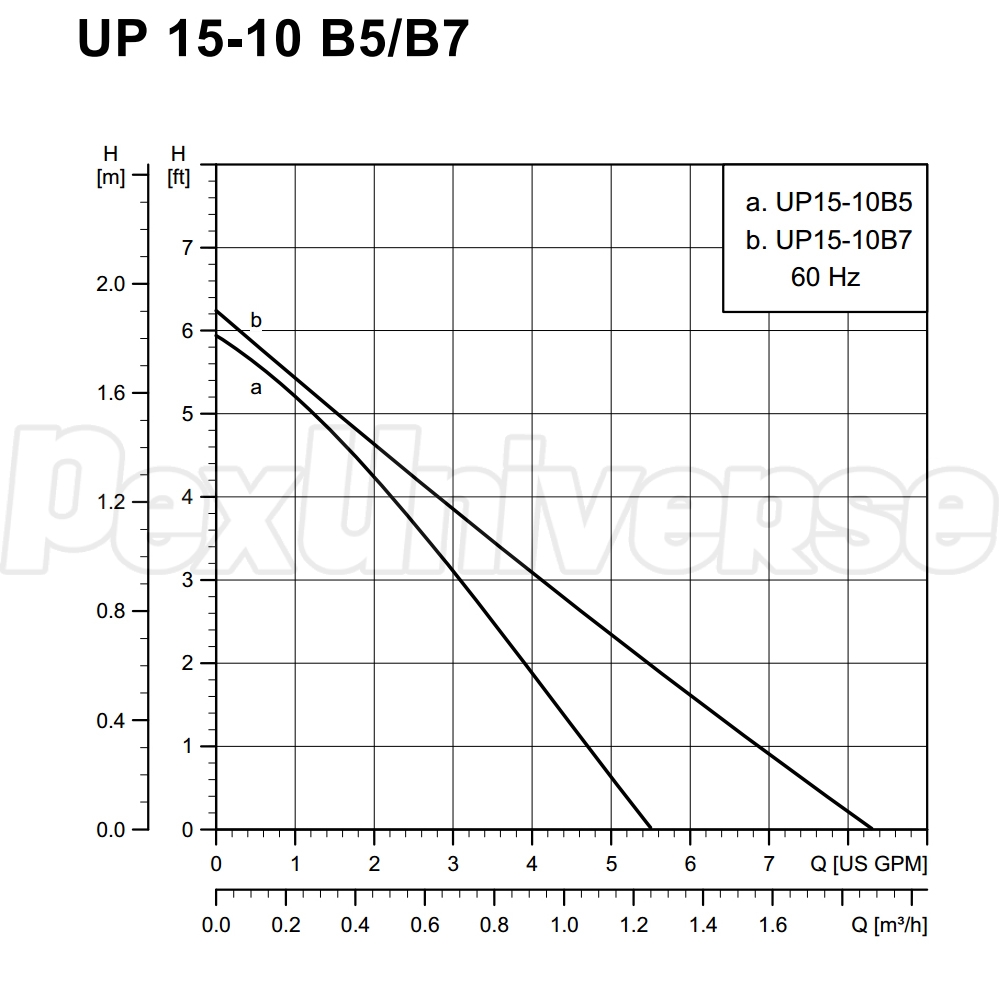

  • Max flow: 8.37 US gpm
  • Head max: 6.23 ft
  • Liquid temperature range: 35.6 .. 150.8 F
  • Maximum operating pressure: 145 psi
  • Approvals on nameplate: UL, CSA
  • Pump housing: Bronze
  • Pump housing: DIN W.-Nr. 2.1176.01
  • Impeller: Composite, PES
  • Maximum ambient temperature: 104 F
  • Ambient max at 176 F liquid: 176 F
  • Maximum operating pressure: 145 psi
  • Flange standard: USA Sweat
  • Type of connection: Bronze Sweat
  • Pipe connection: 1/2" Sweat
  • Pressure stage: 10
  • Port-to-port length: 5"
  • Number of poles: 2
  • Max. power input: 25 W
  • Rated power - P2: 0.04 HP
  • Main frequency: 60 Hz
  • Voltage: 115V
  • Current in speed 3: 0.22 A
  • Capacitor size - run: 2F/400 V
  • Insulation class (IEC 85): F
  • Gross weight: 6.5 lbs

Warranty:
2 years from date of installation.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Grundfos pump
Top quality product from the world's #1 pump manufacturer.
By Ken (from Henderson, NV) on 03/01/2023
Helpful? Yes No
Verified Purchase
Prompt shipment
Good price and quick delivery.
By Walter (from Las vegas, NV) on 02/11/2023
Helpful? Yes No
Verified Purchase
Replacement
Perfect fit!
By Douglas (from Las vegas, NV) on 12/18/2021
Helpful? Yes No
Verified Purchase
Timer
Product very good but no instructions to program timer
By Ken (from Las vegas, NV) on 12/29/2020
Helpful? Yes -1 No
Verified Purchase
Great pump
It gives me instant hot water. My house came with one, the only thing went bad was impeller after 15 years of use.
By Verified Buyer on 01/12/2016

FAQs (3)

Ask a Question
Is there an item that has to be installed at the farthest faucet from the water heater to make the system operate properly
Helpful? Yes 1 No
This model is for installations with a dedicated domestic hot water return line. It requires no additional components. If you do not have a dedicated return line, see Grundfos model UP15-10SU7P/TLC (Part# 595916).
By PexUniverse Customer Service on 04/24/2015

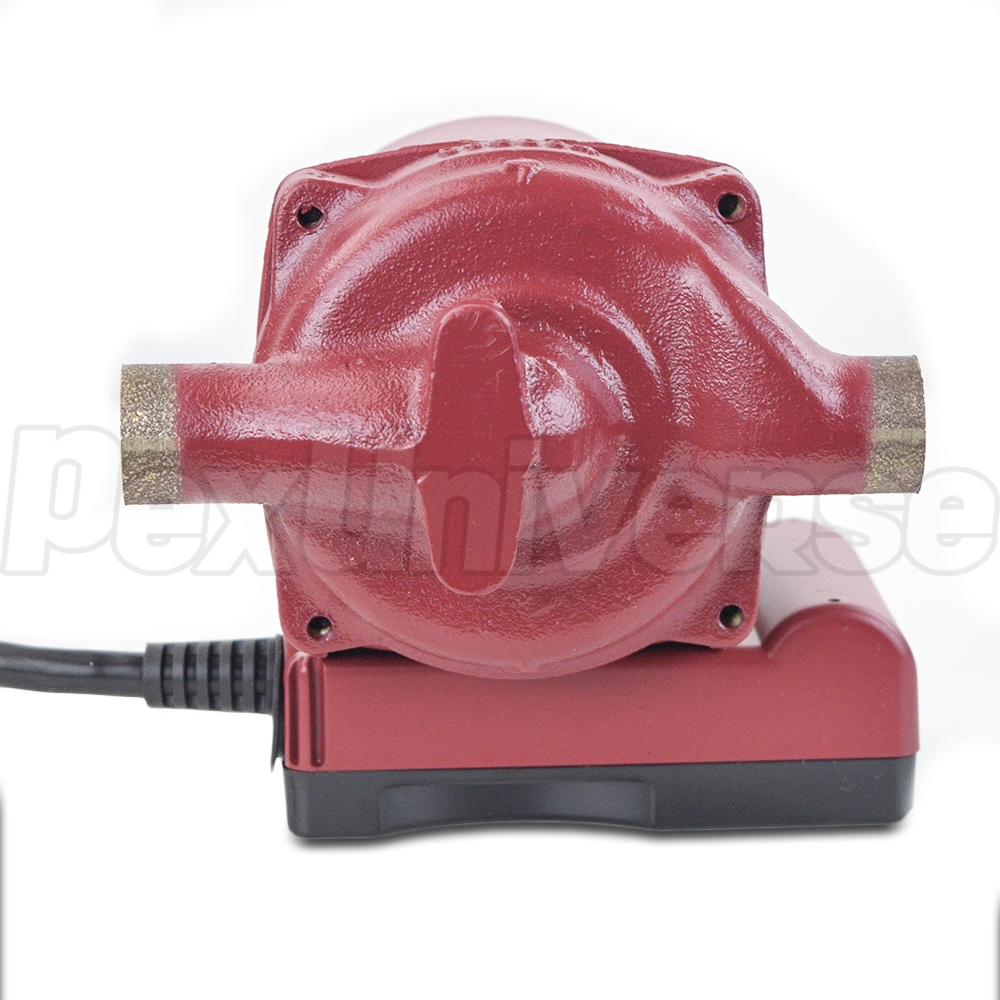

Using picture 4 as a reference, does water flow in on the left and out on the right? Is there an arrow on the pump indicating the direction of water flow?
Helpful? Yes No
Yes and yes.
By PexUniverse Customer Service on 09/28/2021
Does it have a check valve? I already have a check valve downstream from my old Grundfos UP15-10B5TLC.
Helpful? Yes No
This particular model (UP15-10B5/TLC) does not have a check valve.
By PexUniverse Customer Service on 09/27/2021
