UP15-10B5/LC Bronze Circulator Pump w/ Line Cord, 1/2" Sweat, 1/25 HP, 115V Grundfos
UP15-10B5/LC Bronze Circulator Pump w/ Line Cord, 1/2" Sweat, 1/25 HP, 115V
Brand: Grundfos
Part#: 59896214
Model: UP15-10B5/LC
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

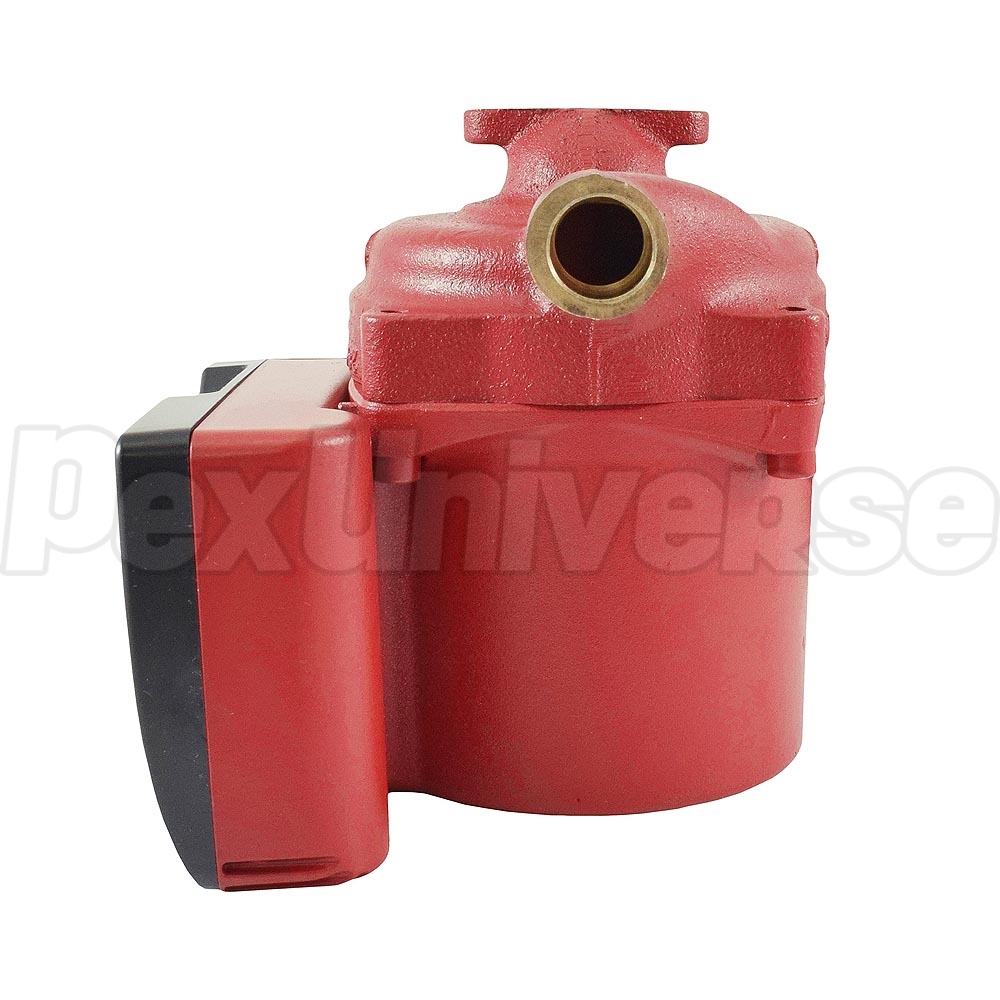

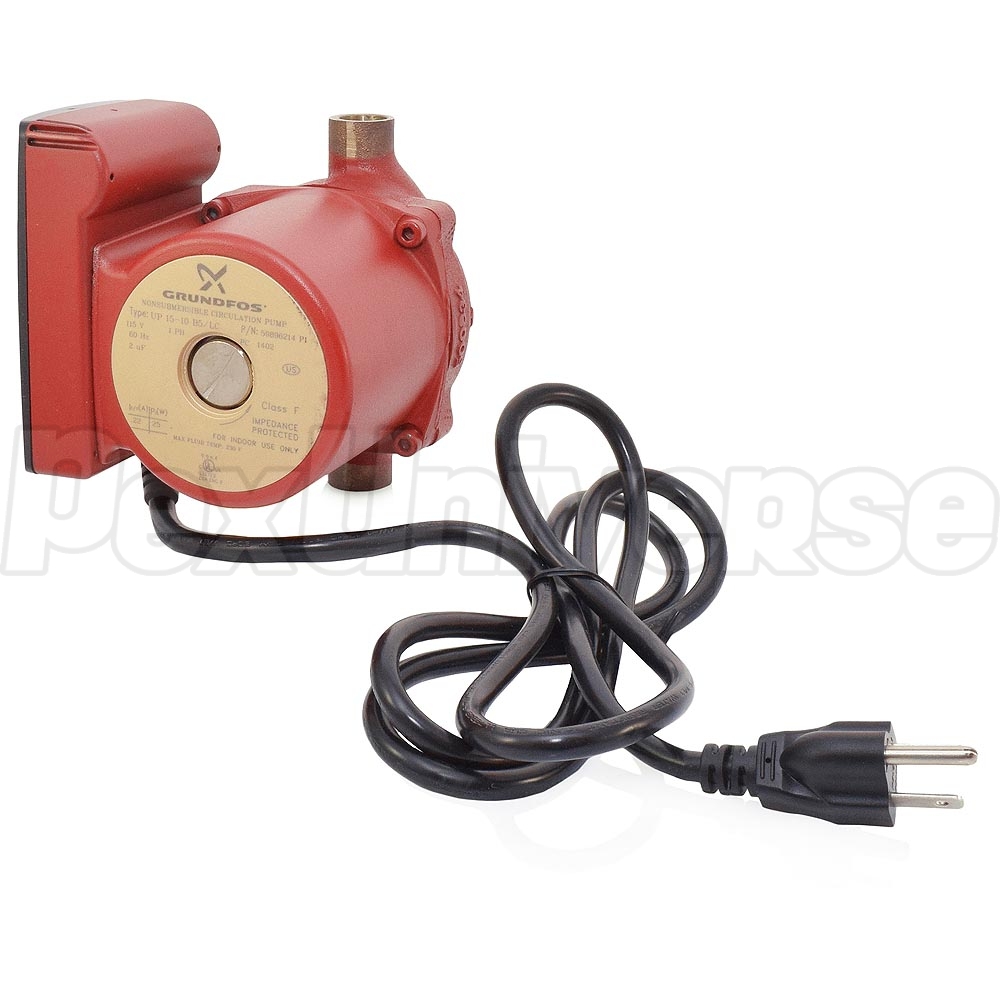

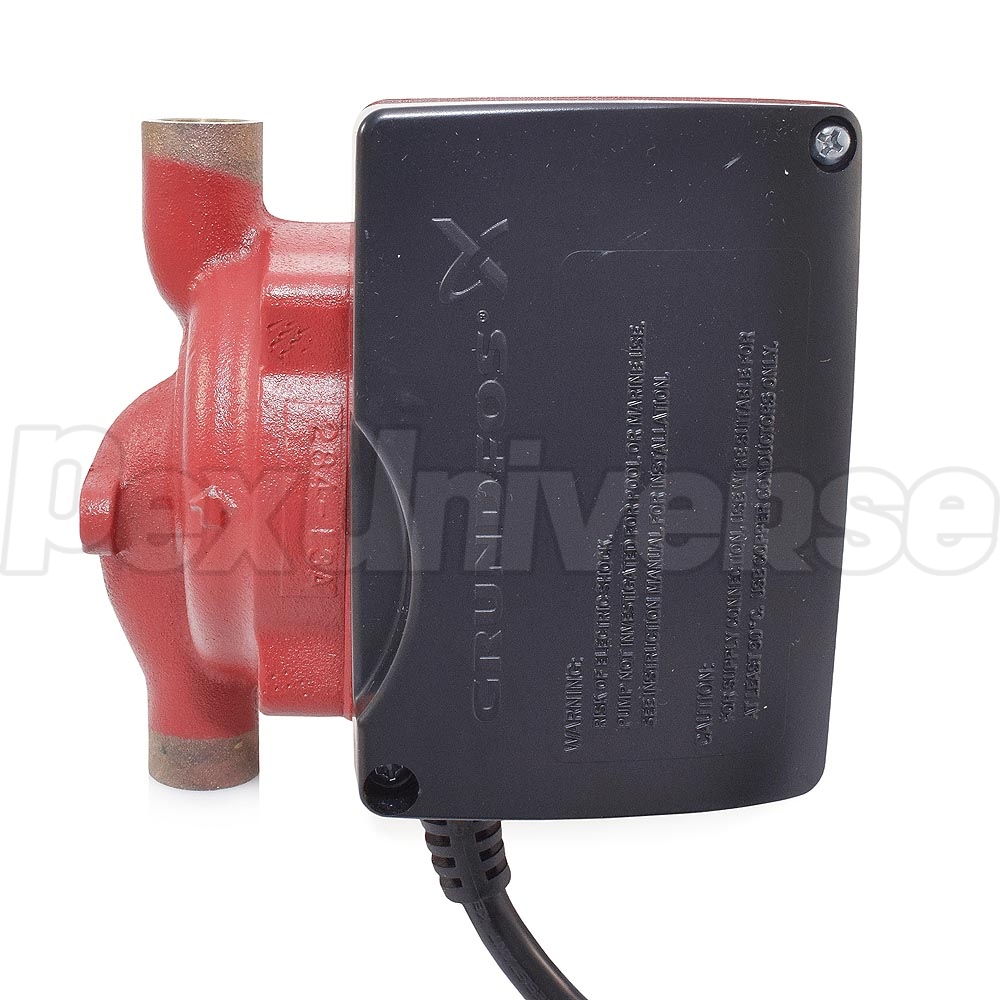

Grundfos UP15-10B5/LC (Grundfos# 59896214) is a 1/25HP Bronze Circulator Pump with 1/2" Sweat connections and a 6-foot long line cord. Line cord of the UP15-10B5/LC model makes installation easier and eliminates the need for unnecessary wiring, while 1/2" sweat connections make it easy to integrate the pump into existing system without purchasing and installing pump flanges. Bronze housing of the Grundfos UP15-10B5/LC model enhances the circulator's resistance to corrosion and allows to use it in a variety op application.

Applications:
  • Hot water recirculation
  • Radiant heating
  • Storage tanks
  • Solar
  • Many others.

Features:
  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion-resistant impeller, Composite, PES
  • Bronze pump housing
  • Line cord

Technical Specifications:
  • Speed Number: 1

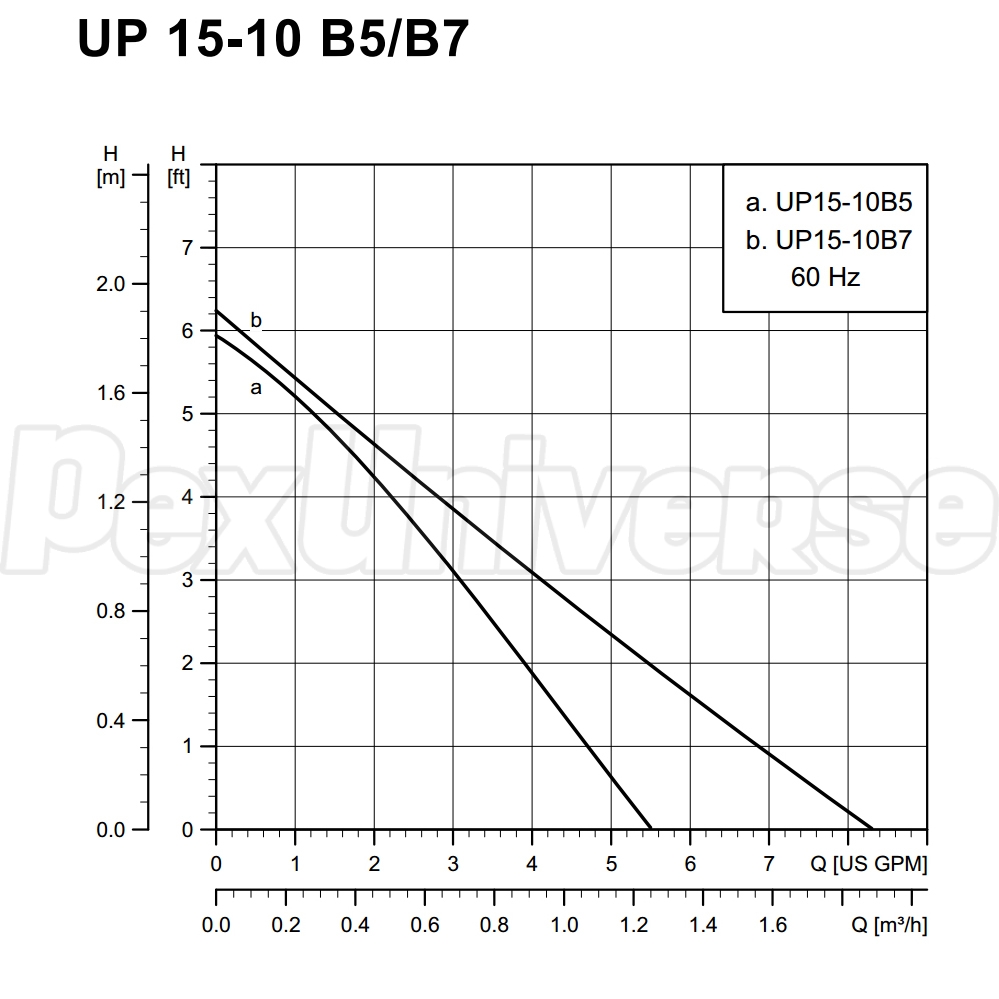

  • Max flow: 8.37 US gpm
  • Head max: 6.23 ft
  • Liquid temperature range: 35.6 - 219.2 F
  • Maximum operating pressure: 145 psi
  • Approvals on nameplate: UL, CSA
  • Pump housing: Bronze
  • Pump housing: DIN W.-Nr. 2.1176.01
  • Impeller: Composite, PES
  • Maximum ambient temperature: 104 F
  • Ambient max at 176 F liquid: 176 F
  • Maximum operating pressure: 145 psi
  • Flange standard: USA Sweat
  • Type of connection: Bronze Sweat
  • Pipe connection: 1/2" Sweat
  • Pressure stage: 10
  • Port-to-port length: 5"
  • Number of poles: 2
  • Max. power input: 25 W
  • Rated power - P2: 0.04 HP
  • Main frequency: 60 Hz
  • Voltage: 115V
  • Current in speed 3: 0.22 A
  • Capacitor size - run: 2F/400 V
  • Insulation class (IEC 85): F
  • Gross weight: 6.5 lbs

Warranty:
2 years from date of installation.
