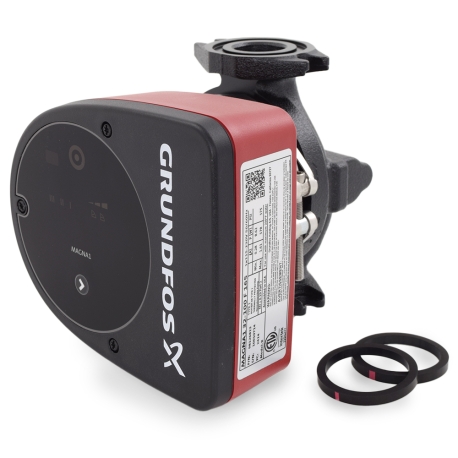

MAGNA1 32-100 GF High-Efficiency Cast Iron Circulator Pump, 208-230V
Brand: Grundfos
Part#: 98126823
Model: MAGNA1 32-100 GF
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$975.95 / each
$3,783.80 box of 4
($945.95 each)
Free Shipping on any qty
Add to Cart

Description

Grundfos MAGNA1 32-100 GF is a feature-rich, cast iron high-efficiency variable speed circulator pump designed for wide range of large residential, commercial and industrial applications.

Features:
  • 9 modes to choose from: (3) proportional pressure curves, (3) constant pressure curves and (3) constant speed curves (Low/Med/Hi)
  • Electronically Commutated Motor (ECM) uses 50% less energy than a standard motor
  • Intuitive control with LED indicator
  • Grundfos Eye LED displays system status for easy troubleshooting
  • High starting torque clears debris and sediment
  • cETLus Listed

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed ECM motor; 3 modes, each with 3 settings - constant pressure , proportional pressure, and a constant speed
  • Connections: Flanged (GF15/26)
  • Circulator Height (Flange to Flange): 6-1/2"
  • Electrical Specs: 115/230V, 50/60 Hz, 178W max, 1.61 Amps max
  • Head Range: 0-32.81 ft
  • Flow Range: 0-45 GPM
  • Operating Temperature Range: 14°F - 230°F
  • Max Operating Pressure: 175 psi
  • Energy Efficiency Index (EEI): 0.20
  • Dimensions (Depth x Width x Height): 7.91" x 8.34" x 6.61"
  • Weight (lbs): 12.65 lbs

Warranty:
30 months from the date of manufacture / 24 months from the date of installation
