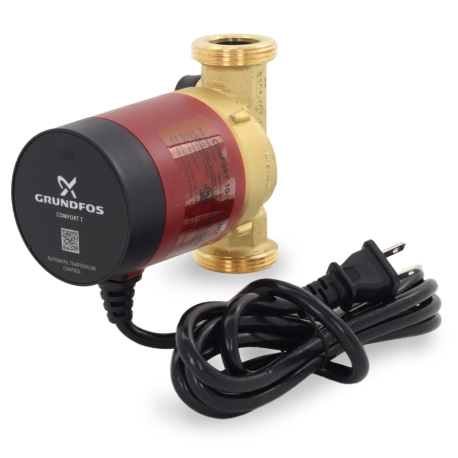

COMFORT 10-16 T PM BU/LC Recirculating Pump w/ Temperature Control & Line Cord, 115/208-230V
Brand: Grundfos
Part#: 92957794
Model: COMFORT 10-16 T PM BU/LC
Grundfos Comfort 10-16 T PM BU/LC is a compact and efficient domestic hot water (DHW) recirculation pump for systems with a dedicated return line. This particular model uses built-in sensor to monitor and maintain consistent hot water temperature. Line cord makes installation quicker and easier. Insulating foam shell included for extra energy savings. Standard Grundfos GU125 union connections on both ends (union x sweat/threaded/etc. adapters are sold separately).

Features:
  • Compact & simple domestic hot water (DHW) recirculation pump for systems bwithout/b a dedicated return line
  • (1) operating mode: constant temperature (maintains consistent hot water temperature)
  • Internal (built-in) temperature sensor
  • Double insulated (no ground wire required)
  • Dry-run protection stops the circulator if water is not detected in the system
  • Built-in isolation (shut-off) valve & check valve (removable)
  • cULus Listed; NSF/ANSI 61 & 372, MH26400 Listed

Technical Specifications:
  • Casing: Lead-Free Brass
  • Circulator Pump Type: 1-Speed
  • Connections: 1-1/4" Union (GU125)
  • Circulator Height (Flange to Flange): 4-3/8"
  • Electrical Specs: 115/208-230V, 50/60 Hz, 7W max, 0.07 Amps max
  • Head Range: 0-3.9 ft
  • Flow Range: 0-2.2 GPM
  • Operating Temperature Range: 35°F - 180°F
  • Max Operating Pressure: 145 psi
  • Dimensions (Depth x Width x Height): 5.86" x 3.13" x 4.33"
  • Weight (lbs): 2.15 lbs

Warranty:
30 months from the date of manufacture
