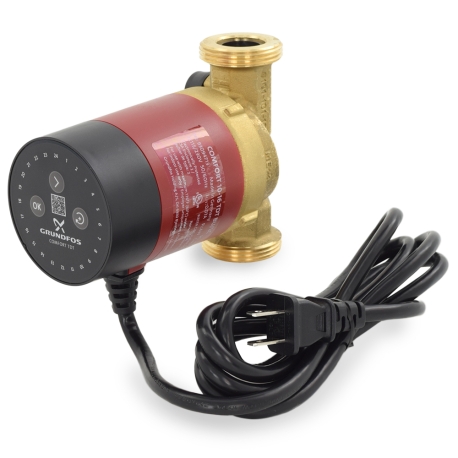

COMFORT 10-16 TDT BU/LC Recirculating Pump w/ Timer, Temperature Control & Line Cord, 115/208-230V
Brand: Grundfos
Part#: 93094713
Model: COMFORT 10-16 TDT BU/LC
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$315.95 / each
$1,223.80 box of 4
($305.95 each)
Free Shipping on any qty
Add to Cart

Description

Grundfos Comfort 10-16 TDT BU/LC is a compact and efficient domestic hot water (DHW) recirculation pump for systems with a dedicated return line. This model offers (2) operating modes to choose from - external digital timer or timer with temperature sensing (no app required). Line cord makes installation quicker and easier. Insulating foam shell included for extra energy savings. Standard Grundfos GU125 union connections on both ends (union x sweat/threaded/etc. adapters are sold separately).

Features:
  • Compact & simple domestic hot water (DHW) recirculation pump for systems bwithout/b a dedicated return line
  • (2) modes to choose from: external digital timer or timer with temperature sensing
  • External temperature sensor
  • Double insulated (no ground wire required)
  • Dry-run protection stops the circulator if water is not detected in the system
  • Built-in isolation (shut-off) valve & check valve (removable)
  • cULus Listed; NSF/ANSI 61 & 372, MH26400 Listed

Technical Specifications:
  • Casing: Lead-Free Brass
  • Circulator Pump Type: 1-Speed
  • Connections: 1-1/4" Union (GU125)
  • Circulator Height (Flange to Flange): 4-3/8"
  • Electrical Specs: 115/208-230V, 50/60 Hz, 7W max, 0.07 Amps max
  • Head Range: 0-3.9 ft
  • Flow Range: 0-2.2 GPM
  • Operating Temperature Range: 35°F - 180°F
  • Max Operating Pressure: 145 psi
  • Dimensions (Depth x Width x Height): 5.86" x 3.31" x 4.33"
  • Weight (lbs): 3 lbs

Warranty:
30 months from the date of manufacture
