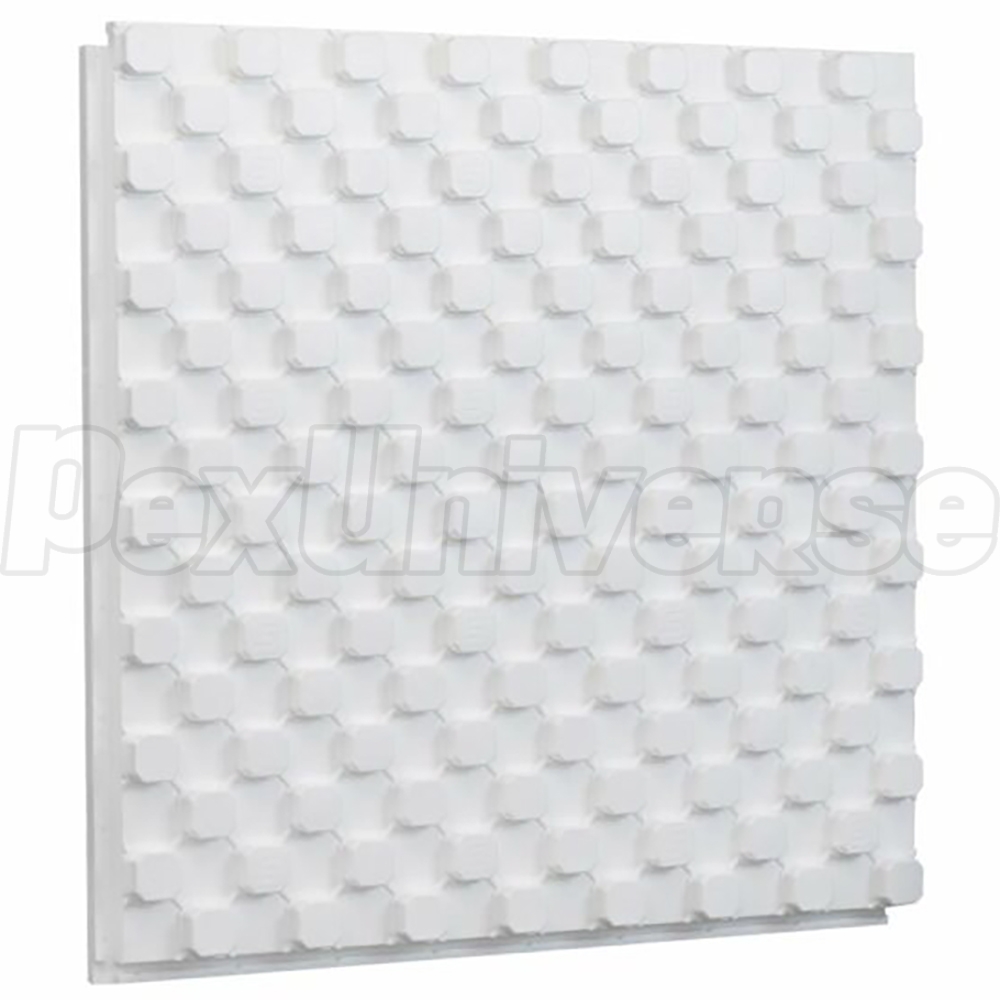

R-14, 3" SuperPEX EPS Foam Insulation Panel for 3/8", 1/2, 5/8" & 3/4" PEX (25 psi), 7/bundle (112 sqft)

Brand: SuperForm
Part#: EPS25-SUPER-3
made in usa
NOTE: there's a minimum order requirement of (3) bundles (7 panels per bundle x 3 = 21 panels, totalling 336 sqft). Additionally, only bundle qty may be ordered (3, 4, 5 bundles, etc. - meaning 21, 28, 35 panels, etc.).

Features:
  • Made in the USA
  • Universally compatible with 3/8", 1/2", 5/8" & 3/4" PEX (any brand or type) and 1/2" & 5/8" PEX-AL-PEX

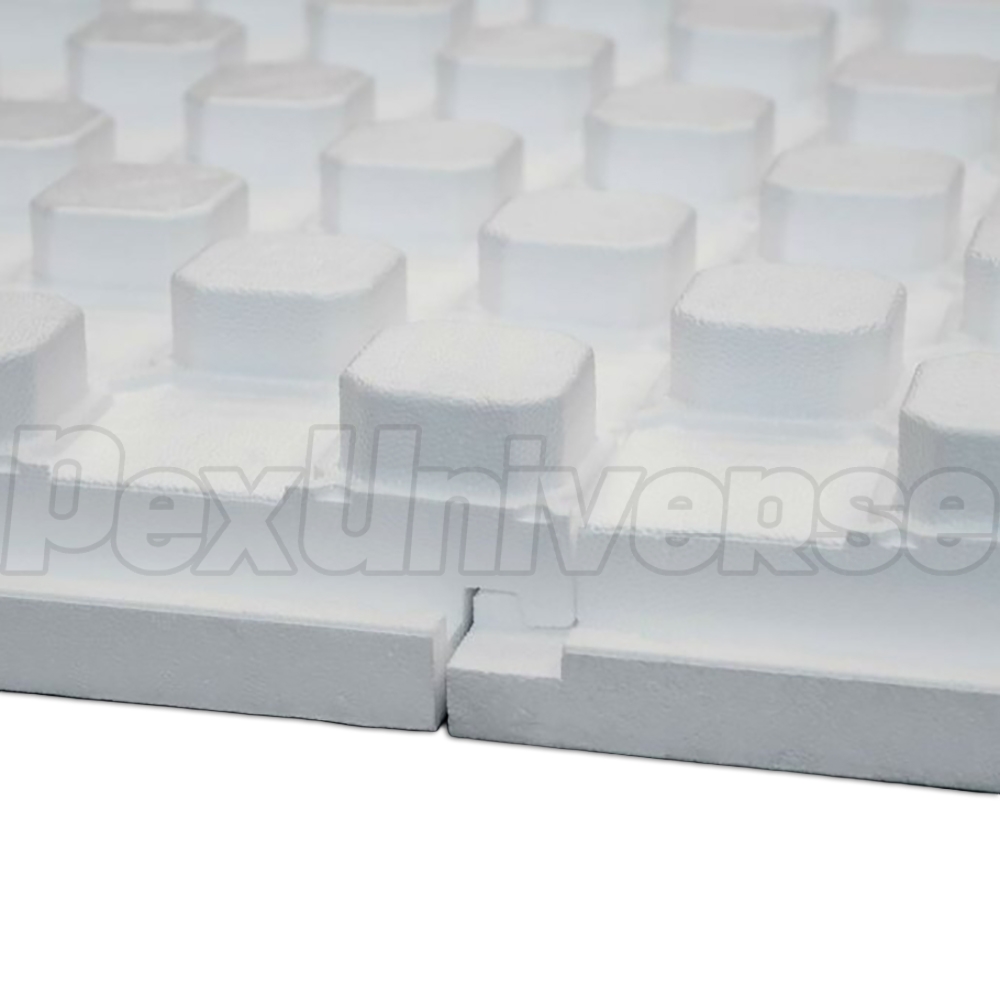

  • Interlocking shiplap edges hold the boards together - no taping needed
  • Quicker and easier to install than traditional foam board + PEX stapler - simply walk the pipe in
  • Can be used as top layer with plain EPS foam board insulation for reduced project costs

Technical Specifications:
  • Insulation Type: EPS (Expanded PolyStyrene)

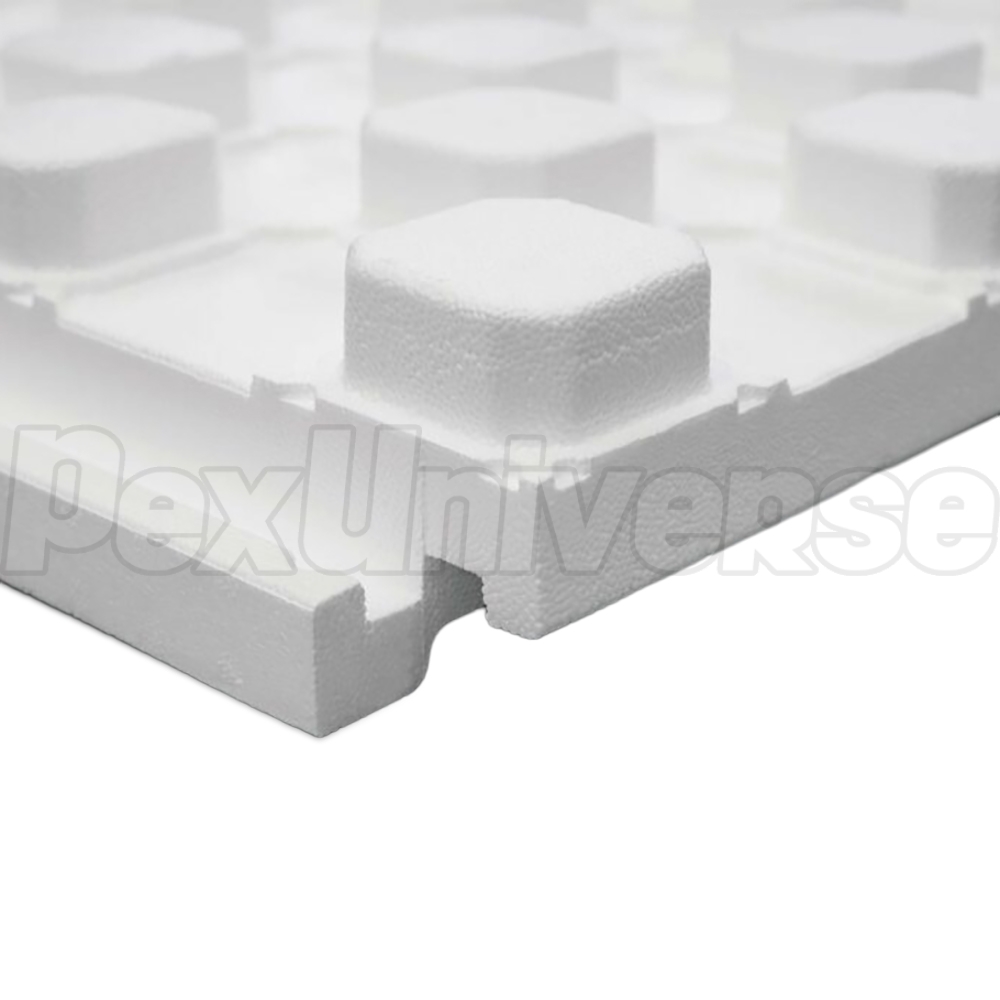

  • Foam Board Thickness: 4" overall (3" insulation + 1" puck height)
  • Individual Foam Board Size: 4ft wide x 4ft long (16 sqft)

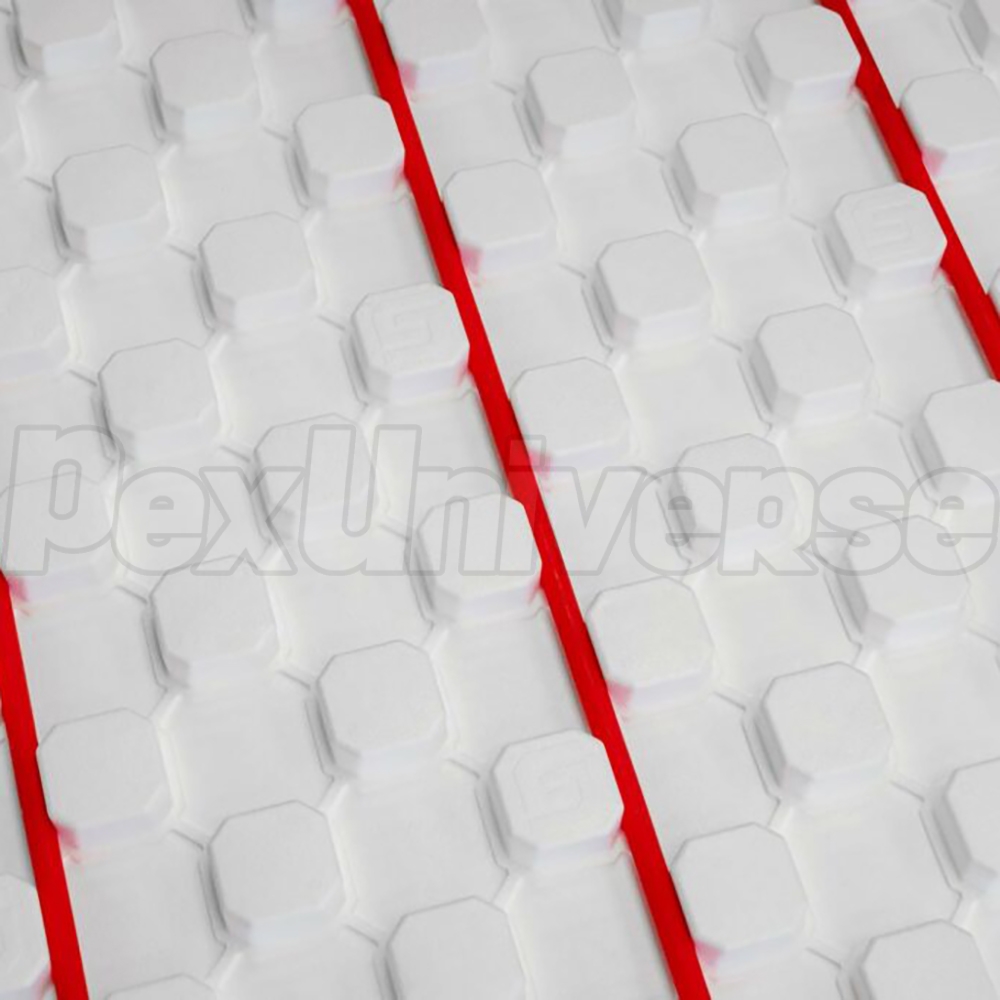

  • Puck Spacing: 3" (allows to space PEX pipe in increments of 3" - 6", 9", 12", etc.)
  • Boards per Bundle: 7 pcs (112 sqft)
  • R-Value: R-14
  • Nominal Density: 2.0 lbs/ft3 (1.8 min.)
  • Compressive Strength @ 10% deformation: 25 psi
  • Manufactured to and Meets: C518 (R-Value), D1621 (compressive strength), C203 (flex strength), E96 (water vapor permeance), D2842 (water absorption maximum), D2126 (dimensional stability) and D2863 (limiting oxygen index maximum)
