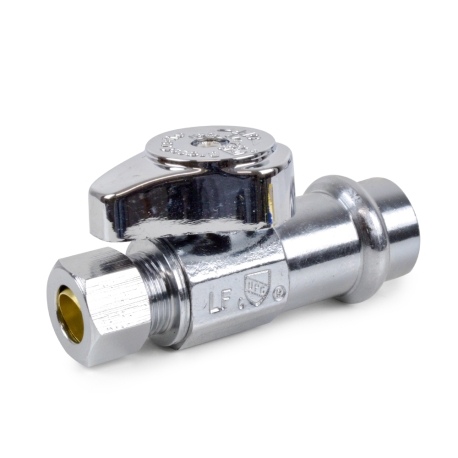

1/2" Press x 3/8" OD Compression Straight Stop Valve (1/4-Turn), Lead-Free BrassCraft
1/2" Press x 3/8" OD Compression Straight Stop Valve (1/4-Turn), Lead-Free
Brand: BrassCraft
Part#: G2CP14X-C1
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

BrassCraft G2 series 1/4-Turn Ball Press Inlet (Compression Outlet) Straight Stop Valve.

Materials of Construction:
  • Body: Brass (plated);
  • Ball: Brass (plated);
  • Stem: Brass;
  • Stem O-ring: EPDM;
  • Seats: PTFE;
  • Press Connect O-ring: EPDM;
  • Handle: ABS (plated);
  • Screw: Stainless steel;
  • Compression Nut: Brass (plated);
  • Compression Sleeve: Brass.

Features:
  • One-piece shut-off mechanism provides smooth on-off operation without freeze ups even after long periods of non-use
  • Positive 1/4 turn shut off
  • Full-flow operation with no waterway obstructions
  • Corrosion-resistant handle is plated in an attractive chrome finish
  • Machined one-piece brass body provides strength, durability, and long-lasting performance
  • Easy-to-remove handle with screw attachment helps protect against accidental operation during rough-ins
  • 100% Leak tested
  • Lead-Free

Technical Specifications:
  • Closing: 1/4 Turn
  • Inlet: 5/8” OD (1/2” Nominal) Press
  • Outlet: 3/8” OD (1/4" Nominal) Compression
  • Valve Type: Straight
  • Temperature: 40°F to 160°F
  • Maximum Pressure: 125 PSI.
