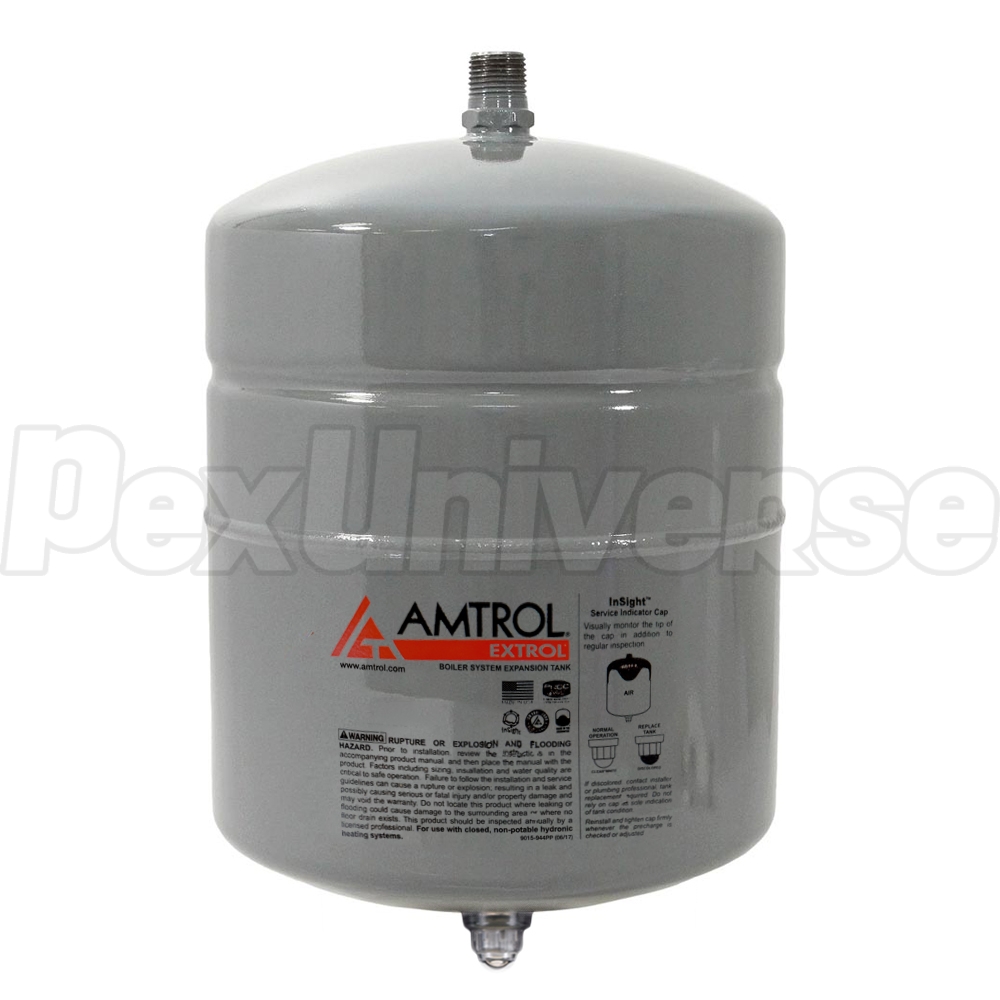

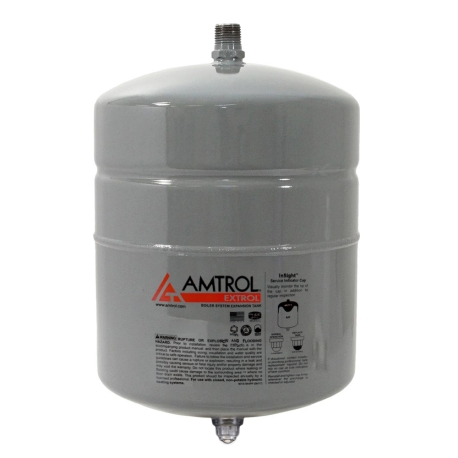

Extrol #15 Expansion Tank w/ InSight Indicator (2.0 Gal Volume)
Brand: Amtrol
Part#: 101-1
Model: EX-15
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$46.95 / each
$181.80 box of 4 + Free Shipping
($45.45 each)
Add to Cart
Orders over $99 ship free

Description

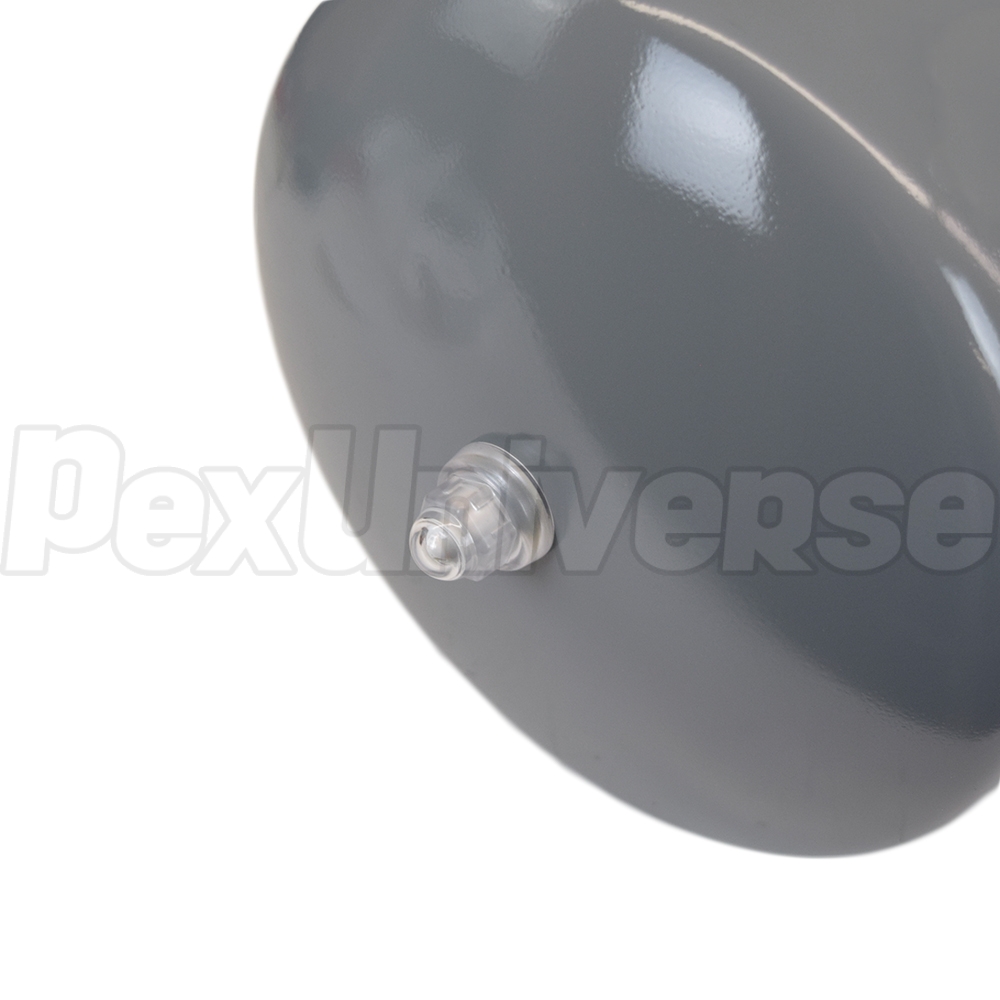

The patented InSight Indicator Cap changes its color when the tank needs to be replaced.

Applications:
Closed loop hydronic heating and radiant heating applications.
Technical Specifications:
  • Factory pre-charged 12 psi

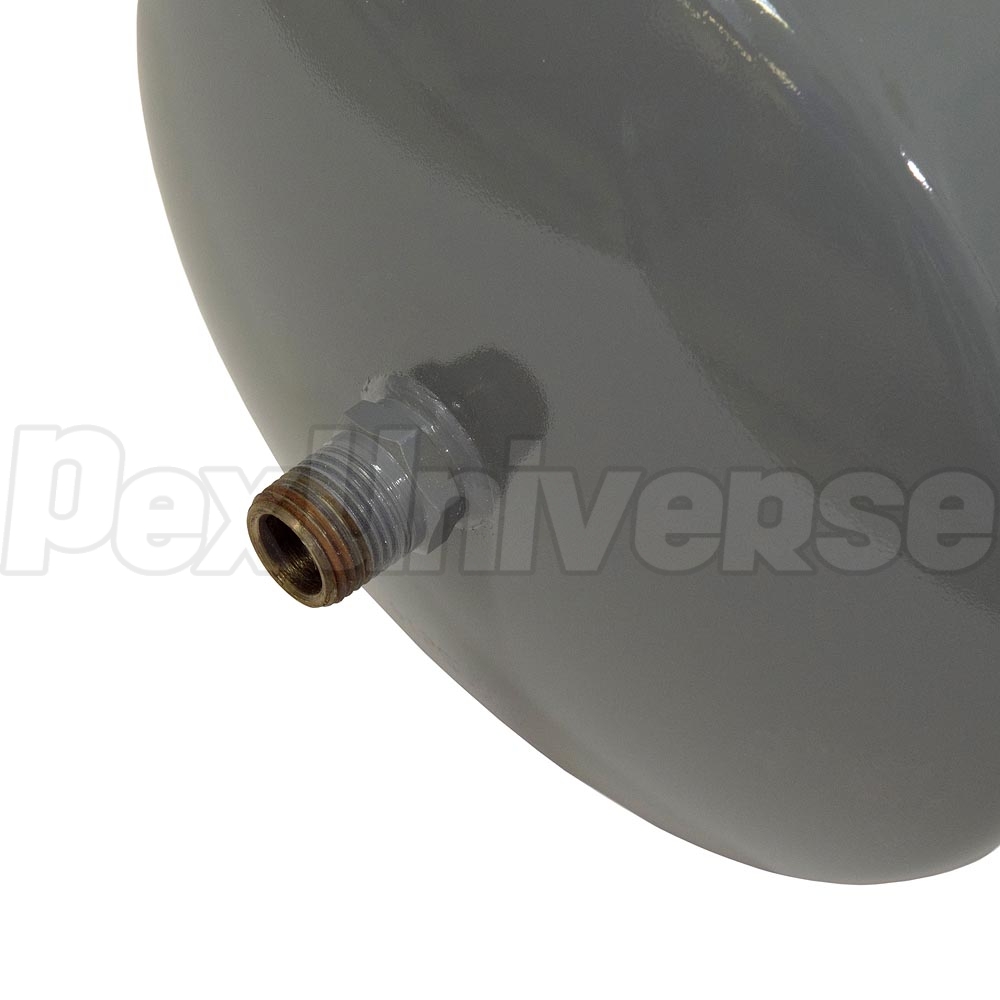

  • System connection: 1/2" threaded
  • Max. operating temperature: 240F
  • Max. operating pressure: 100 psi
  • Expansion tank volume: 2.0 gallons
  • Max. accepted volume: 0.9 gallons
  • Height: 12-5/8"
  • Diameter: 8"
  • Shipping weight: 5 lbs

Warranty:
5-year manufacturer's warranty.

Documents

Write a Review
Helpful? Yes 1 No
Glad I found this.
"I always like to support industry pioneers, especially when they don't take their status for granted. The price point of this tank is exceptional, and Amtrol components have been essential parts of my closed-loop solar system for years. After adding a 3rd panel, the need for a pressure relief buffer developed when our system would maximize at 180 and panel boil-off at shutdown and drainback would occur. This pressure spike would trigger our 20# pressure relief valve, resulting in compounding loss of circulating fluid. This looks to be the perfect physical fit and solution, with minimal modifications necessary to the existing layout. Quality seems excellent."
By HeyNeighbor (from Vancouver, WA) on 05/01/2011
Helpful? Yes No
Verified Purchase
Great Service
Quick shipment. Excellent prices.
By Don (from Grand junction, CO) on 01/10/2024
Helpful? Yes No
Verified Purchase
Just what I wanted
What I wanted and FAST delivery!
By William (from York, PA) on 01/29/2021
Helpful? Yes No
Verified Purchase
floor heat
works great
By Michael (from Brighton, MI) on 10/09/2020
Helpful? Yes No
Verified Purchase
Tank
Working good so far
By Hector (from Carteret, NJ) on 10/05/2020
Helpful? Yes No
Verified Purchase
very satisfied
good construction and great value and fast delivery
By Jeff (from Blackfoot, ID) on 12/24/2019
Helpful? Yes No
Verified Purchase
Great product, value
I'm not a professional...but this replaces a bad expansion tank perfectly. Super fast shipping had it ready for my boiler repairman. Highly recommend product, and PexUniverse.
By Jim (from Elk river, MN) on 01/25/2019
Helpful? Yes No
Verified Purchase
5 stars
great
By Bruce (from Bergenfield, NJ) on 12/16/2018
Helpful? Yes No
Verified Purchase
Great product
Great product, delivered on time
By Michael (from Tecumseh, MI) on 11/20/2018
Helpful? Yes No
Verified Purchase
excellent company
Very fast shipping
By Dan (from 14843) on 11/26/2015
Helpful? Yes No
Verified Purchase
As promised
This is to replace an identical unit and the price was ideal. Fast shipping, good communications
By Larry B. (from New Bern, NC) on 07/13/2012
Helpful? Yes No
Great Prices
Great prices, super shipping and web site.
By Greg (from Owatonna) on 01/09/2012
Helpful? Yes -1 No
Verified Purchase
Extrol #15 expansion tank
Just like the old one, fit perfectly, works the same. Fills the bill. Lots less expensive than everybody else. Thank you.
By William A (from Medford, NJ) on 11/17/2020

FAQs (4)

Ask a Question
can i use this tank upside down on a 5o gal water heater?residential use
Helpful? Yes No
For a residential water heater you would need a Therm-X-Trol ST-5 model (part# 140N43). As for mounting, the standard practice is to install the tank "hanging" down, with water connection pointing up, but a small model such as this can be installed above the pipe, provided that the tank is secured from movement.
By PexUniverse Customer Service on 11/14/2023
Should this tank be used on the closed side of a radiant heating system instead of the domestic water Amtrol ST-5? On the open side I am using a Amtrol ST-5 but the closed side requires a lot less psi @12.
Helpful? Yes No
You will need to use the tank on the closed side of the radiant as well. Size of the tank can be determined using Amtrol guidelines in the Brochure (see "Literature" tab).
By PexUniverse Customer Service on 03/12/2018
Hi, Is there a way I can test my Amtrol 15 tank to know if the bladder is still good? Been having some problems with my floor heat. We fixed a leaky pipe but still don't have any pressure. Thinking I would put 15 psi in it and see if it sticks. Is that the best way to test that? How soon would I know if the bladder is working? Thanks
Helpful? Yes No
The air valve on the expansion tank is Schrader type, so a regular gauge used to check tire pressure could be used.
By PexUniverse Customer Service on 10/18/2012
Can I use this tank for my domestic hot water and can this tank be mounted sideways instead of vertical
Helpful? Yes -2 No
No and no. The Extrol series is for closed loop heating applications only. These tanks are for vertical installation only since horizontal mounting will create uneven pressure at the connection. For domestic hot water applications, you'll need Therm-X-Trol series.
By PexUniverse Customer Service on 06/03/2015
