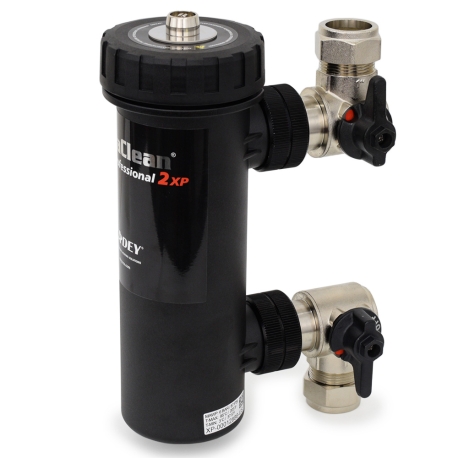

Adey MagnaClean Professional (Pro) 2 XL model is a magnetic boiler filter (rust and dirt separator) designed to capture and eliminate magnetite particles in heating system's water, allowing to minimize heating bills and system maintenance. Pro 2 XL is an oversized variant of Pro 2 model with larger connections and bigger magnet, allowing for higher flow rate and to capture magnetite (rust) quicker and more effectively. This model is best suited for larger systems with high flow rate or for systems which have a lot of cast iron components - cast iron radiators, cast iron boiler, cast iron circulators, etc.
Features: - Industry's strongest magnets - for maximum capture efficiency
- Extra tall model for larger residential hydronic heating systems
- Variety of connection options
- 360° rotating shut-off valves for vertical, horizontal or custom installation
- Bi-directional flow - either port can be used for inlet/outlet
- Low-profile drain port w/ plug and built-in air bleeder valve
- Can be converted to a combi (air & dirt separator) using optional air vent (part# PK2-03-05459)
- Includes (2) keys - for drain port and for top cap for easy magnet core removal & cleaning
- System Connections: 1-1/8" OD compression (fits over regular 1" copper pipe) or 1-1/4" female NPT (with brass adapters included in package)
- Max Working Pressure: 87 psi
- Max Operating Temperature: 207°F (95°C)
- Flow Rate: 26 GPM
- Dimensions: 11" high x 3-7/8" thick x 7-1/8" wide (with valves installed)
- Canister Volume (Fluid Capacity): 0.22 gal
- Service Clearance: 2" from top & bottom
- Weight (Empty): 7 lbs 4 oz
- Materials: Glass reinforced nylon body and cap, EPDM O-ring seals, brass ball valves/air beeder/drain plug
