MagnaClean Micro 2 Boiler Filter, 3/4" FNPT or 7/8" OD Compr.
Brand: Adey
Part#: FL1-03-02829
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$200.95 / each
$783.80 box of 4
($195.95 each)
Free Shipping on any qty
Add to Cart

Description

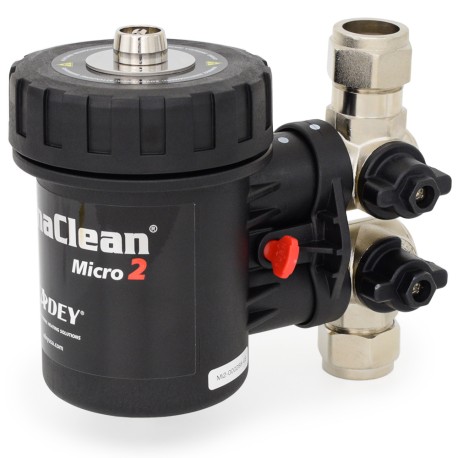

Adey MagnaClean Micro 2 model is a magnetic boiler filter (rust and dirt separator) designed to capture and eliminate magnetite particles in heating system's water, allowing to minimize heating bills and system maintenance. Micro 2 is ultra compact yet effective and is best suited for smaller size baseboard/radiator and radiant floor heating systems.

Features:
  • Industry's strongest magnets - for maximum capture efficiency
  • Ultra-compact - only 6" high x 4" wide - ideal for tight spaces and smaller hydronic systems
  • Variety of connection options
  • 360° rotating shut-off valves for vertical, horizontal or custom installation
  • Bi-directional flow - either port can be used for inlet/outlet
  • Low-profile drain port w/ plug and built-in air bleeder valve
  • Can be converted to a combi (air & dirt separator) using optional air vent (part# PK2-03-05459)
  • Includes (2) keys - for drain port and for top cap for easy magnet core removal & cleaning
  • Quick-release trigger for full body removal if needed

Technical Specifications:
  • System Connections: 7/8" OD compression (fits over regular 3/4" copper pipe) or 3/4" female NPT (with brass adapters included in package)
  • Max Working Pressure: 87 psi
  • Max Operating Temperature: 207°F (95°C)
  • Flow Rate: 12 GPM
  • Dimensions: 6" high x 3-7/8" thick x 6-1/2" wide (with valves installed)
  • Canister Volume (Fluid Capacity): 0.07 gal
  • Service Clearance: 2" from top & bottom
  • Weight (Empty): 4 lbs 8 oz
  • Materials: Glass reinforced nylon body and cap, EPDM O-ring seals, brass ball valves/air beeder/drain plug
