Z-Flex 6" x 30ft Smoothcore (Smooth Wall) 316Ti Stainless Steel All-Fuel Chimney Liner Tee Kit

6" x 30ft Smoothcore (Smooth Wall) 316Ti Stainless Steel All-Fuel Chimney Liner Tee Kit

Brand: Z-Flex
Part#: 2ZFSCKIT0630

Description

A complete all-fuel, Smoothcore series stainless steel chimney liner kit with tee adapter. Universally compatible with all types of fuel (wood, pellet, oil, gas) and appliances - stoves, fireplace inserts, boilers, water heaters, furnaces, unit heaters, etc.
Smooth inner wall of the liner improves draft, facilitates condensate drainage (reducing long-term corrosion effects) and significantly reduces creosote and soot build-up.
Note: this kit includes a pre-stressed 13" x 13" flashing (for better drainage of rain/snow and for extra rigidity). If you require a flat flashing, we can make the change at no cost (13" x 13" and 18" x 18" options available) - simply leave a note during checkout. Pre-stressed flashings are suitable for square (or nearly square) chimneys only, whereas flat flashings can be trimmed to fit both square and rectangular chimney shapes (but lack the advantages of pre-stressed ones).

Cross-References:
  • DuraVent: 6DFSW-30KT
  • Chim Cap Corp: SW630SSK

Features:
  • Lifetime warranty
  • Smooth inner chimney liner wall prevents soot & creosote build-up
  • Does not impede condensate drainage, resulting in less corrosion and extended lifespan
  • Improves draft and reduces turbulence of flue gases
  • Dual-layer (0.005" inner and 0.005" exterior) 316Ti stainless steel construction for extra durability
  • Universal (All-Fuel) compatibility - for Natural/Propane gas, Oil-fired, Wood & Pellet appliances - boilers / stoves / water heaters / furnaces / unit heaters, etc.
  • Listed to UL1777 (US & Canada), ULc S635 (Class 3)

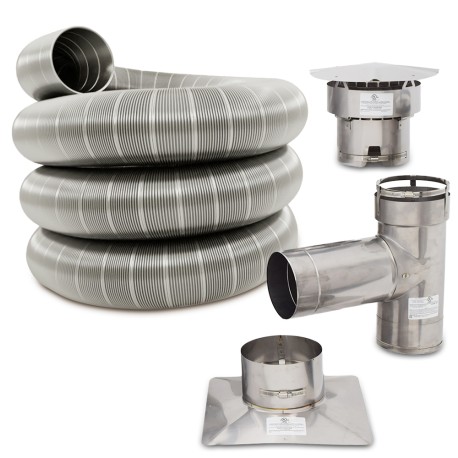

  • Complete kit includes SmoothCore chimney liner, EZ-connect sceened rain cap, pre-stressed flashing (eliminated the need for top support, prevents sagging and rain accumulation), EZ-connect Z-Lok Tee adapter (for horizontal hookup), cleanout cap and self-tapping screws
  • Unlike other tee adapters, Z-Lok Tee has a quick connect/disconnect feature, making it sturdier and significantly easier & faster to install/remove
  • Chimney liner made from heat, temperature, corrosion and acid-resistant 316Ti (titanium stabilized) stainless steel
  • Rain cap, flashing, tee and cleanout cap made from 304 stainless steel
  • Industry's strongest, air-tight and leak-proof patented Triple-Lock seam
  • Excellent flexibility with superior crush strength
  • Suitable for all Category I (atmospheric-vented) applications - using wood, pellets, gas and oil fuel

Technical Specifications:
  • Liner Diameter: 6"
  • Liner Length: 30ft
  • Material Thickness: 0.005" external (corrugated) layer and 0.005" internal (smooth wall) layer
  • Material: 316Ti (titanium-stabilized) stainless steel (both layers)
  • Max. Temperature: 1,000°F (running), 1,400°F (occasional)
  • Minimum Chimney Inside Dimensions: 9" x 9"

Warranty:
Limited Lifetime Liner Warranty
