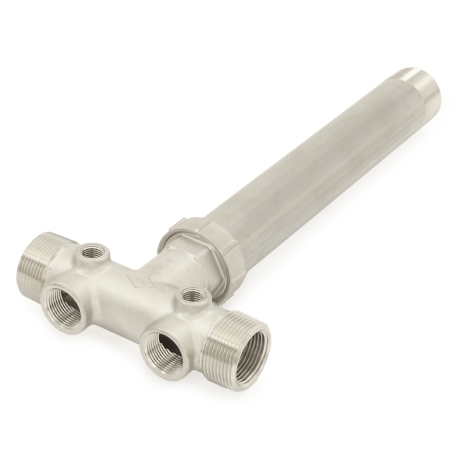

Boshart 1-1/4" MPT x 13" Union 304 Stainless Steel Well Tank Tee

1-1/4" MPT x 13" Union 304 Stainless Steel Well Tank Tee

Brand: Boshart
Part#: 07ST-13-2U
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Solid 304 stainless steel, lead-free, Union-type well tank tee with 1-1/4" male NPT threaded tank connection, 1-1/4" MNPT (1" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 13" and an overall length of ~13-3/4".
This well tank tee model is a "Standard/Long" type, intended for well tanks with an elbow fitting at the bottom of the tank (such as Well-X-Trol by Amtrol), but is also suitable for tanks with an extended connection.
For Well-X-Trol type tanks, the maximum tank diameter is 22" (WX-205/250/251/252/255/250UG/251UG & other smaller models).
1-1/4" connection is ideal for larger tanks and allows for higher flow rates with minimal pressure drop.

Features:
  • Fits well tanks (incl. Well-X-Trol by Amtrol) with diameter up to 22"
  • Union fitting assembly with integrated EPDM O-ring makes installation quicker, easier and more reliable
  • 1-1/4" connections for higher flow rate
  • High quality, solid 304 stainless steel material (Sch 40 wall thickness) made to ASTM A312 standard
  • 100% lead-free, NSF/ANSI 372 listed
  • Superior resistance to corrosion (and 100% resistance to dezincification in hard water conditions)
  • Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
  • Threads made to ANSI/ASME B1.20.1

Technical Specifications:
  • Material: 304 Stainless Steel
  • Center-to-End Length: 13"
  • Overall Length:
  • Tank Connection: 1-1/4" MPT
  • In-Line Tee Connections: 1-1/4" MPT x 1" FPT
  • Drain/PRV Ports: (2) 3/4" FPT
  • Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
  • Max. Operating Pressure: 200 psi
