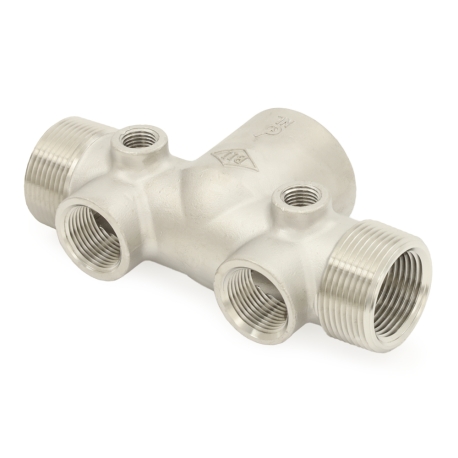

1-1/4" FPT x 1-7/8" Solid 304 Stainless Steel Well Tank Tee, Extension Type
Brand: Boshart
Part#: 07ST-13SFH-2
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$52.95 / each
Add to Cart
Orders over $99 ship free

Description

Solid 304 stainless steel, lead-free well tank tee with 1-1/4" female NPT threaded tank connection, 1-1/4" MNPT (1" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 1-7/8" and an overall length of ~2-5/8".
This well tank tee model is a "Short" type with FNPT tank connection (other tank tees commonly have MNPT) - ideal for any large diameter tank when used with an extension pipe nipple.
1-1/4" connection is best for larger size tanks and allows for higher flow rates with minimal pressure drop.

Features:
  • Use with extension pipe nipple to connect to any tank diameter
  • High quality, solid 304 stainless steel material (Sch 40 wall thickness) made to ASTM A312 standard
  • 1-1/4" connections for higher flow rate
  • 100% lead-free, NSF/ANSI 372 listed
  • Superior resistance to corrosion (and 100% resistance to dezincification in hard water conditions)
  • Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
  • Threads made to ANSI/ASME B1.20.1

Technical Specifications:
  • Material: 304 Stainless Steel
  • Center-to-End Length: 1-7/8"
  • Overall Length:
  • Tank Connection: 1-1/4" FPT
  • In-Line Tee Connections: 1-1/4" MPT x 1" FPT
  • Drain/PRV Ports: (2) 3/4" FPT
  • Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
  • Max. Operating Pressure: 200 psi
