24-Port, 1/2" PEX Press ManaBloc Manifold, (9) Hot, (15) Cold Viega
24-Port, 1/2" PEX Press ManaBloc Manifold, (9) Hot, (15) Cold
Brand: Viega
Part#: 49243
This product has been discontinued.
Direct Replacement:
SKU: 49620
Brand: Viega
Viega

Description

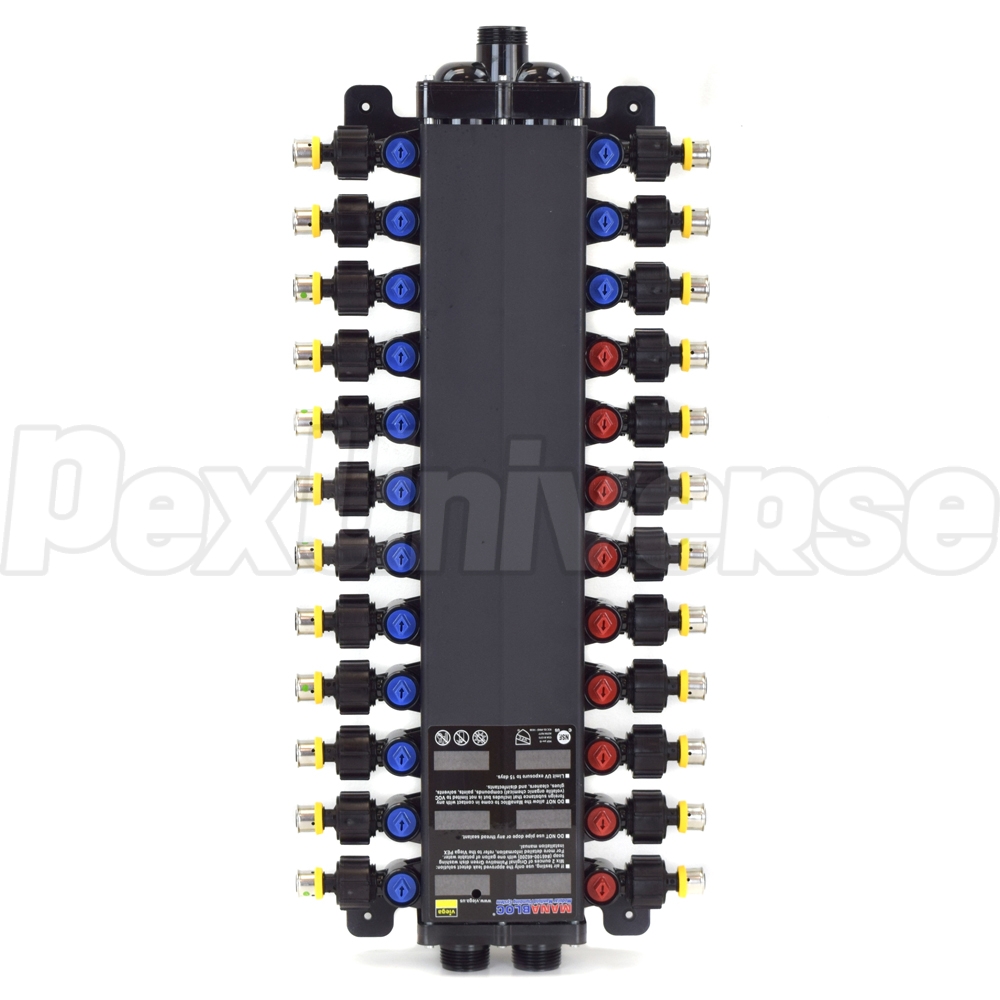

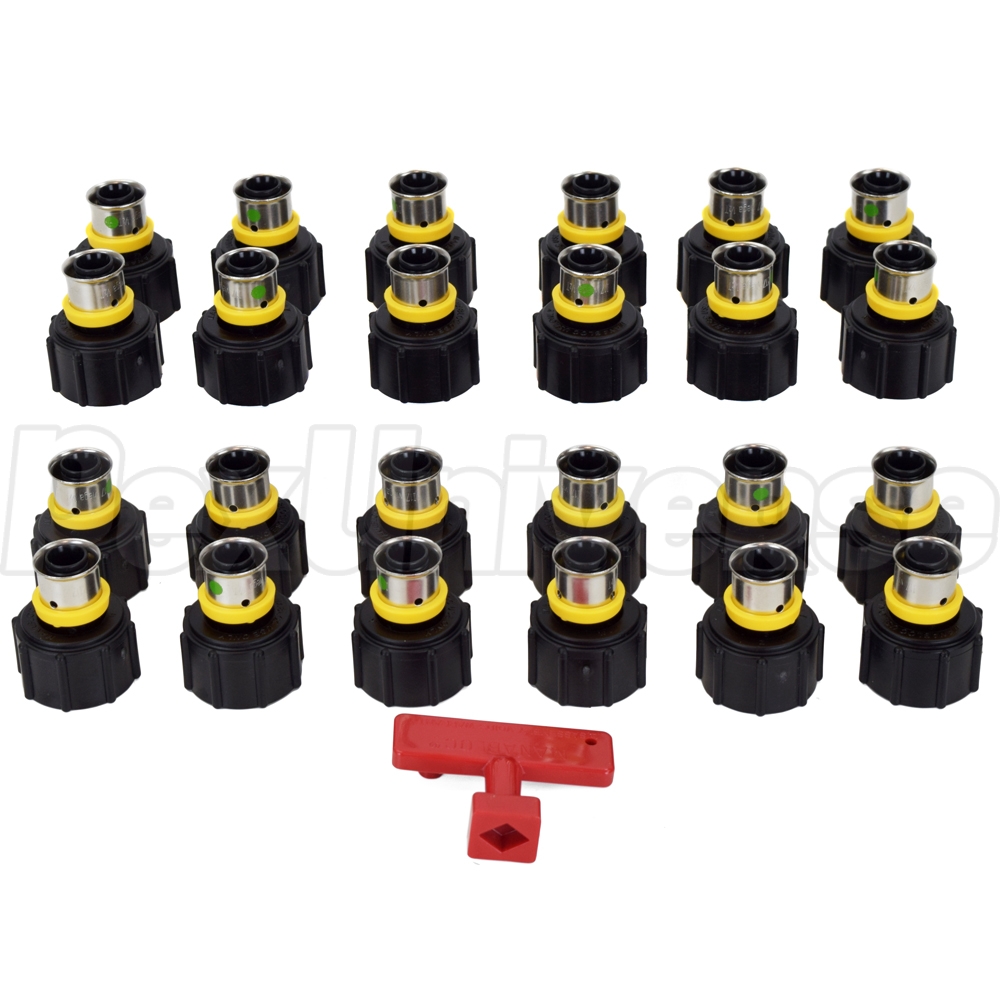

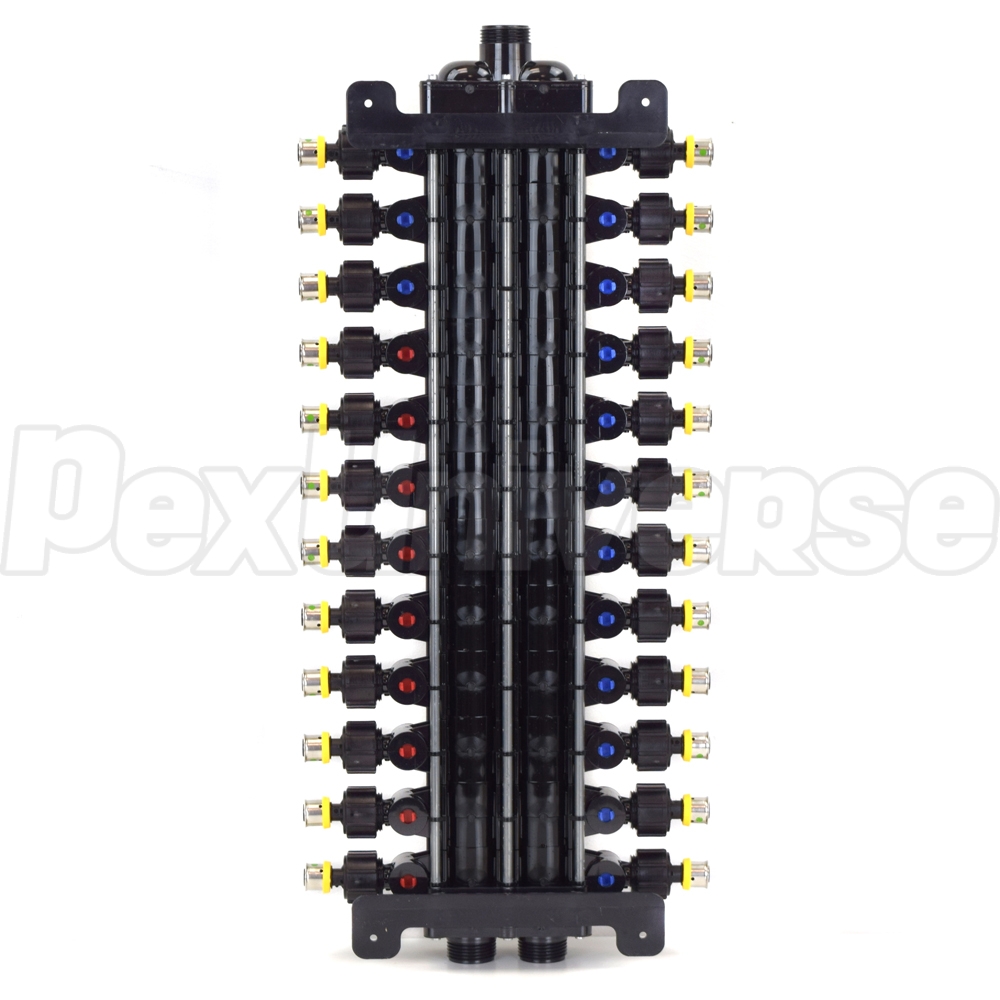

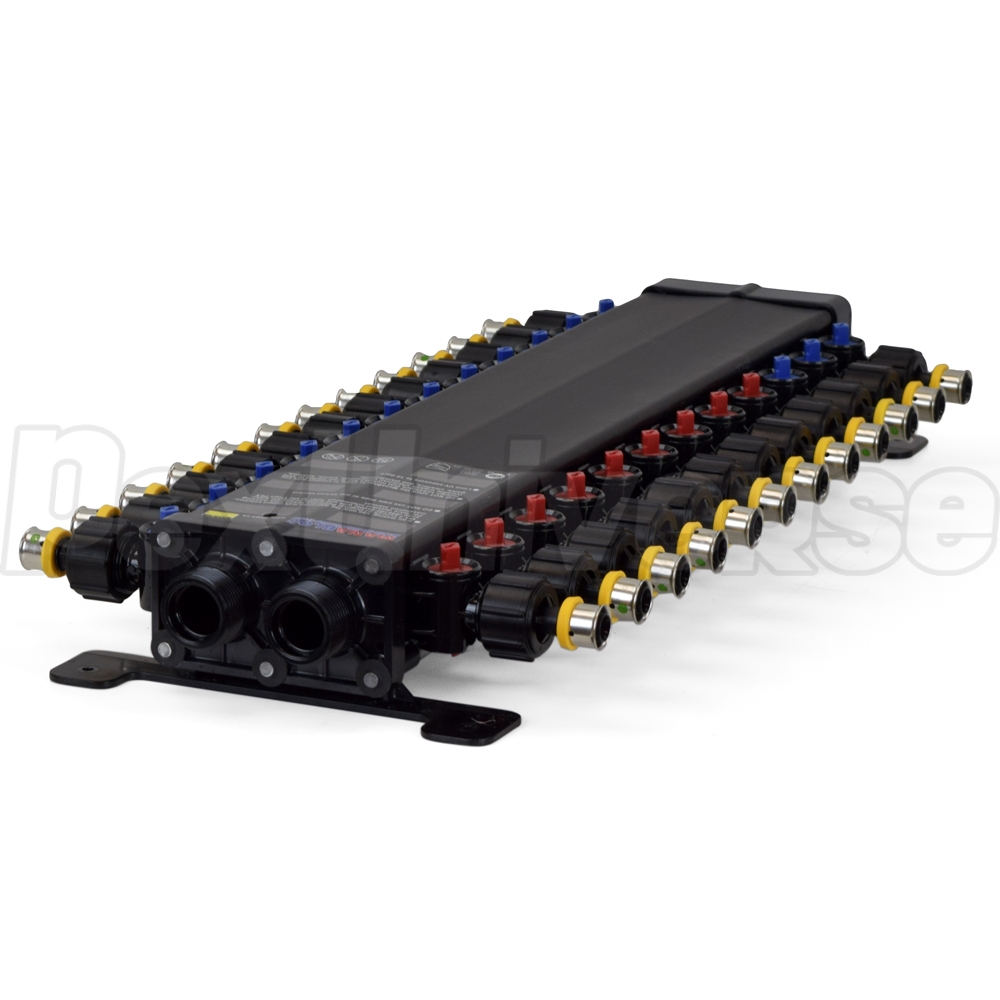

Viega ManaBloc manifold with (24) 1/2" PEX Press ports - (9) Hot and (15) Cold. Intended for use with ViegaPEX Ultra (Potable/Non-barrier) and Viega FostaPEX tubing and connection methods. Also compatible with all other types (A, B, C) and brands of PEX tubing. Each port (branch) is equipped with a built-in 1/4 turn shut-off valve for individual fixture control. Includes PEX adapters for all ports (branches) and Valve Key.
NOTE: Supply adapters (which connect the main hot & cold pipe lines to the ManaBloc) are not included and must be purchased separately. Accessories (supply end caps, port caps, brackets, etc.) are sold separately.

Technical Specifications:
  • Total Ports (Branches): 24 (9 Hot & 15 Cold)
  • Port Connections: 1/2" PEX Press
  • Hot/Cold Water Inlet Connections: 1" (manabloc adapters required)
  • Branch spacing: 1-11/16" OC (On Center)
  • Dimensions (L x H x W): 23-13/16" x 3" x 8"
  • Max Pressure Rating: 100 psi @ 180°F
  • Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM
  • Port K-Factor: 0.21 (for 1/2" PEX)
  • Lead-free, approved for potable water use
  • Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5
  • UPC-IAPMO Certified
  • Made in the USA.

Warranty:
10-year
