Name: 14-Port, 1/2" PEX Press ManaBloc Manifold, (6) Hot, (8) Cold
Brand: Viega
SKU: 49143
Price: 175.95 USD
Availability: OutOfStock
Rating: 4.75 (24 reviews)

Array
(
    [total] => 0.039630889892578
    [t1 - t2] => 0.0099339485168457
    [t2 - t3] => 0.016216993331909
    [t3 - t4] => 2.4080276489258E-5
    [t4 - t5] => 4.4822692871094E-5
    [t5 - t6] => 0.0020780563354492
    [t6 - t7] => 0.011332988739014
)

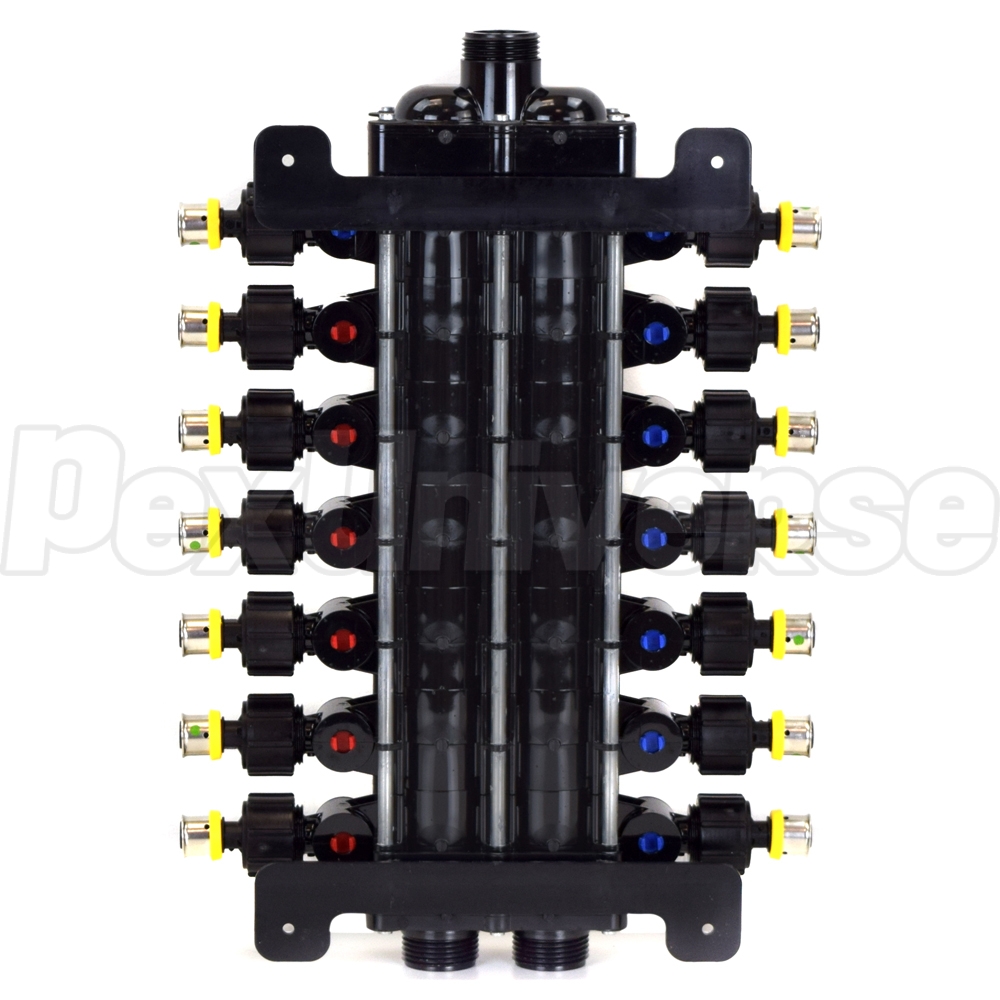

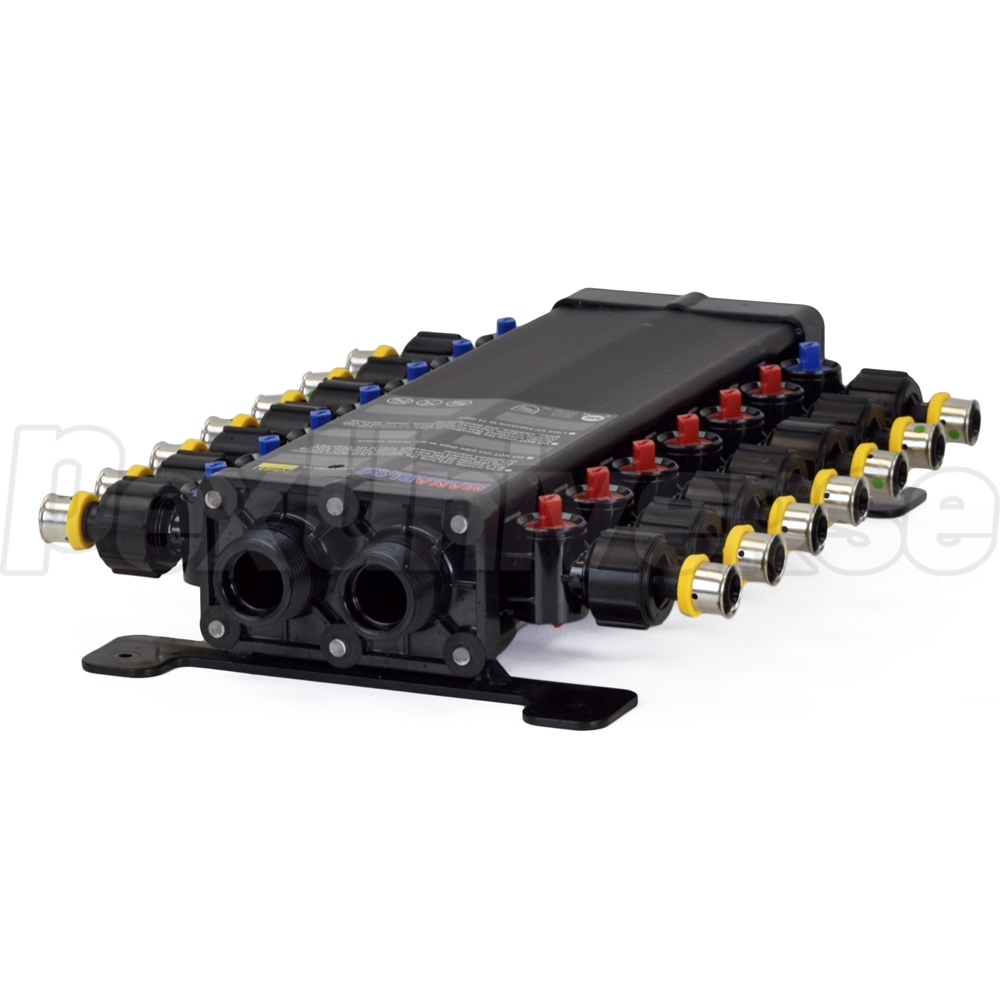

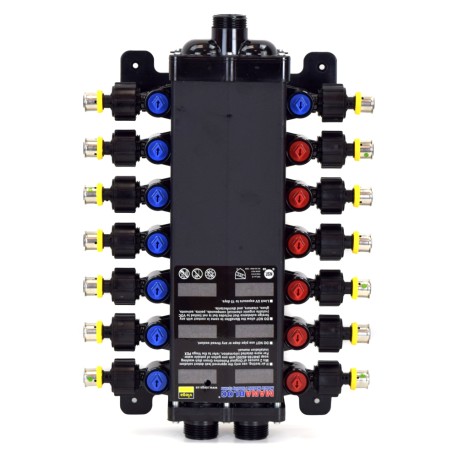

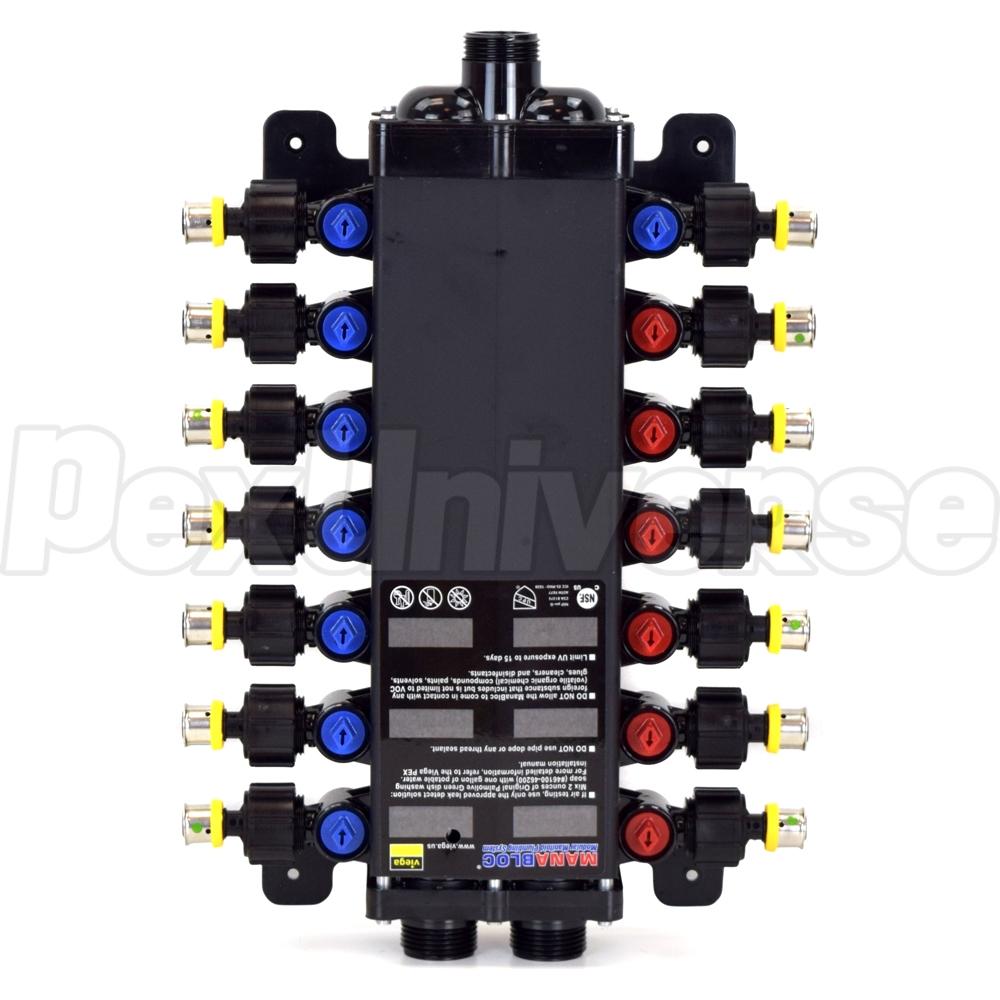

14-Port, 1/2" PEX Press ManaBloc Manifold, (6) Hot, (8) Cold Viega

14-Port, 1/2" PEX Press ManaBloc Manifold, (6) Hot, (8) Cold

Brand: Viega

Part#: 49143

This product has been discontinued.

Direct Replacement:

SKU: 49610

Brand: Viega

Description

Viega ManaBloc manifold with (14) 1/2" PEX Press ports - (6) Hot and (8) Cold. Intended for use with ViegaPEX Ultra (Potable/Non-barrier) and Viega FostaPEX tubing and connection methods. Also compatible with all other types (A, B, C) and brands of PEX tubing. Each port (branch) is equipped with a built-in 1/4 turn shut-off valve for individual fixture control. Includes PEX adapters for all ports (branches) and Valve Key.
NOTE: Supply adapters (which connect the main hot & cold pipe lines to the ManaBloc) are not included and must be purchased separately. Accessories (supply end caps, port caps, brackets, etc.) are sold separately.

Technical Specifications:

Total Ports (Branches): 14 (6 Hot & 8 Cold)
Port Connections: 1/2" PEX Press
Hot/Cold Water Inlet Connections: 1" (manabloc adapters required)
Branch spacing: 1-11/16" OC (On Center)
Dimensions (L x H x W): 15-7/16" x 3" x 8"
Max Pressure Rating: 100 psi @ 180°F
Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM
Port K-Factor: 0.21 (for 1/2" PEX)
Lead-free, approved for potable water use
Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5
UPC-IAPMO Certified
Made in the USA.

Warranty:
10-year
