Note: product title indicates boiler's Net AHRI (Net IBR) rating with standard nozzle pre-installed in burner. Use smaller size nozzle (included) for lower BTU output.

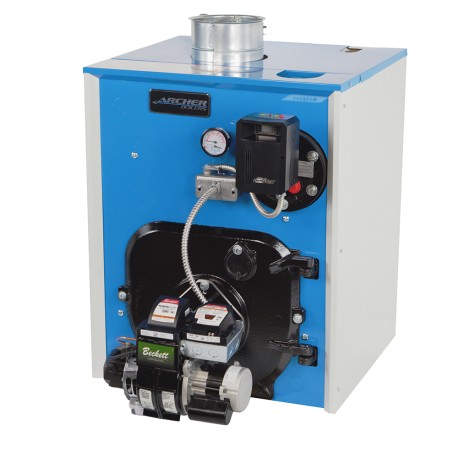

Fully packaged Trooper series oil-fired hot water boiler with Beckett burner and tankless domestic hot water coil.
Trooper boiler is a cost-attractive, high-quality solution for new or replacement boiler installations, combining clean, no-frills look with top-quality and familiar brand controls & components, USA-made cast iron heat exchanger and quality assembly - for an easy installation & maintenance, longer life span and worry-free performance.

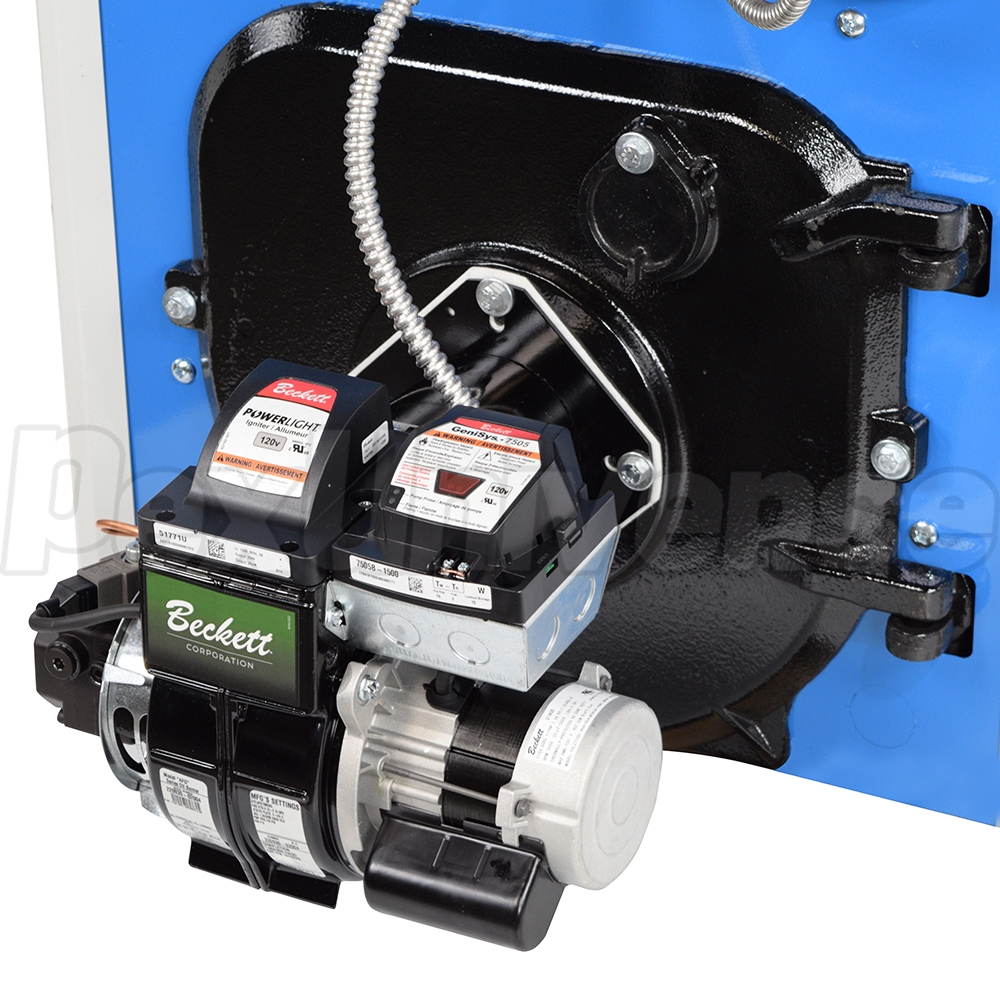

Boiler includes: Beckett Burner, Draft Regulator, Hydrolevel HydroStat Control, Taco 007e (high efficiency) Circulator Pump w/ Flange Set, Pressure Relief Valve, Drain Valve, Temperature & Pressure Gauge, Fittings.
Cross-References:
- Crown/Velocity: TBW150
- Dunkirk: 5EWC1.35T
- Lennox: COWB3-4
- New Yorker: CL4-210WE
- Peerless: ECT-e-04-150, ECT-04-125W, WBV-e-04-125-W, WBV-e-04-150-W
- Pennco: 4KWC1.25T, 5KWC1.35T
- Slant/Fin: TR30-1.25PT, TR-40-1.60PT
- Utica: SFH-4125WT, SFH-4145WT
- Weil-McLain: WGTO-4D, WGTO-5R, WGTO-5RD, WGTO-5D, WGTO-6R, WGTO-6RD
- 2 boiler sizes in one - burner includes (1) additional smaller size nozzle for lower BTU output
- Energy Star certified (when used with smaller size nozzle)
- Model with pre-installed tankless domestic hot water (DHW) coil
- Traditional design, enhanced for greater value and ease of installation & maintenance
- Fully packaged and assembled (circulator, drain valve and T&P valve shipped loose)
- Premium-level, familiar brand controls (Honeywell & Hydrolevel) for ease of monitoring and service
- Assembled in Pennsylvania with USA-made components, including robust, time-tested and efficient cast iron heat exchanger with metal section connections for increased boiler life
- Taco 007-F5 circulator included
- Removable top cover and swing-out cast iron door with burner quick disconnect harness for ease of access, cleaning and repair
- Combustion chamber lined with replaceable ceramic insulation
- Input (BTU): 182,000 (w/ default nozzle), 148,000 (w/ nozzle #2)
- Net AHRI Rating (BTU): 158,000 (w/ default nozzle), 129,000 (w/ nozzle #2)
- Burner Capacity (BTU): 210,000 (w/ default nozzle), 168,000 (w/ nozzle #2)
- Burner Capacity/Oil Firing Rate (GPH): 1.50 (default nozzle), 1.20 (nozzle #2)
- Efficiency (AFUE): 86.0% (default), 87.0% (nozzle #2)
- Fuel Type: #2 Fuel Oil
- Boiler/System Type: Hot Water (Hydronic) Cast Iron Oil Boiler w/ Tankless Domestic Hot Water Coil
- Boiler Connections: 1-1/2" NPT - Supply/Return Connections, 3/4" FNPT - Tankless Coil, 3/4" NPT - Relief Valve, 3/4" NPT - Drain
- Tankless Coil Connections: 1/2" NPT
- Vent Type: Chimney Vent
- Vent Pipe Size: 7" (standard Cat I galvanized chimney vent pipe)
- Minimum Chimney Requirements: 8" x 8" x 15'
- Dimensions: 26" Wide x 23" Deep (35" w/ burner installed) x 32" High
- Approx. Shipping Weight: 680 lbs
