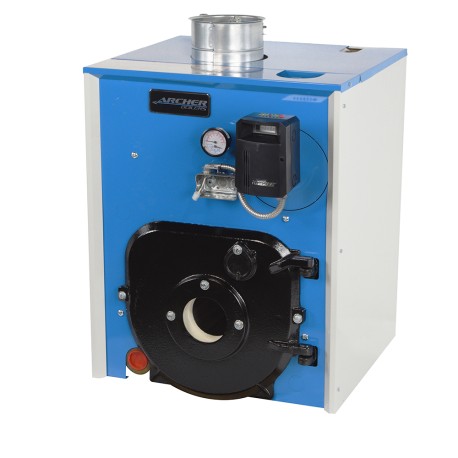

Trooper 158,000 BTU Hot Water Oil Boiler w/out Burner w/out Tankless Coil, Chimney Vent, 86% AFUE
Brand: Archer
Part#: TPW-4-150A-LTP
made in usa
Usually ships: Upon availability
Note: product title indicates boiler's Net AHRI (Net IBR) rating

This boiler model does not include a burner (part# 131522B).

Trooper series cast iron hot water oil-fired boiler without tankless domestic hot water coil.
Trooper boiler is a cost-attractive, high-quality solution for new or replacement boiler installations, combining clean, no-frills look with top-quality and familiar brand controls & components, USA-made cast iron heat exchanger and quality assembly - for an easy installation & maintenance, longer life span and worry-free performance.
Boiler includes: Draft Regulator, Hydrolevel HydroStat Control, Taco 007e (high efficiency) Circulator Pump w/ Flange Set, Pressure Relief Valve, Drain Valve, Temperature & Pressure Gauge, Fittings.

Cross-References:
  • Crown/Velocity: TBW150
  • Dunkirk: 5EWC1.35
  • Lennox: COWB3-4
  • New Yorker: CL4-210WE
  • Peerless: EC-e-04-150, WBV-e-04-125-W, WBV-e-04-150-W
  • Pennco: 4KWC1.25, 5KWC1.35
  • Slant/Fin: TR30-1.25P, TR-40-1.60P
  • Utica: SFH-4125W, SFH-4145W
  • Weil-McLain: WGO-4D, WGO-5D, WGO-5R, WGO-5RD, WGO-6, WGO-6R, WGO-6RD

Features:
  • 2 boiler sizes in one - burner (sold separately) includes (1) additional smaller size nozzle for lower BTU output
  • Energy Star certified (when used with smaller size nozzle)
  • Model without tankless domestic hot water (DHW) coil
  • Traditional design, enhanced for greater value and ease of installation & maintenance
  • Fully packaged and assembled (circulator, drain valve and T&P valve shipped loose)
  • Premium-level, familiar brand controls (Honeywell & Hydrolevel) for ease of monitoring and service
  • Assembled in Pennsylvania with USA-made components, including robust, time-tested and efficient cast iron heat exchanger with metal section connections for increased boiler life
  • Taco 007-F5 circulator included

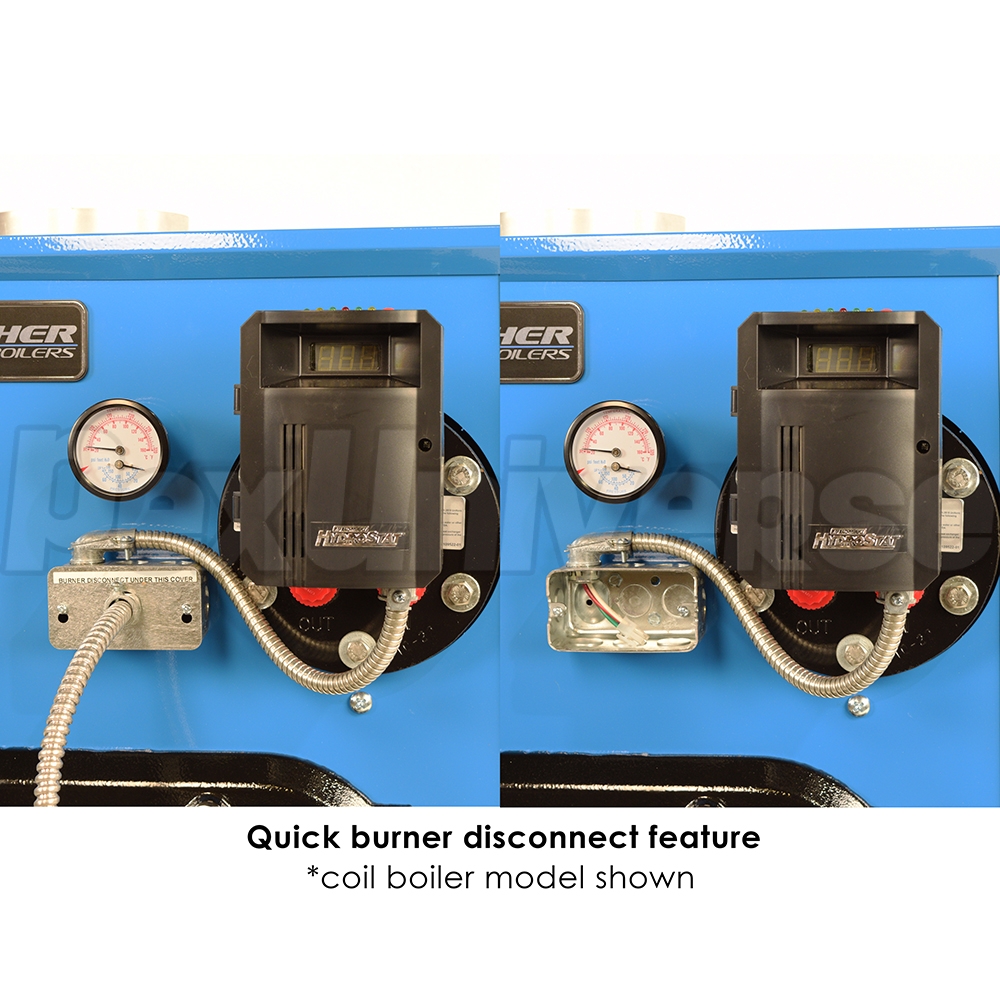

  • Removable top cover and swing-out cast iron door with burner quick disconnect harness for ease of access, cleaning and repair
  • Combustion chamber lined with replaceable ceramic insulation

Technical Specifications:
  • Input (BTU): 182,000 (w/ default nozzle), 148,000 (w/ nozzle #2)
  • Net AHRI Rating (BTU): 158,000 (w/ default nozzle), 129,000 (w/ nozzle #2)
  • Burner Capacity (BTU): 210,000 (w/ default nozzle), 168,000 (w/ nozzle #2)
  • Burner Capacity/Oil Firing Rate (GPH): 1.50 (default nozzle), 1.20 (nozzle #2)
  • Efficiency (AFUE): 86.0% (default), 87.0% (nozzle #2)
  • Fuel Type: #2 Fuel Oil
  • Boiler/System Type: Hot Water (Hydronic) Cast Iron Oil Boiler
  • Boiler Connections: 1-1/2" NPT - Supply/Return Connections, 3/4" NPT - Relief Valve, 3/4" NPT - Drain
  • Vent Type: Chimney Vent
  • Vent Pipe Size: 7" (standard Cat I galvanized chimney vent pipe)
  • Minimum Chimney Requirements: 8" x 8" x 15'
  • Dimensions: 26" Wide x 23" Deep (35" w/ burner installed) x 32" High
  • Approx. Shipping Weight: 680 lbs
