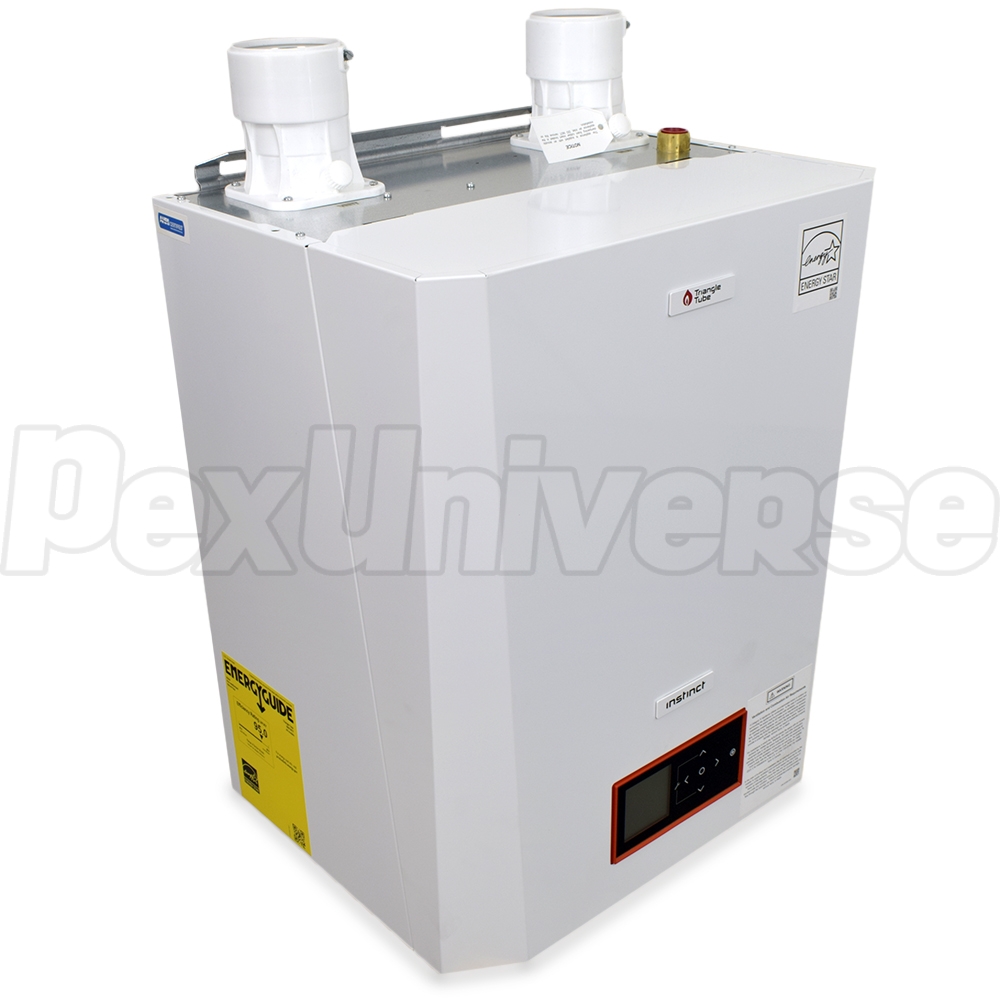

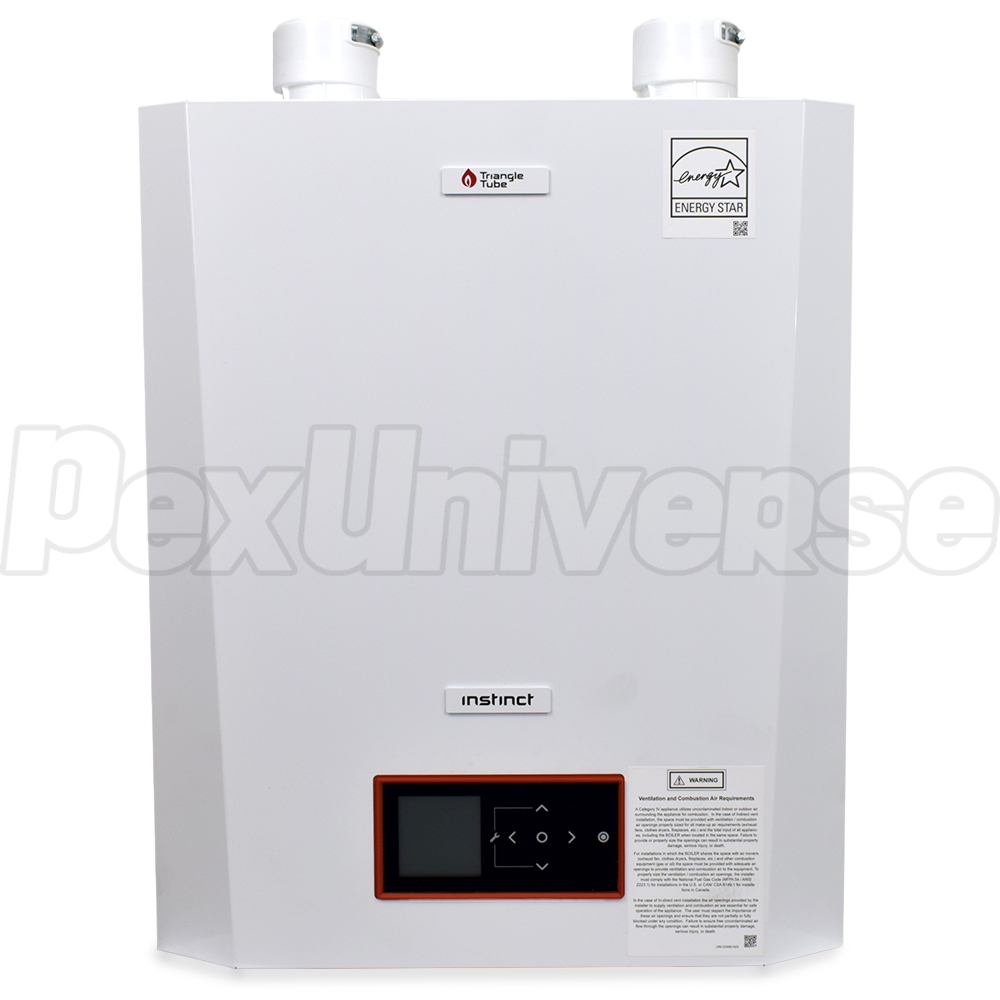

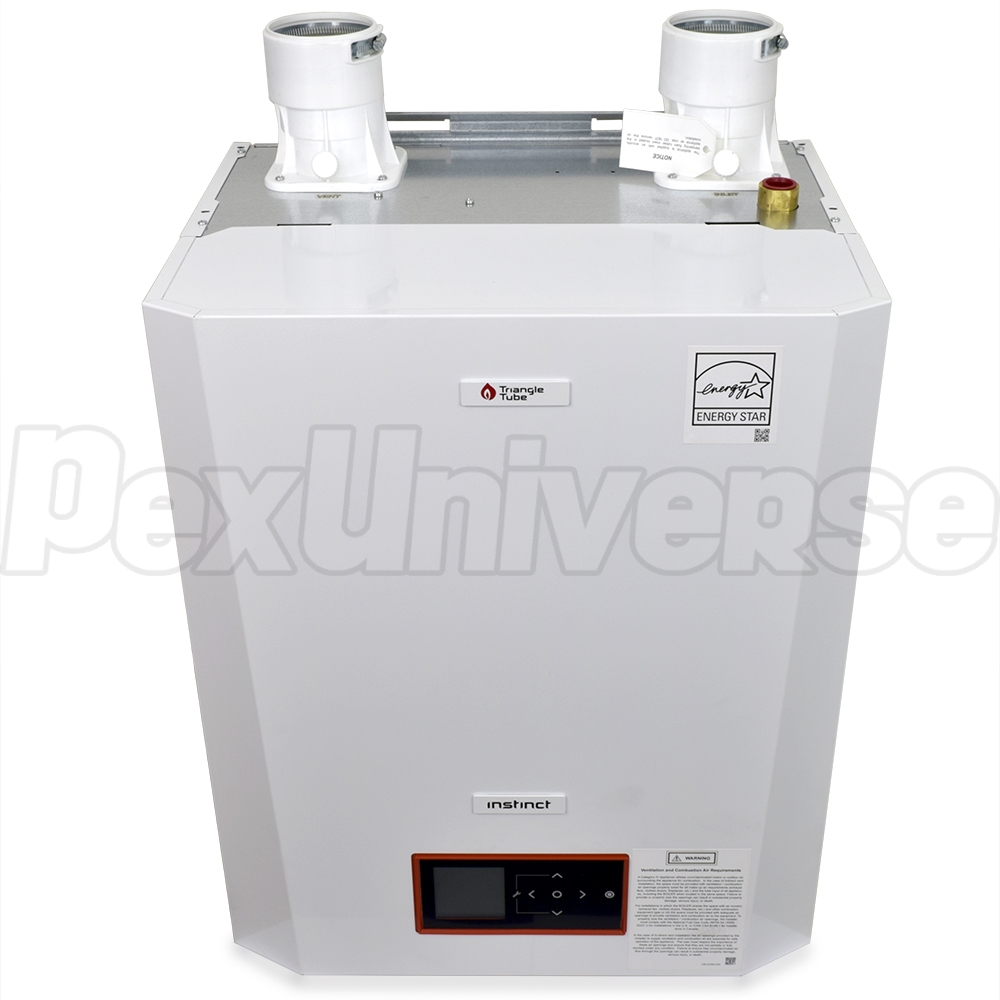

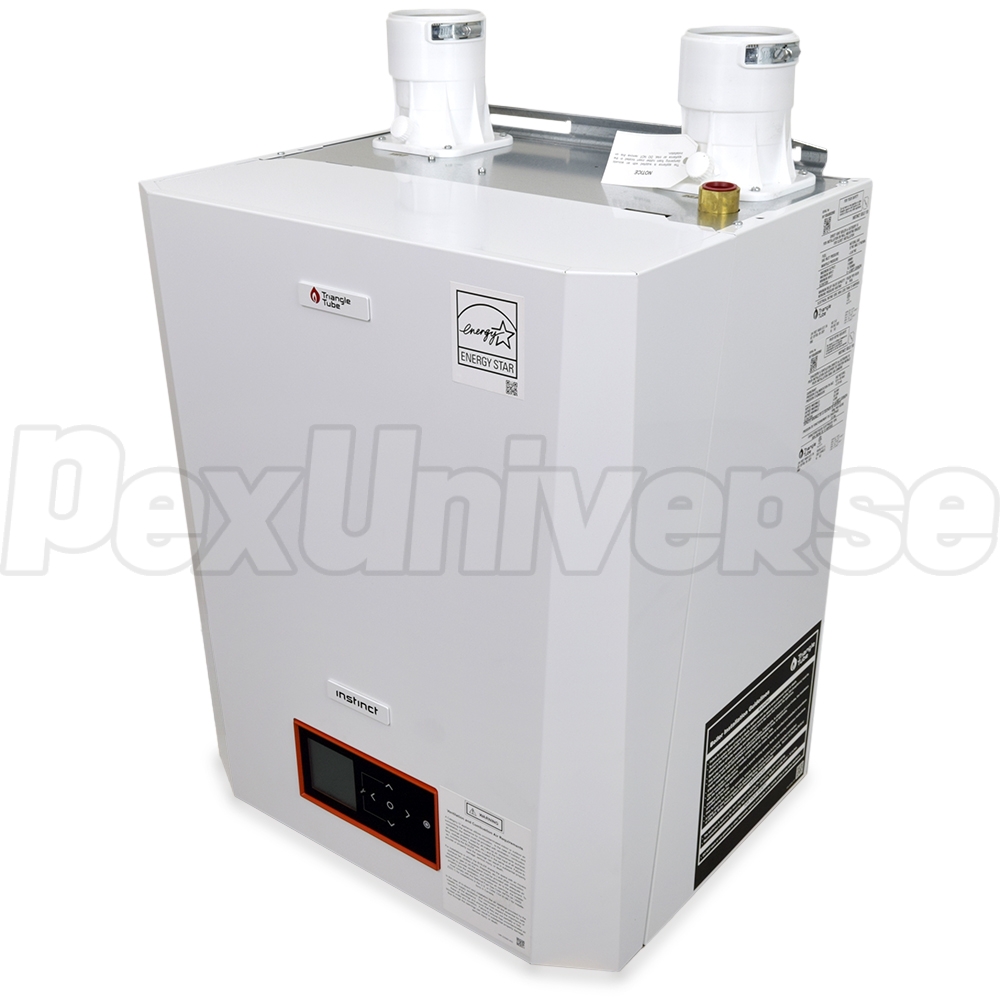

Triangle Tube Instinct Solo 110 Condensing Boiler (Heating Only), 89,000 BTU
Brand: Triangle Tube
Part#: INS110S
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$2,165.95 / each
Free Shipping on any qty
Add to Cart

Description

Rebate:
This boiler meets the requirements for a federal tax credit and qualifies for a 30% (up to $600) rebate. Click here for more info.

Instinct Solo 110 model by Triangle Tube (ACV) is a heat-only, Energy Star listed mod-con boiler with 89 MBTU (Net AHRI) output and CTRLMax Control System.

Features:
  • Stainless steel heat exchanger
  • Energy Star listed
  • Cascade functionality (up to 6 boilers)
  • Built-in freeze protection
  • Compatible with PVC, CPVC, PP and Stainless Steel vent pipe
  • Includes propane conversion kit

Technical Specifications:
  • Input Modulation (BTU): 13,750 - 110,000
  • DOE Rating (BTU): 102,000
  • Net AHRI Rating (BTU): 89,000
  • Efficiency (AFUE): 95%
  • Turndown (Modulation) Ratio: 8 : 1
  • Fuel Type: Natural Gas (NG) or Propane (LP)

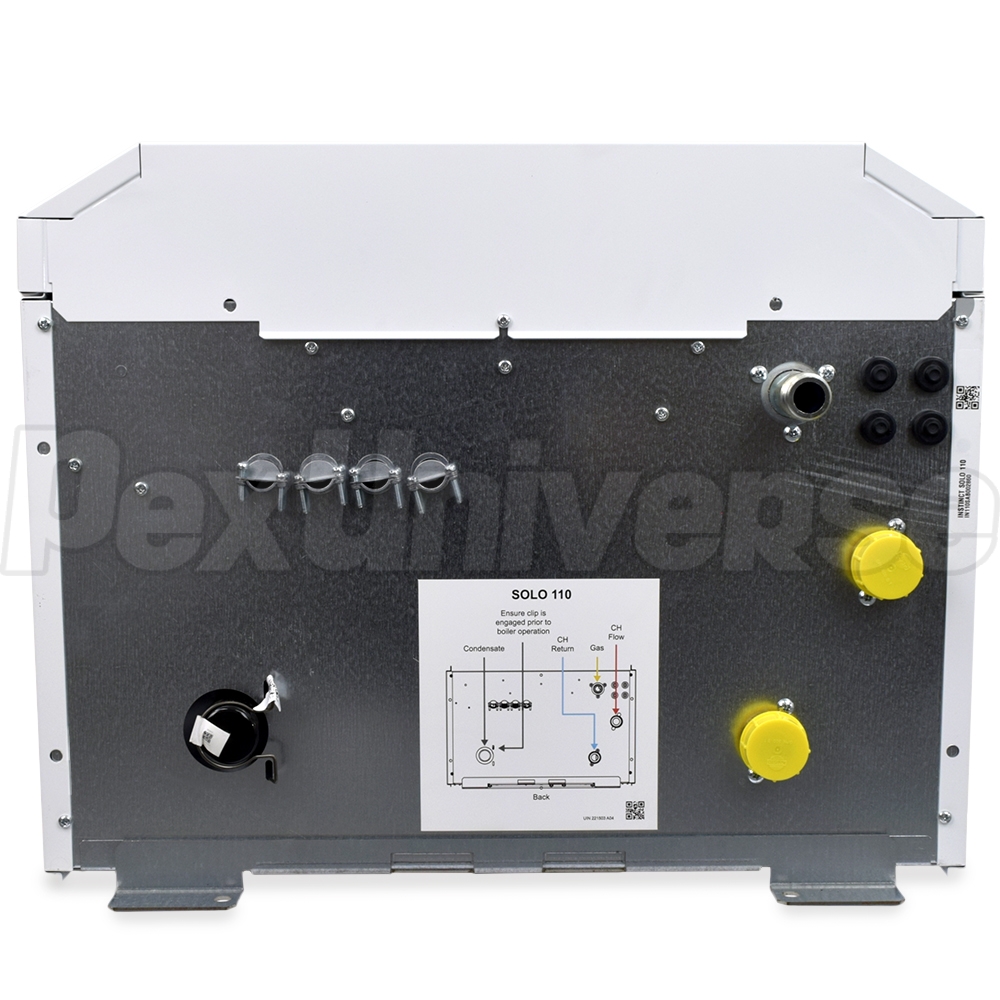

  • Boiler Connections: 1" NPT
  • Gas Connection: 3/4" NPT
  • Gas Supply Pressure: 5-13" WC (natural gas), 8-13" WC (propane)
  • Max. Operating Pressure: 50 psi

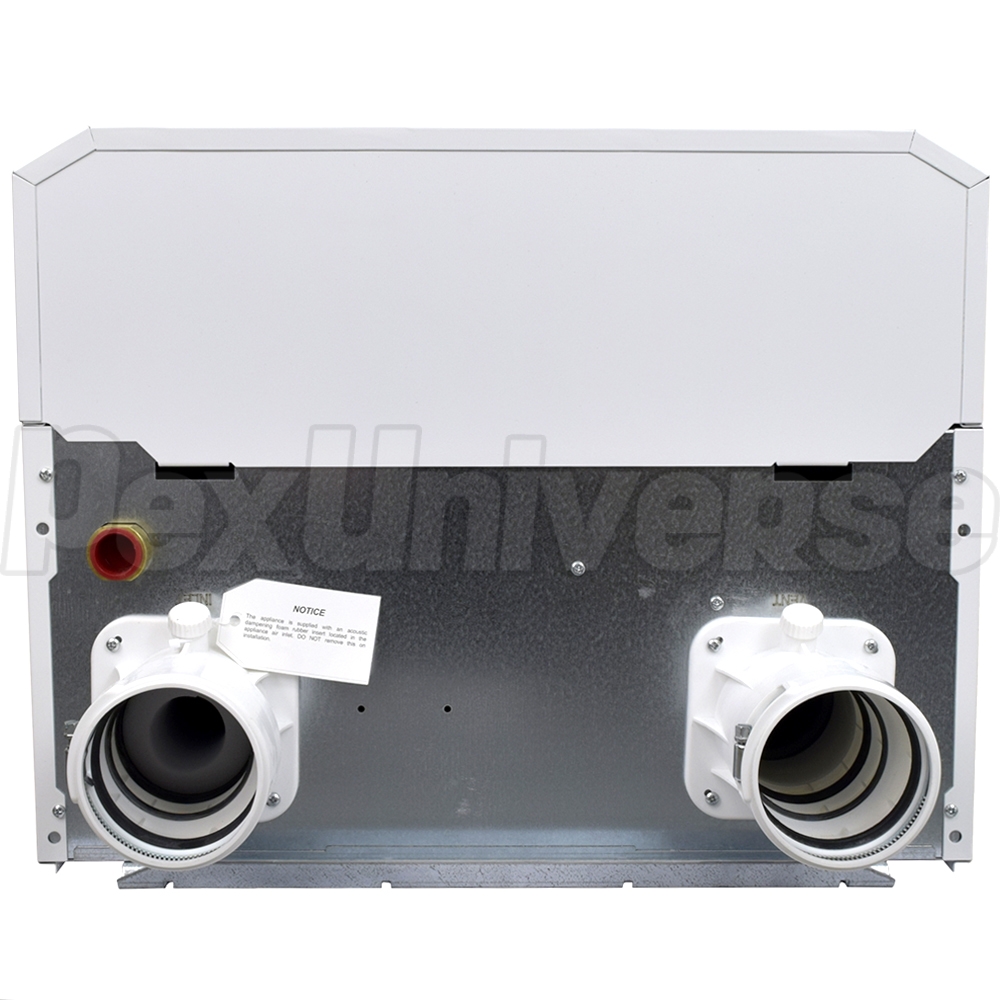

  • Vent/Air Size: 3"
  • Vent Material: PVC, CPVC, PolyPropylene, St. Steel
  • Power Supply: 120V, 60Hz
  • Dimensions (Depth x Width x Height): 16-1/2" x 21-3/4" x 26"
  • Weight (lbs): 75
  • Water Volume (Gallons): 2

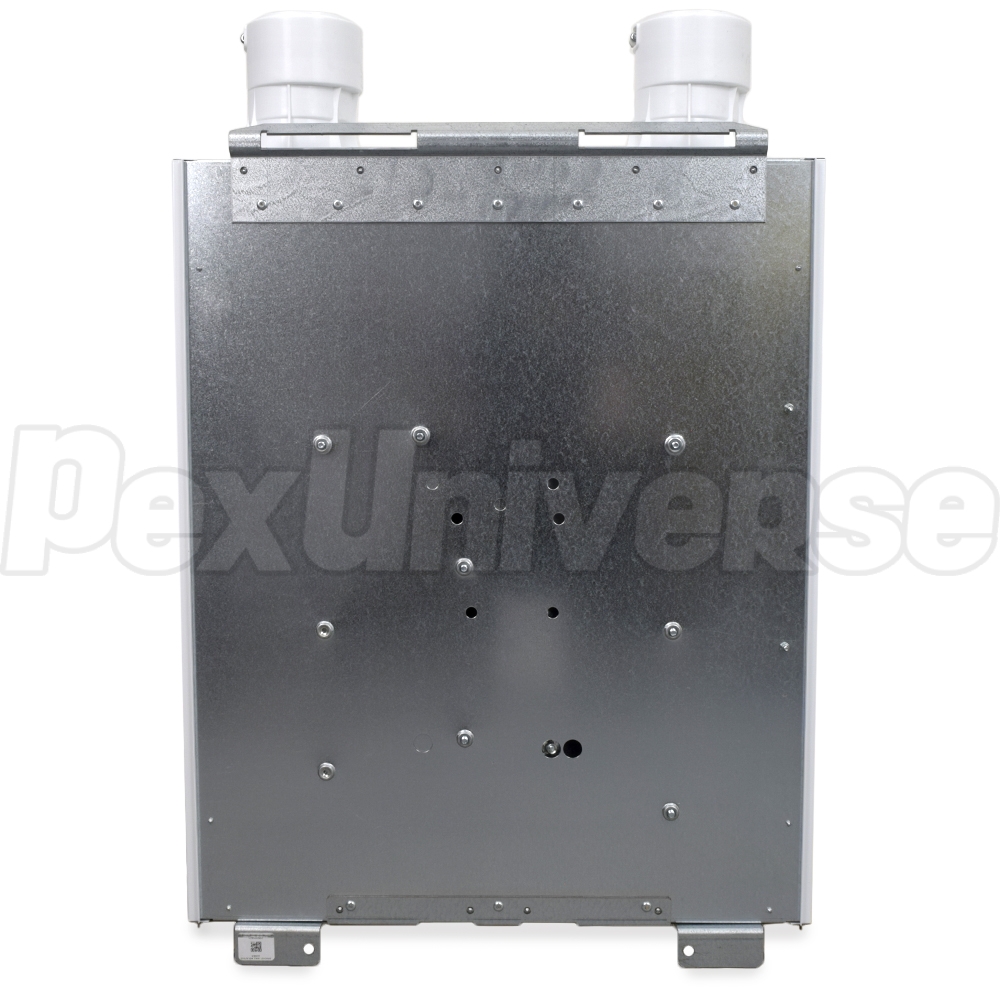

  • Mounting Type: Wall-mounted (Wall-hung).

Warranty:
6-year part, 3-year labor allowance and 10-year primary heat exchanger

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Good
Very good
Net BTU Rating: 150,000 - 175,000 | Boiler Type: Heat-Only
By vasiliy (from Marion, MT) on 11/13/2024
Helpful? Yes No
Verified Purchase
very happy
works great, very consist heat, does not overshoot heating cycle like my old Viesmann did. compact, easy to install. set up is really easy.
Net BTU Rating: 75,000 - 100,000 | Boiler Type: Heat-Only
By Matt (from Polson, MT) on 05/20/2024
