561 WiFi Thermostat, 1-Stage Heat
Brand: Tekmar
Part#: 561
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$199.95 / each
$743.80 box of 4
($185.95 each)
Free Shipping on any qty
Add to Cart

Description

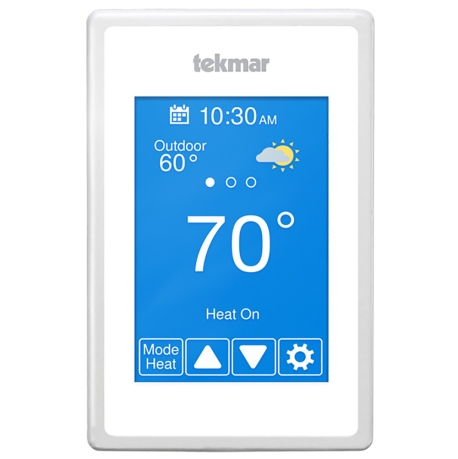

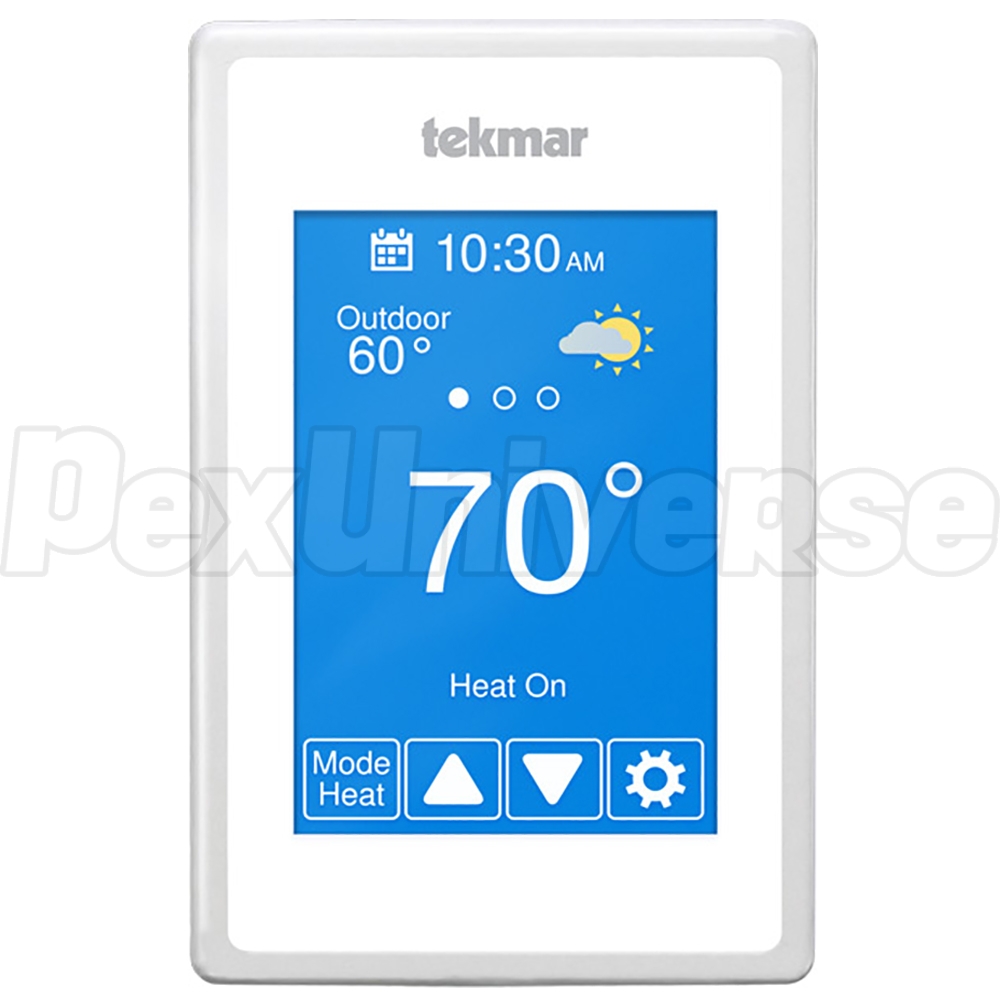

Tekmar 561 is a single-stage, heat-only thermostat with color touch screen interface and WiFi-enabled internet access via the Watts Home mobile app. 561 model is an optimal solution for remote (via the internet) zone temperature control with hot water heating systems - whether baseboards, radiators or radiant floor heat. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. The thermostat supports radiant floor heating and optional floor sensor (079, not included) can be installed to enhance comfort and improve system response.

Features:
  • WiFi-enabled (controlled via iOS/Android app, w/ automatic software and time clock updates)
  • 7-day programmable
  • Shows local weather and outdoor temperature
  • Away mode for energy savings
  • E-mail warning and error notifications
  • 3.5" touchscreen with selectable background colors
  • Energy monitoring
  • Early start feature
  • Made in Canada

Technical Specifications:
  • Stages: 1 Heat
  • Interface: Touchscreen
  • Screen: 3.5" color touchscreen
  • Mounting: Vertical
  • Electrical Ratings: 15 to 30 VAC, 2 VA standby, Class 2
  • Setting Temperature Range: 40 to 122°F (4.5 to 50.0°C)
  • Relay: 30 VAC, 2 A, Class 2 circuits
  • Sensor: NTC thermistor (not included)
  • Communications: WiFi 802.11n, 2.4 GHz, WPA2 encryption
  • Mobile app: iOS 12 or higher, Android 8 or higher
  • Languages: English, French, Spanish
  • Ambient conditions: Indoor use only, 32 to 122°F, RH≤90% non-condensing
  • Enclosure material: White PVC Plastic, NEMA type 1
  • Dimensions: 4-5/8" x 3" x 15/16"
  • Packaged weight: 0.6 lbs

Warranty:
3-year warranty

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Works as promised
I only had 3 thermostat wires not 4 as in the diagrams but tech support helped me with the connections. The app also works just fine.
By Christian (from Shoreview, MN) on 10/29/2024
Helpful? Yes No
Verified Purchase
Really good for infloor heating
This is the 2nd model 561 that I've bought. It's really good for controlling an infloor heating system. The wifi interface is pretty good though I wish it would display the outside air temperature sensor that is connected to one of my stats. The thermostat displays OAT. but the app doesn't.
By Michael (from Silverthorne, CO) on 08/24/2024
Helpful? Yes No
Verified Purchase
received
correct parts
By william (from Stoughton, WI) on 10/10/2023
