518 Thermostat, 1-Stage Heat
Brand: Tekmar
Part#: 518
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$86.95 / each
$323.80 box of 4 + Free Shipping
($80.95 each)
Add to Cart
Orders over $99 ship free

Description

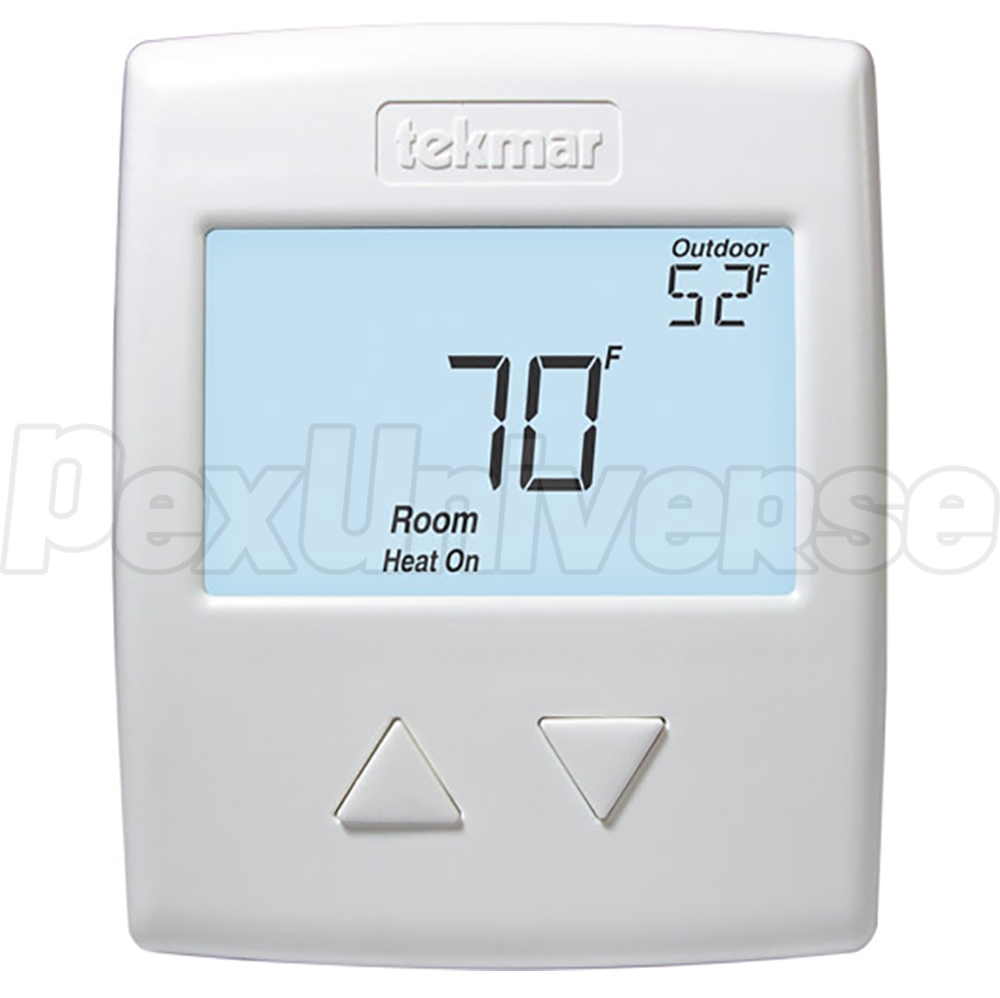

Tekmar 518 is a simple, yet time-proven and reliable 1-stage (single zone) digital non-programmable thermostat with button interface and large backlit screen. Set by default to measure ambient air temperature, it can also automatically detect a single auxiliary sensor to measure either outdoor, floor or remote room temperature.

Features:
  • Simple, straightforward, non-programmable interface
  • Large backlit screen
  • Compatible with a floor sensor (not included) for radiant heat applications
  • Freeze protection
  • Made in Canada

Technical Specifications:
  • Stages: 1 Heat
  • Interface: Button
  • Screen: Monochrome, backlit
  • Mounting: Vertical
  • Electrical Ratings: 10 to 30 VAC, 50/60 Hz, 1.8 VA standby, 56 VA max fully loaded, Class 2
  • Setting Temperature Range: 40 to 122°F (4.5 to 50.0°C)
  • Relay: 30 VAC, 2 A, Class 2 circuits
  • Sensor: NTC thermistor (not included)
  • Ambient conditions: Indoor use only, 32 to 122°F, RH≤90% non-condensing
  • Enclosure material: White PVC Plastic, NEMA type 1
  • Dimensions: 3-11/16" x 3" x 15/16"
  • Packaged weight: 0.53 lbs

Warranty:
3-year warranty
