Takagi TK-540P-PEH Outdoor Tankless Water Heater w/ Recirculation Pump, Propane, 199KBTU
Brand: Takagi
Part#: TK-540P-PEH
Temporary Out of Stock
Ship Pickup
Usually ships: Upon availability
$1,405.95 / each
$5,543.80 box of 4
($1,385.95 each)
Free Shipping on any qty
Add to Cart

Description

This product qualifies for a federal tax rebate of up to $600. Click here for details.

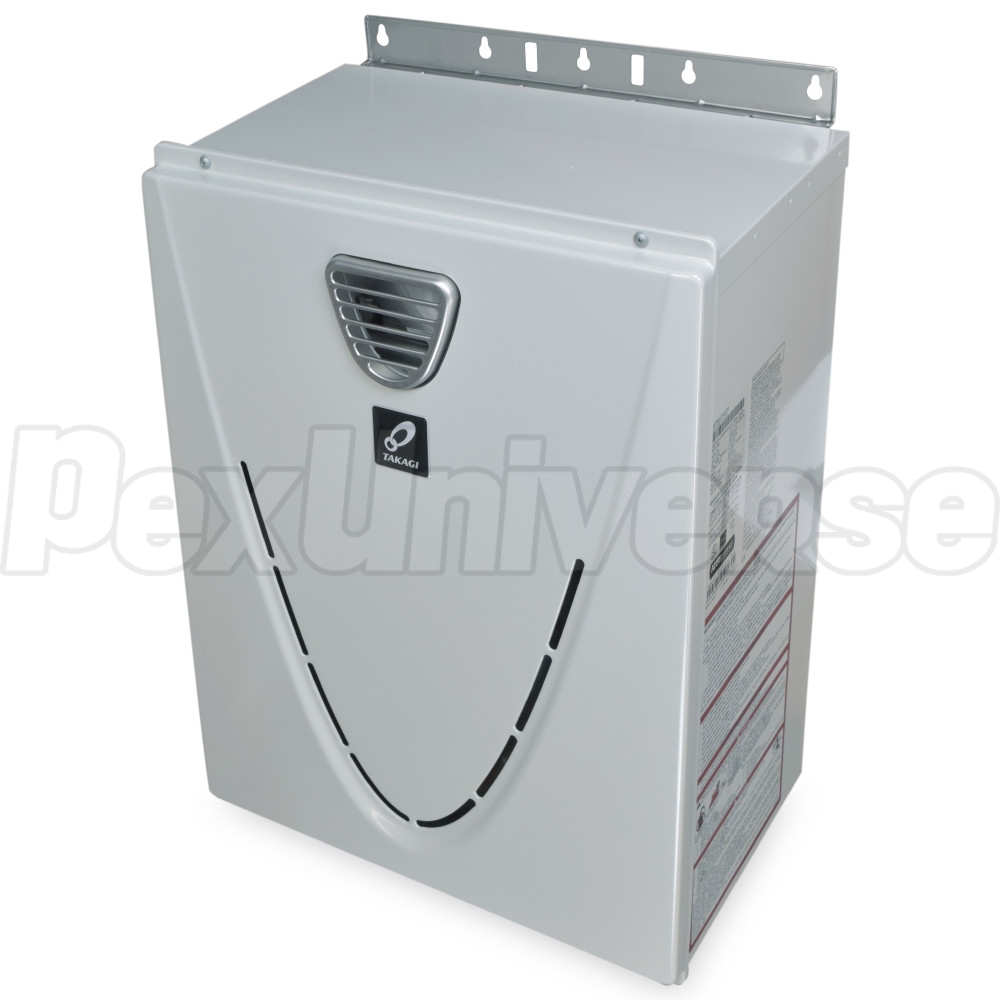

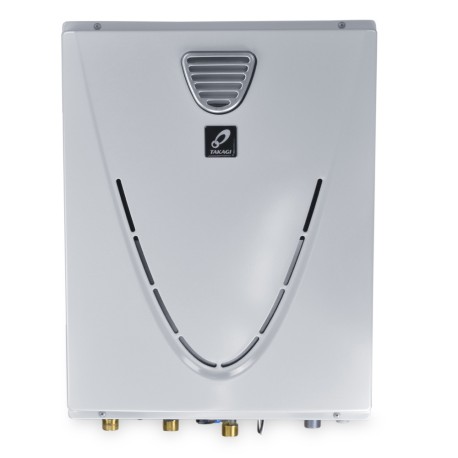

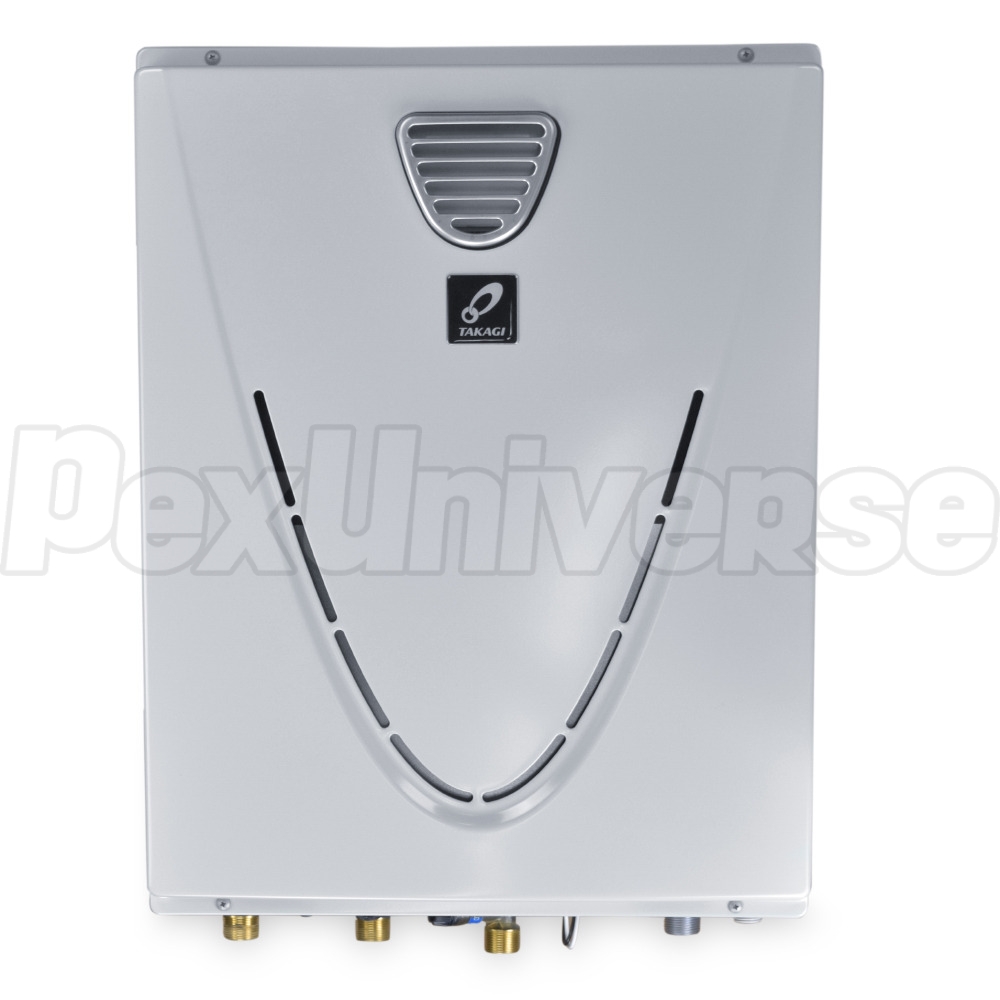

Takagi TK-540P-PEH model is a model is a high-efficiency condensing outdoor propane gas tankless water heater with a built-in hot water recirculation pump (for systems with a dedicated hot water return line). Intended for medium to large residential applications.

Features:
  • Fully modulating, high-efficiency condensing design with commercial copper primary and 316L secondary heat exchangers
  • Model with built-in DHW (Domestic Hot Water) recirculation pump (up to 100ft with 1/2" pipe and up to 500ft with 3/4")
  • UEF 0.95 - Energy Star certified, may qualify for a rebate

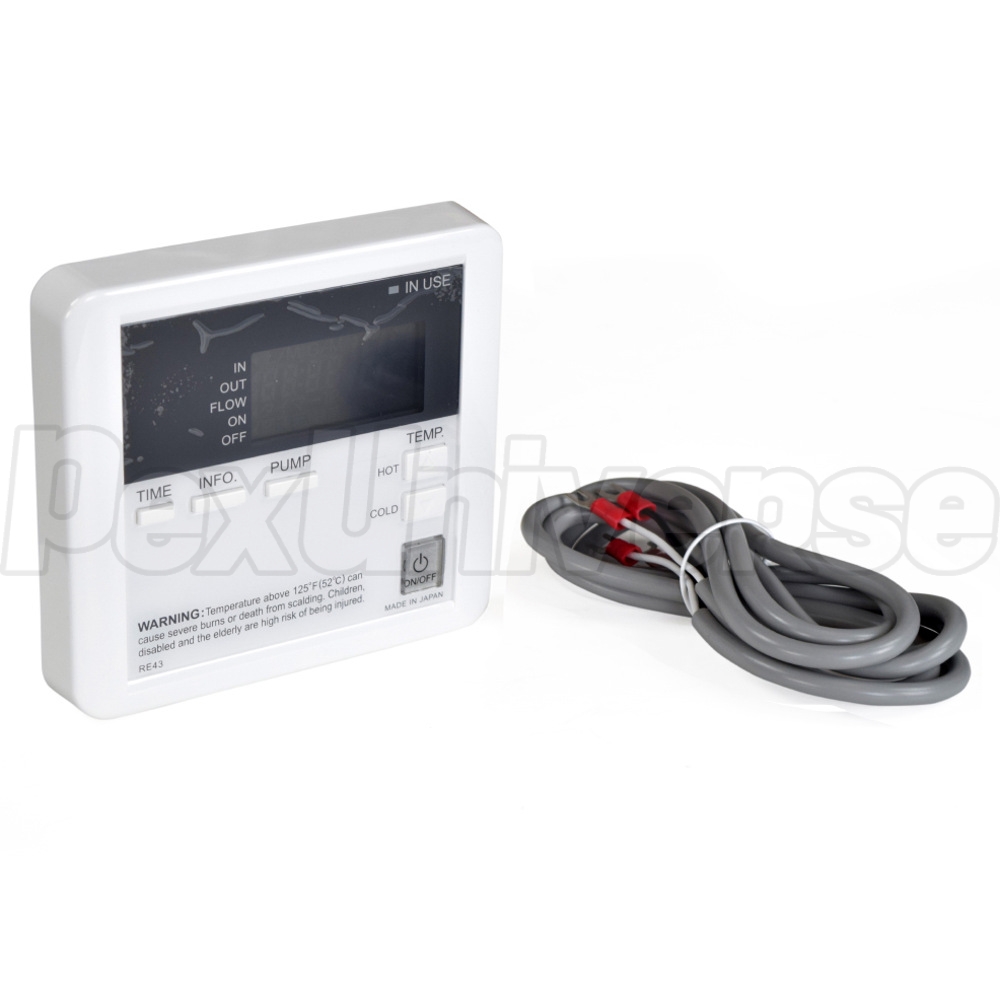

  • Remote temperature & pump controller included
  • Up to 10 GPM max flow rate
  • Built-in safety features include freeze protection, air-fuel ratio sensor, exhaust & water temperature control, overheat cut-off fuse
  • Outdoor model - no vent pipes needed
  • Electronic ignition - no pilot light
  • Wall-mounting design with integrated brackets
  • AHRI certified, Low-Lead compliant, Low NOx (SCAQMD Rule 1146.2 - California & Texas, NG models only)

Technical Specifications:
  • Shower Capacity: 4 - 3 Showers (5 GPM @ 75°F rise; 7.5 GPM @ 50°F rise; 10 GPM @ 38°F rise)
  • Min Flow: 0.4 GPM
  • Gas Input (Min - Max): 13,000 - 199,000 BTU/h
  • Fuel Type: Propane (8.0 - 14 WC pressure)
  • UEF: 0.95

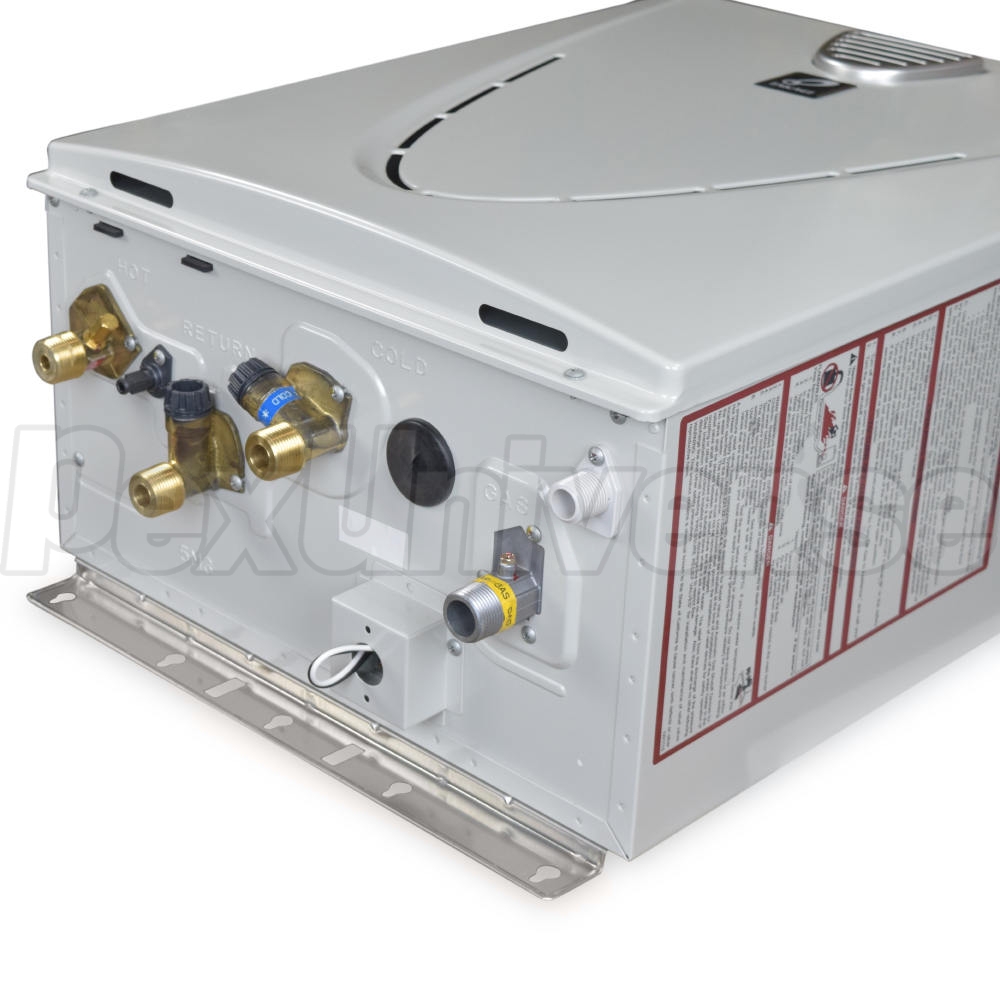

  • Hot & Cold Water Connections: 3/4" NPT
  • Gas Connection: 3/4" NPT
  • Recirculation Connection: 3/4" NPT
  • Installation Altitude: 0 - 2,000 (de-rate for higher elevations, up to 10,100ft max - see manual for details)
  • Power Supply: 120V, 60Hz (hardwired)
  • Dimensions: 17-3/4" Wide x 24-7/8" High x 11-1/4" Deep
  • Weight: 60 lbs

Warranty:
15-year limited warranty on heat exchanger in residential applications/6-year limited warranty on heat exchanger in commercial applications/5-year limited warranty on all parts
