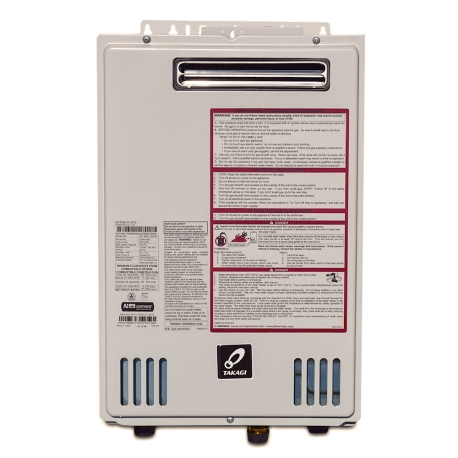

Takagi TK-110U-E tankless water heater model is a direct replacement for T-KJr2-OS Natural (NG) and Propane (LP) gas non-condensing models. The new unit uses natural gas by default and comes with a propane conversion kit.
TK-110U-E outdoor heater includes a remote temperature control.
Cross-References:
- Navien: NPN-160-E
- State: GTS-110U-E
- American: GT-110U-E
Features:

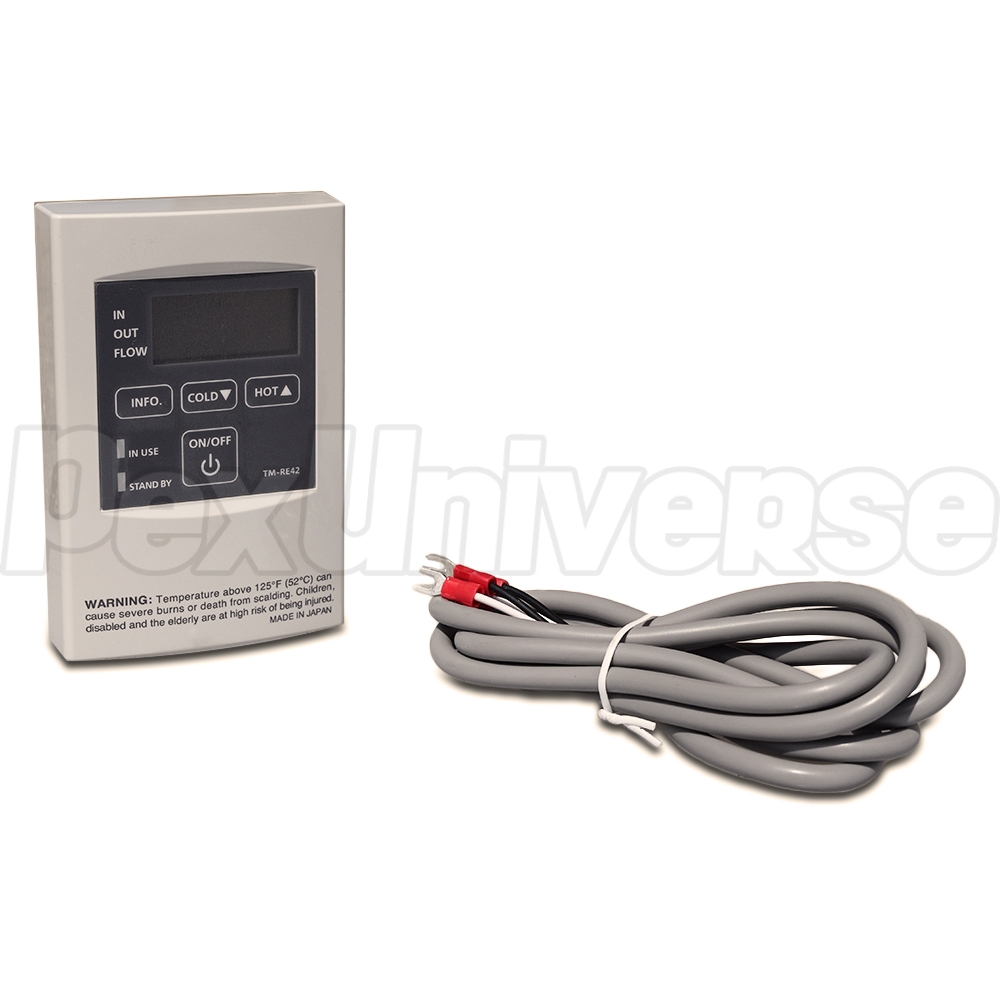

- Remote temperature controller included

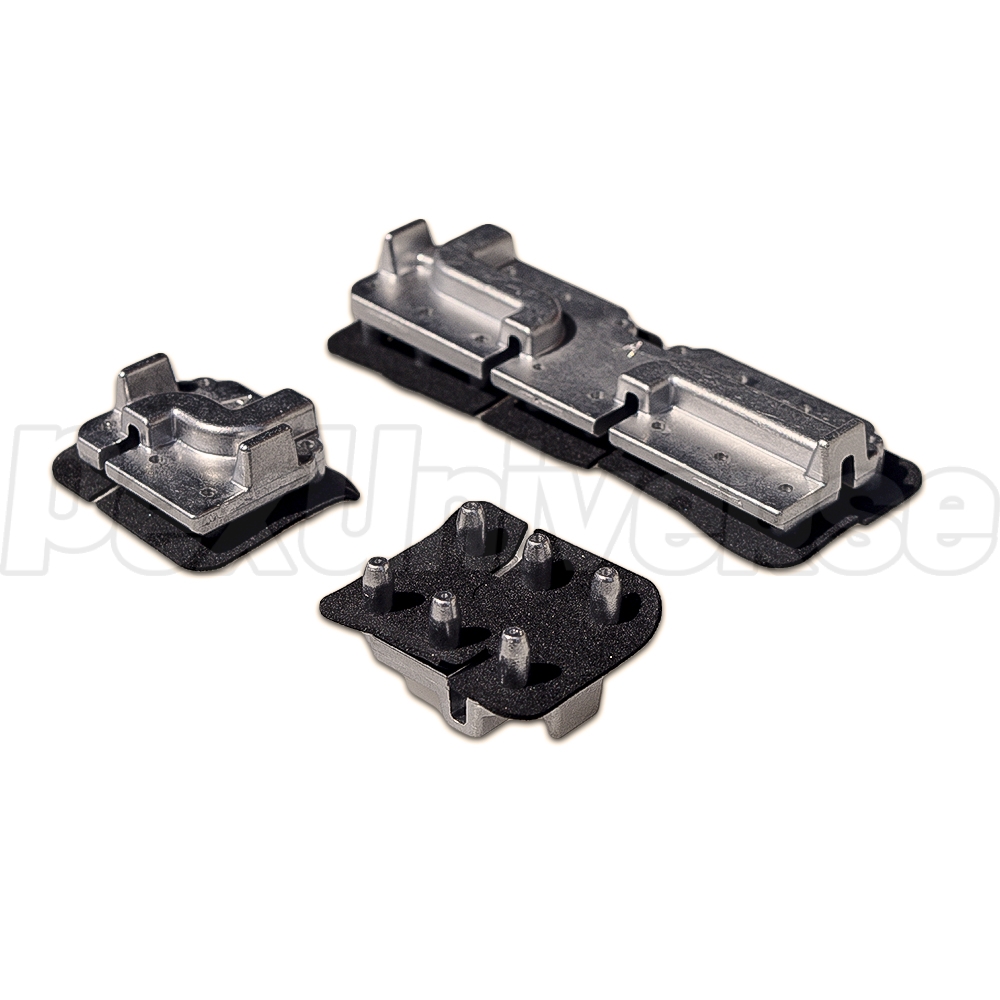

- Field convertible from Natural Gas to Propane (kit included)
- Fully modulating, non-condensing, with copper heat exchanger
- Up to 6.6 GPM max flow rate
- Built-in safety features include freeze protection, manual reset hi limit (up to 194F), overheat cut-off fuse, inlet & outlet thermistors (for constant temperature monitoring), air-fuel ratio rod and flame sensor
- Outdoor model - no vent pipes needed
- Electronic ignition - no pilot light
- Wall-mounting design with integrated brackets
- AHRI certified, Low-Lead compliant, Low Nox (SCAQMD Rule 1146.2 - California & Texas, NG models only)
Technical Specifications:
- Shower Capacity: 2.5 - 1.5 Showers (3 GPM @ 75°F rise; 4.5 GPM @ 50°F rise; 6.6 GPM @ 35°F rise)
- Min Flow: 0.4 GPM
- Gas Input (Min - Max): 15,000 - 199,000 BTU/h
- Fuel Type: Natural Gas (4 - 10.5 WC pressure) or Propane (8 - 14 WC pressure) - LP conversion kit included
- UEF: 0.81

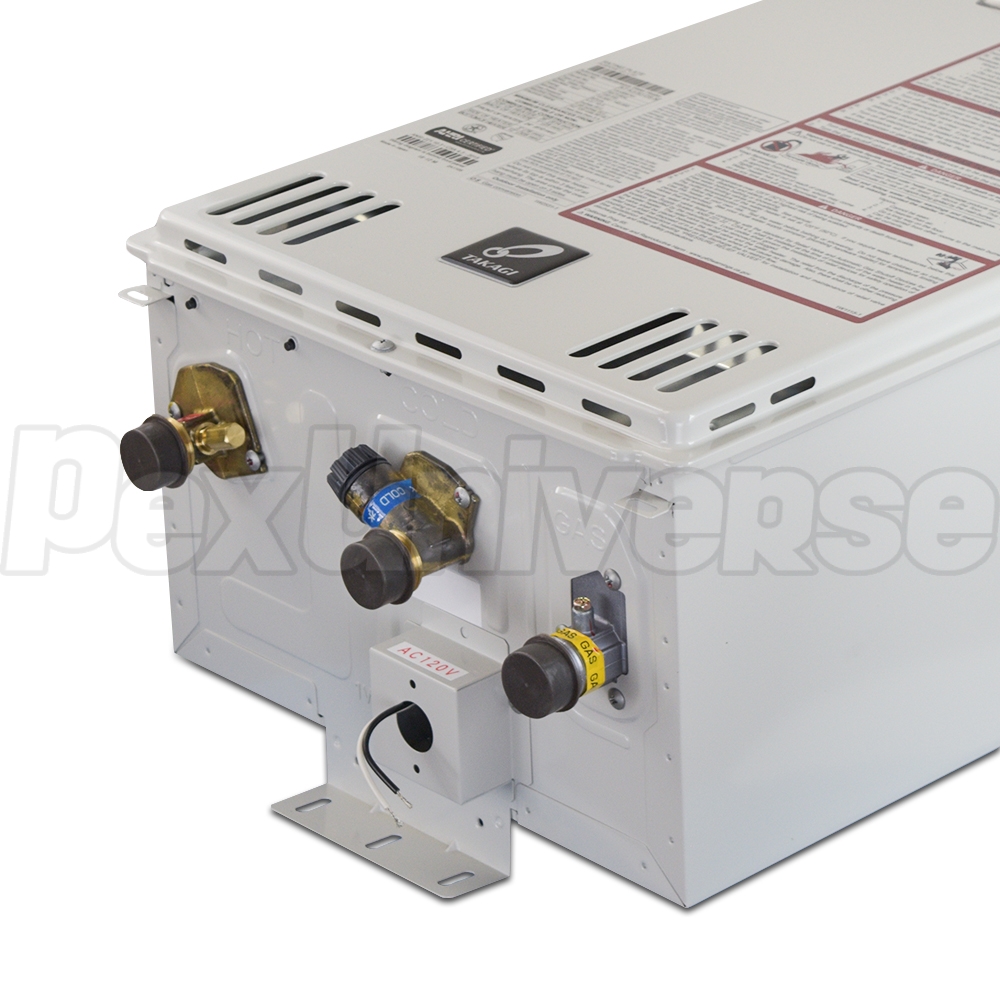

- Hot & Cold Water Connections: 3/4" NPT
- Gas Connection: 3/4" NPT
- Installation Altitude: 0 - 2,000 (de-rate for higher elevations, up to 10,100ft max - see manual for details)
- Power Supply: 120V, 60Hz (hardwired)
- Consumption: 54W Operation, 2W Stand-by, 96W Freeze protection
- Dimensions: 13-3/4" Wide x 22-1/2" High x 10" Deep
- Weight: 37.5 lbs
Warranty:
15-year limited warranty on heat exchanger in residential applications/5-year limited warranty on heat exchanger in commercial applications/5-year limited warranty on all parts
