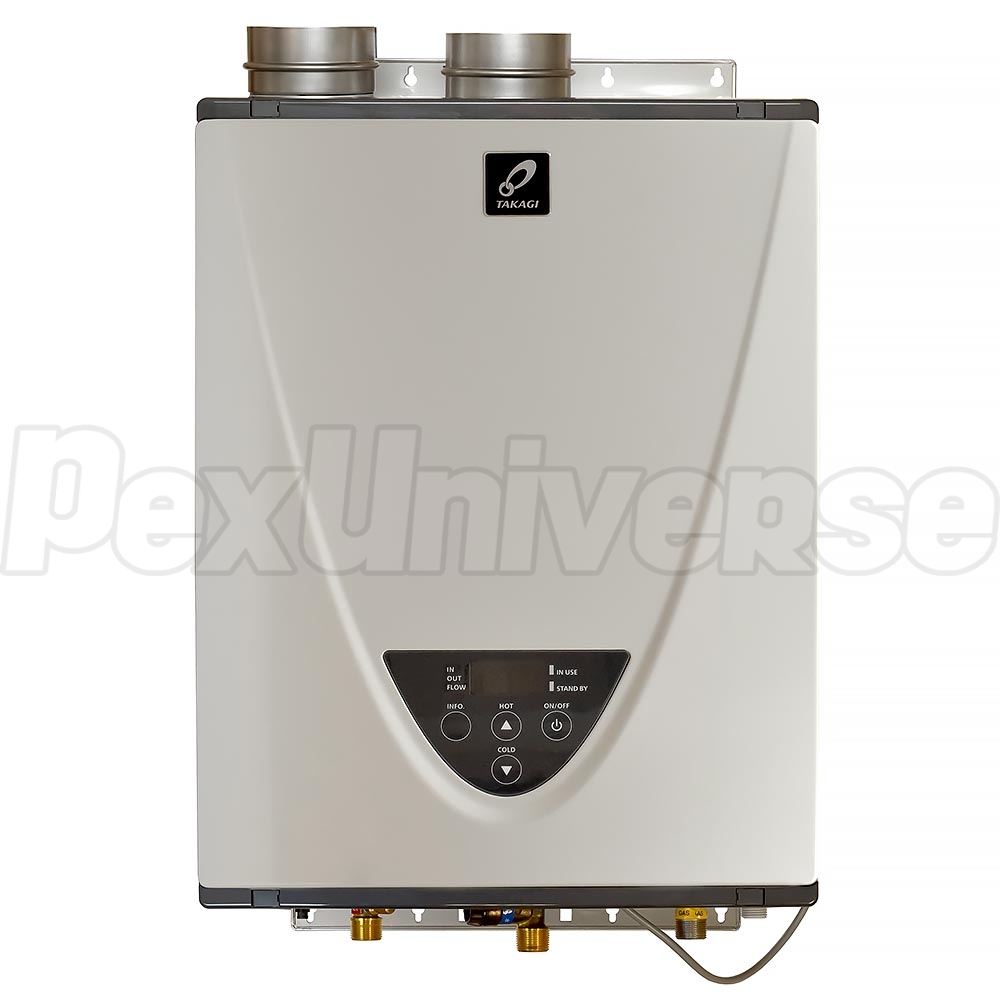

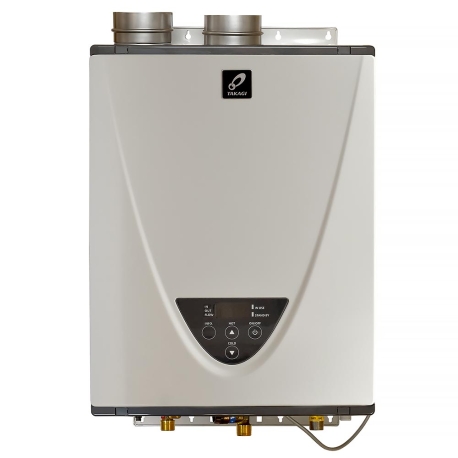

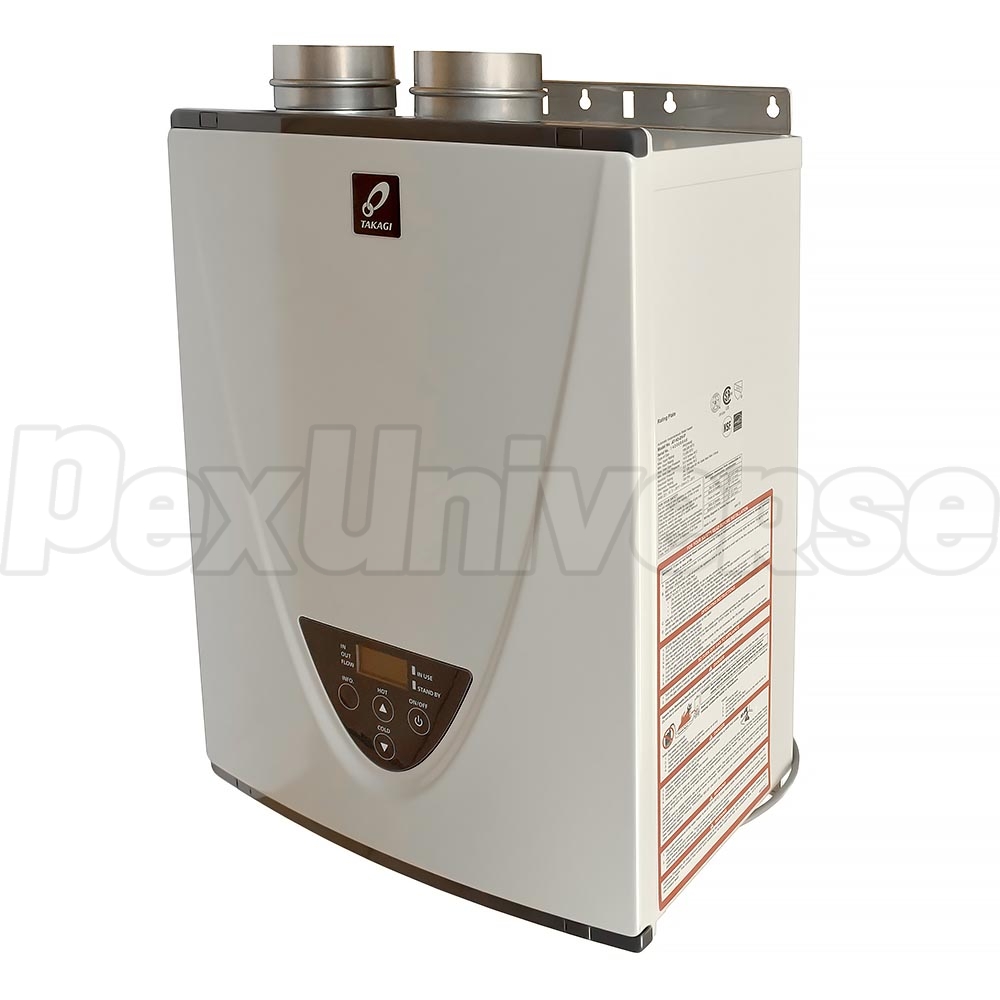

Takagi T-H3-DV-N Indoor Tankless Water Heater, Natural Gas, 199KBTU
Brand: Takagi
Part#: T-H3-DV-N
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$1,190.95 / each
$4,703.80 box of 4
($1,175.95 each)
Free Shipping on any qty
Add to Cart

Description

Takagi T-H3-DV indoor series tankless water heaters are among the most popular choices for on-demand condensing (high efficiency) gas tankless water heaters on the market due to their reliability, efficiency and affordable price. These are high-ouptput models, designed mainly for high demand applications (multiple simultaneous showers/sinks/appliances) and are also suitable for commercial applications requiring 180F degree water.

Cross-References:
  • Rinnai: RU199i
  • Navien: NPE-240S
  • Noritz: NRC111-DV (Condensing), EZTR-75 (EZ 111)
  • State: GTS-540-NIH
  • American: GT-540-NIH

Features:
  • Fully modulating, high-efficiency condensing design with commercial copper primary and 316L secondary heat exchangers, 0.93 UEF
  • Factory-installed power cord with plug
  • Up to 10 GPM max flow rate
  • Suitable for commercial applications
  • Easy-link up to 4 units (no additional parts or accessories needed) and multi-link (cascade) up to 20 units
  • Common vent up to 8 units
  • Built-in safety features include freeze protection, air-fuel ratio sensor, exhaust & water temperature control, overheat cut-off fuse
  • Flexibility in venting options (Cat. IV - PVC, CPVC, PP or Cat III - St. Steel)
  • Electronic ignition - no pilot light
  • Temperature controller on front panel
  • Wall-mounting design with integrated brackets
  • NSF certified, AHRI certified, Low-Lead compliant, Low NOx (SCAQMD Rule 1146.2 - California & Texas, NG models only)

Technical Specifications:
  • Shower Capacity: 4 - 3 Showers (5 GPM @ 75°F rise; 7.5 GPM @ 50°F rise; 10 GPM @ 40°F rise)
  • Min Flow: 0.4 GPM
  • Gas Input (Min - Max): 15,000 - 199,000 BTU/h
  • Fuel Type: Natural Gas (5 - 10.5 WC pressure)
  • UEF: 0.93

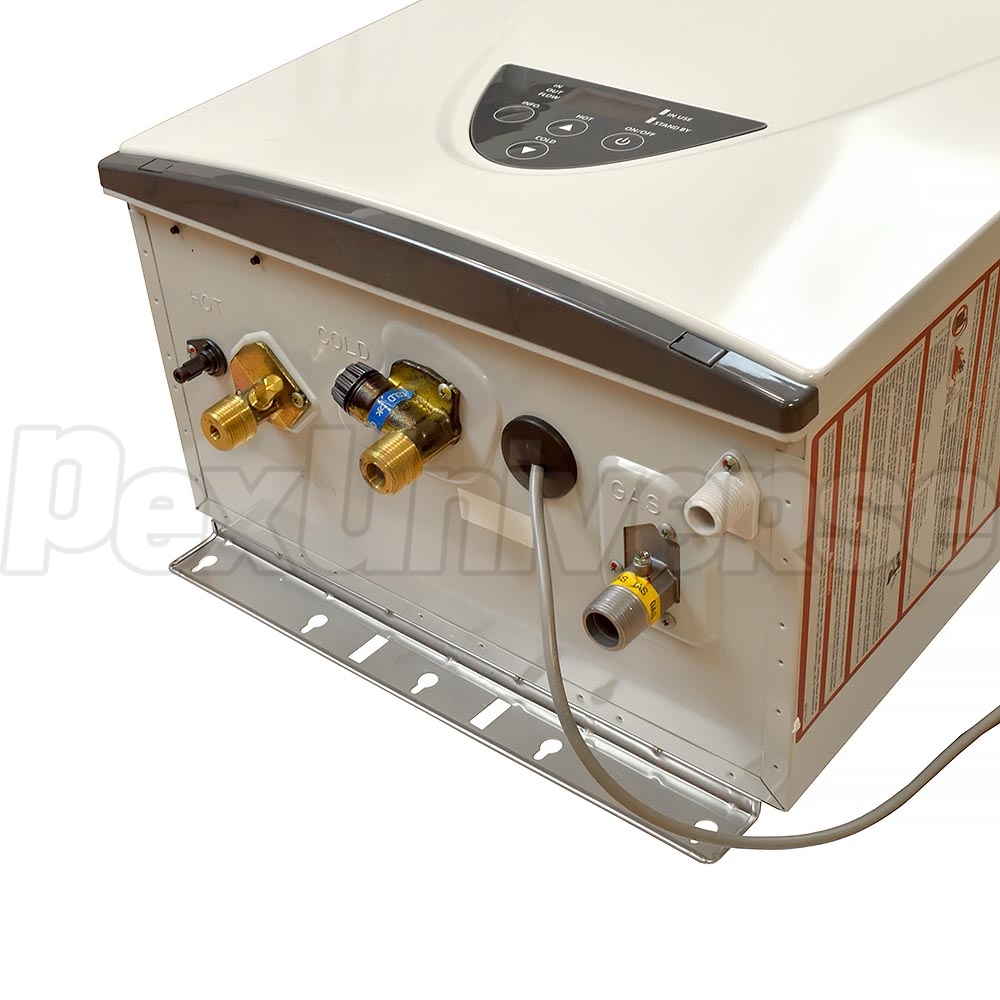

  • Hot & Cold Water Connections: 3/4" NPT
  • Gas Connection: 3/4" NPT
  • Condensate Connection: 1/2" NPT

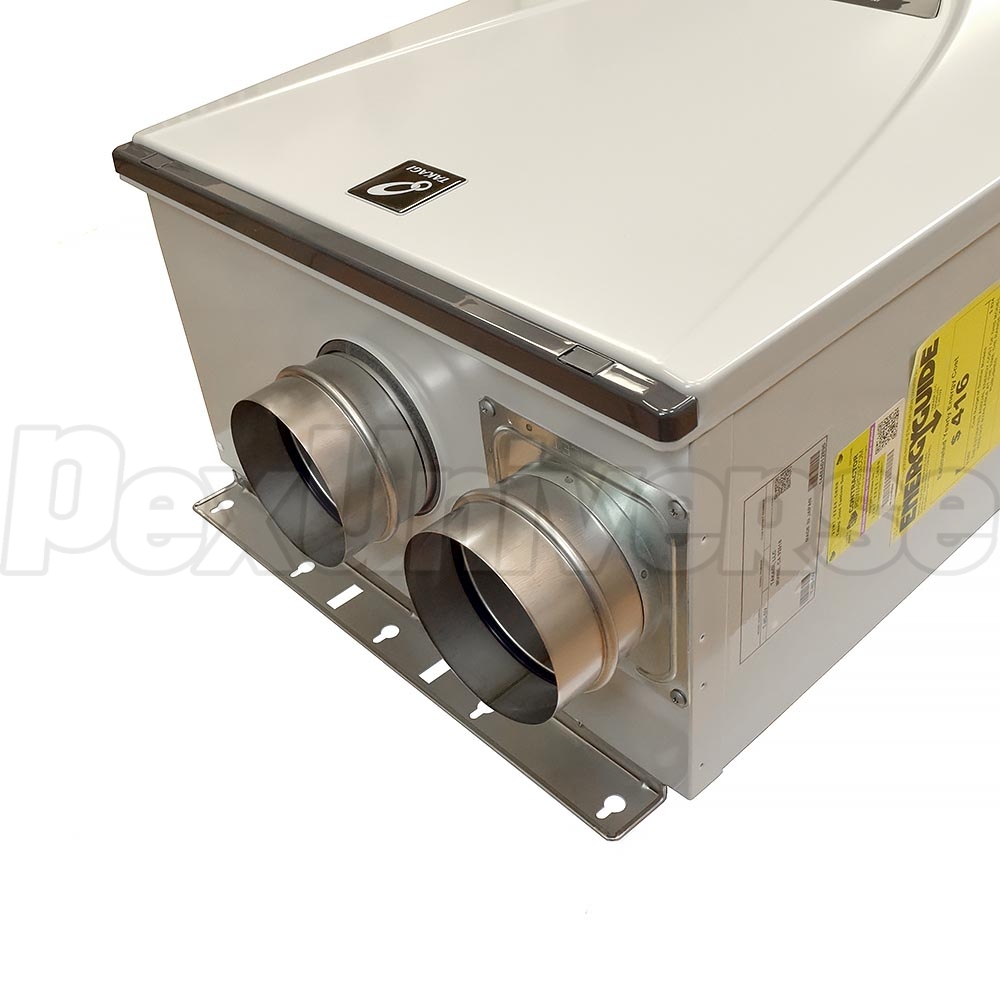

  • Flue and Air Intake Connections: 4" Default (up to 100ft of pipe length equivalent) or 3" Optional (up to 70ft)
  • Vent Pipe Material: PolyPropylene (recommended), PVC (solid core only) or Category III Stainless Steel
  • Installation Altitude: 0 - 2,000 (de-rate for higher elevations, up to 10,100ft max - see manual for details)
  • Power Supply: 120V, 60Hz (factory wired plug-in cord)
  • Consumption: 4.2W Stand-By, 89W Operation, 175W Freeze Protection
  • Dimensions: 17-3/4" Wide x 24-7/8" High x 11-1/4" Deep
  • Weight: 60 lbs
