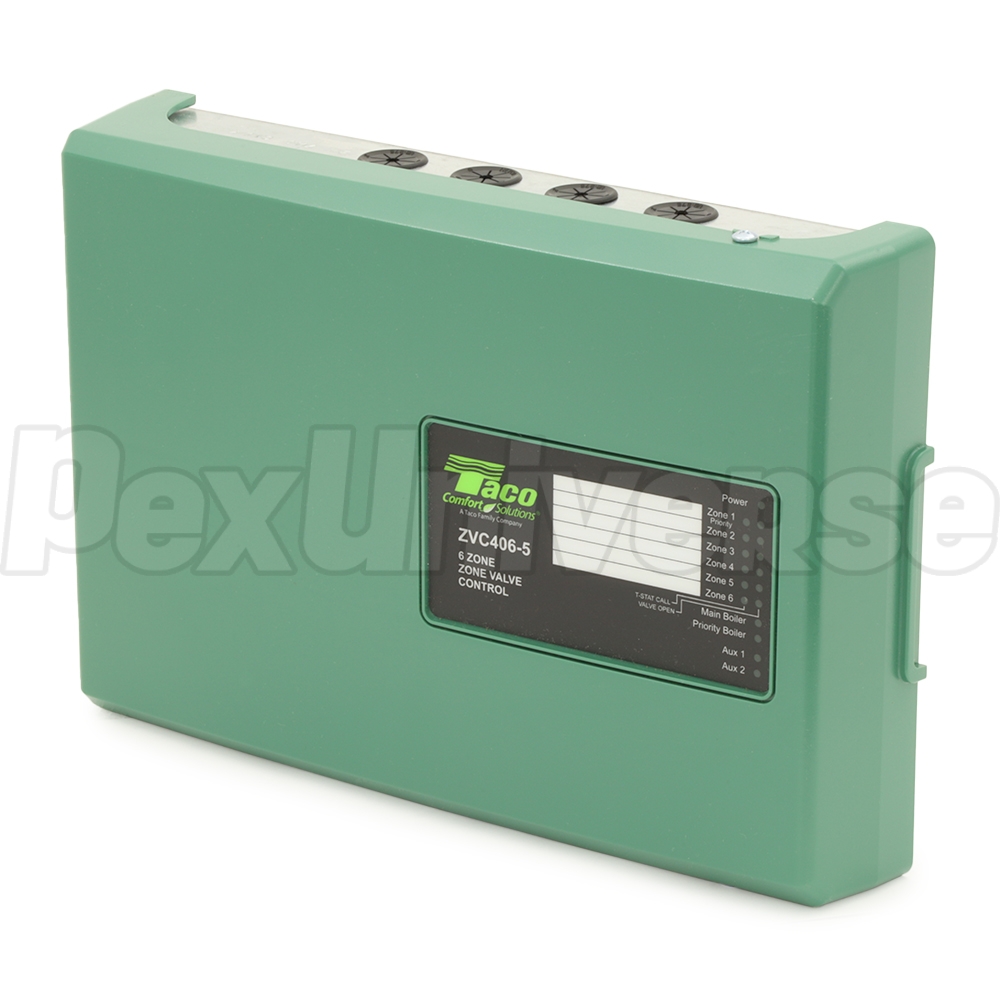

Taco ZVC406‑5 Enhanced 6‑Zone Valve Control Panel

ZVC406‑5 Enhanced 6‑Zone Valve Control Panel

Brand: Taco
Part#: ZVC406-5
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Note: This is a direct replacement for the older ZVC406.
Taco ZVC406‑5 6-Zone Valve Control supports 2-, 3-, or 4-wire zone valves and includes priority switching, isolated end switches, and fuse protection. Its redesigned layout, LED status lights, programmable outputs, SmartPlus DHW logic, and Bluetooth configuration make installation and troubleshooting fast and easy. UL and CSA listed and backed by an extended 3-year warranty.

Features:
  • External Indicator Lights for instant diagnostic feedback
  • Switchable Priority for DHW and zone control

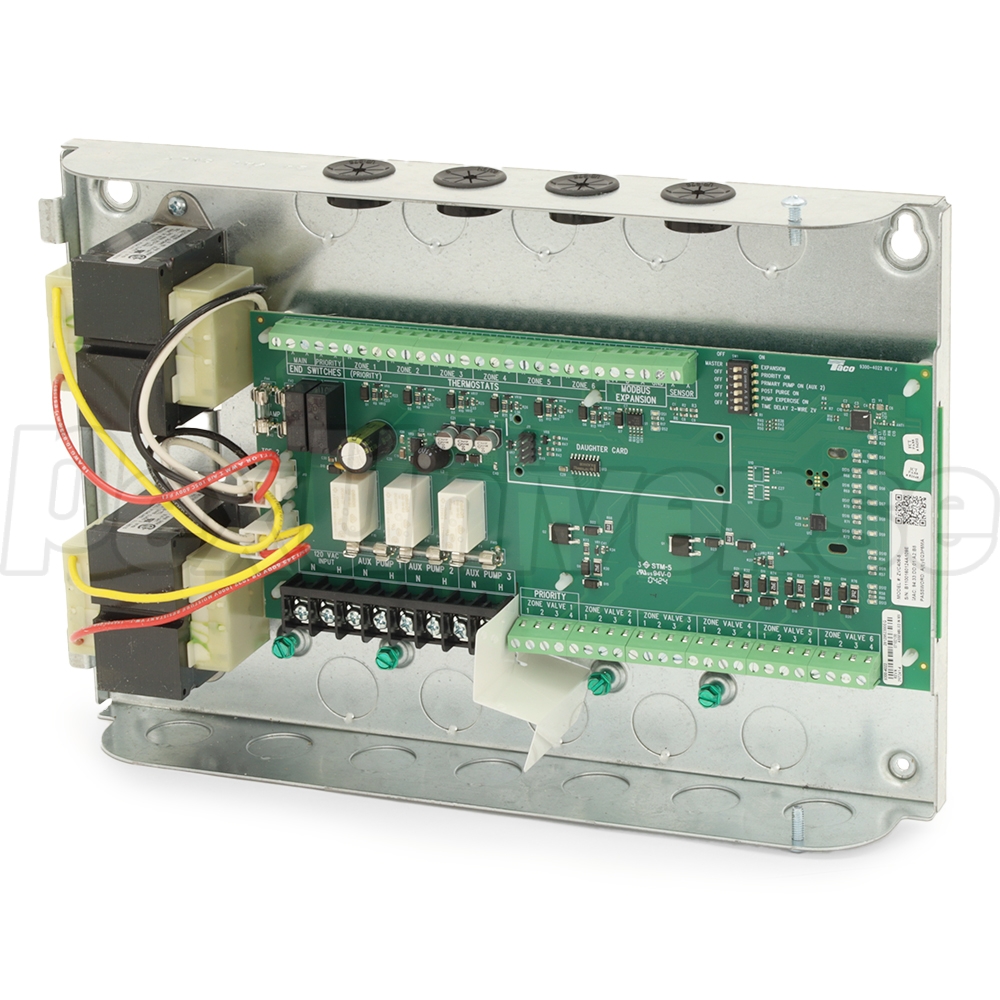

  • Simplified Wiring with contractor-friendly PC board layout
  • Fully Enclosed Snap-Out Relays for easy maintenance
  • Compact Design for space-saving installation
  • Fuse Protected for added safety
  • 100% Factory Tested to ensure quality and reliability
  • Isolated End Switch for each zone valve
  • Universal Thermostat Compatibility including smart thermostats
  • UL and CSA Approved for safety and compliance
  • 24 Volt Power Input or Output Terminal for flexible wiring
  • Built-in Post Purge and Pump Exercise Functions for system longevity
  • Expandable to 20 Zoning Panels (up to 120 zones total) via EXP switching relays
  • Bluetooth App-Based Configuration for wireless setup and updates
  • SmartPlus DHW Recirculation Logic to optimize domestic hot water performance
  • Programmable Outputs for customized system control
  • Wireless Update Capabilities for future firmware enhancements
  • Modbus Communication Ready for integration with building automation

Technical Specifications:
  • Zones: 6
  • Power (Transformer Voltage): 120 VAC Input
  • Transformer Rating: 80 VA
  • Dimensions: 12-1/2" wide x 8-1/2" high x 2-5/8" deep

Warranty:
Extended 3 Year Warranty;
