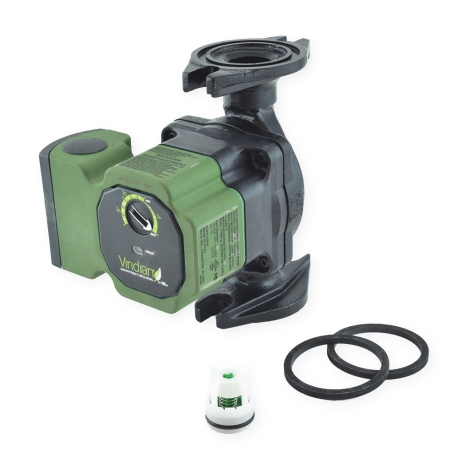

Viridian VR1816 Series Variable Speed High Efficiency Circulator Pump w/ IFC, 120V Taco
Viridian VR1816 Series Variable Speed High Efficiency Circulator Pump w/ IFC, 120V
Brand: Taco
Part#: VR1816-HY1-FC2A00
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

The Viridian VR1816 circulator is an infinitely variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating in three modes which include Infinitely Variable Fixed Speed, Constant Pressure and Proportional Pressure options. Has 5 color LED display to show operating mode or error code for diagnostics.

Features:
  • Operates in 3 different modes
  • Easy to use dial to set operationg speed or pressure control
  • 5 color LED display
  • High-efficiency ECM motor uses up to 85% less electricity
  • Six pressure presets to fit the job.

Technical Specifications:
  • Maximum Shut-off Head: 18 ft
  • Maximum Flow: 16 GPM
  • Maximum Operating Pressure: 125 psi (8.6 bar)
  • Fluid Temperature: 36-230°F (2-110°C)
  • Voltage: 120V
  • Frequency: 60 Hz
  • Motor: Single Phase
  • Operating Power: 4W - 44W
  • Amperage: 0.54 A
  • Frequency of Rotation: 1590 - 4830 RPM
  • Casing: Cast Iron.
