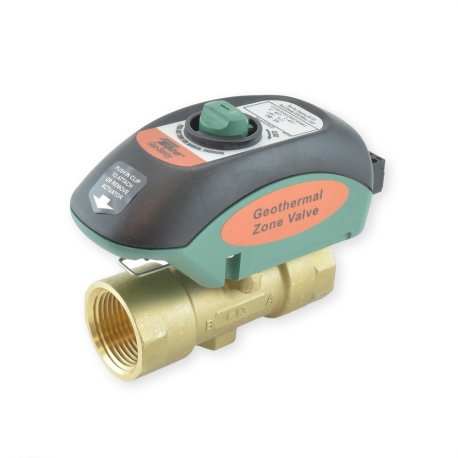

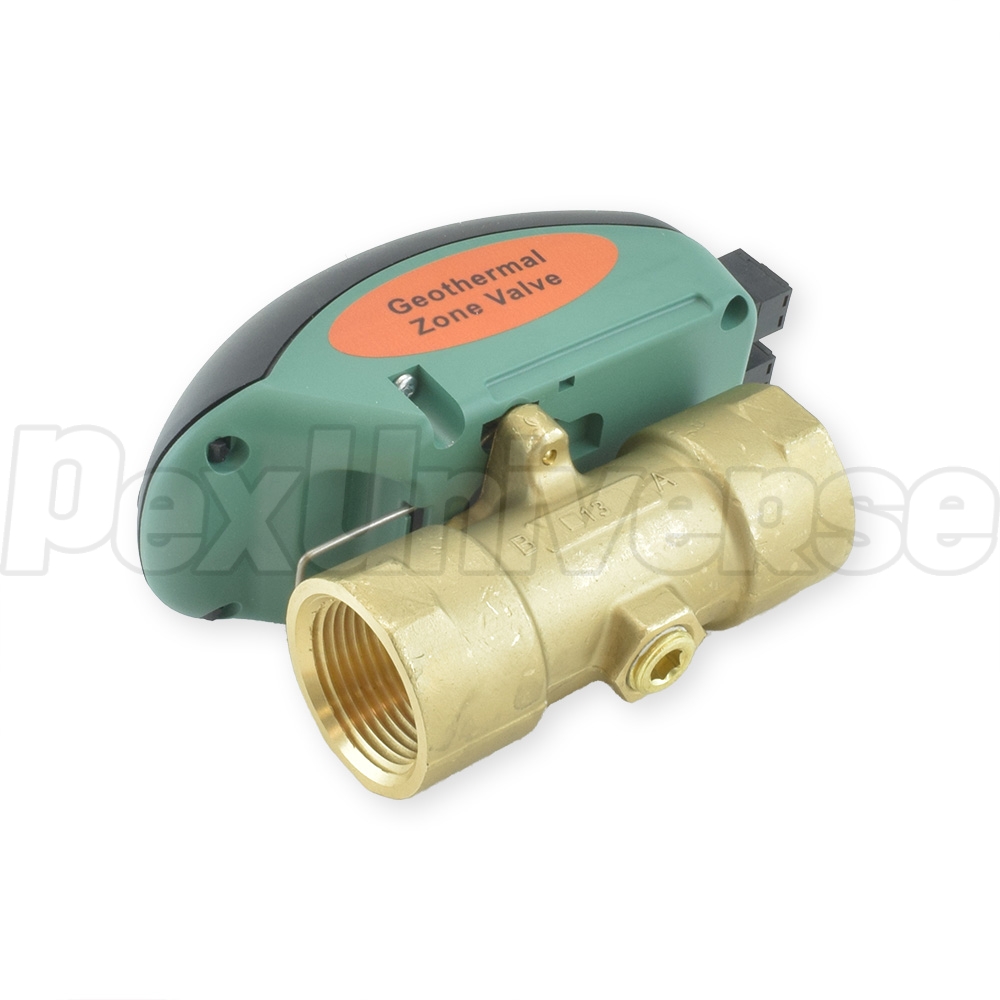

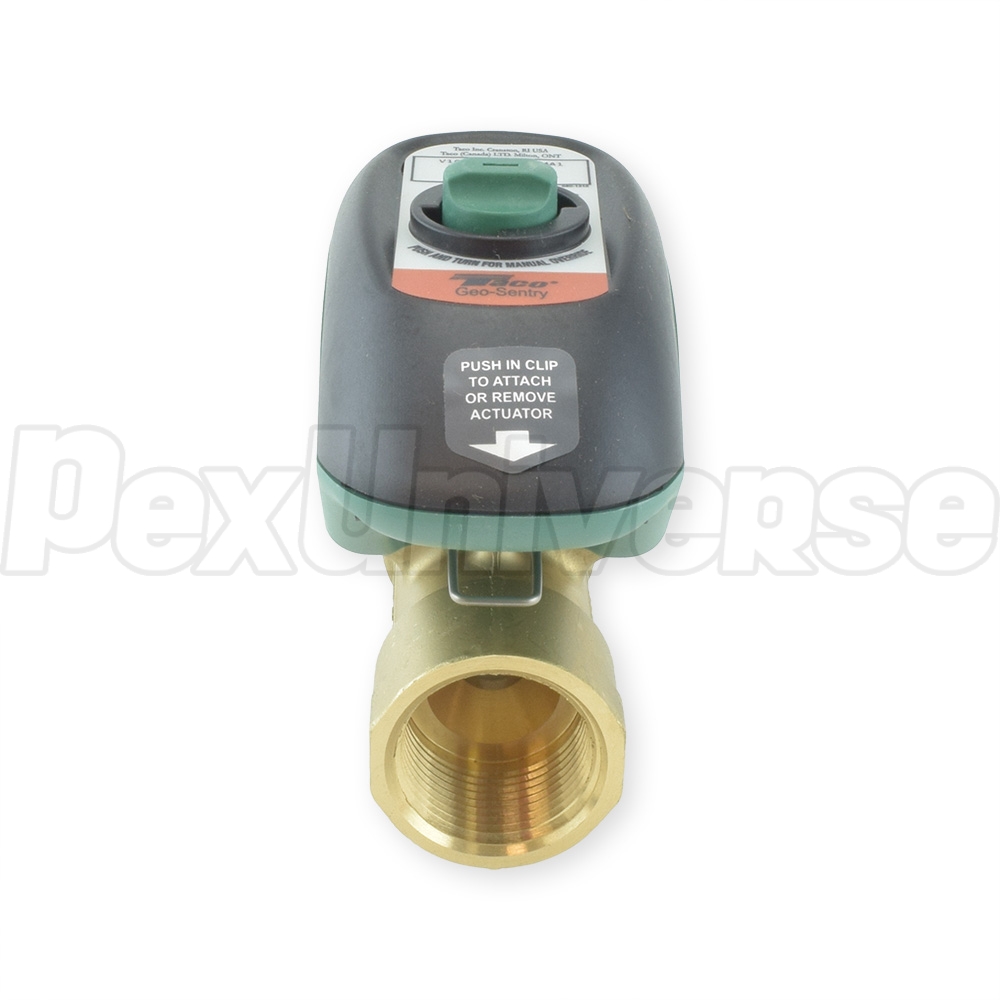

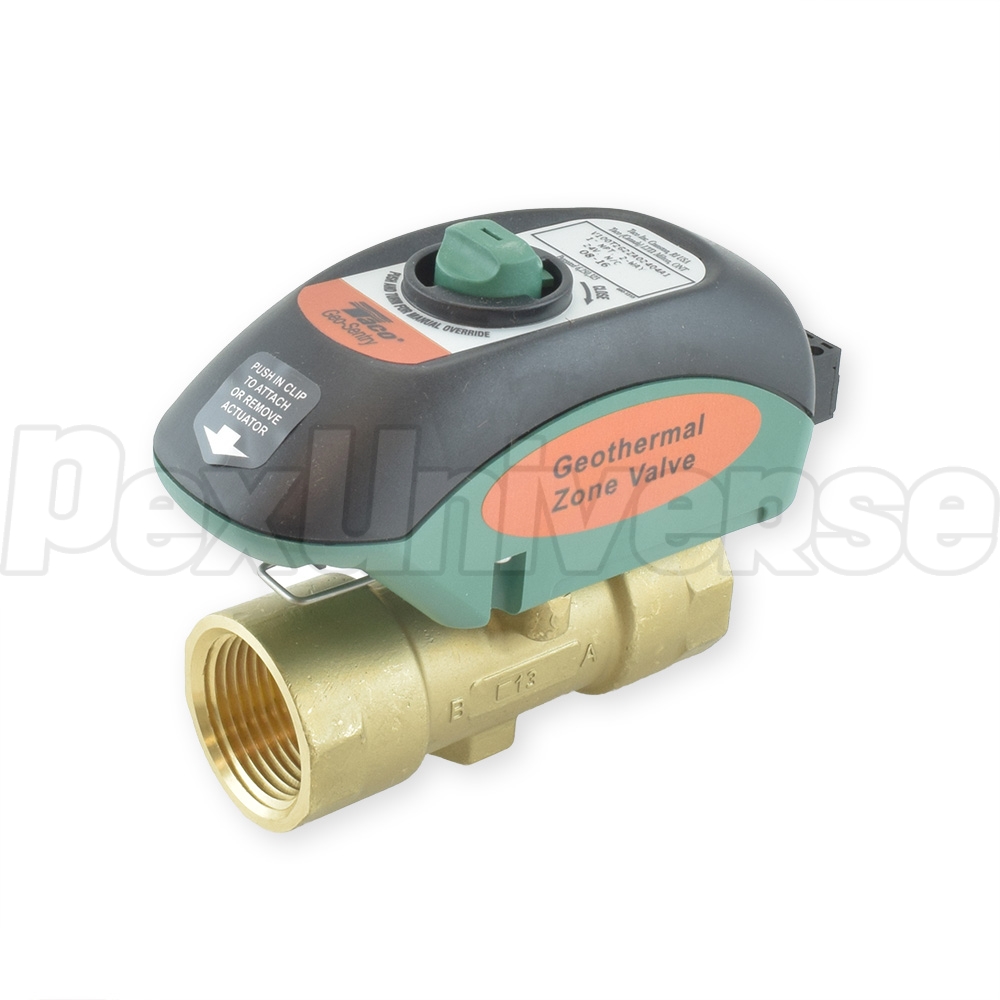

1" Threaded Geo-Sentry Geothermal Zone Valve
Brand: Taco
Part#: V100T2G2ZA024Q4A2
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$246.95 / each
Free Shipping on any qty
Add to Cart

Description

The Taco Geo-Sentry Zone Valve enhances the overall performance of any geothermal system. The unique patented technology in the Geo-Sentry utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40VA transformer.

Technical Specifications:
  • Connection Size: 1" FNPT
  • Type: 2-Way
  • Operation: Normally Closed
  • Maximum Operating Pressure: 300 PSI (2100 kPa)
  • Maximum Shut-off Pressure: 125 PSI (875 kPa)
  • Maximum Ambient Temperature: 135°F
  • Fluid Temperature Range: 20 to 220°F (-7 to 104°C)
  • Fluids: Water, up to 25% Ethanol, 25% Methanol, 50% Glycol
  • Ball Rotation Speed (90° turn): ~5 seconds (after charge time)

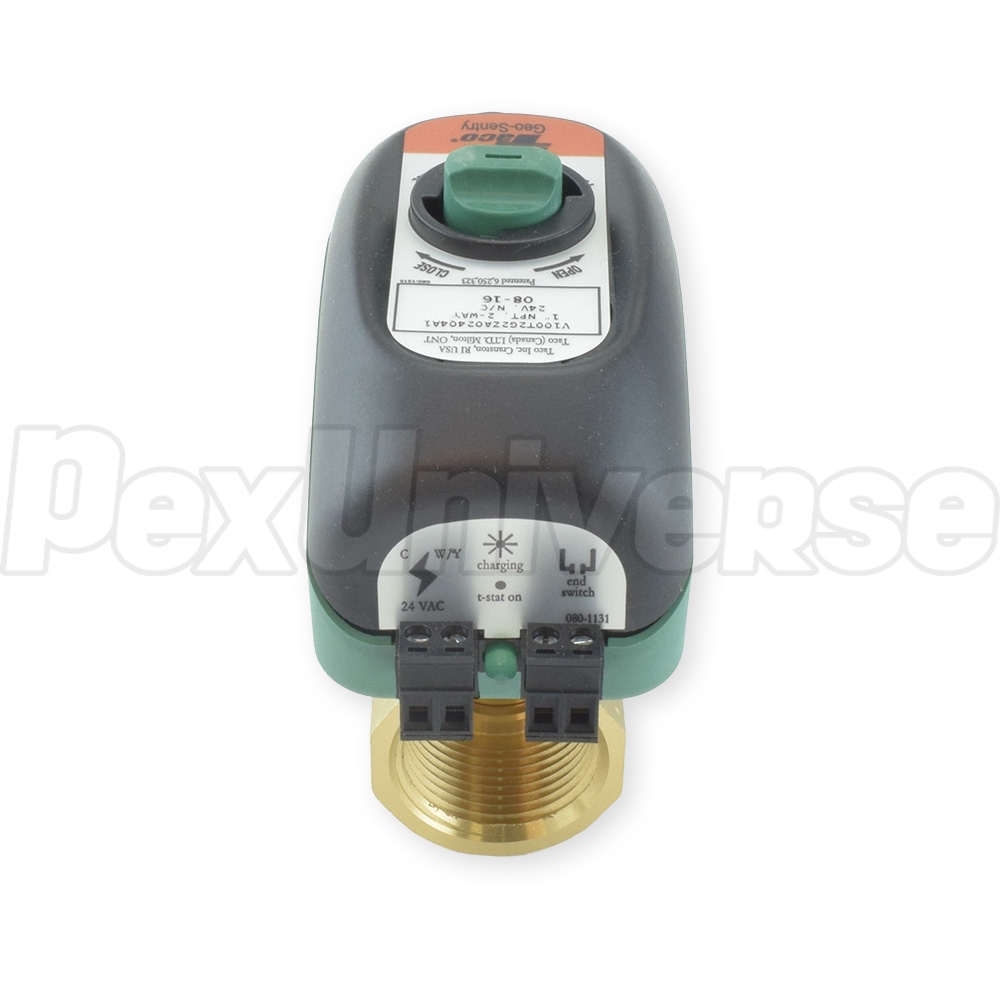

  • Electrical Rating: 24 VAC, 60Hz, 0.48 Amps
  • Power Consumption: 11.4 W, 0.48 Amps (charging), 1.44 W, 0.06 Amps (power on).
