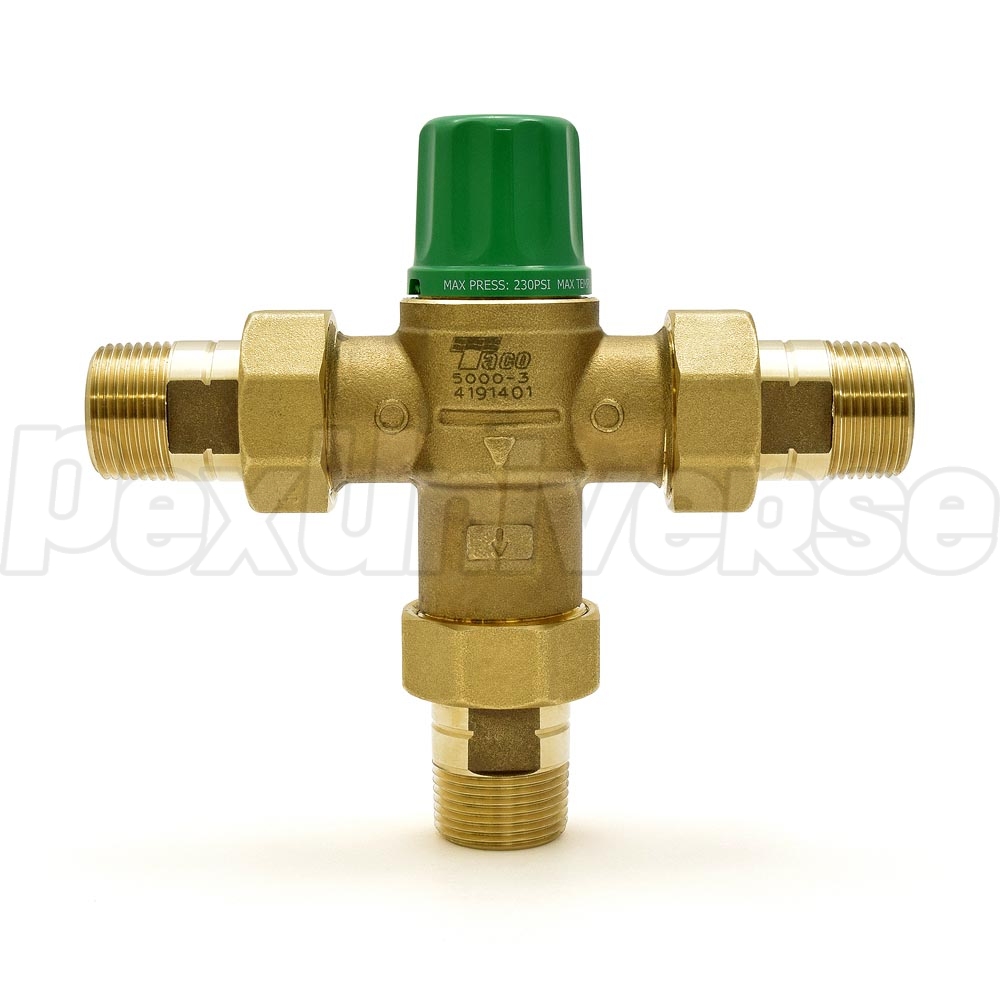

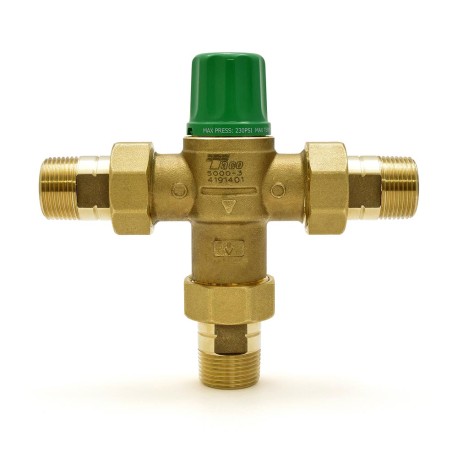

3/4" Union Threaded Mixing Valve (Lead-Free), 85-175F
Brand: Taco
Part#: 5003-T3
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$112.95 / each
$439.80 box of 4
($109.95 each)
Free Shipping on any qty
Add to Cart

Description

Taco 5003-T3 Mixing Valve is a dual-purpose mixing or diverting valve that delivers fail-safe security and superior performance. The ASSE 1017-approved valve provides shut-off reliability on either a hot or cold water supply failure. Its high flow and low headloss make the Taco 5003-T3 mixing valve ideal for applications such as domestic hot water, radiant heat applications, installations with large variations in flow rate and supply conditions, and installations that require precise control of water temperature. Mixing valve's unique design ensures a stable and controlled mixed water temperature throughout the extended 85-176°F range.

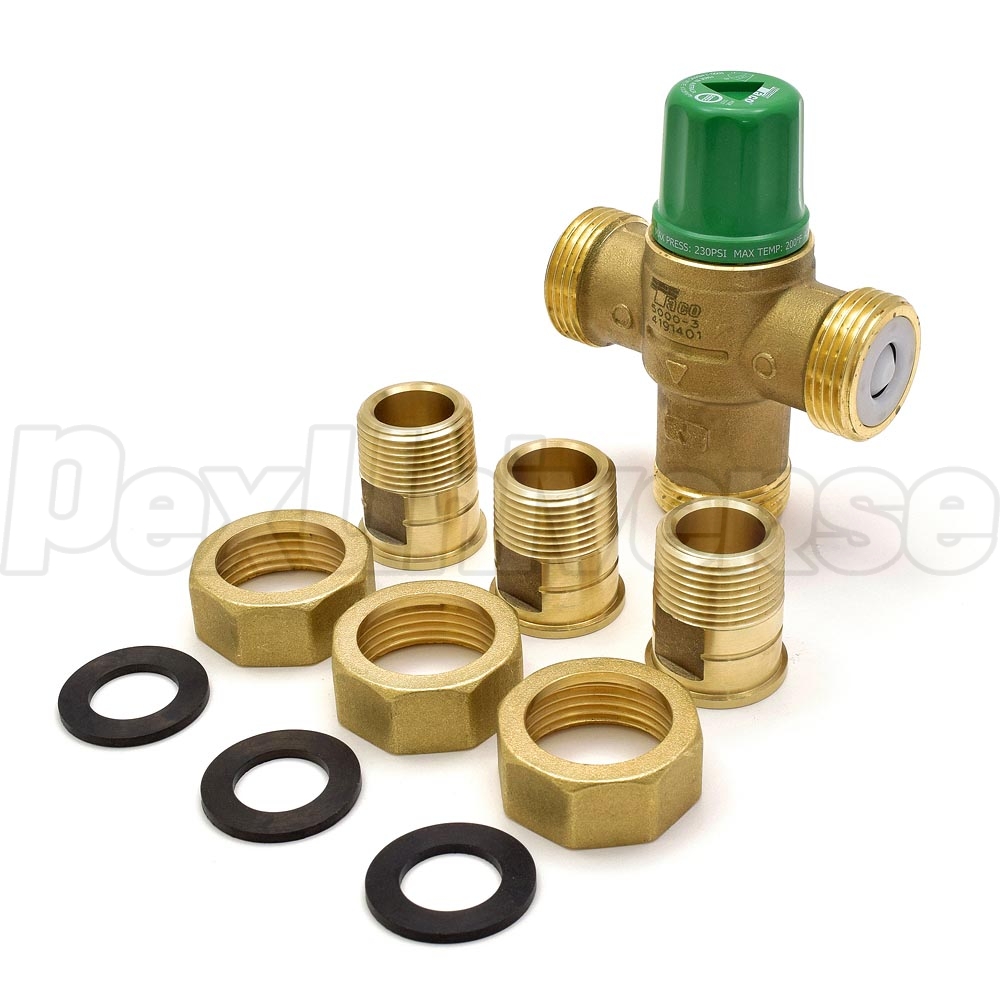

Materials:

  • Body: Forged Brass (≤.25% Lead Brass);
  • Internal Components: ≤.25% Lead Brass, Noryl GFN2;
  • Seals: Viton;
  • Spring: Stainless Steel;
  • Piston: Polysulfone;
  • Gaskets: EPDM.

Features:
  • Lead-Free Compliant (≤.25% Lead)
  • Ideal for Domestic Water Distribution Points
  • Suitable for use in Potable Water
  • Delivers Stable Mixed Water Temperature
  • Tamper-Resistance Cap
  • Low Headloss
  • Outlet Temperature Strip.

Technical Specifications:
  • Connections: 3/4" Union Thread
  • Heat Capacity: 2.3 Cv
  • Maximum Flow: 20 GPM (76 L/Min)
  • Minimum Flow: 1 GPM (3.8 L/Min)
  • Hot Supply Temperature: 120-180°F (49-82°C)
  • Cold Supply Temperature: 39-80°F (5-27°C)
  • Maximum Inlet Pressure: 230 psi (15.85 Bar)
  • Maximum Variation in Supply Pressure: 20%
  • Minimum Temperature Differential Between Hot Supply and Mixed: 27°F (15°C)
  • Outlet Temperature Range: 85-175°F (29-80°C)
  • Factory Set to: 115-120°F (41-45°C)
  • Accuracy of Outlet Temperature: ± 3°F
  • Approvals: ASSE 1017, CSAB125.3, cUPC.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Necessary part 2021?
I was going to just set my aquastat for 120 degrees but saw numerous cases explaining why it is better to over heat the water and mix it with cold using one of these. So, I did the extra plumbing and now, my aquastat is set around 140 and this mixes it with cold. Easy install and seems like a quality item. It is made in China but I haven't had problems with their manufacturing recently. The fittings were threaded nicely. I adjusted it easily and now have great domestic hot water.
Size: 3/4" | Connections: Threaded
By Christian (from Thompson, CT) on 12/08/2021
Helpful? Yes No
Verified Purchase
3/4" Union Sweat Mixing Valve (Lead-Free), 85-175F
On time, component as described
Size: 3/4" | Connections: Sweat
By Robert (from Dousman, WI) on 11/25/2020
