008 Circulator Pump w/ IFC, 1/25 HP, 115V
Brand: Taco
Part#: 008-F6-3IFC
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$194.95 / each
Free Shipping on any qty
Add to Cart

Description

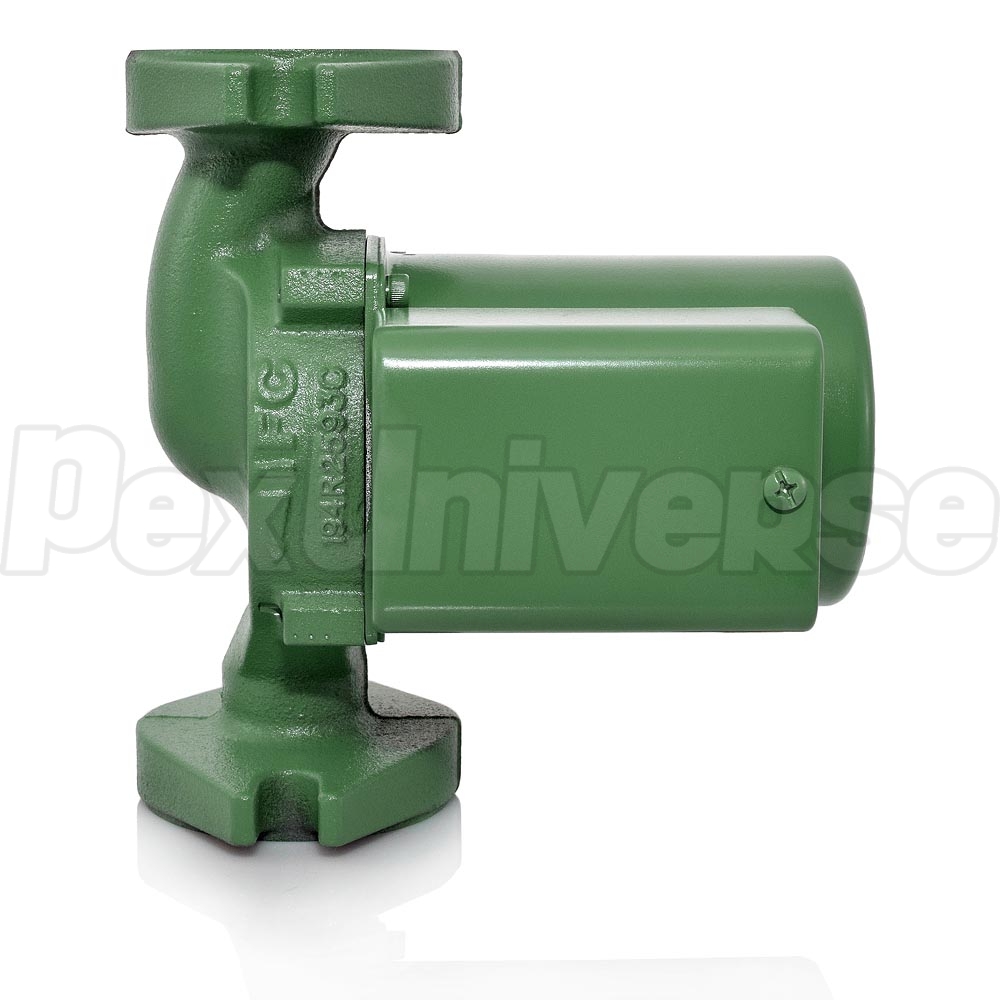

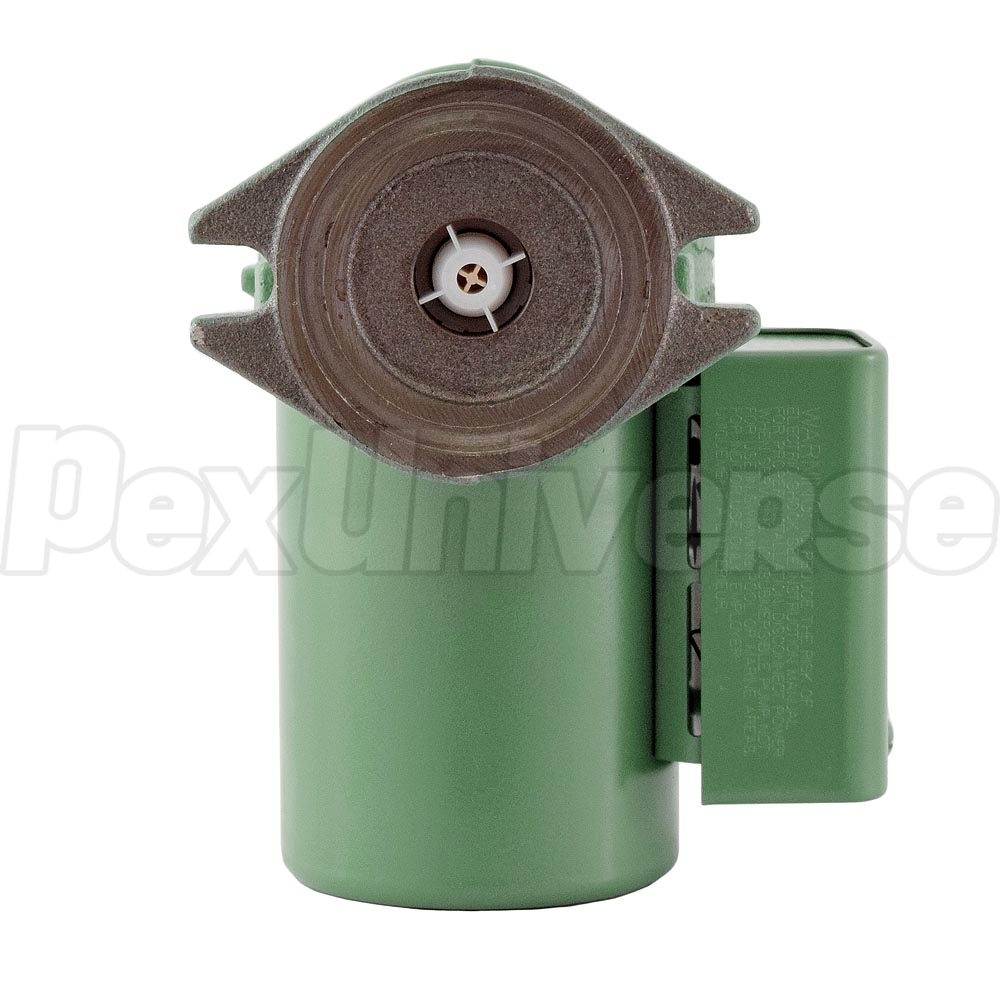

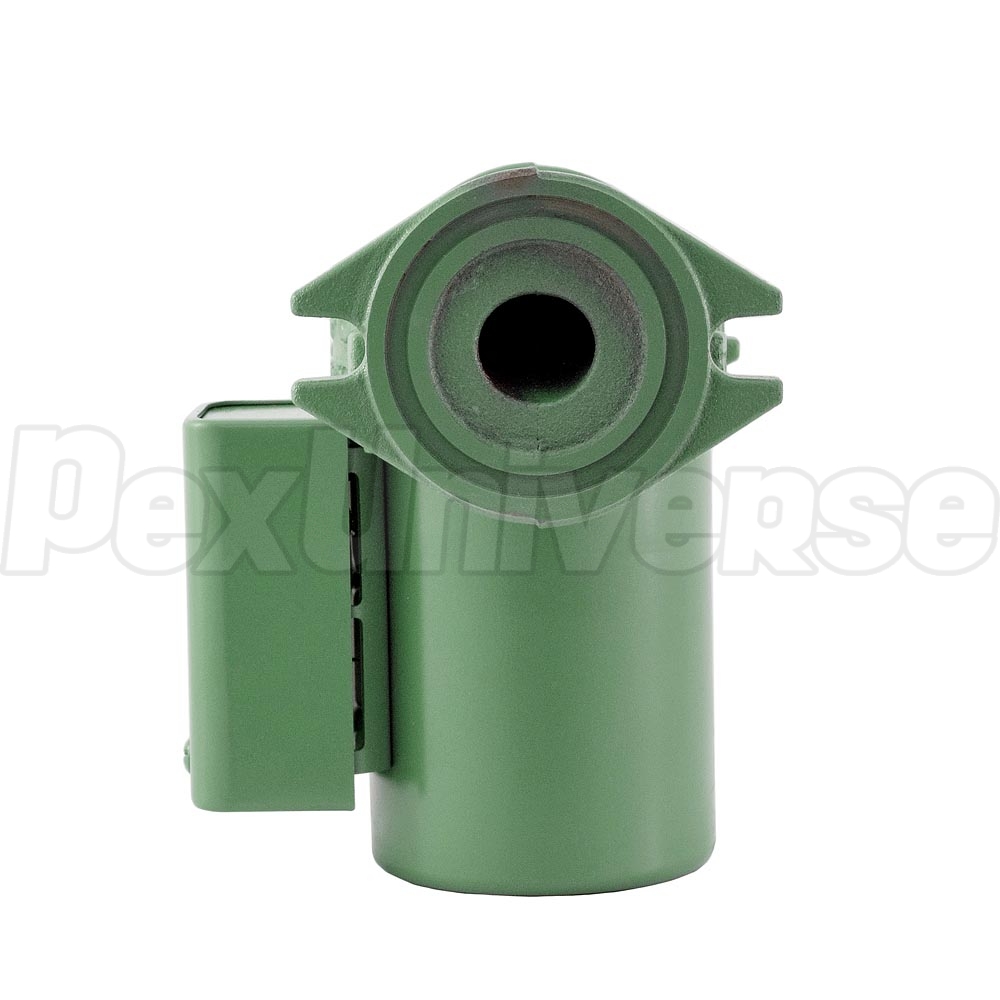

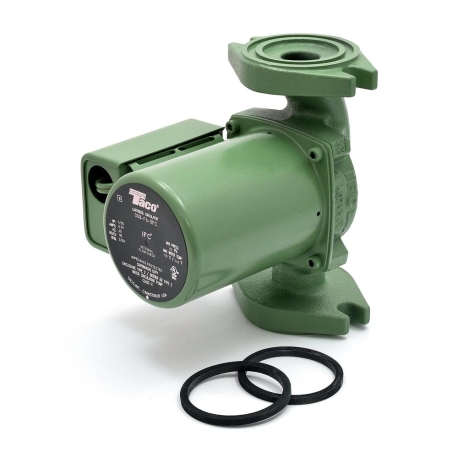

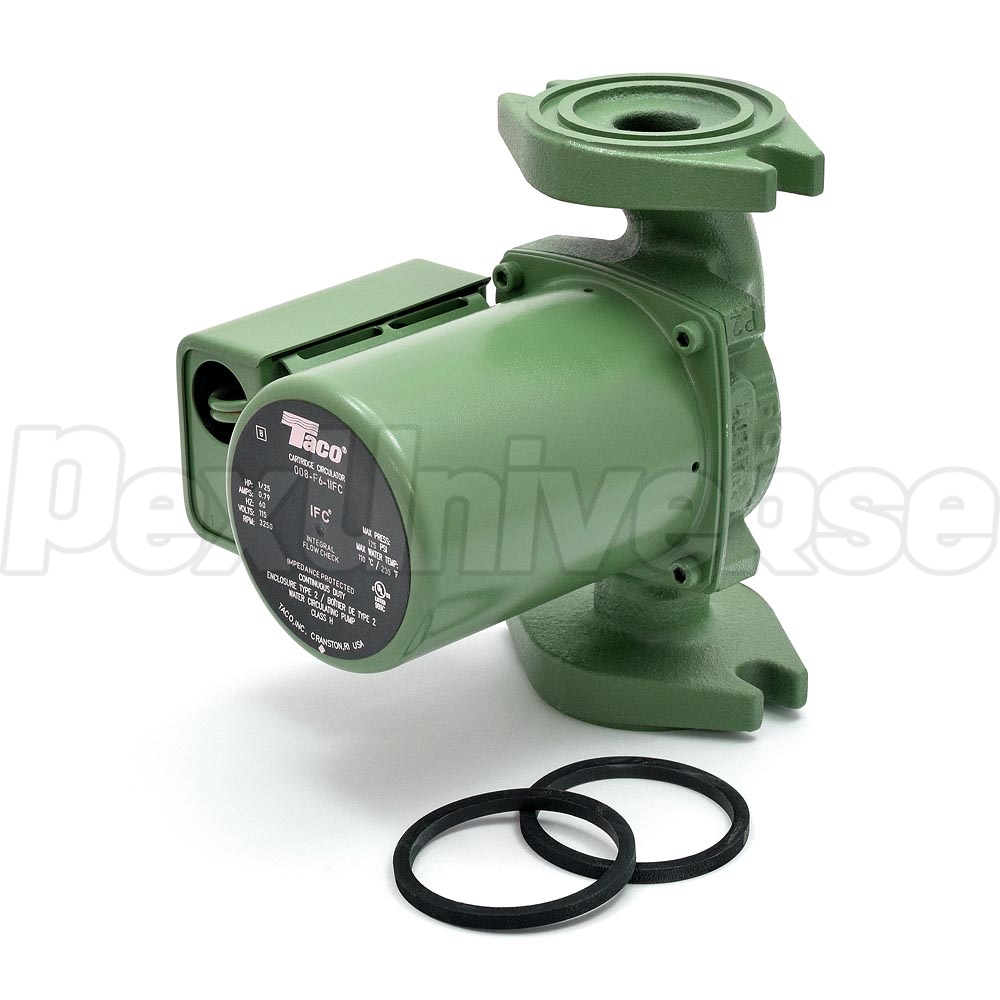

Cast Iron Taco 008-F6-3IFC Circulator Pump with Integral Flow Check (IFC) is designed to reduce installation costs when zoning with “00” circulators on hydronic or radiant heating, hydro-air fan coils or closed-loop solar heating systems. A built-in Integral Flow Check (IFC) of the Taco 008-F6-3IFC eliminates the need for purchase and installation of an additional flow check valve.


Applications:
  • Hydronic Heating/Cooling
  • Radiant Heating
  • Zoning with Pumps
  • Mixing Stations
  • Hydro-Air Fan Coils
  • And others

Cross-References:
  • Grundfos UP15-42FC, UPS15-58FC @ spd 2

Technical Specifications:

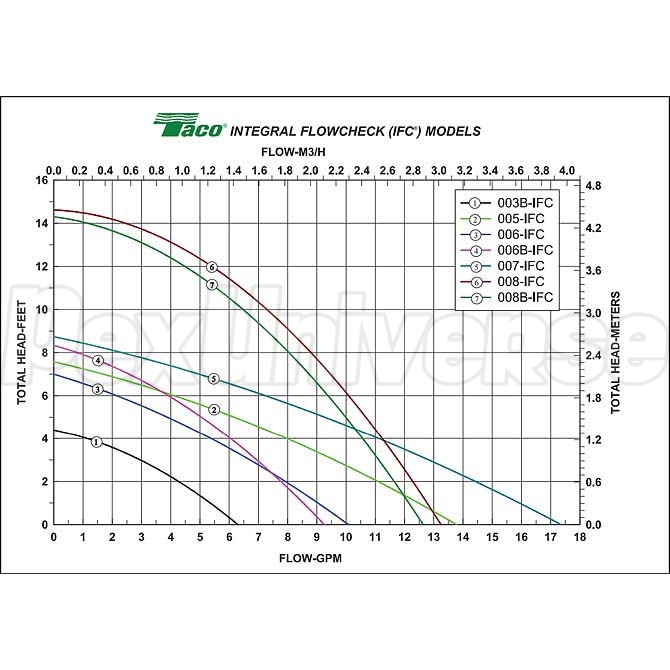

  • Flow Range: 0 – 12.5 GPM;
  • Head Range: 0 – 15 Feet;
  • Minimum Fluid Temperature: 40˚F (4˚C);
  • Maximum Fluid Temperature: 240°F (115˚C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.79A;
  • HP: 1/25HP;

Warranty:
3-year manufacturer's warranty.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Worked great
Hooked into 3/4 copper pipe
Size: 3/4"
By paul (from Daphne, AL) on 04/08/2022
Helpful? Yes No
Verified Purchase
Quality
Ordered the wrong valve. It was high quality. I returned them with no problem.
Size: 1/2"
By Scott (from Middletown, PA) on 01/09/2022
