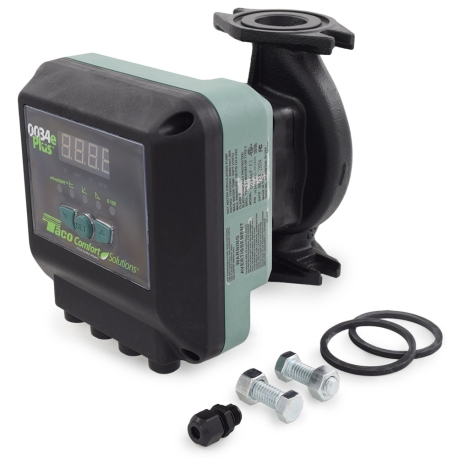

0034ePlus ECM High-Efficiency Circulator Pump, 115V/230V
Brand: Taco
Part#: 0034EP-F2
Taco 0034e Plus cast iron model is a multi-mode, feature packed, variable speed circulator pump w/ a high-efficiency ECM permanent magnet, ideally suited for large residential and light commercial hydronic and radiant heating projects. A single model replaces the entire Taco '00 lineup from 009 to 0014 and is highly flexible.

Cross-References:
  • Taco: 2400-10, 2400-20, 2400-30, 2400-40, 110, 111, 112, 113, 009, 0010, 0011, 0012, 0013, 0014, VR3452 Series
  • Grundfos: UP50-75, UPS50-44; UP43-75, UPS43-100; UPS26-99, UP26-96, UP26-64, UP26-116; UPS32-40, UPS32-80; TP(E) 32-40; Alpha2 26-99; Magna 32-60, Magna 32-100
  • B&G: PL-30, PL-36, PL-45, PL-50; Series 60, E90 1AAB; Series HV, PR, 100; NRF36, NRF45; ecocirc XL 36-45
  • Armstrong: E7, E8, E10, E11, E13; H32, H51, H52, H63, S25; Astro 210, 280, 290; 1050 1B, 1050 1 1/4B; Compass ECM
  • Wilo: Stratos 1.25x3-25, 1.25x3-20, 1.25x3 -30, 1.25x3-35; Top S: 1.25x15, 1.25x20, 1.25x25, 1.25x35; Top Z: 1.5x15, 1.5x20

Features:
  • High-performance, feature packed circulator with a variety of modes to fit any large residential oor light commercial project
  • Can replace all Taco 009, 0010, 0011, 0012, 0013 & 0014 models
  • Intuitive digital user interface with simple 3-button control
  • High-efficiency ECM motor uses up to 85% less electricity
  • Bio Barrier protects pump from system contaminants
  • SureStart automatically frees locked rotor condition and self purges air from pump
  • Nut-grabber feature on flanges for easier fit-up
  • Dual electrical knockouts for easy wiring and removable quick-connect terminal strip
  • Rotatable control cover simplifies installation
  • Whisper-quiet operation

Technical Specifications:
  • Casing: Cast Iron
  • Type: ECM circulator pump with 5 modes - TacoAdapt (Self-adjusting, proportional pressure), Constant Pressure (w/ 5 settings), Proportional Pressure (w/ 5 settings), Fixed Speed (infinitely variable, w/ 1-100% range), or 0-10VDC (or PWM) external input.
  • Connections: Flanged
  • TacoAdapt mode: see chart or specs sheet for curves
  • Constant Pressure mode: (5) settings with 30, 24, 18, 12 or 6ft of head
  • Fixed Speed mode: 0-50 GPM, 1-34 ft of head (operates at selected fixed speed between 1% and 100%)
  • Proportional Pressure mode: (5) settings, see chart of specs sheet
  • 0-10V DC mode: see chart or specs sheet for curves
  • Operating Temperature Range: 14°F - 230°F
  • Max Operating Pressure: 150 psi
  • Electrical Specs: 115/208/230V, 50/60 Hz, Single Phase, 120W max, 1.48 Amps max @ 115V or 0.70 Amps max @ 230V
  • Hydraulic Institute Energy Rating: ER 154, CEI 0.41
  • Fluids: Water or 50% Water/Glycol Solution

Warranty:
3-year warranty
