0026e ECM High-Efficiency Circulator Pump, 115V/230V
Brand: Taco
Part#: 0026E-F2
Ship Pickup
Usually ships: Upon availability
$625.95 / each
Free Shipping on any qty
Add to Cart

Description

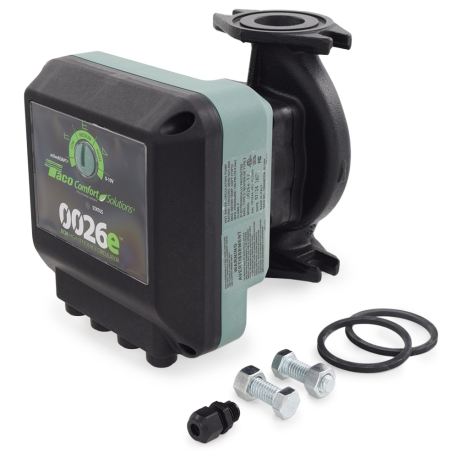

Taco 0026e cast iron model is a variable speed circulator pump w/ a high-efficiency ECM permanent magnet, ideally suited for large residential and light commercial hydronic and radiant heating projects.

Cross-References:
  • Taco: 2400-10, 2400-20, 2400-30, 2400-40, 110, 111, 112, 113, 0010, 0011, 0012, 0014 Series
  • Grundfos: UP50-75, UPS50-44, UP43-75, UPS26-99, UP26-96, UP26-64, UPS32-80, Alpha2 26-99, Magna 32-60
  • B&G: PL-30, PL-50; Series 60, Series e; Series HV, PR, 100; NRF36; ecocirc XL 20-35, 36-45
  • Armstrong: E7, E10, E11, E13; H32, H51, H52, S25; Astro 210, 280; Compass ECM
  • Wilo: Stratos 1.25x3-25, 1.25x3-20; Top S: 1.25x15, 1.25x20, 1.25x25; Top Z: 1.5x15, 1.5x20

Features:
  • Highly capable circulator with (5) mode settings, including variable speed (w/ constant or proportional pressure) and fixed speed
  • Replaces a large number of Taco 0010, 0011, 0012 and 0014 models
  • High-efficiency ECM motor uses up to 85% less electricity
  • SureStart automatically frees locked rotor condition and self purges air from pump
  • Double insulated (no ground wire required)
  • Whisper-quiet operation

Technical Specifications:
  • Casing: Cast Iron
  • Type: ECM circulator pump with 5 modes - TacoAdapt, (3) Fixed Settings - Low (Constant Pressure), Medium (Const. Pr.) & High (Fixed Speed), and 0-10VDC (or PWM) external input.
  • Connections: Flanged
  • Performance (TacoAdapt mode): see chart or specs sheet for curves
  • Hi, fixed speed mode: 0-44 GPM, 0-26ft of head
  • Medium mode, constant pressure: 16ft of head
  • Low mode, constant pressure: 8ft of head
  • 0-10V DC mode: see chart or specs sheet for curves
  • Operating Temperature Range: 14°F - 230°F
  • Max Operating Pressure: 150 psi
  • Electrical Specs: 115/208/230V, 50/60 Hz, Single Phase, 120W max, 1.0 Amps max @ 115V or 0.50 Amps max @ 230V
  • Hydraulic Institute Energy Rating: ER 154, CEI 0.45
  • Fluids: Water or 50% Water/Glycol Solution

Warranty:
3-year warranty
