0015e3 ECM High-Efficiency Circulator Pump w/ IFC, 120V Taco
0015e3 ECM High-Efficiency Circulator Pump w/ IFC, 120V
Brand: Taco
Part#: 0015E3-2F4
Usually ships: Upon availability

Description

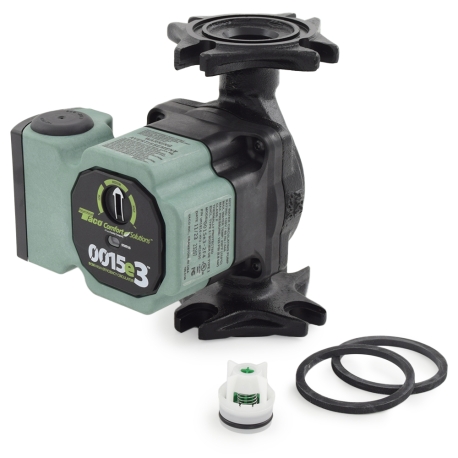

0015e3 is a 115V cast iron, variable speed circulator pump with (3) constant pressure modes/settings and a high-efficiency ECM motor. This model comes with a pre-installed, removable check valve.

Cross-References:
  • Taco: 0015E3-2F2
  • Grundfos: UP15-42, UPS15-55, UPS15-58, Alpha 15-55, Alpha2 15-55
  • B&G: ecocirc 19-16, 20-18; NBF/NRF-22, 25, 9; SSF-9
  • Armstrong: Astro 225, 230, 250; Astro 20,25,30,30-3,50-3; Compass H20-20
  • Wilo: Star S 16,21; Stratos ECO 16

Features:
  • Universal cross flange for easy positioning of the circulator in various installation scenarios
  • (3) Constant pressure settings - low, medium and high
  • High-efficiency motor uses up to 85% less electricity
  • BIO barrier protects the circulator from contaminants in the system
  • SureStart feature allows the pump run dry during air purge
  • Check valve (IFC) and flange gaskets included
  • Double insulated - no ground wire required
  • 4-mode LED indicator for easy diagnostics
  • Dual electrical knockouts (top and bottom), 6" stranded wire leads uncluded for easy wiring
  • Use with Taco ZVC (Zone Valve Control) or SR (Switching Relay) for On/Off operation
  • Whisper-quiet operation

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: Variable Speed with (3) constant pressure settings (Low/Med/Hi), automatic power optimization, ECM motor
  • Connections: Flanged, Universal (3/4", 1" or 1-1/4")
  • Performance: 3 constant pressure settings (5, 10 and 18ft of head) - see chart/specs for pump curves
  • Operating Temperature Range: 36°F - 230°F
  • Suggested Mode (based on equivalent length of 3/4" copper pipe): 85ft of pipe - Lo, 165ft - Med, 245ft - Hi
  • Max Operating Pressure: 125 psi
  • Electrical Specs: 115V, 60 Hz, Single Phase, 44W max., 0.54 Amps max.
  • Hydraulic Institute Energy Rating: ER 188, CEI 0.39
  • Fluids: Water or 50% mix of Water & Propylene Glycol

Warranty:
3-year warranty
