0013 Circulator Pump, 1/6 HP, 115V
Brand: Taco
Part#: 0013-F3
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$495.95 / each
$1,943.80 box of 4
($485.95 each)
Free Shipping on any qty
Add to Cart

Description

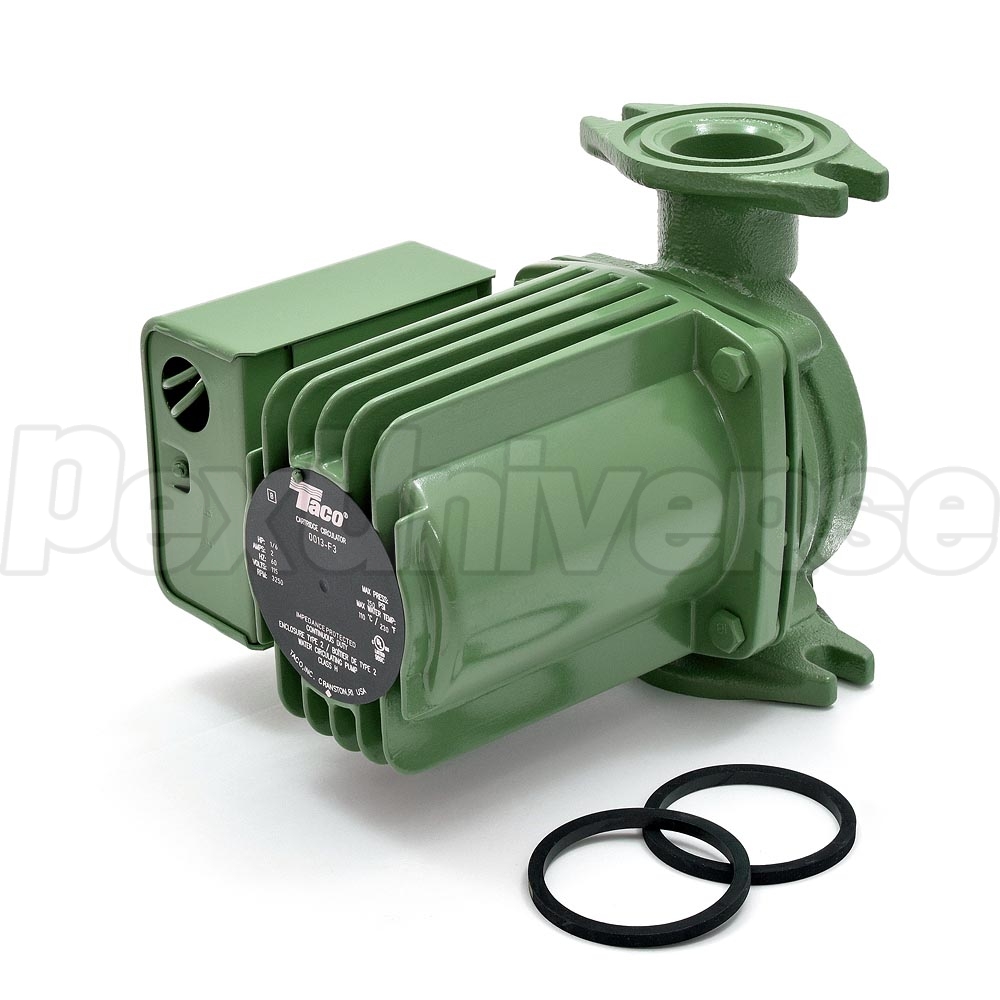

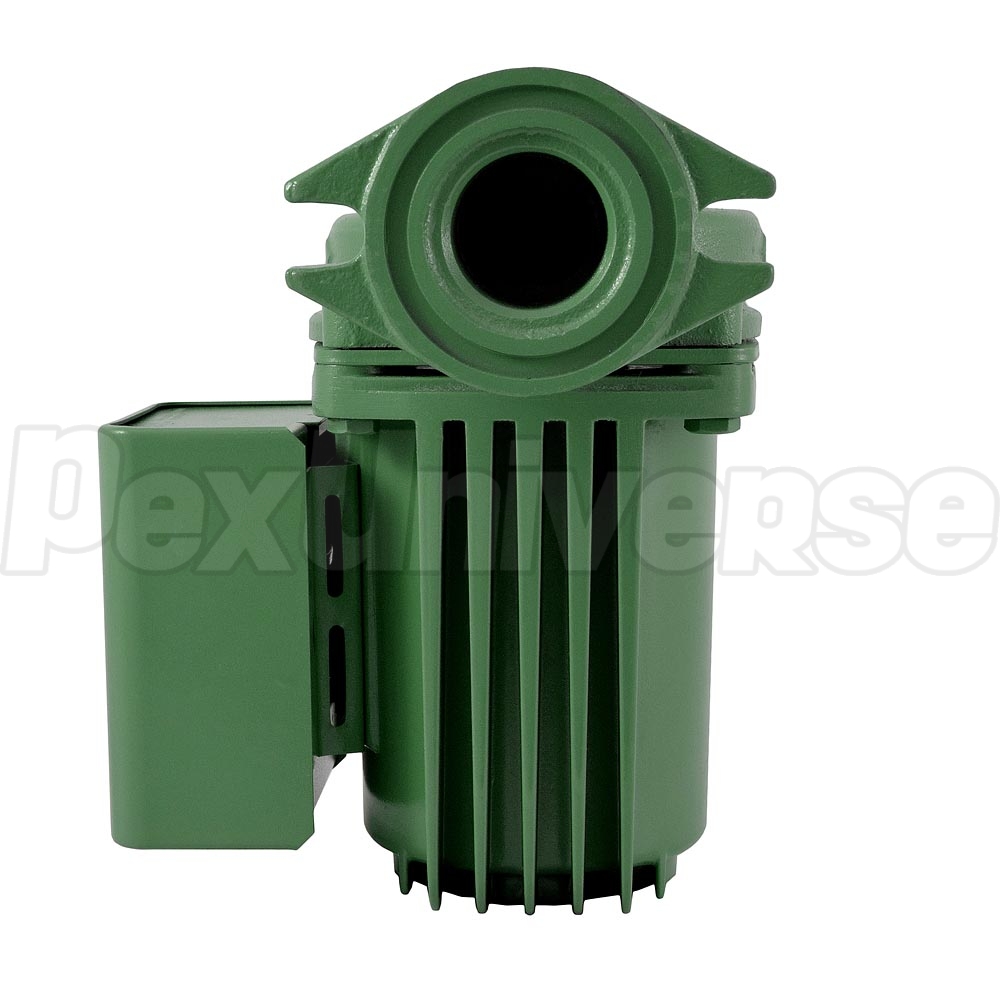

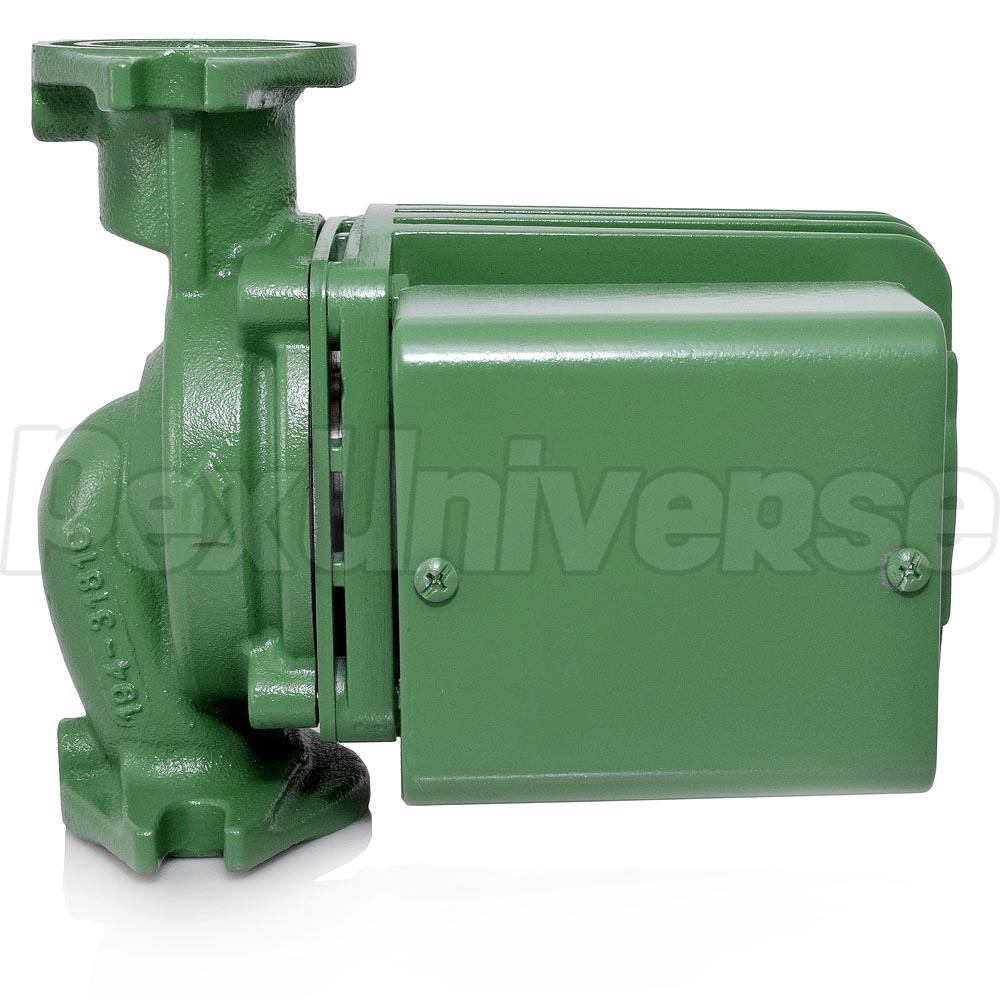

Taco 0013-F3 Circulator Pump is designed for use in high head and high flow applications in larger residential and light commercial systems. The Taco 0013-F3 circulator is perfect for boilers with high pressure drop, fan coil units, heat exchangers, large radiant heat systems and geothermal systems. Universal flange to flange dimensions and flange orientation allow allows the Taco 0013-F3 circulator to replace many other models. This model is compact, features low power consumption and ideal for high-efficiency jobs.

Applications:
  • High Pressure Drop Boilers;
  • Medium/Large Hydronic, Geothermal and Radiant Heating projects;
  • Wood Boilers / Furnaces;
  • Hydro-Air Fan Coils;
  • And many others

Cross-References:
  • Grundfos UP26-99F
  • Grundfos UP26-116F

Technical Specifications:

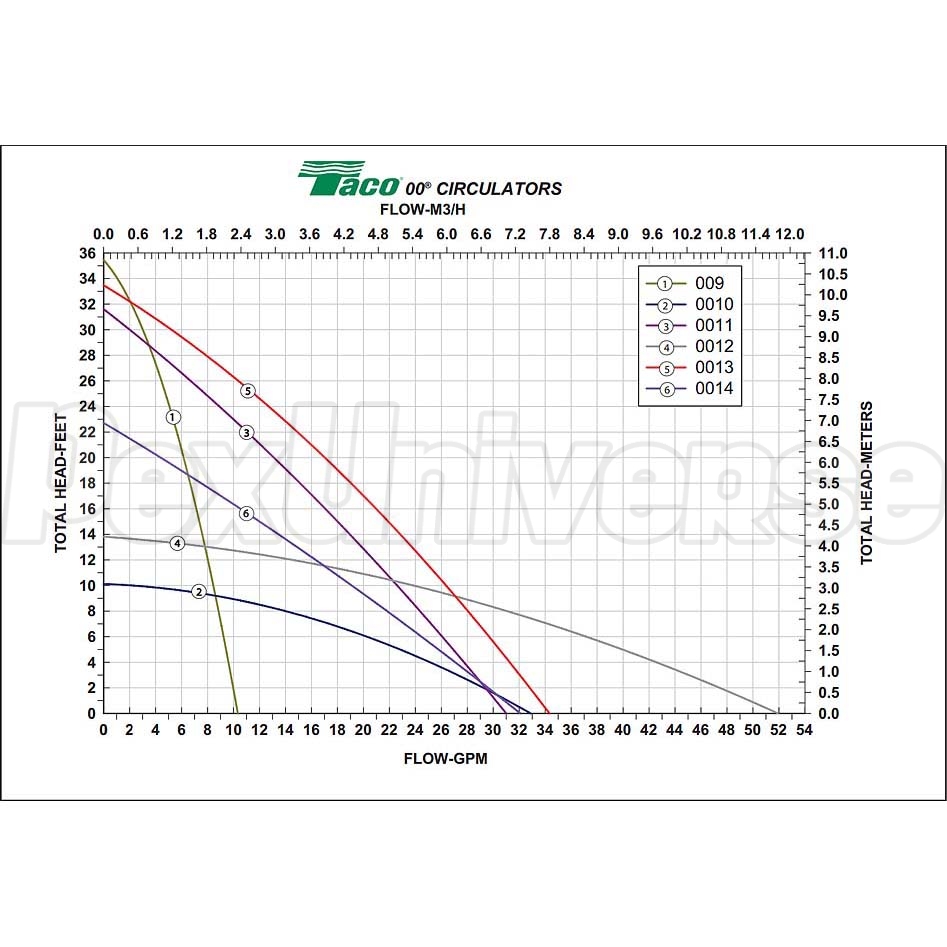

  • Flow Range: 0 – 34 GPM;
  • Head Range: 0 – 33 Feet;
  • Minimum Fluid Temperature: 40ËšF (4ËšC);
  • Maximum Fluid Temperature: 230°F (110ËšC);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 2.0A;
  • HP: 1/6HP.

Warranty:
3 year manufacturer's warranty.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Like
Quick replacement.
By Mike (from Bend, OR) on 02/27/2025
Helpful? Yes No
Verified Purchase
Service
Shipment was quick. Haven't installed yet.
By Gary (from Red lodge, MT) on 03/20/2020
Helpful? Yes No
Verified Purchase
Good price.
Quick install
By Ron (from Pittsburgh, PA) on 10/10/2019

FAQs (1)

Ask a Question
Do I need to install a check valve in the system?
Helpful? Yes No
It depends on your installation specifics. If you do need the check valve, it can be found here.
By PexUniverse Customer Service on 02/03/2016
