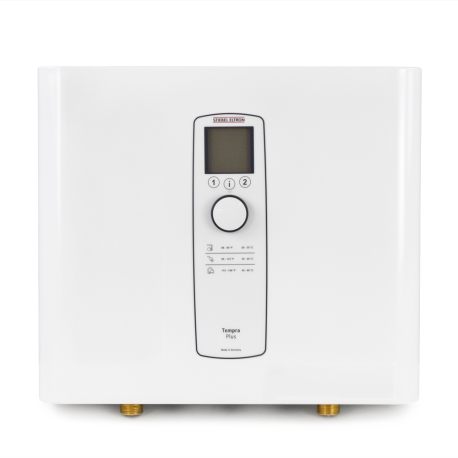

Stiebel Eltron Tempra 36 Plus, Whole House Electric Tankless Water Heater, 36.0/27.0kW, 240/208V
Brand: Stiebel Eltron
Part#: TEMPRA-36-PLUS
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$849.00 / each
Free Shipping on any qty
See price in cart

Description

What makes Tempra Plus series tankless models superior is a patented Advanced Flow Control (AFC) design. Unlike most electric tankless water heaters on the market, Tempra Plus w/ AFC keeps the hot water flowing even when the demand exceeds the unit's capacity (by slightly reducing the flow), which means no more surprise cold showers when someone opens that extra faucet or starts the washing machine. Stiebel Eltron has produced these Tempra series heaters for many years, which translates into a time-tested and reliable operation and industry leading 7/3 year warranty. Made in Germany.

Cross-References:
  • Bosch: WH 36
  • EcoSmart: ECO 36
  • Eemax: HA036240, EX380
  • Rheem: RTEX-36
  • Seisco: RA-32-240, RA-28-208

Features:
  • Reliable and time-proven design from Germany's leading manufacturer of heaters
  • Patented AFC (Advanced Flow Control) modulating technology maintains a steady hot water temperature in variable flow conditions
  • Modulating design ensures that the least amount of energy is used at all times
  • Hot water temperature can easily be set on the front panel digital display
  • Made in Germany

Technical Specifications:
  • Voltage: 240 or 208V (hardwired)
  • Output: 36.0kW at 240V (27.0kW at 208V)
  • Amperage: 3x50A at 240V (3x44A at 208V)
  • Number & min. recommended size of curcuit breakers: 3x50A
  • Number of runs & min. recommended wire size: 3x8/2 AWG
  • May be wired for balanced 3-phase 208V
  • Water Connections: 3/4" NPT
  • Min. activation flow rate: 0.77 gpm
  • Nominal water volume: 0.39 gal
  • Max. temperature increase: 240V - 92F @ 1.50 GPM, 92F @ 2.25 GPM, 82F @ 3.00 GPM, 55F @ 4.50 GPM
  • Max. temperature increase: 208V - 92F @ 1.50 GPM, 82F @ 2.25 GPM, 61F @ 3.00 GPM, 41F @ 4.50 GPM
  • Max. inlet water temperature: 131F
  • Working pressure: 150 psi
  • Tested to pressure: 300 psi
  • Dimensions (Height x Width x Depth): 14-1/2" x 16-5/8" x 4-5/8"
  • Weight: 19.0 lb

Warranty:
7 years leakage / 3 years parts

Documents

FAQs (1)

Ask a Question
What is gpm of the tempra 36 plus?
Helpful? Yes No
It depends on the inlet/incoming (cold) water temperature. At 42F, the unit would produce 3.9GPM; at 52F - 4.6GPM; at 62F - 5.7GPM; at 72F - 7.5GPM. Outlet/output temperature is 105F.
By PexUniverse Customer Service on 01/10/2022
