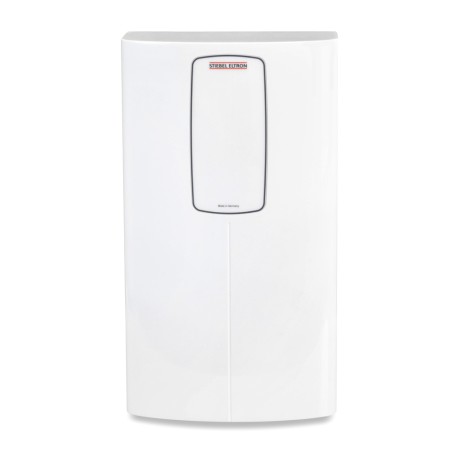

A step above typical POU (Point-Of-Use) water heaters, DHC Classic series offers a better heating element design and incorporates an internal flow adjustment screw, which allows to fine-tune the hot water temperature as needed. Compact and elegant, can be installed installed inside the cabinet or out. DHC 5-2 Classic will provide a 65°F temperature increase at 0.5GPM, 45°F at 0.75GPM or 35°F at 1.0 GPM. Important: this model does not come with a flow restrictor or an aerator and has a minimum activation flow rate of 0.43 GPM - make sure determine your fixture flow rate and groundwater temperature prior to purchasing to ensure proper performance. Performance-wise, this model is best suited for mid to southern parts of the US, for low-flow fixtures.
Cross-References:
American Hometec: AHQ-C10 (setting 3)
Chronomite: SR-20L
Eemax: SP48, EX 48
Hubbell: R005-2S
Powerstream / Powerstar: RP1
Seisco: POU45-240
Features:
Manually adjustable hot water flow (via internal screw) - allows to fine-tune the amount of water flowing through the water heater to achieve desired temperature
Superior reliability, built-in dry-fire and failure protection, high limit safety switch
No PRV's, expansion tanks or circulating valves needed
No standby heat losses
Perfect for single-fixture applications in both residential and commercial settings
Made in Germany
Technical Specifications:
Voltage: 240 or 208V (hardwired)
Output: 4.8kW at 240V (3.6kW at 208V)
Amperage: 20A at 240V (18A at 208V)
Min. Recommended Wire Size: 12/2 AWG
Min. Recommended Curcuit Breaker Size: 20A
Water Connections: 1/2" Male NPT
Min. Activation Flow Rate: 0.43 gpm
Nominal Water Volume: 0.13 gal
Max. Operating Pressure: 150 psi
Tested to pressure: 300 psi
Dimensions (Height x Width x Depth): 14-3/16" x 7-15/16" x 3-7/8"
