4ft 3/4" (H-1) Baseboard Element Replacement for Multi/Pak 80 (Jumbo Fins/High Output) Slant-Fin
4ft 3/4" (H-1) Baseboard Element Replacement for Multi/Pak 80 (Jumbo Fins/High Output)
Brand: Slant-Fin
Part#: 103-061-040
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

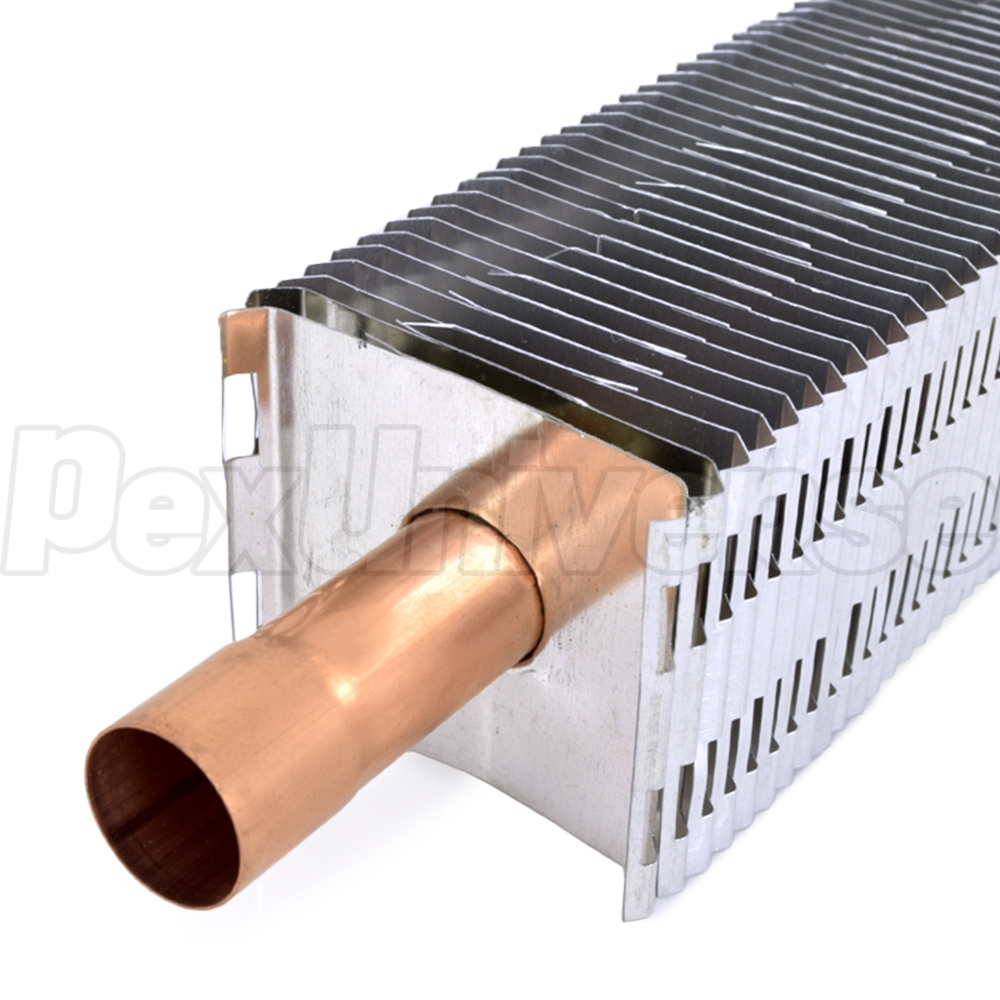

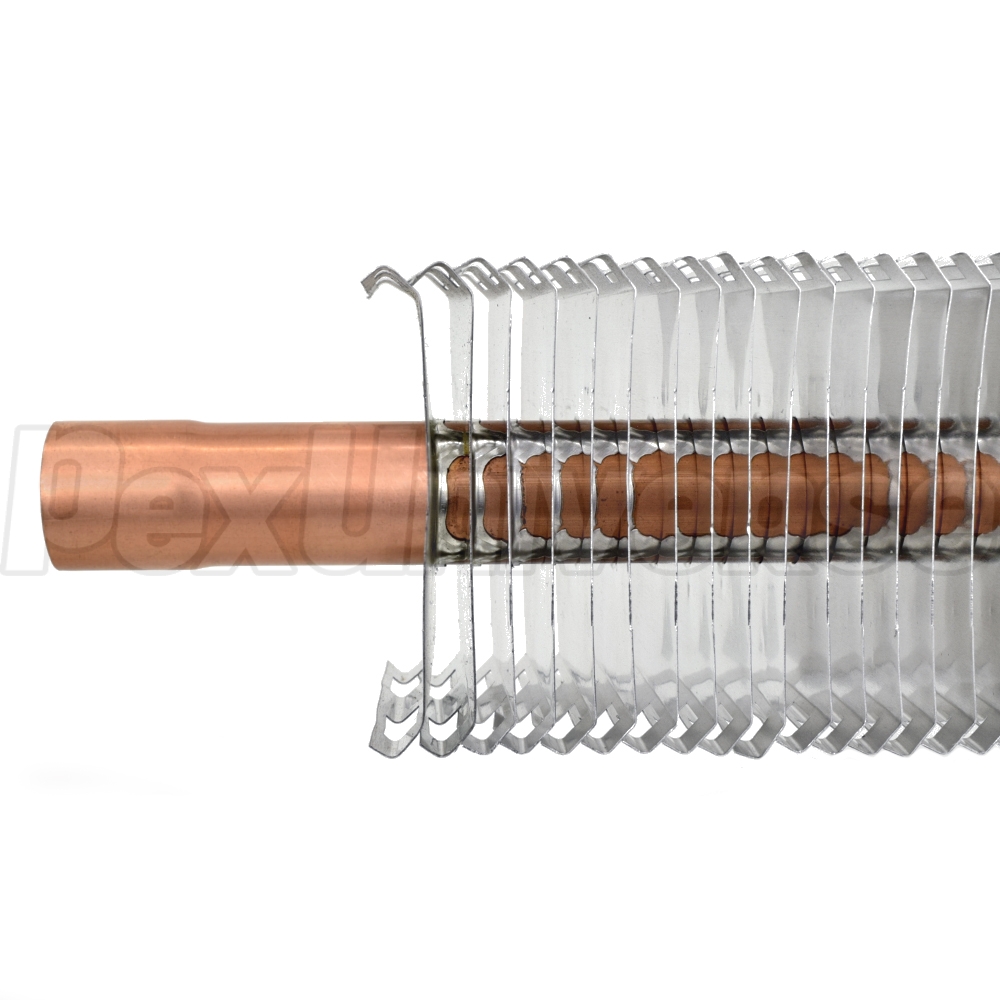

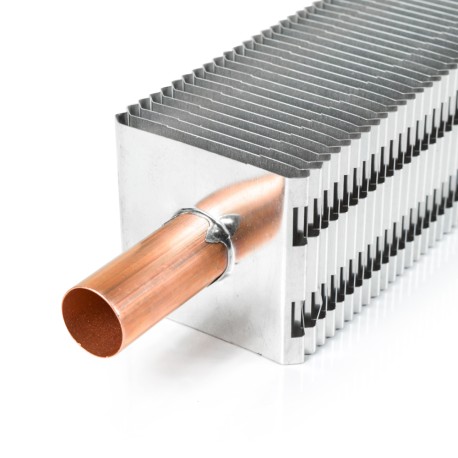

3ft long 3/4" copper sweat replacement heating element for Multi/Pak 80 baseboard with "Jumbo Fins". Comes with (3) plastic noise-supressing cradles pre-installed.
NOTE: to prevent bending of the fins, do not pull element out from the narrow end of the box. Instead, open both ends of the box and carefully cut it open length-wise along the very edge.

Features:
  • "Jumbo Fins" style heating element increases output up to 840 BTU's per linear ft (180°F at 4 GPM & higher)
  • Individually boxed to prevent scratching & damage on the jobsite
  • Comes with (3) plastic expansion cradles
  • Made in the USA

Technical Specifications:
  • Total length: 48"
  • Active finned length: 5-6" less than total length
  • Connections: 3/4" copper sweat
  • Aluminum fins: 3-1/4" x 3-1/4", 0.024" thick, spaced 48 per linear ft
  • Plastic cradles included (pre-installed): 3
  • BTU's: (see specs file) varies by supply temperature and flow rate - averages ~840 BTUs per linear ft (180°F temperature @ 4GPM)
