4ft Slant/Fin Multi/Pak 80 Baseboard Slant-Fin
4ft Slant/Fin Multi/Pak 80 Baseboard
Brand: Slant-Fin
Part#: 103-401-040
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

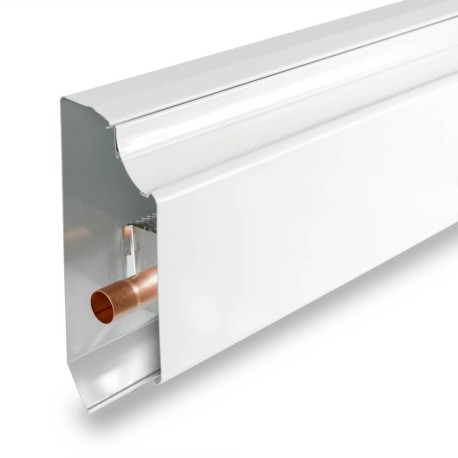

4ft complete Multi/Pak 80 baseboard assembly (less end caps) with H-3 (standard 3/4" copper) heating element. End caps sold separately.

Features:
  • Up to 770 BTU's/ft of length (180° standard, at 4 GPM & higher) with H-3 element (included); up to 840 BTU's with H-1 element (sold separately)
  • Comes with 3/4" (H-3) aluminum finned copper element pre-installed
  • Fully assembled, ready to install
  • Commercial grade baseboard with 18-gauge front panel - dent & kick-resistant, suitable for office, industrial and rental applications
  • Super-quiet - smooth expansion cradles eliminates expansion & metal-to-metal noises
  • Each baseboard is individually packed into a Zip-Strip carton to prevent scratching & damage on the jobsite
  • Interchangeable heating element design allows to install larger & high-output elements
  • Pivoting damper allows for individual room temperature control without the need for a separate thermostat
  • White color baked enamel finish
  • Made in the USA

Technical Specifications:
  • Total length: 48"
  • Height: 8-7/8"
  • Depth (front cover to wall): 3-1/2"
  • Heating Element: H-3 (3/4" sweat), included - with 2-3/4" x 2-1/2" aluminum fins, 0.011" thick, spaced 55 pcs/ft
  • BTU's: (see specs file) varies by supply temperature and flow rate - averages ~770 BTUh per linear ft (180°F temperature @ 4GPM)
  • Enclosure & brackets material: galvanized steel
  • Front panel thickness: 18-gauge
  • Finish: Nu-white enamel
