Description

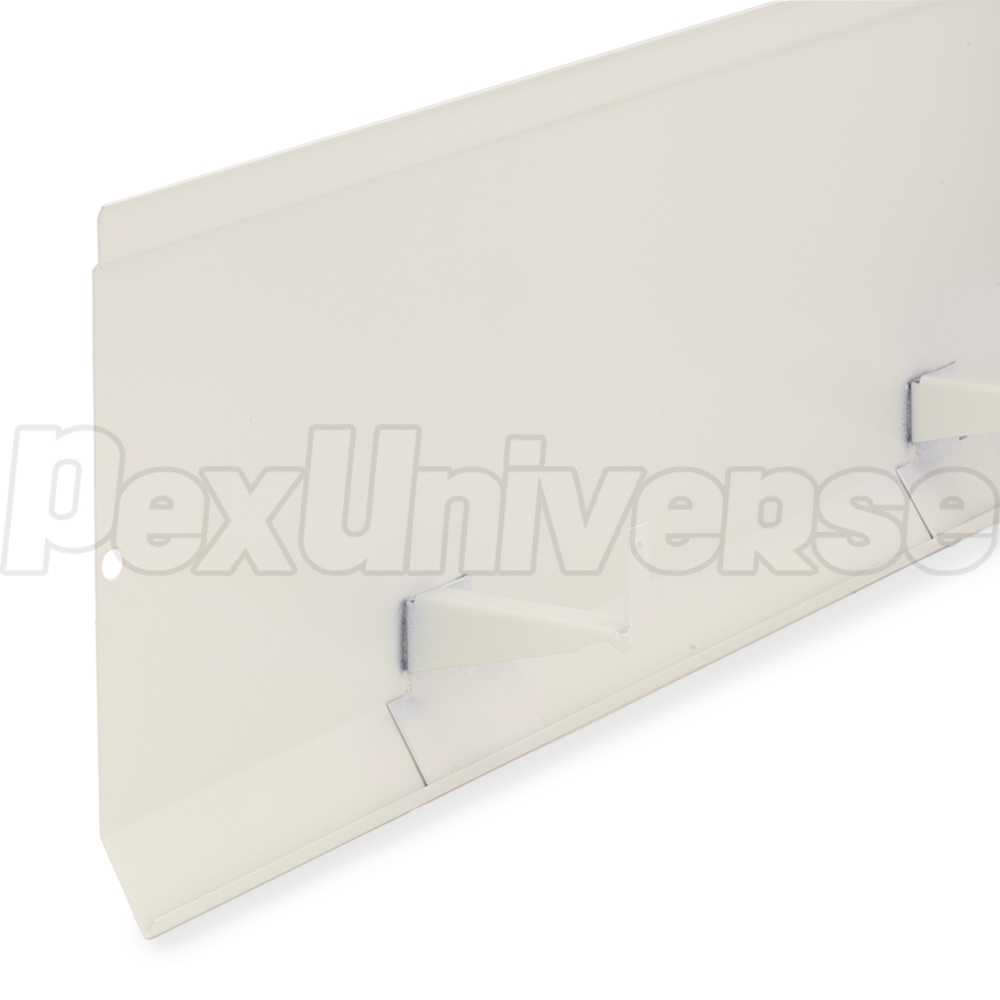

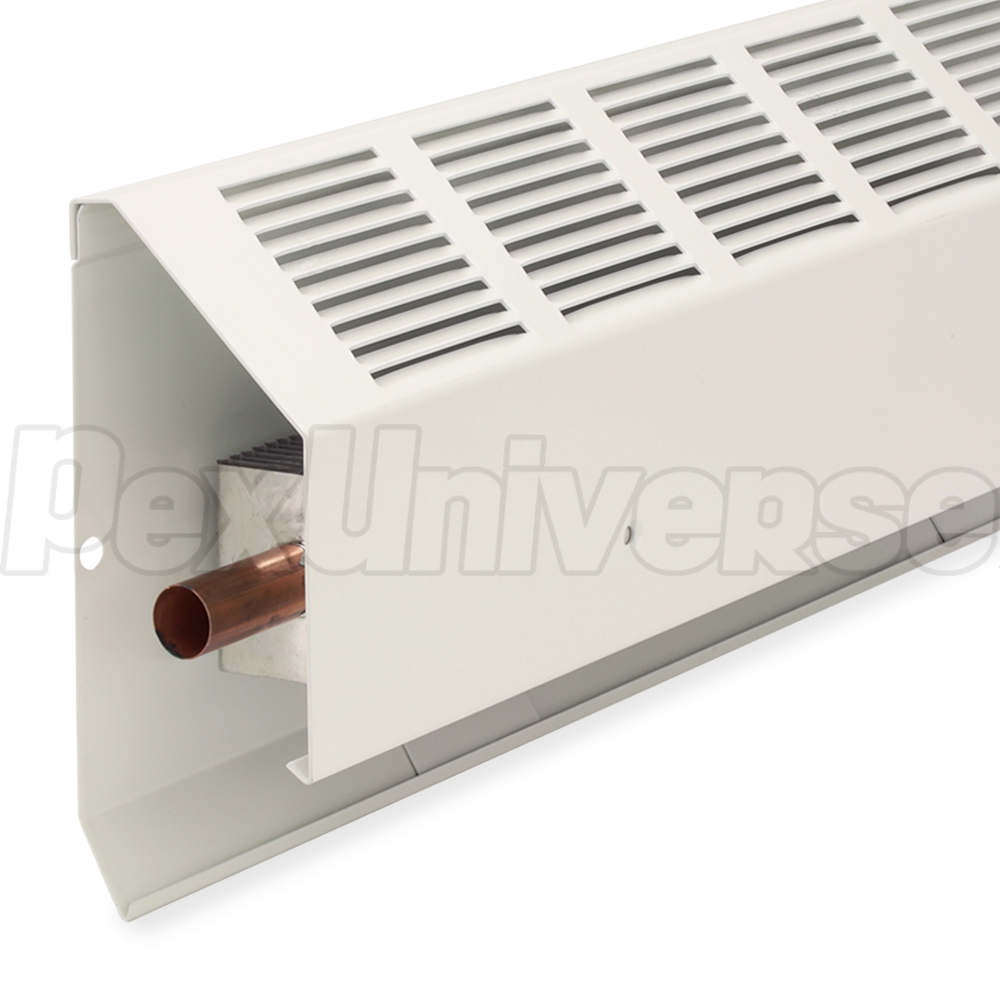

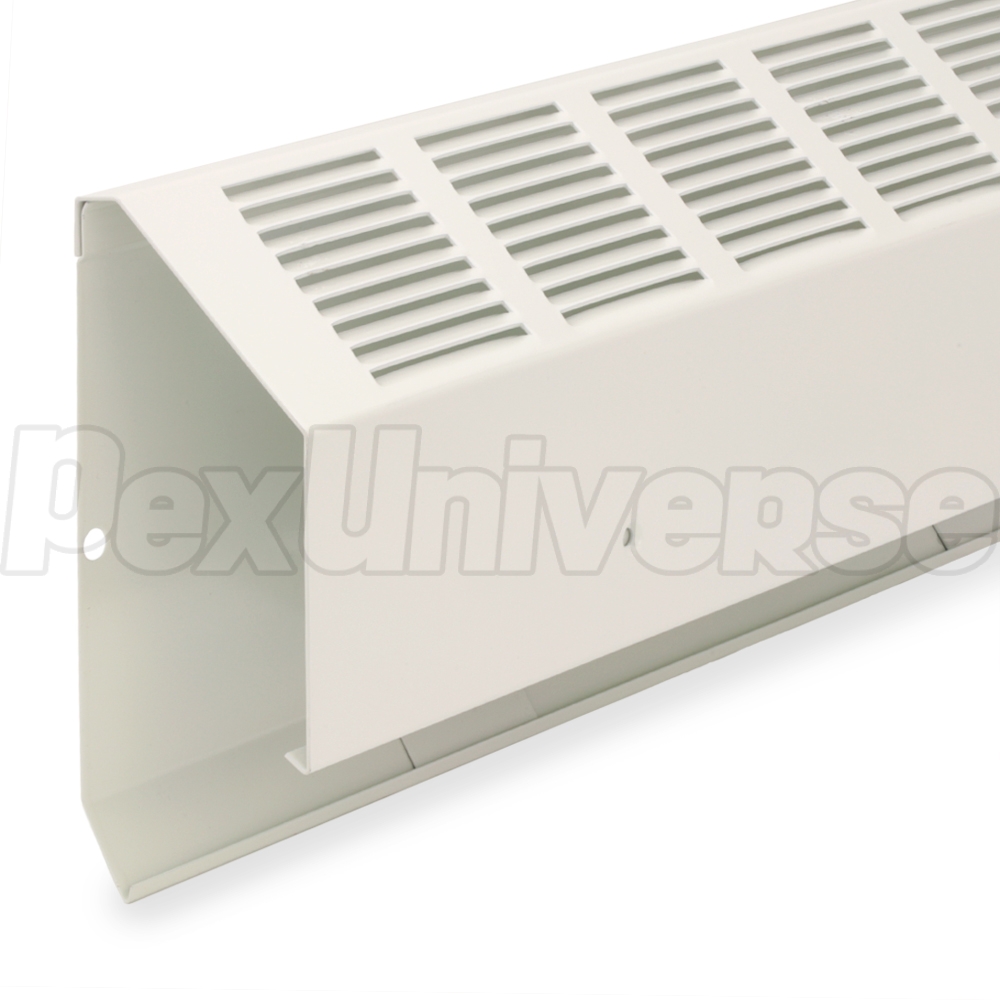

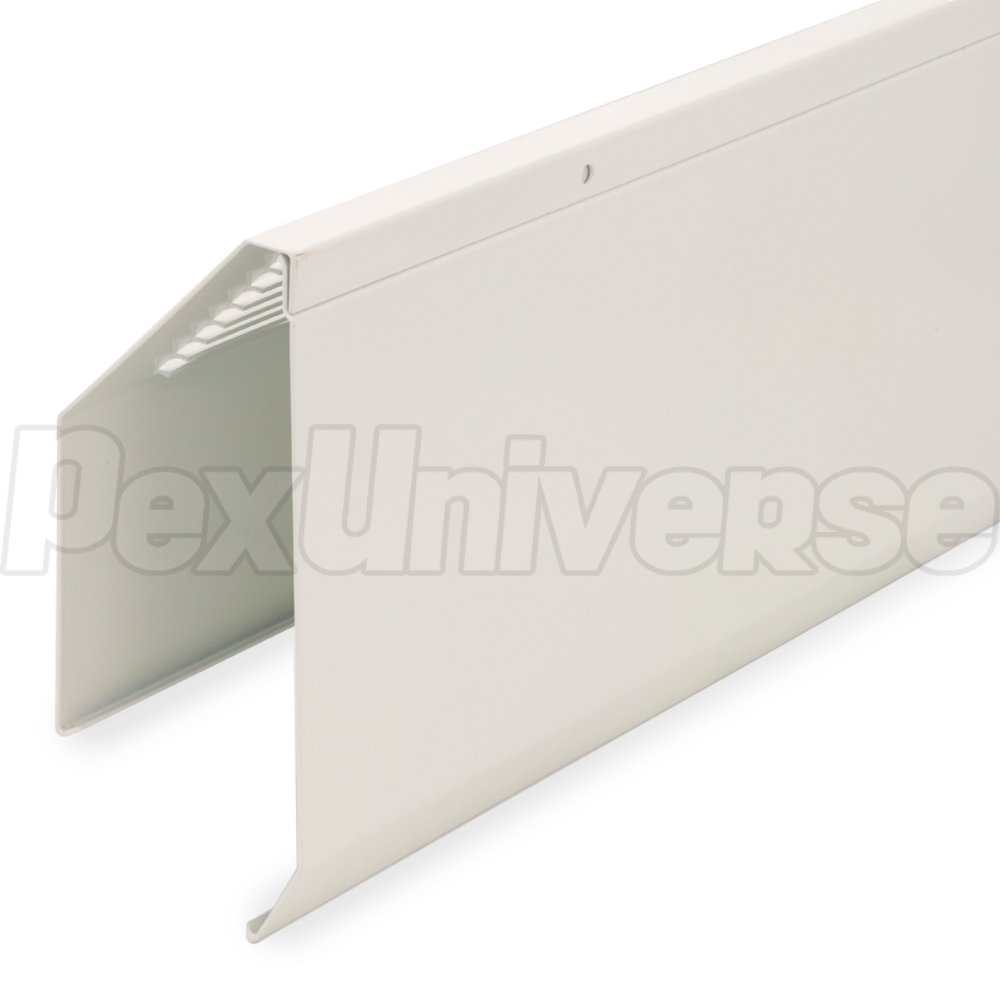

Slant/Fin 4ft long HD-850 series extra heavy-duty commercial baseboard only (heating element & end caps not included).

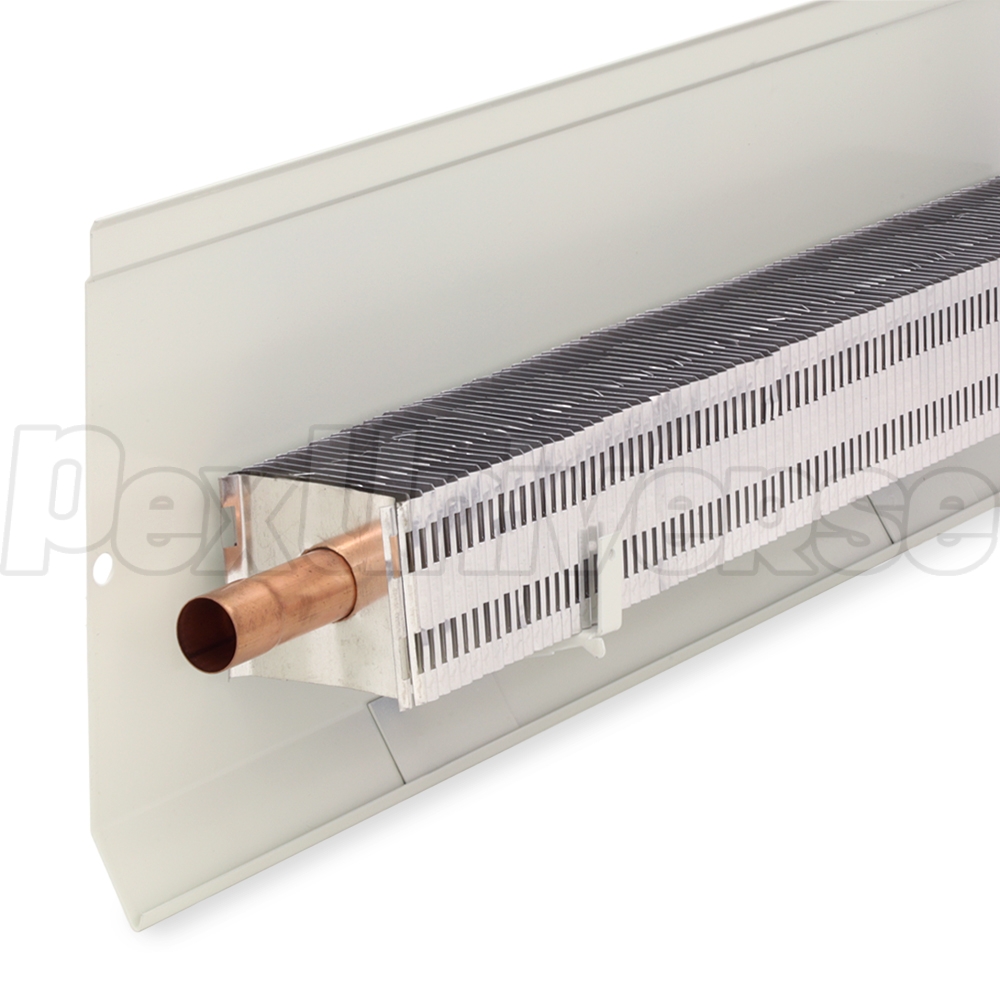

Compatible with a wide range of heating elements (H-1, H-2, H-3, H-4, H-6) to accommodate a variety of projects (standard, high output, long runs, high flow, hot water or steam, etc.).
HD-850 is vandal-proof baseboard, designed with spot welded heating element supports, extra-thick front cover and security screws every 12 inches. As with other commercial baseboard heaters, this series lacks damper (which prevents unwanted access inside the baseboard) and has a sloped (slanted) top design, which discouranges sitting, placing of feet or personal belongings.
HD-850 is a true commercial & insitutional grade baseboard, intended for applications requiring extra durability - schools, heavy traffic retail locations, office spaces, common areas and virtually any other.

Features:
  • Extra heavy-duty, true commercial grade baseboard with rugged front cover
  • Highly resistant to damage and tampering due to spot welded element support brackets & security screws every 12 inches
  • Compatible with a wide range of heating elements (sold separately) for hot water or steam heating
  • Super-quiet - smooth expansion cradles eliminate expansion & metal-to-metal noises
  • Each baseboard is individually packed into a Zip-Strip carton to prevent scratching & damage on the jobsite
  • Slope-top profile discourages placing of feet and personal belongings on top of baseboard
  • Damper-less design eliminates a weak point and prevents access to and tampering with the heating element inside
  • Made in the USA

Technical Specifications:
  • Total length: 48"
  • Height: 8-1/2"
  • Depth (front cover to wall): 3-1/2"
  • BTU Heat Output: Varies by element type, number of elements (1 or 2) & operating temperature - see file Elements - Heat Output (under Literature tab)
  • Enclosure & brackets material: galvanized steel
  • Metal thickness: 16-gauge front cover, 20-gauge back panel
  • Finish: Nu-white enamel
